DNA6000-R

The DNA6000-R Series Rack-Mount Vector Network Analyzers are specifically designed for high-density system integration in standard equipment racks and automated high-volume production testing. Featuring an innovative screenless design, the instrument delivers exceptional integration flexibility in an ultra-compact form factor. At the same time, it retains comprehensive peripheral and communication interfaces, supporting external monitors, keyboards, and mice for flexible operation. This enables both embedded system deployment and on-site manual debugging, making it a benchmark solution for highly integrated test systems.

PORTS : 4
Frequency Range : 5 kHz ~ 26.5 GHz
Connectors : N (f)
Datasheet

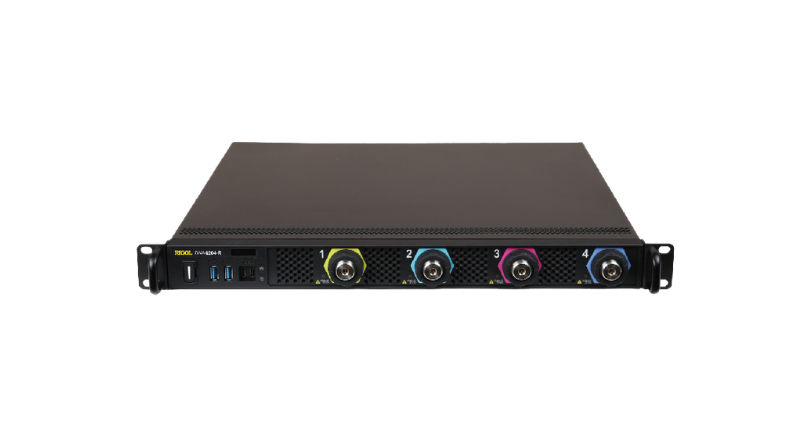

Main Image
Thumbnail 1

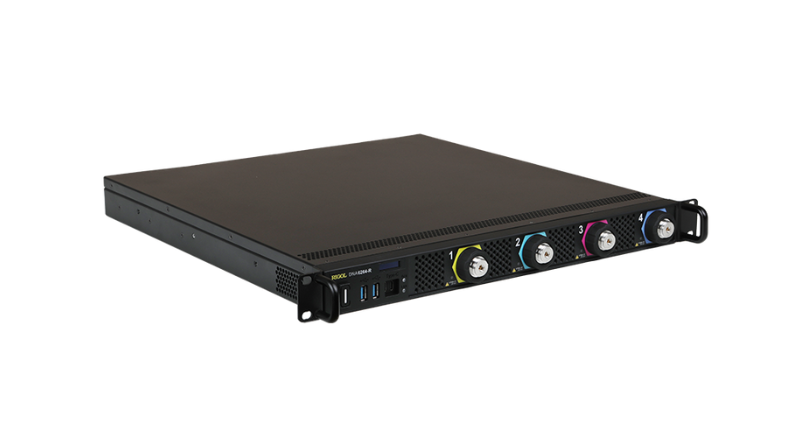

Thumbnail 2
Thumbnail 3

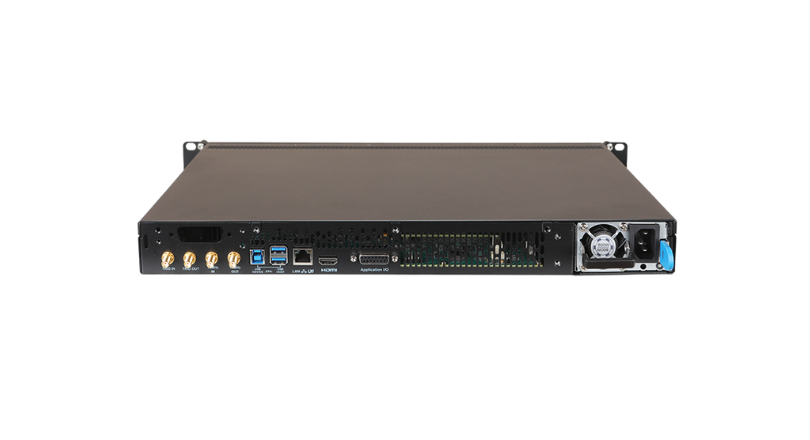

Thumbnail 4

Features

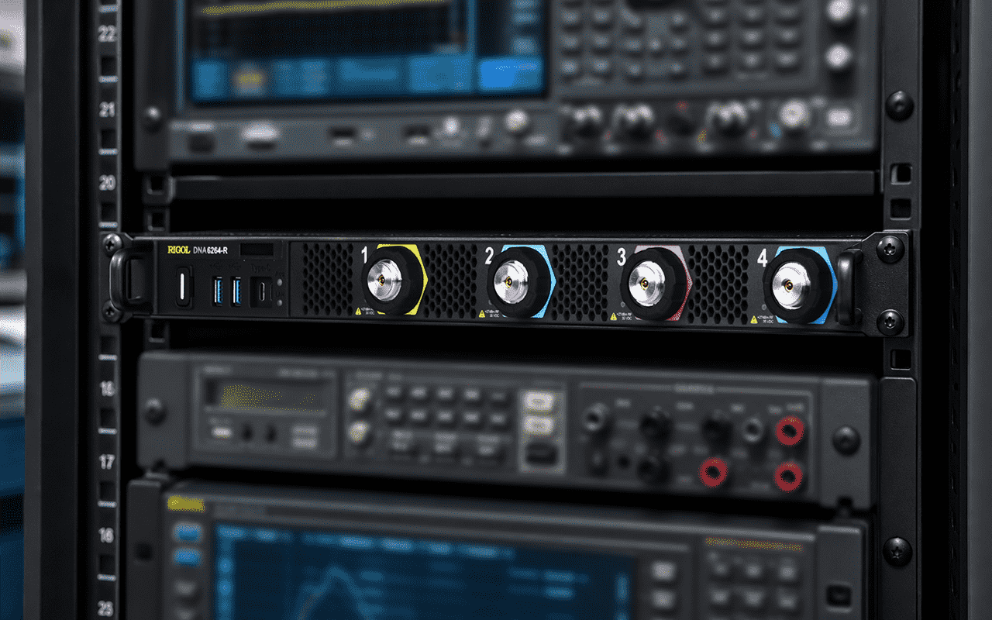

Compact Form Factor for Standard Industrial Racks

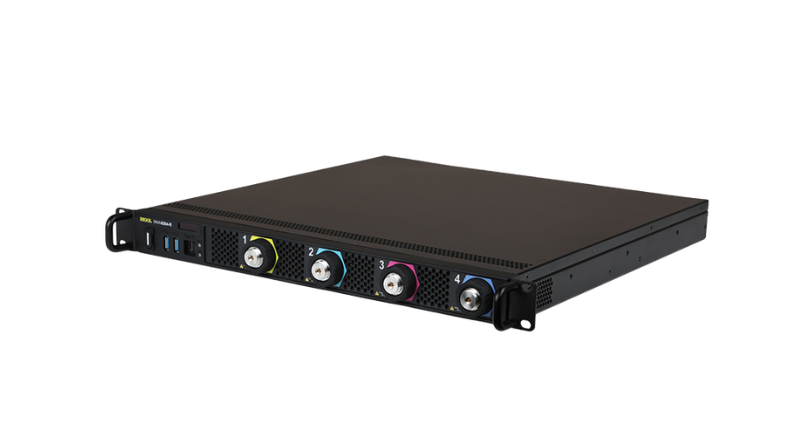

The DNA6000-R features a dedicated screenless design, eliminating unnecessary display components for a highly compact footprint. Measuring only 432 mm × 43.9 mm × 440 mm, it complies with the standard 1U rack-mount specification and can be directly installed in industrial standard racks, supporting high-density multi-instrument deployment.

Compact Form Factor for Standard Industrial Racks

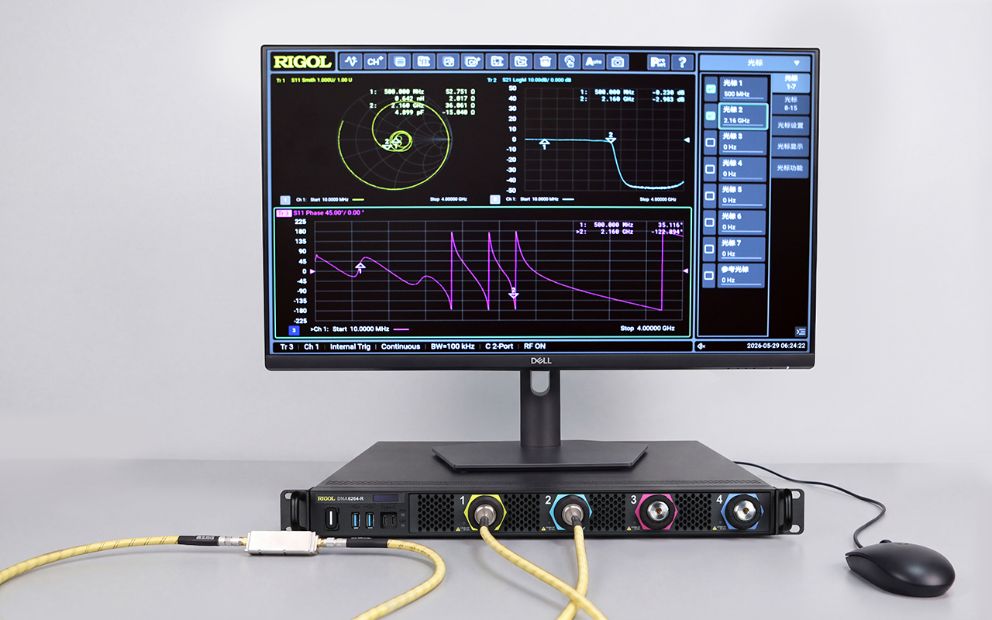

Drop-In Compatibility

Equipped with comprehensive communication interfaces including LAN, GPIB, and Application I/O, the DNA6000-R integrates seamlessly with industrial automated test platforms and control systems. It supports standard SCPI command programming and provides instruction-set compatibility, enabling smooth integration into or replacement within existing test systems without rewriting automation scripts while preserving familiar workflows.

Drop-In Compatibility

Broad Frequency Range for Diverse Applications

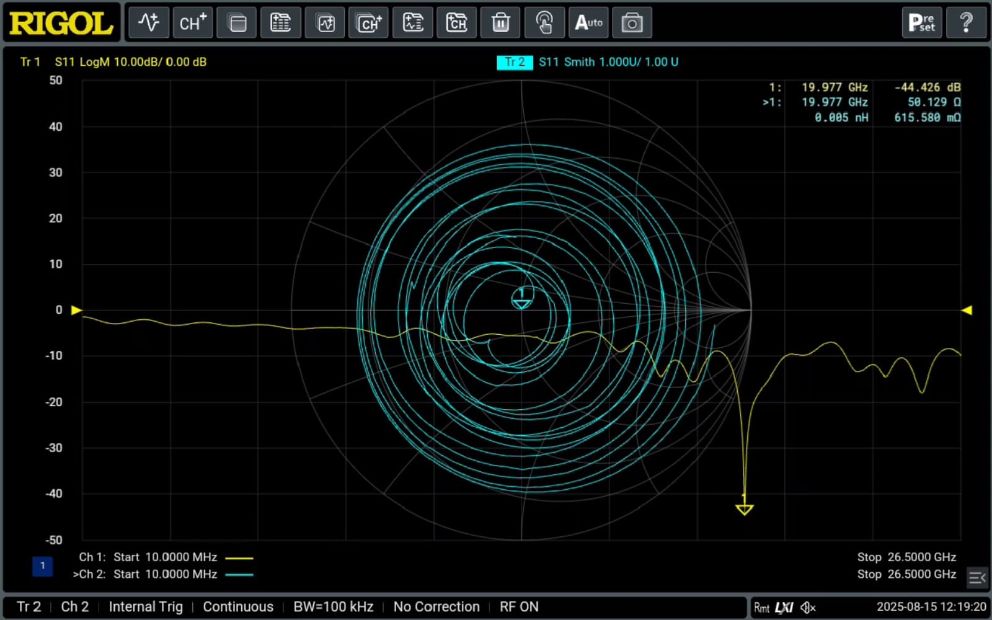

Delivering a frequency range from 5 kHz to 26.5 GHz with 4 or 2 test ports, this analyzer precisely covers testing requirements ranging from basic passive components to material dielectric constant analysis and high-speed interconnects.

Broad Frequency Range for Diverse Applications

Superior Performance & Stability

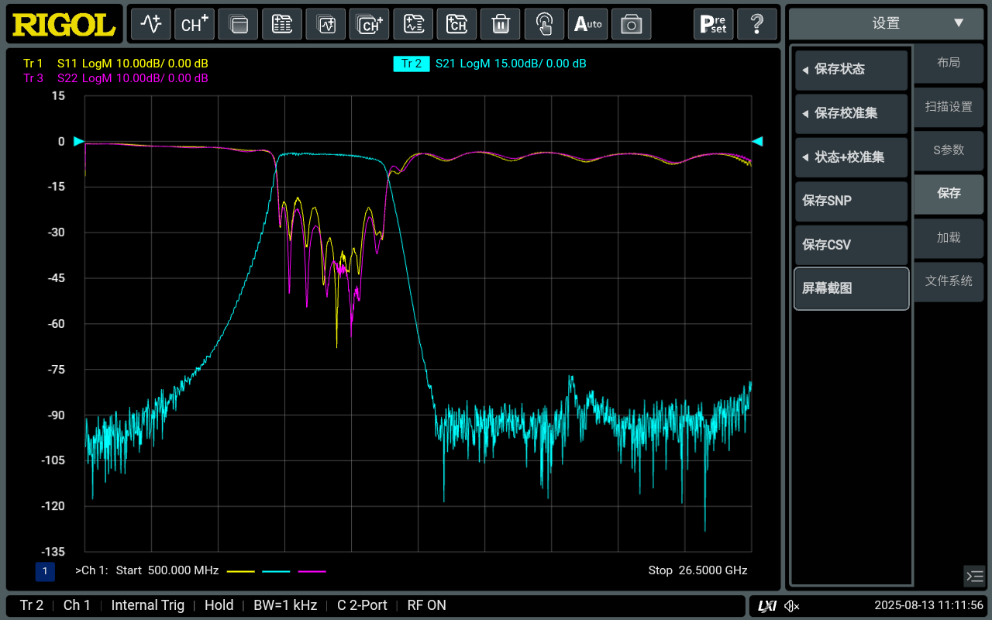

Achieve precise characterization with a wide dynamic range >120 dB and low trace noise, ensuring stability even when testing high-suppression devices.

Superior Performance & Stability

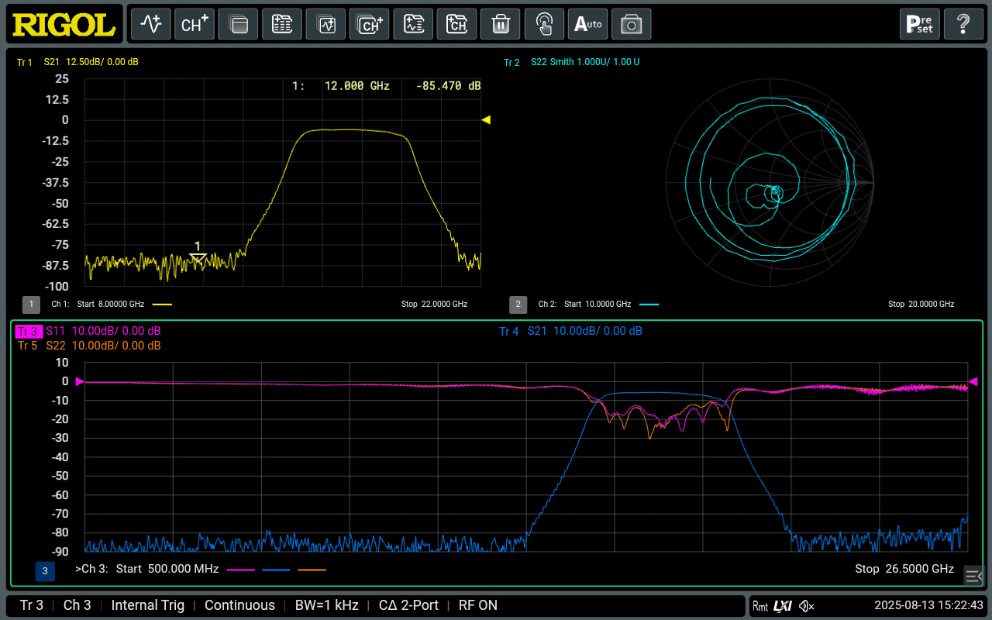

Advanced Analysis Tools Built-In

Accelerate your workflow with essential integrated tools including Pass/Fail limits, SWR, Smith Charts, and TDR—perfect for both the lab and the production floor.

Advanced Analysis Tools Built-In

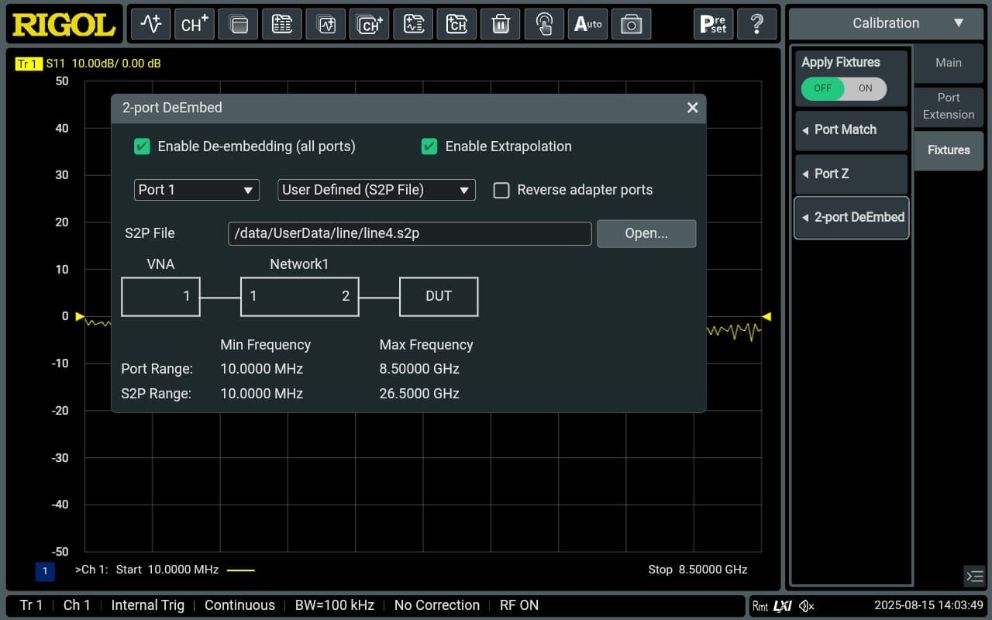

True Device Performance via De-embedding

See the real performance of your DUT. Our Fixture Removal and De-embedding features strip away errors caused by cables and adapters, delivering the true S-parameters you need.

True Device Performance via De-embedding

Intuitive Calibration

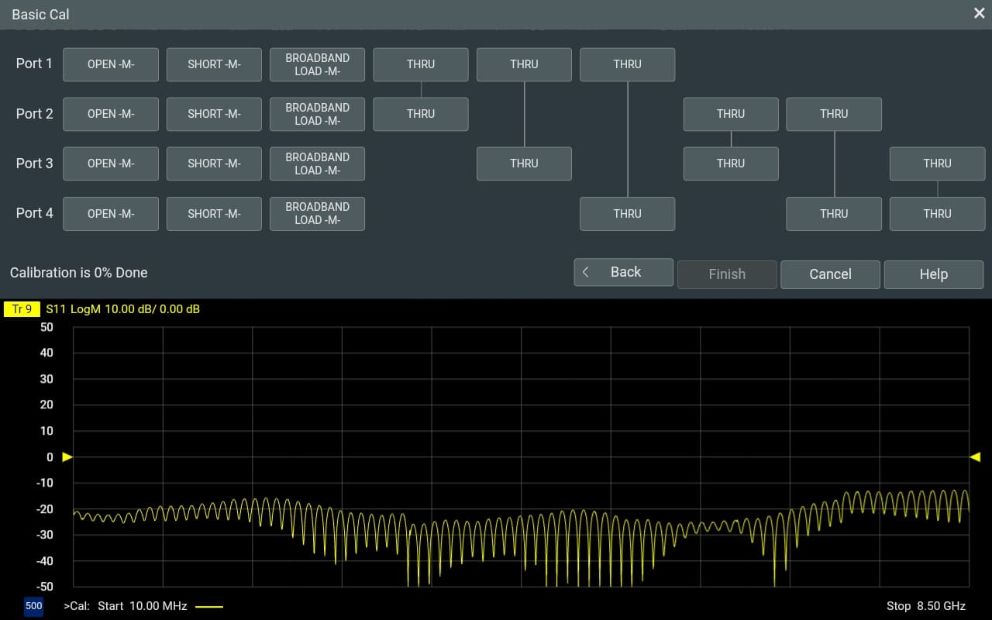

No more guesswork. Our step-by-step Calibration Wizard guides users of all skill levels to achieve accurate, calibrated setups in seconds.

Intuitive Calibration

Mechanical or Electronic Calibration

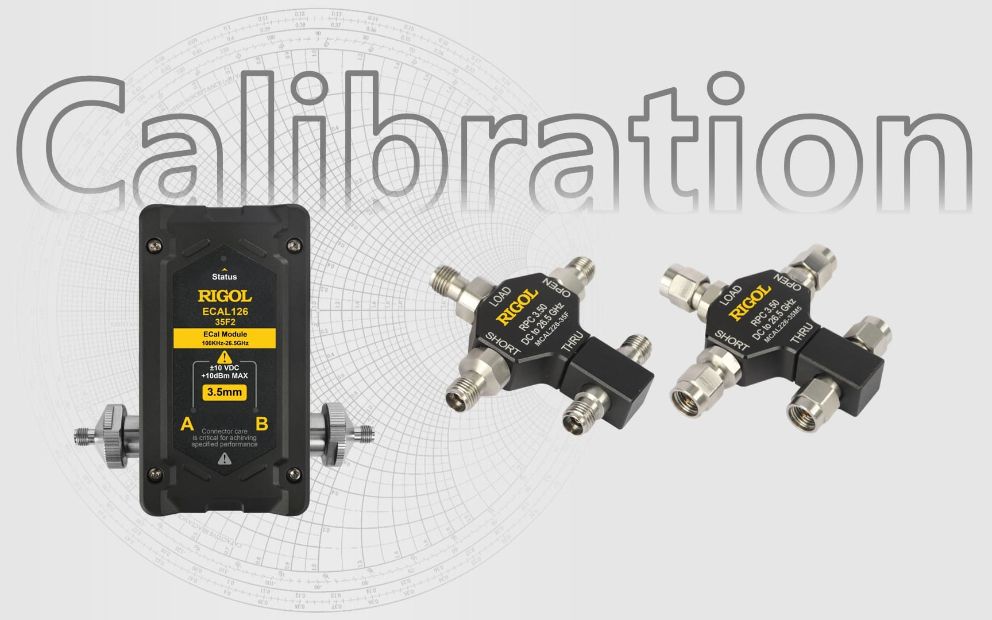

Choose the precision of our durable mechanical kits or the speed and consistency of our Electronic Calibration (E-Cal) modules to maximize testing efficiency.

Mechanical or Electronic Calibration

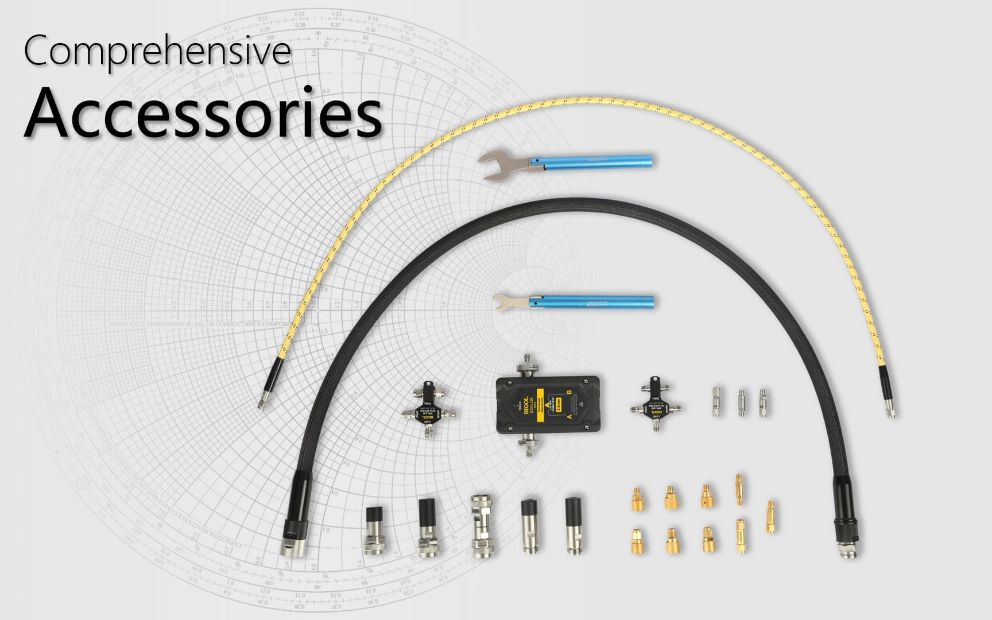

Complete Accessory Support

Get up and running faster with our comprehensive ecosystem of accessories—your one-stop shop for reliable testing.

Complete Accessory Support

Model

Model PORTS Frequency Range Connectors
DNA6082-R 2 5 kHz ~ 8.5 GHz N (f)
DNA6084-R 4 5 kHz ~ 8.5 GHz N (f)
DNA6142-R 2 5 kHz ~ 14 GHz N (f)
DNA6144-R 4 5 kHz ~ 14 GHz N (f)
DNA6202-R 2 5 kHz ~ 20 GHz 3.5mm (m)
DNA6204-R 4 5 kHz ~ 20 GHz 3.5mm (m)
DNA6262-R 2 5 kHz ~ 26.5 GHz 3.5mm (m)
DNA6264-R 4 5 kHz ~ 26.5 GHz 3.5mm (m)
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Datasheet

Name Release Date Download
DNA6000-R Datasheet 2026-06-17 Download

Programming Manual

Name Release Date Download
DNA6000-R ProgrammingGuide 2026-06-17 Download

Quick Guide

Name Release Date Download
DNA6000-R Quick Guide 2026-06-17 Download
