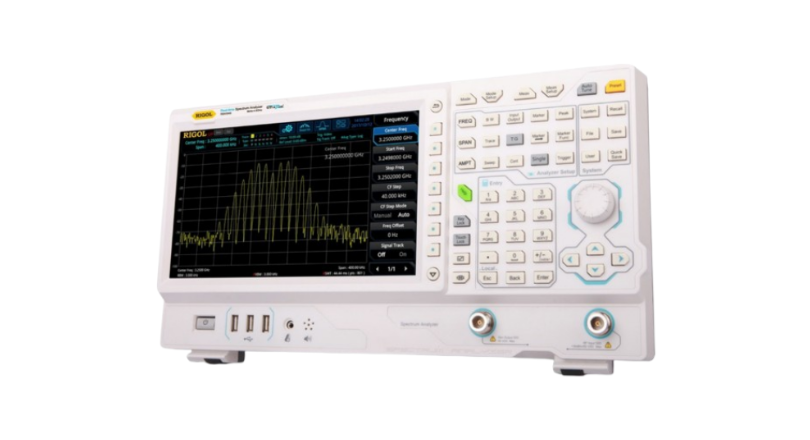

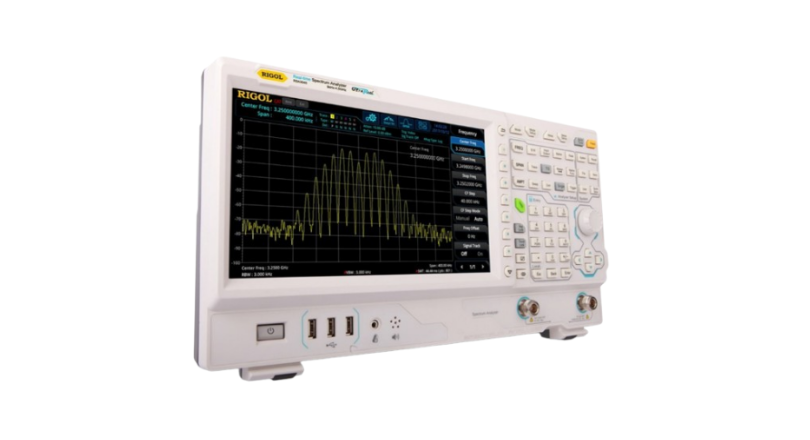

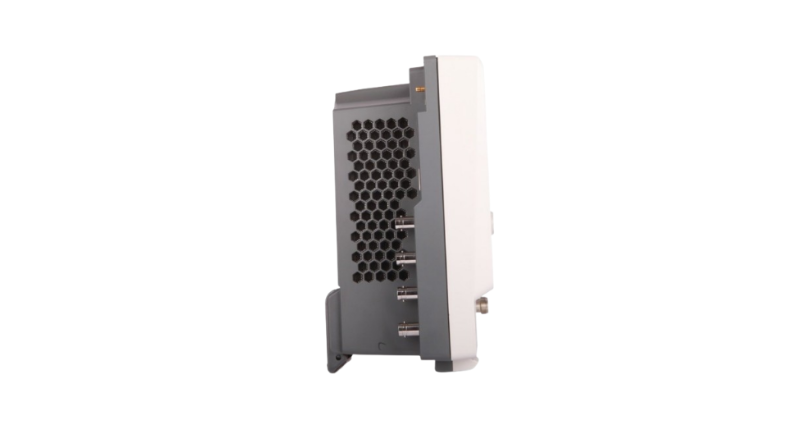

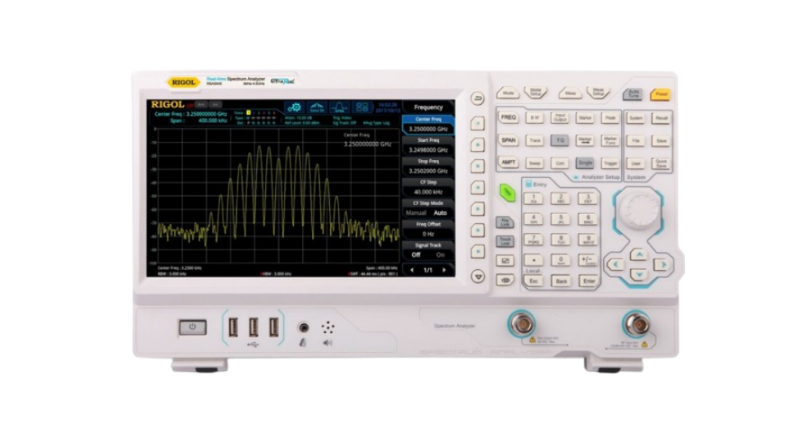

RSA3000-TG

The RIGOL RSA3000-TG Series is a high-performance real-time spectrum analyzer that combines traditional swept spectrum analysis with advanced real-time signal analysis capabilities. Equipped with a built-in Tracking Generator (TG), the RSA3000-TG is ideal for RF design, wireless communications, EMI pre-compliance testing, filter characterization, antenna measurements, and signal monitoring applications. It delivers frequency coverage up to 3.2 GHz or 4.5 GHz, with a 40 MHz real-time bandwidth for capturing transient and intermittent signals.

Frequency Range : 9kHz～4.5GHz

Resolution Bandwidth (RBW) : 1Hz~3MHz(10MHz opt.)

Phase Noise (Typ.) : -102dBc/Hz@10kHz

Displayed Average Noise Level (DANL) : -161dBm

Tracking Generator : Yes

Analysis Function : RTSA/EMI

Features

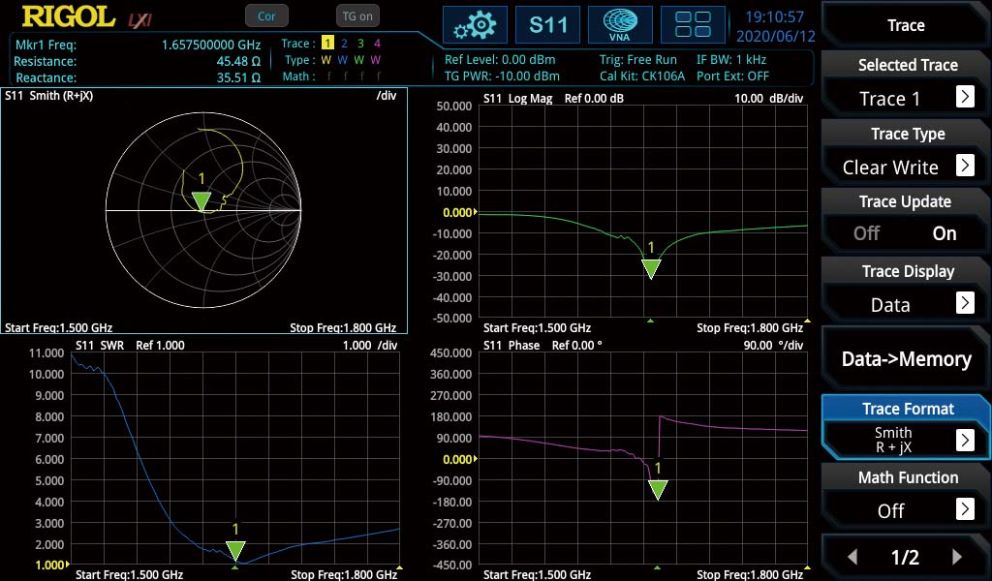

Built-in Vector Network Analysis mode

In VNA mode, you can make S11, S21, and DTF measurements for the components and circuit networks. The network characteristics of the components under test can be accurately demonstrated in Smith chart, Polar chart, and other formats.(*N-model ONLY)

Conduction/Radiation Pre-compliance with Built-in Emi Test Software

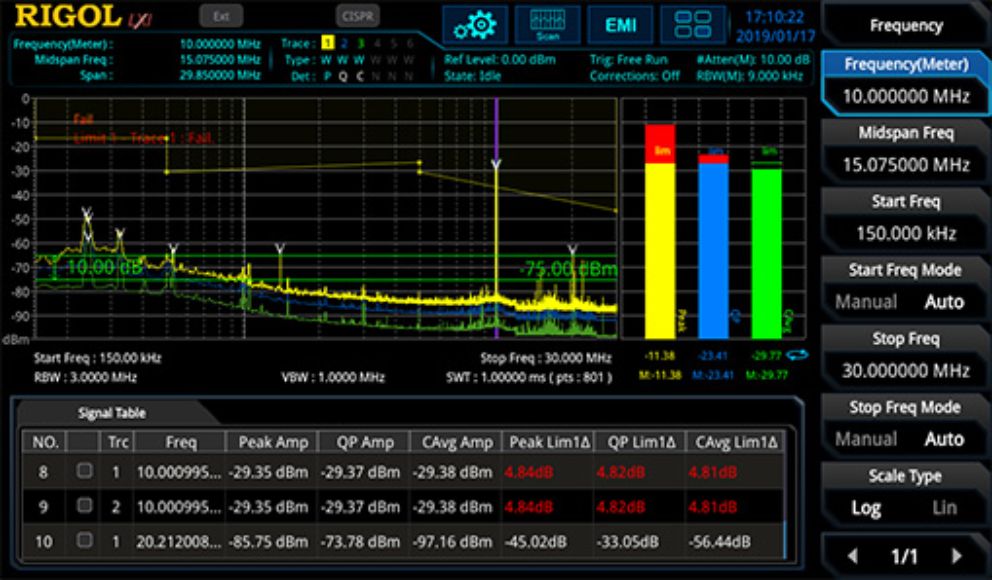

The RSA3000's built-in EMI pre-compliance application software, combined with CISPR-compliant filters, pre-tests the product for conduction and radiation to identify and improve its conduction/radiation disturbance source and accelerate time-to-market.

Signal Triggering and Monitoring Via Fmt Mode

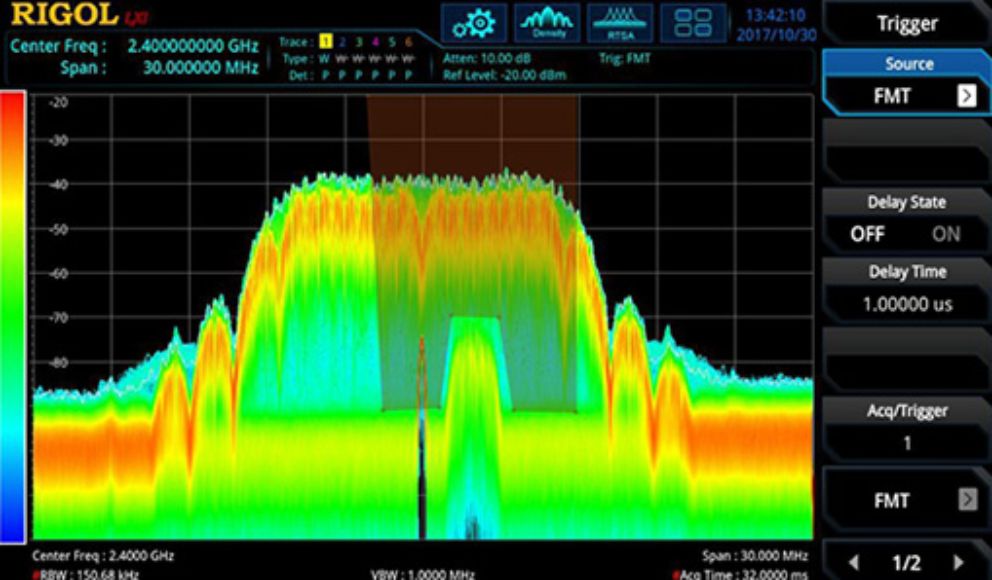

The FMT frequency mask trigger is a unique trigger mode for real-time spectrum analyzers. You can quickly build a template and accurately locate and trigger signals that match the template rules to detect sporadic anomalies within the monitored range.

Resolution Bandwidth As Low As 1 Hz

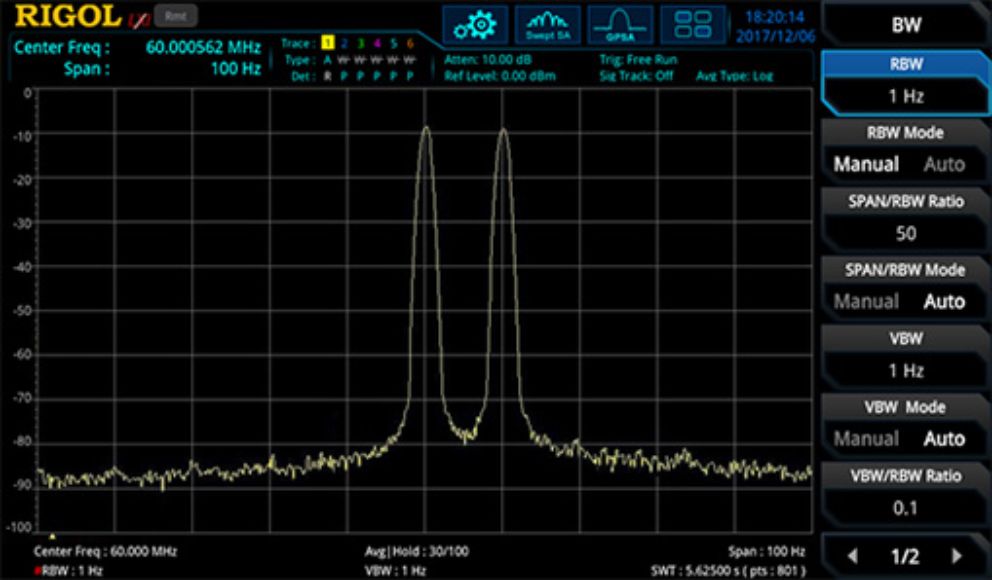

Resolving signals with similar frequencies is critical to verifying many RF devices and systems. With the RSA3000, the RBW resolution bandwidth with a scan bandwidth of only 1 Hz allows you to view more details of adjacent signals.

Danl As Low As -161 Dbm with Optional Preamp

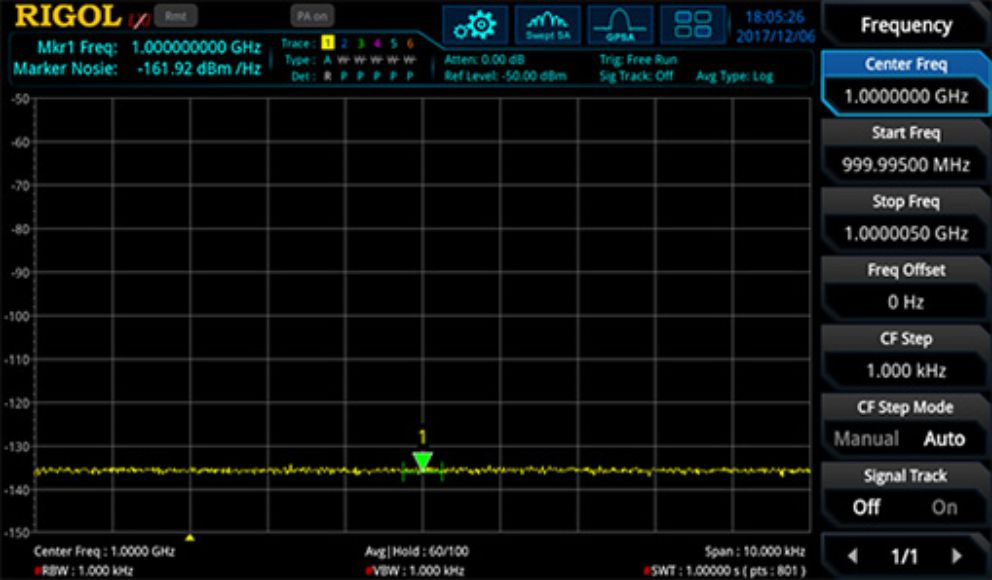

View lower powered signals (harmonics, interference sources) and ease trouble-shooting in swept and real-time mode.

Multiple interfaces to improve the connectivity of the instruments

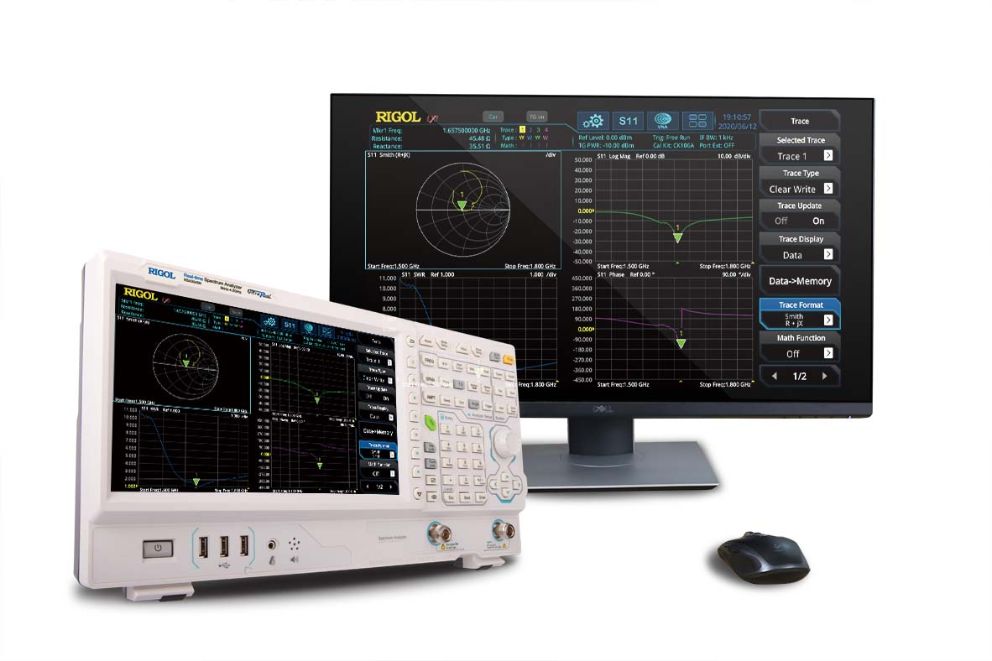

The instrument can be connected to a larger display/monitor via the HDMI interface for better display effects. The Web Control function allows you to directly control the device by accessing the device IP address, improving the experience of remote control.

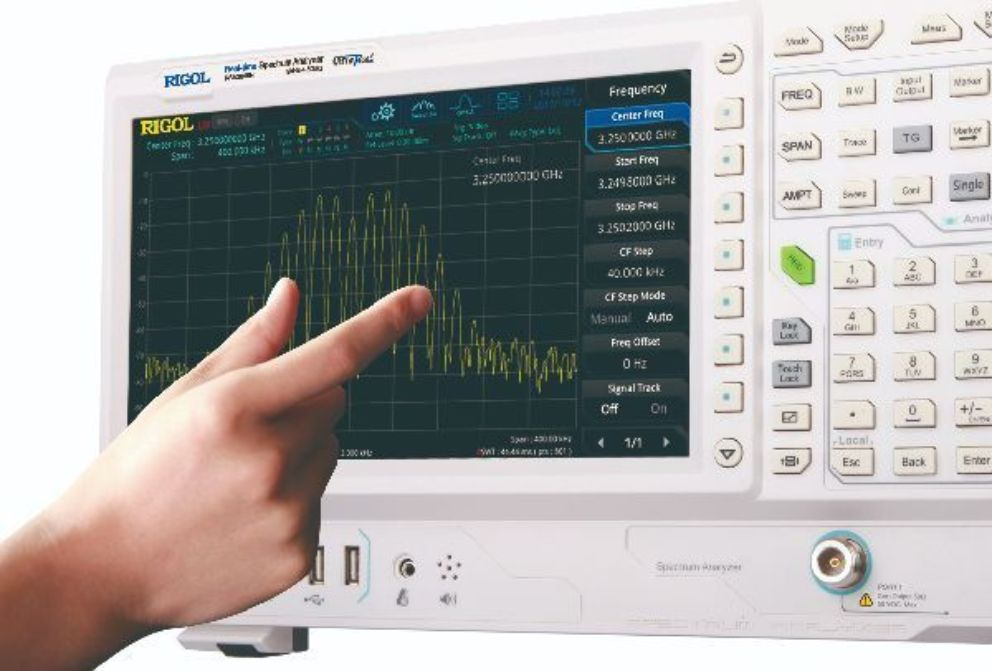

Complete Operations with a Multi-touch Screen

RSA3000 with a 10.1-inch multi-touch capacitive screen with quick setup, and support a variety of gestures such as dragging, expanding, and zooming waveforms to provide a personalized interactive experience that maximizes your time.

Excellent Phase Noise Metric

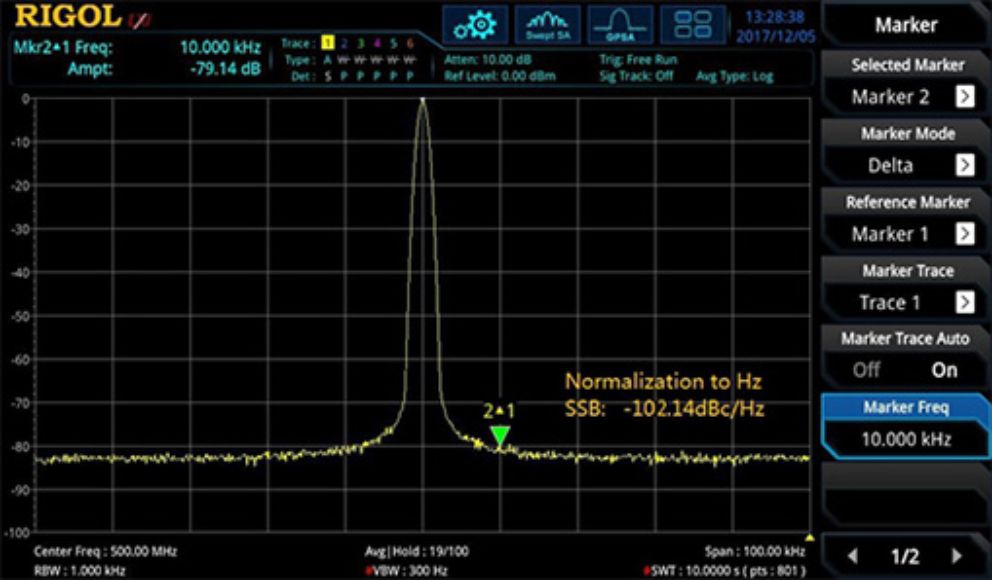

Excellent sweep performance, phase noise as low as -102dBc/Hz.
