RSA6000 Series

The RSA6000 Series Real-Time Spectrum Analyzer is equipped with real-time analysis (RTSA) and swept analysis (GPSA) functions, and offers optional vector signal analysis application software (VSA), analog signal analysis application software (ADM), and EMI measurement application software (EMI), boasting excellent performance and specifications.

Frequency Range : 5 kHz – 26.5 GHz
Description / DSP range : 1 Hz – 10 MHz
Phase Noise : –108 dBc/Hz @10 kHz offset
DANL (Displayed Average Noise Level) : –163 dBm
Tracking Source : Yes (option / feature available)
Datasheet

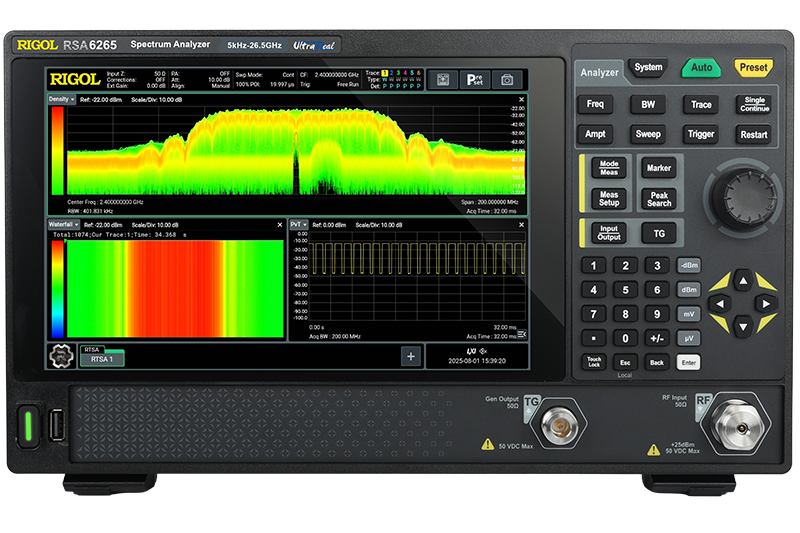

Main Image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4

Features

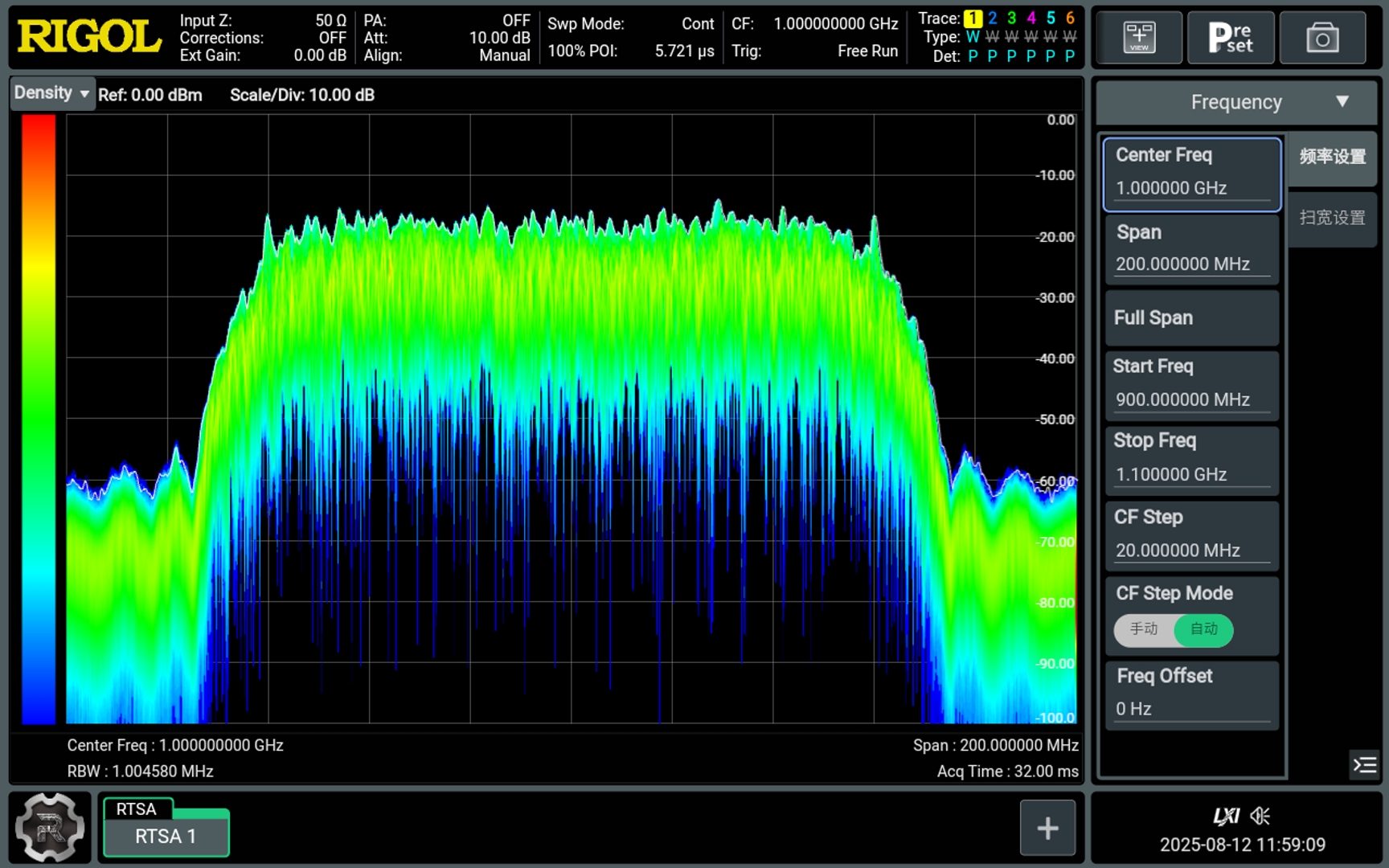

Class-leading 200MHz real-time spectrum analysis

It enables signal capture in complex environments, effortlessly handling challenges such as multiple signals and transient interference. This allows for the rapid identification of abnormal signals, enhancing R&D and troubleshooting efficiency.

Class-leading 200MHz real-time spectrum analysis

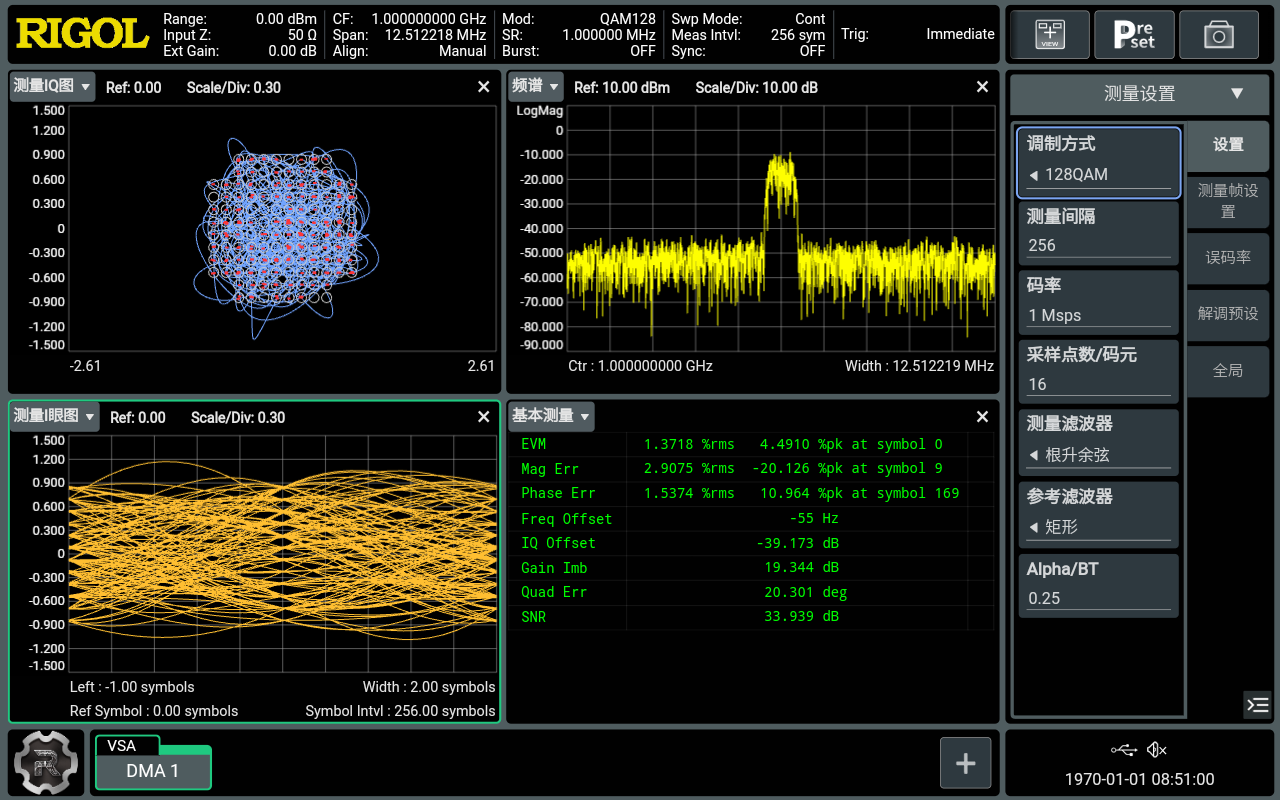

Completely upgraded demodulation analysis bandwidth of 200MHz

200MHz vector demodulation bandwidth: Easily handle in-depth analysis and performance evaluation of various broadband communication signals.

Completely upgraded demodulation analysis bandwidth of 200MHz

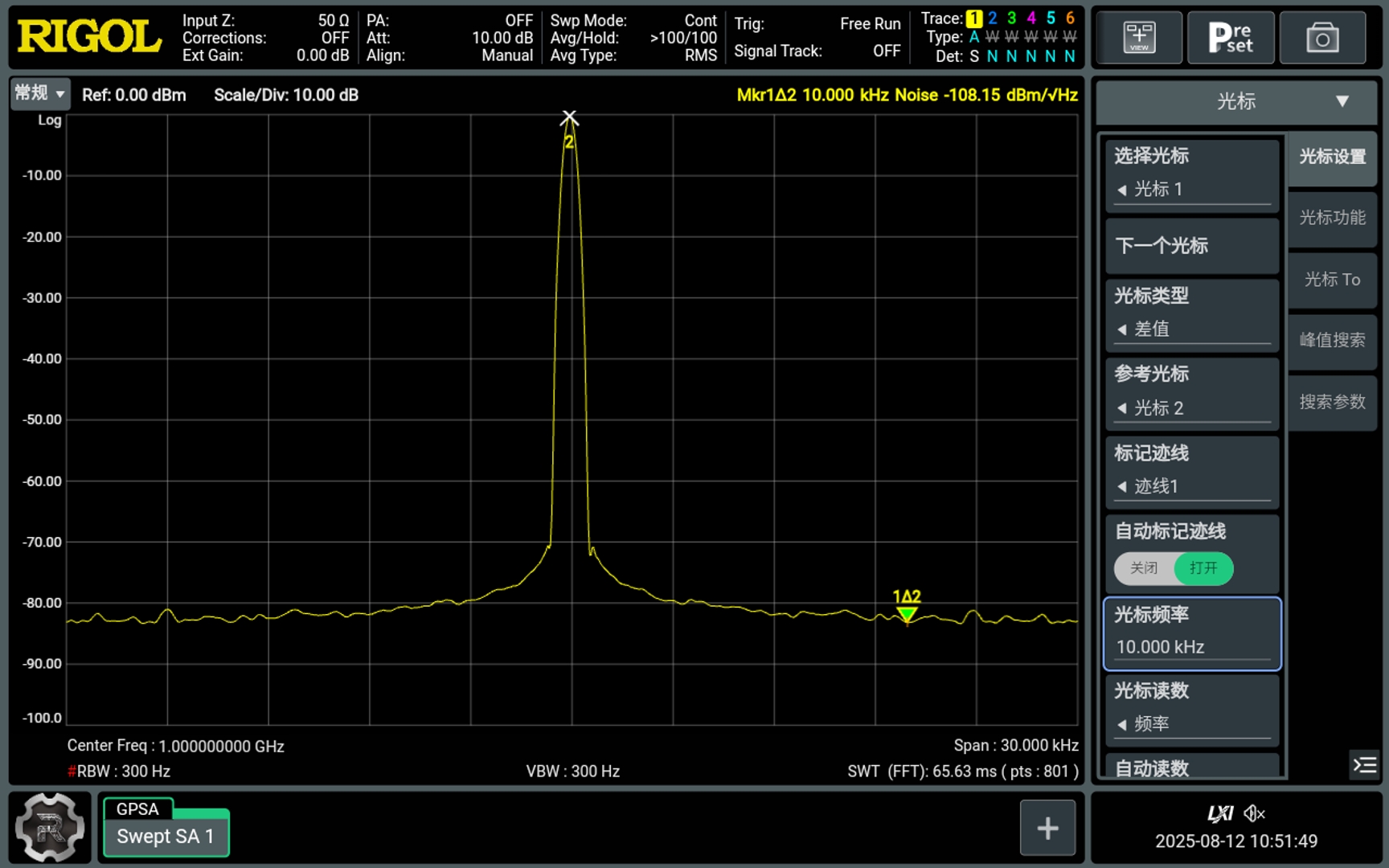

Phase Noise -108dBc/Hz@1GHz，10kHz offset

Excellent phase noise performance provides a pure local oscillator (LO) for demanding tests, ensuring accurate and reliable measurement results.

Phase Noise -108dBc/Hz@1GHz，10kHz offset

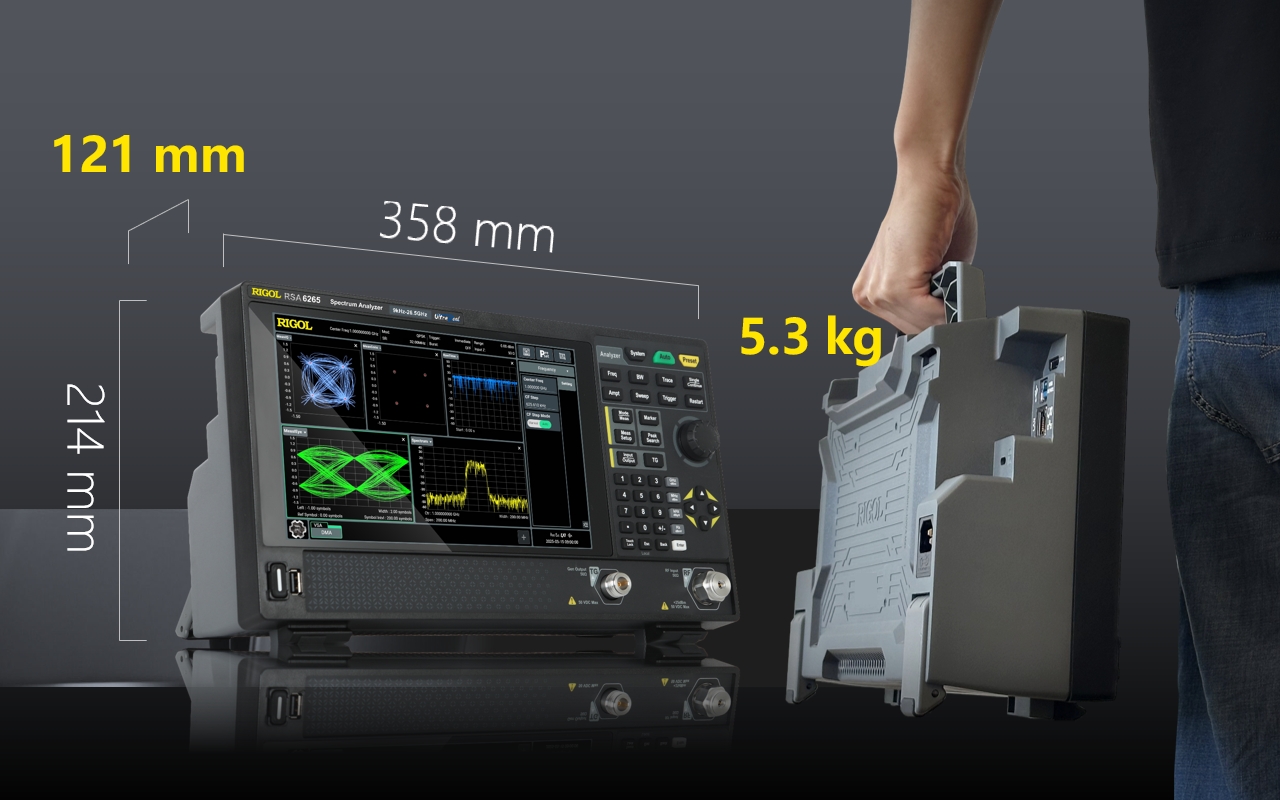

Compact size, portable design

The compact and portable design easily adapts to crowded test benches and complex field environments, making high-performance testing possible anywhere.

Compact size, portable design

5-in-1 Multifunctionality

One instrument with five core functions highly integrated. It significantly saves test space and investment costs, comprehensively enhancing overall test value.

5-in-1 Multifunctionality

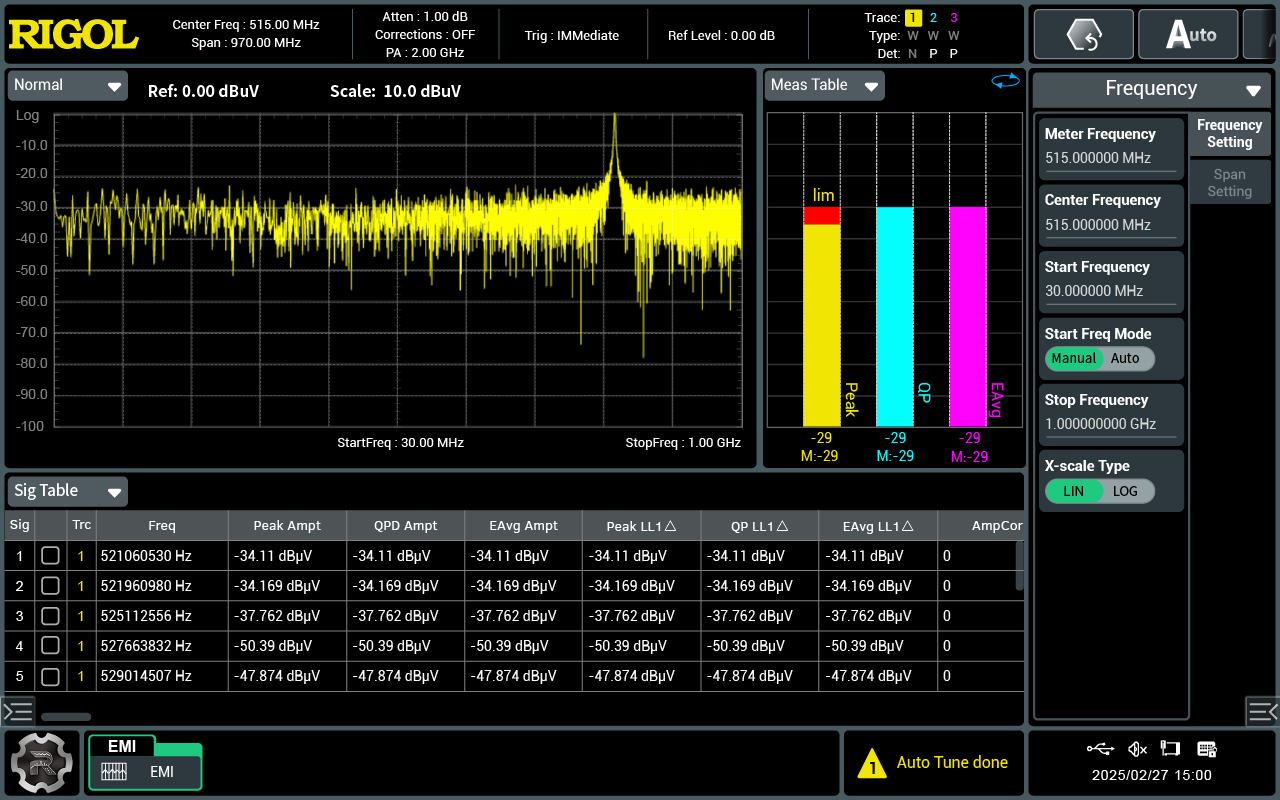

Complete the pre-test of conduction/radiation through the built-in EMI test software.

The built-in EMI pre-test application software, combined with a filter that meets the CISPR standard, conducts pre-tests on the product's conduction and radiation to identify and improve the sources of conduction/radiation interference, thereby accelerating the product's market entry.

Complete the pre-test of conduction/radiation through the built-in EMI test software.

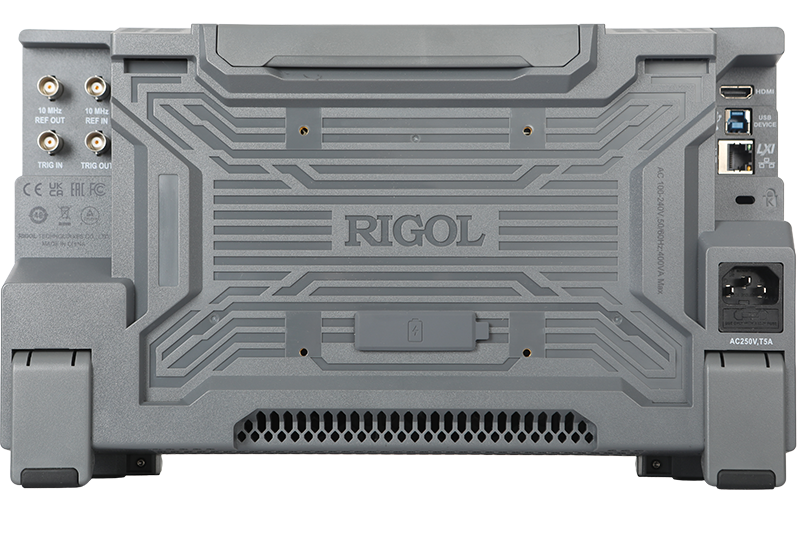

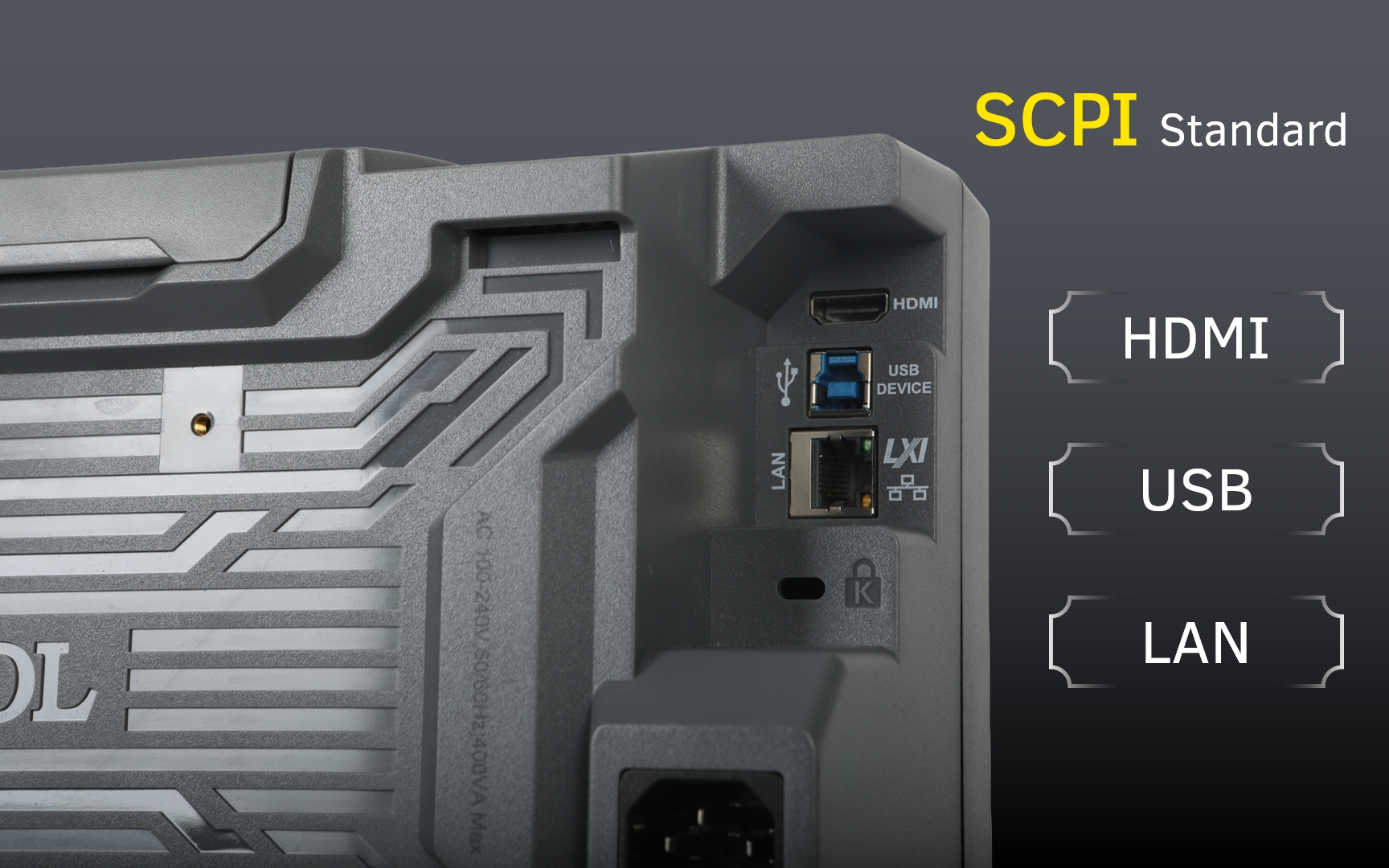

Provide multiple interfaces and support the standard SCPI instruction set

Integrated with USB, LAN, and HDMI interfaces. It supports standard SCPI commands to easily build automated test systems and accelerate your product development process.

Provide multiple interfaces and support the standard SCPI instruction set

UI Design Optimized for Touch Operation

The brand-new touch UI delivers a smooth, tablet-like experience, making complex spectrum measurements intuitive, efficient, and effortless.

UI Design Optimized for Touch Operation

Model

Model Frequency Range Description Phase Noise DNAL Tracking Source Price
RSA6265 5 kHz - 26.5 GHz 1Hz-10MHz -108dBc/Hz@10kHz -163dBm Yes Get a Quote
RSA6140 5 kHz - 14 GHz 1Hz-10MHz -108dBc/Hz@10kHz -163dBm Yes Get a Quote
RSA6085 5 kHz - 8.5 GHz 1Hz-10MHz -108dBc/Hz@10kHz -163dBm Yes Get a Quote
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Accessories

Model Description Price
RSA6000-P08 Preamplifier (PA), 8.5 GHz Rp11.883.000
RSA6000-P14 Preamplifier (PA), 14 GHz Rp22.083.000
RSA6000-P26 Preamplifier (PA), 26.5 GHz Rp32.283.000
RSA6000-T08 8.5 GHz Tracking Generator Output Rp15.283.000
RSA6000-B200 200 MHz Analysis Bandwidth Rp32.283.000
RSA6000-RB200 200 MHz Real-time Bandwidth Rp47.583.000
RSA6000-VSA Vector Signal Analysis Application Software Rp32.283.000
RSA6000-EMI EMI Measurement Application Software Rp15.283.000
RSA6000-ADM Analog Demodulation Application Software Rp15.283.000
RSA6000-AMK Advanced Measurement Kit Rp8.483.000
RM6051 Thunderbird Platform Rack Mount Kit
RSA6000-LORA LORA Measurement
RSA6000-ZGB ZIGBEE Measurement
RSA6000-BTX Bluetooth LE TX Measurement
RSA6000-PULSE Pulse Measurement
RSA6000-PNOISE Phase Noise Measurement

User Manual

Name Version Release Date Download
RSA6000 UserGuide UGD27102-1110 2026-03-31 Download
RSA6000 VSA UserGuide UGD28102-1110 2026-03-25 Download
RSA6000 ADM UserGuide UGD29101-1110 2025-12-11 Download
RSA6000 EMI UserGuide UGD30101-1110 2025-12-11 Download
RM6051_RackmountKit_EN 202603 2026-03-31 2026-03-31 Download
RSA6000LoRa_UserGuide_EN UGD32100-1110 2026-06-17 Download
BLE6000_UserGuide_EN UGD34100-1110 2026-06-17 Download
RSA6000PNOISE_UserGuide_EN UGD31100-1110 2026-06-17 Download
RSA6000PULSE_UserGuide_EN UGD35100-1110 2026-06-17 Download
RSA6000ZigBee_UserGuide_EN UGD33100-1110 2026-06-17 Download

Datasheet

Name Version Release Date Download
RSA6000 DataSheet DSD27102-1110 2026-03-31 Download

Programming Manual

Name Version Release Date Download
RSA6000 PULSE ProgrammingGuide PGD35100-1110 2026-06-16 Download
RSA6000 PNOISE ProgrammingGuide PGD31100-1110 2026-06-16 2026-06-16 Download
RSA6000 LoRa ProgrammingGuide PGD29100-1110 2026-06-16 Download
BLE6000 ProgrammingGuide PGD33100-1110 2026-06-16 Download
RSA6000 EMI ProgrammingGuide PGD03100-1110 2025-12-11 2025-12-11 Download
RSA6000 ADM ProgrammingGuide PGD29100-1110 2025-12-11 2025-12-11 Download
RSA6000 VSA ProgrammingGuide PGD28101-1110 2025-08-27 2025-08-27 Download
RSA6000 ProgrammingGuide PGD27102-1110 2025-12-11 2025-12-11 Download

Quick Guide

Name Version Release Date Download
RSA6000 QuickGuide QGD27100-1110 2025-09-15 Download

Software

Name Version Release Date Download
RSA6000 PerformanceVerification PVD27100-1110 2025-09-15 2025-09-15 Download
