DG900 Series

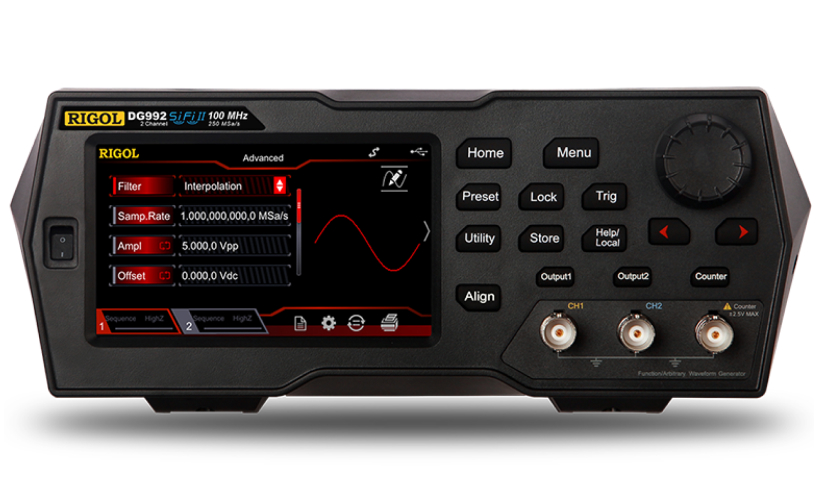

The DG900 series function/arbitrary waveform generator is a multi-functional signal generator that integrates functions such as a function generator, an arbitrary waveform generator, a noise generator, a pulse generator, a pattern generator, a harmonic generator, an analog/digital modulator, and a frequency counter. The brand-new appearance and user-friendly interface design bring a friendly user experience.

Bandwidth : 100MHz
Sample Rate : 250MSa/s
Vertical Resolution : 16bits
Channels : 2CH
Arbitary Wave Length : 16Mpts
Datasheet
Main Image
Thumbnail 1

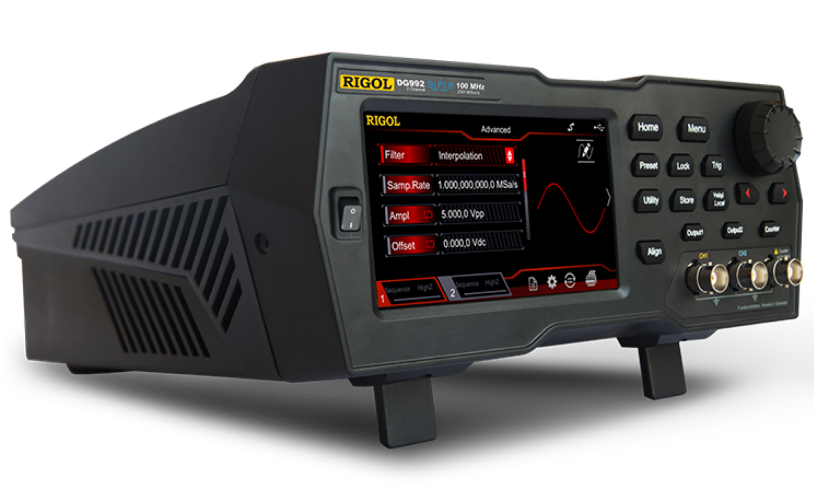

Thumbnail 2
Thumbnail 3
Thumbnail 4

Features

4.3 Inch Touch Screen

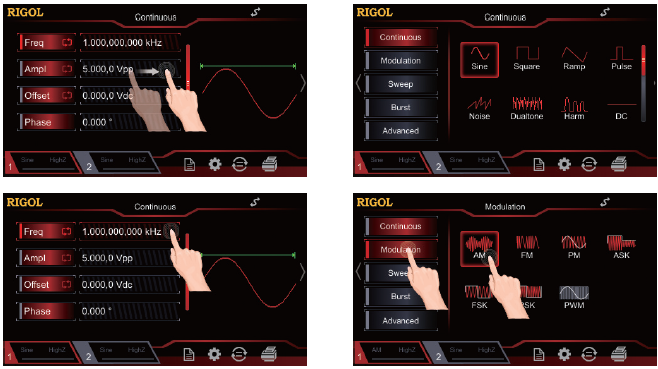

The combination of touch screen control with click and slide and multi-function knob makes it easy to find and update waveform settings; switch between channels, configure each channel, and easily load standard functions or arbitrary waves.

4.3 Inch Touch Screen

16bit Vertical Resolution

DG900 series generators extend output at 16 bit resolution The resolution of the output voltage is 4 times that of the traditional 14 bit generator. DG900 can reproduce any waveform more reliably and improve the fidelity and performance of the signal.

16bit Vertical Resolution

SiFi II Technology

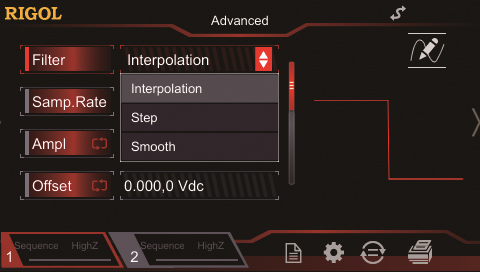

Sifi II technology allows you to output signals flexibly through filtering options such as stepping, smoothing and interpolation These options in the powerful signal sorting function can provide precise roll down control for the signal you select. Combine these flexible playback options or use edge time in interpolation mode to define the range of broadband components in the signal.

SiFi II Technology

Support Multiple Signal Outputs

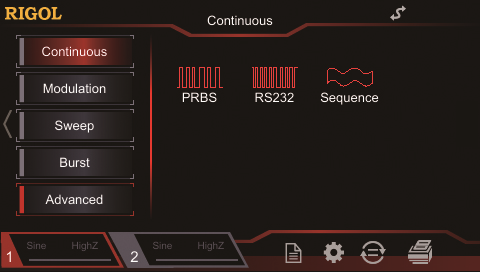

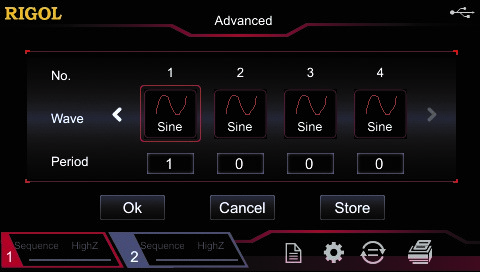

Create and combine complex signal sequences, simulate or analyze faults through finger touch. A wide range of test signals are simulated by combining different waveform types, including dual tone, arbitrary wave and noise DG2000 also has the function of generating RS232 sequence and PRBS, which can be used in test sequence of advanced application.

Support Multiple Signal Outputs

Fanless Silent Operation

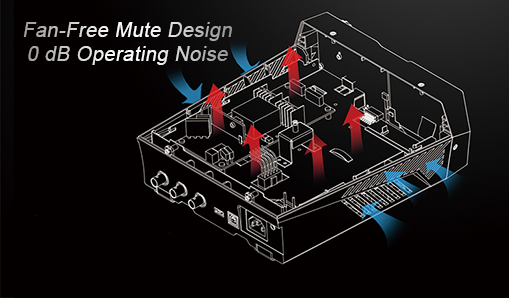

No fan design structure, no noise interference operation.

Fanless Silent Operation

Harmonic Generator

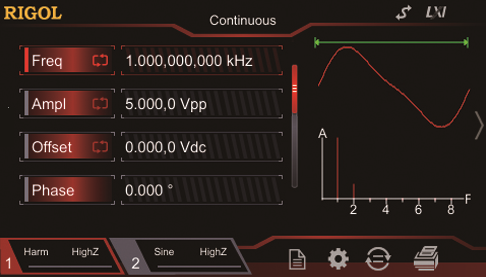

DG900 has built-in 8-th harmonic generator function and outputs harmonics with specified times, amplitude and phase. It is usually used in the test of harmonic detection equipment or harmonic filter equipment.

Harmonic Generator

Model

Model Max. Output Frequency Sample Rate Vertical Resolution Channels Arbitrary Wave Length Product
DG952 50MHz 250Msa/s 16bits 2CH 16Mpts Discontinue
DG972 70MHz 250Msa/s 16bits 2CH 16Mpts Discontinue
DG992 100MHz 250Msa/s 16bits 2CH 16Mpts Discontinue
This product has been discontinued. Recommended replacement: DG900 Pro Series

Accessories

Model Description
USB-LAN USB2.0 to 100Mbps Ethernet Adapter
USB-GPIB USB-GPIB adapter
CB-BNC-AC-100-L BNC to Alligator clip Adapter
CB-BNC-BNC-MM-100 BNC Coaxial line，100cm
RA5040K 40dBAttenuator(50ohm，1W)

Software

Model Description
Ultra Station-adv Full advanced version of UltraStation wave generation software for DG4000 and DG5000 Series generators. This is a software upgrade license

User Manual

Name Version Release Date Download
DG900 UserGuide UGB10100-1110 2021-11-26 Download

Datasheet

Name Version Release Date Download
DG900 Datasheet V1.0 2021-11-26 Download

Programming Manual

Name Version Release Date Download
DG900 ProgrammingGuide PGB10100-1110 2021-11-26 Download

Open Source

Name Version Release Date Download
DG800900 OpenSourceAcknowledgment 202512 2025-12-23 Download

Quick Guide

Name Version Release Date Download
DG900 QuickGuide QGB10100-1110 2021-11-26 Download
