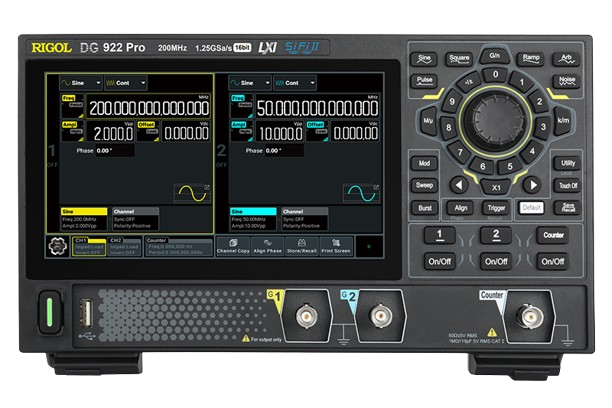

DG900 Pro Series

DG900 Pro Series is a multifunctional signal generator that integrates functions such as function generator, arbitrary waveform generator, noise generator, pulse generator, harmonic generator, analog/digital modulator, frequency meter, etc. The brand new appearance and user-friendly interface design bring a friendly user experience..

Bandwidth : 200MHz
Sample Rate : 1.25Gsa/s
Vertical Resolution : 16bits
Channels : 2CH
Arbitary Wave Length : 16M(32M opt.)
Datasheet
Main Image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4

Features

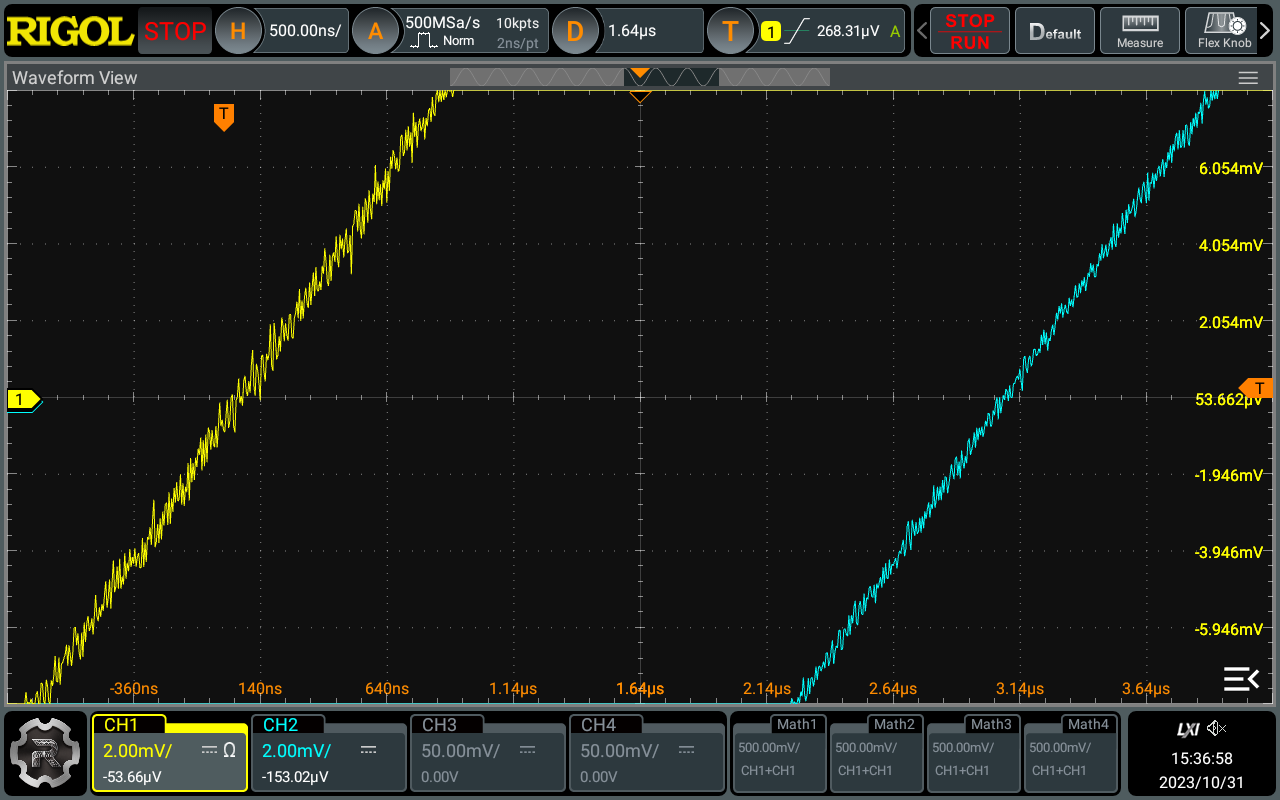

Outstanding Accuracy

1.25GSa/s sampling rate, 16-bit vertical resolution, easy creation of high fidelity signals

Outstanding Accuracy

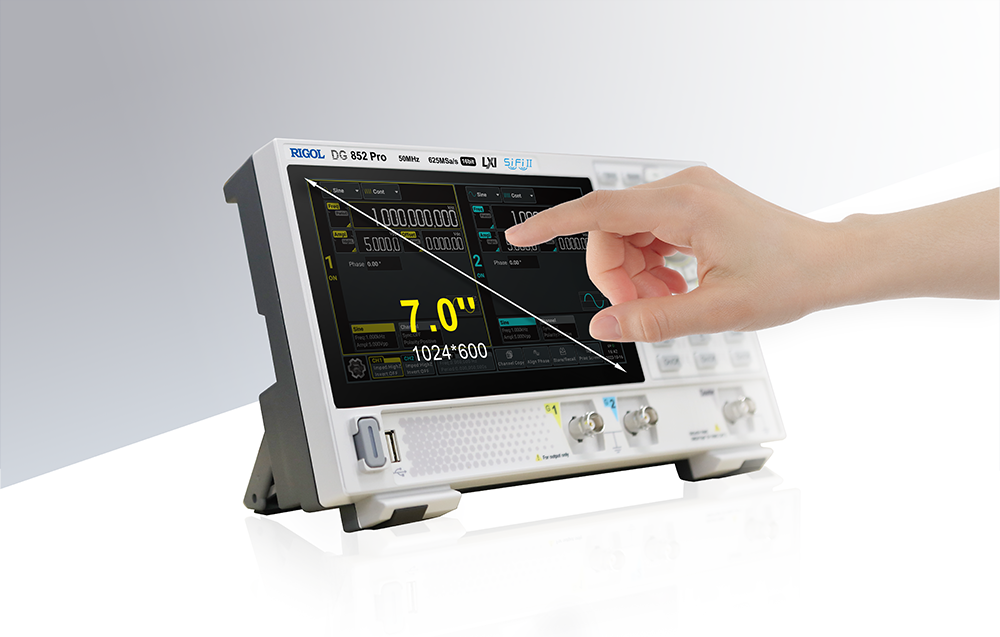

7-inch Color Touch Screen Display

7-inch color touch screen display, convenient for you to set parameters, view and edit signals for dual channel waveforms simultaneously.

7-inch Color Touch Screen Display

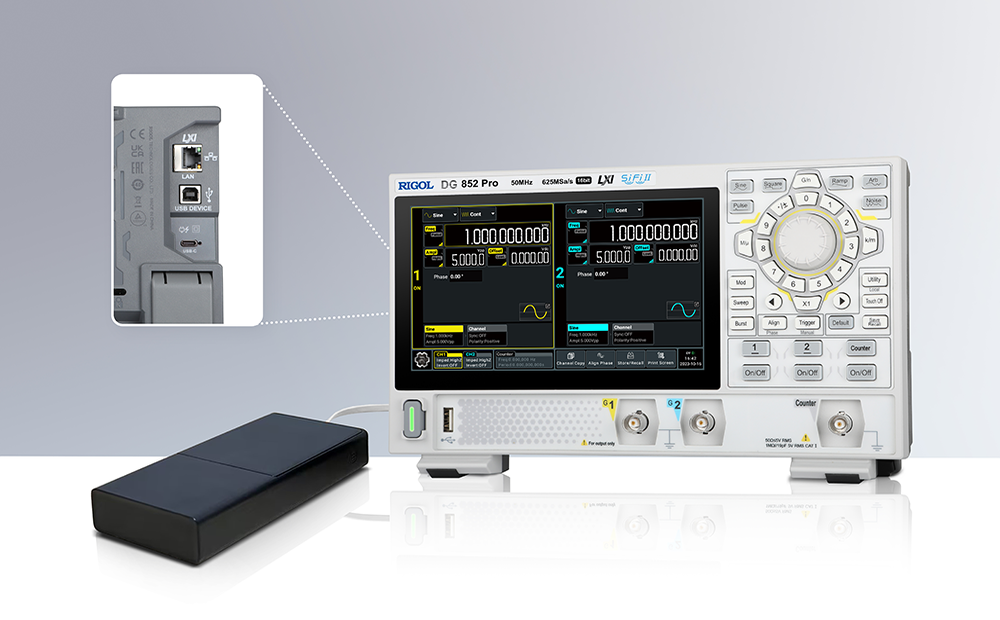

Equipped with Type-C Connector

Type-C connector enable DG800 Pro to be powered up by mobile power supply, make on-site testing more convenient.

Equipped with Type-C Connector

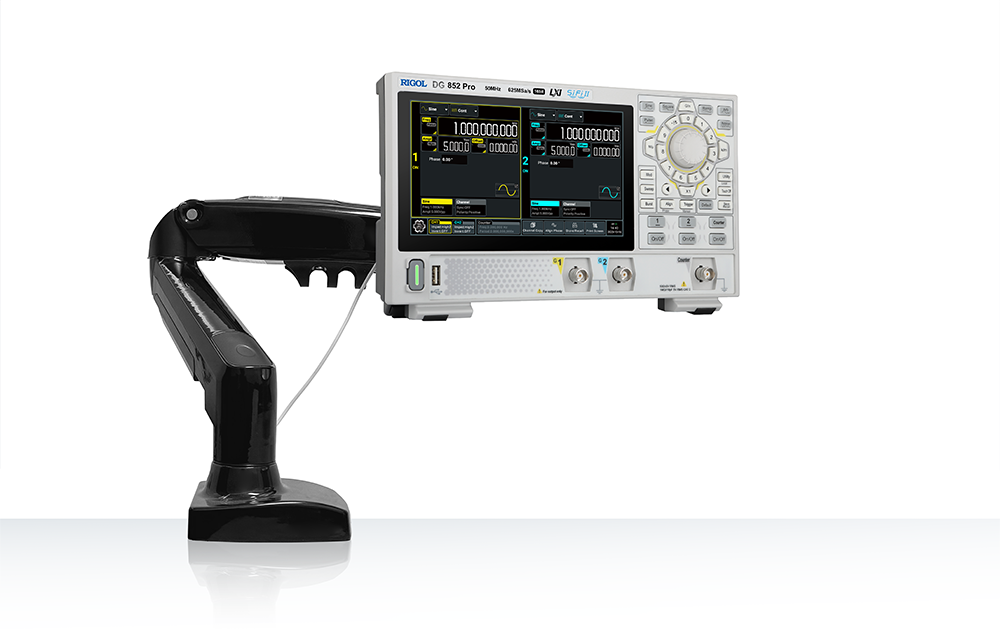

Smart Appearance

The 266mm (width) x 165mm (height) x 63mm (depth) DG800 Pro weight only 1.78kg. With its ultra portable design, compact size, and supported by standard display stand, saves your workspace space.

Smart Appearance

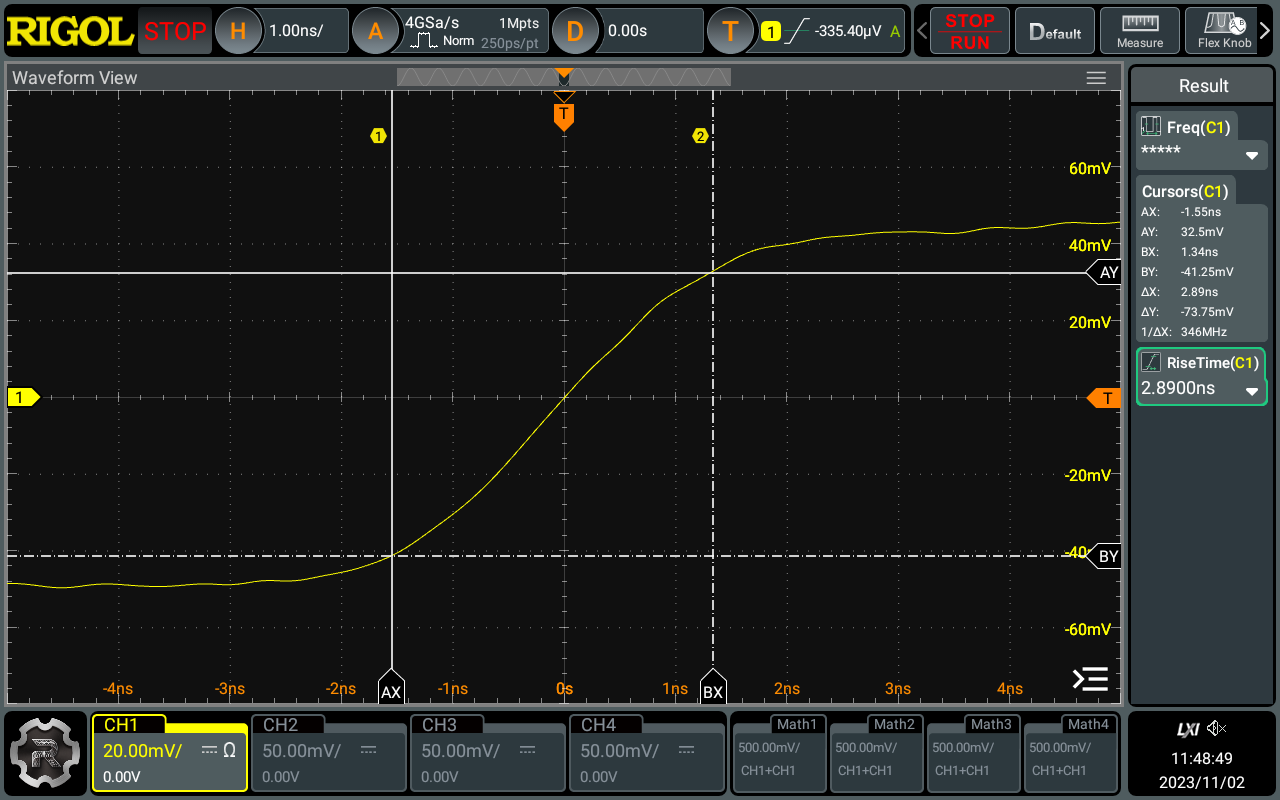

Fast Rising Edge

60MHz square wave and 50MHz adjustable edge pulse wave output, with waveform rise time as low as 3ns, meeting the waveform requirements of different applications.

Fast Rising Edge

Rich Modulation Functions

Support rich modulation functions (AM, FM, PM, ASK, FSK, PSK, PWM, SUM modulation functions, etc.) to meet the requirements of communication principles, motor control, switching power supply and other application scenarios.

Rich Modulation Functions

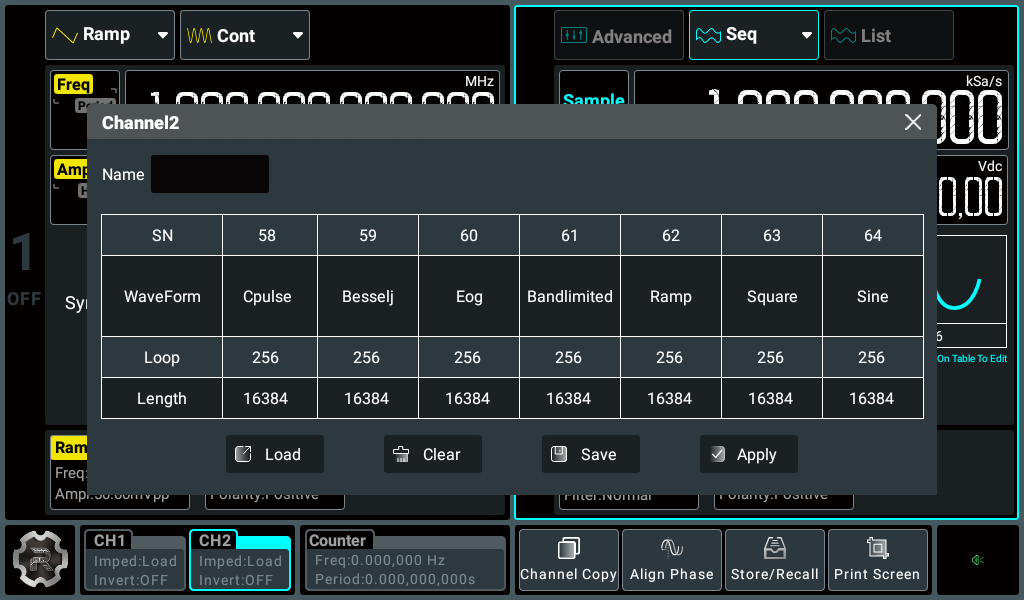

Sequence function

Support up to 64 waveform events, 256 repetitions, and able to load multiple test cases in a sequence that require sequential execution at once. Thus, greatly improving testing efficiency through achieving seamless switching of test cases.

Sequence function

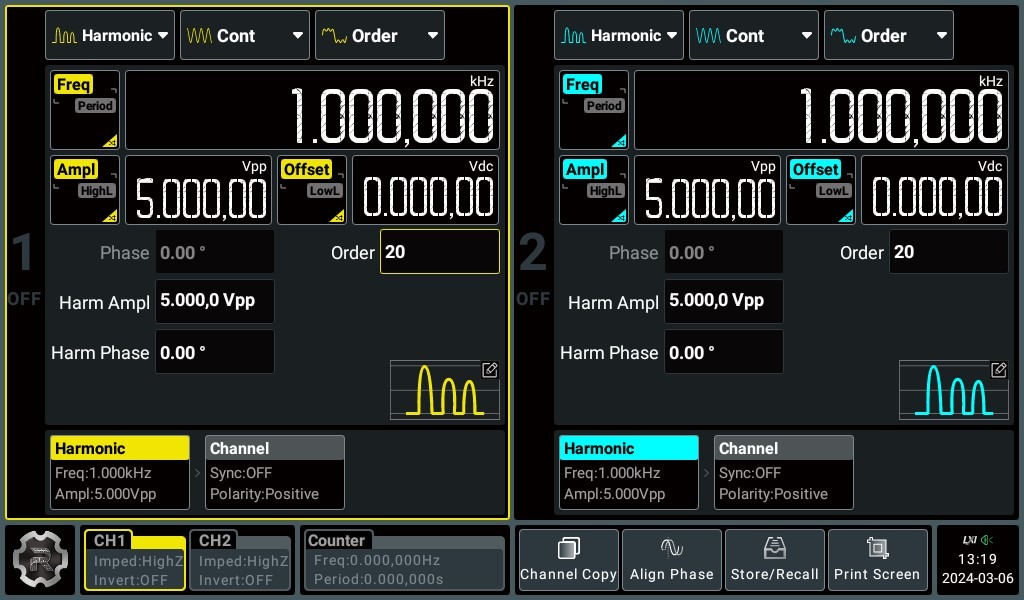

Maximum 20th Harmonic Generation Function

Up to 20 built-in waveform stacking functions provide a more accurate measurement method for performance testing of high-order filters, amplifiers, and other devices

Maximum 20th Harmonic Generation Function

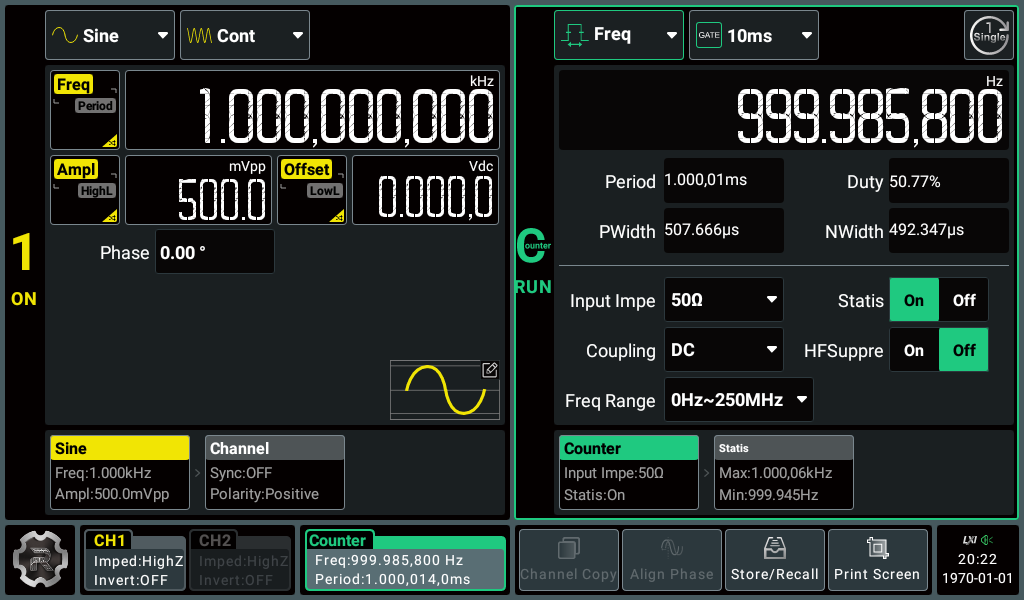

High Resolution Frequency Meter

A 7-bit 1GHz frequency meter can measure the frequency of common high-frequency signals such as VHF and UHF, facilitating relevant debugging

High Resolution Frequency Meter

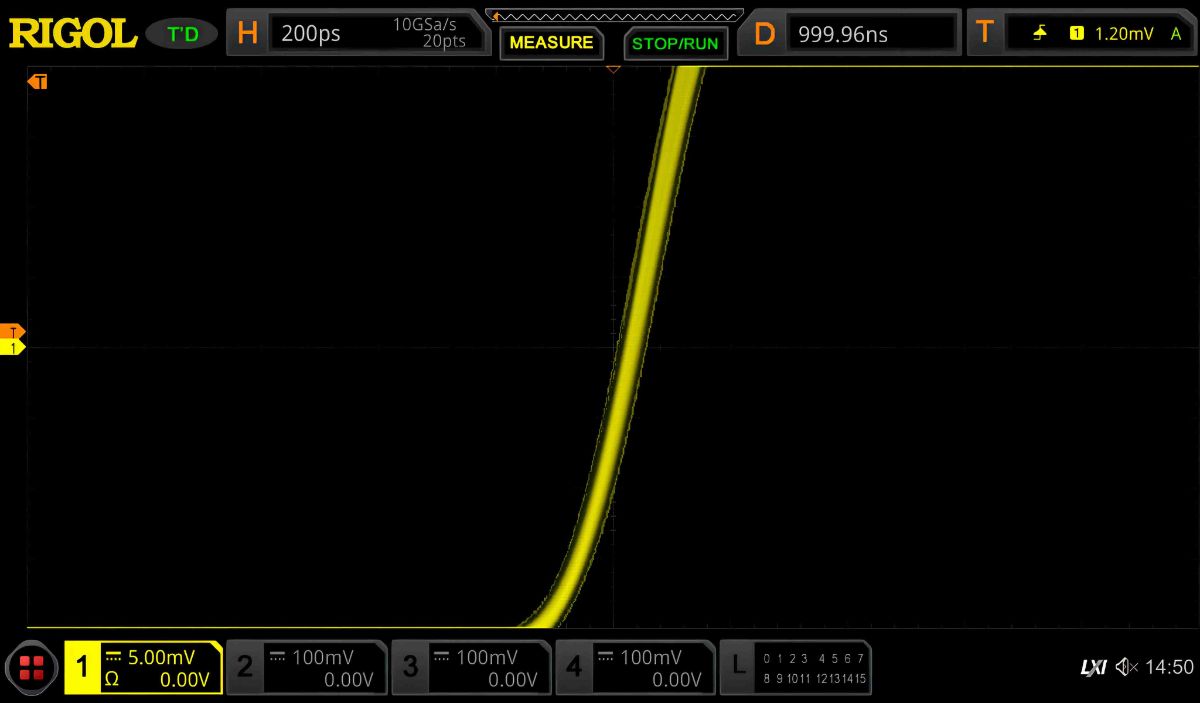

Ultra low signal jitter

Based on RIGOL's SIFI ll technology, the DG900 Pro series can generate any waveform point by point and restore signals without distortion. The sampling rate is precisely adjustable, Compared to traditional DDS signal sources, the generated signal jitter is lower, with all output signal jitter as low as 200ps (rms).

Ultra low signal jitter

Model

Model Max. Output Frequency Sample Rate Vertical Resolution Channels Arbitary Wave Length Price
DG902 Pro 70MHz 1.25Gsa/s 16bits 2CH 16M(32M opt.) Rp. 13.153.500
DG912 Pro 150MHz 1.25Gsa/s 16bits 2CH 16M(32M opt.) Rp. 18.592.500
DG922 Pro 200MHz 1.25Gsa/s 16bits 2CH 16M(32M opt.) Rp.25.197.000
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Accessories

Model Description
RM5041 Ultra-Portable Platform Rack Mount Kit
DG900 Pro-3RL 32M upgrade option

User Manual

Name Version Release Date Download
DG900Pro UserGuide UGB15102-1110 2025-04-22 2025-04-22 Download

Datasheet

Name Version Release Date Download
DG900Pro DataSheet DSB15103-1110 2024-03-14 2024-03-14 Download

Programming Manual

Name Version Release Date Download
DG800ProDG900Pro ProgrammingGuide PGB16102-1110 2025-04-30 Download

Open Source

Name Version Release Date Download
DG800 Pro &DG900 Pro Open Source Acknowledgment V2.0 2024-02-19 2024-02-19 Download

Quick Guide

Name Version Release Date Download
DG900Pro QuickGuide QGB15100-1110 2024-02-19 Download
