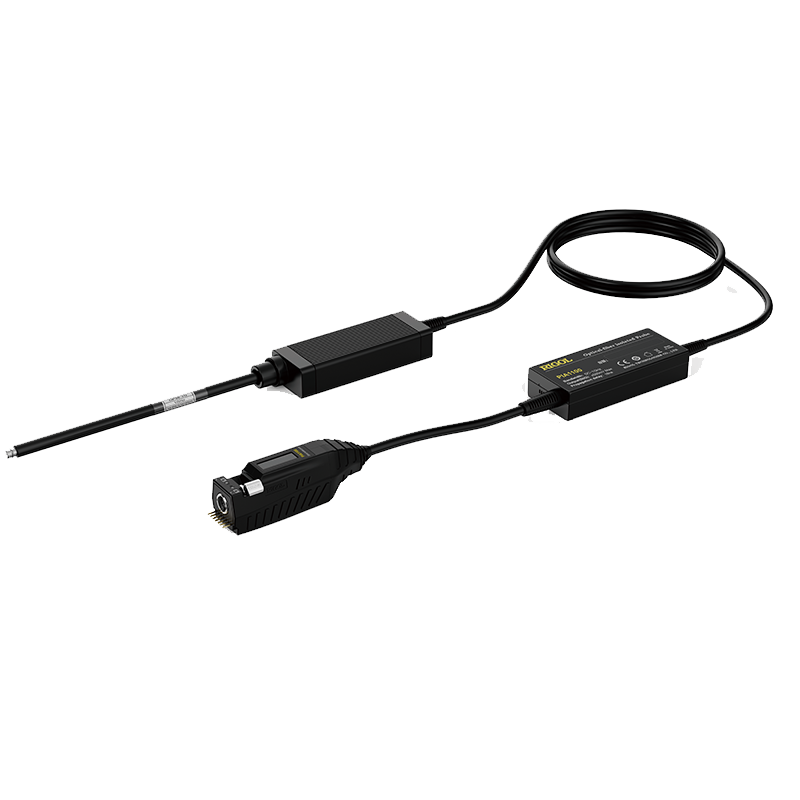

Optical Isolated Probe
The PIA1000 series Optical Fiber Isolated Probes provide outstanding Common-mode Rejection Ratio and isolated voltage. They flexibly work with various attenuation cables, achieving full-scale output for Differential Mode Voltages ranging from ±0.01 V to ±2500 V.
Differential Mode Voltage Range
: ±0.01 V to ±2500 V (depending on attenuation tip used)
Common Mode Voltage
: Up to 85 kV peak
Common Mode Rejection Ratio (CMRR)
: Up to 108 dB at 1 GHz
DC Gain Accuracy
: ±1%
Power Supply
: Powered via optical fiber (laser), no external power required
Warm-up Time
: Immediate operation, no warm-up required
