DHO4000 Series

The DHO4000 Series Digital Oscilloscopes are equipped with a second generation chipset developed by RIGOL. With a low noise floor and 12 bits, these high-resolution oscilloscopes are capable of finding the tiniest signals.

Bandwidth : 800MHz
Sample Rate : 4GSa/s
Analog Channels Real-Time : 4
Max. Memmory Depth : 500Mpts(opt.)
Waveform Capture Rate : 1,500,000wfms/s
Datasheet

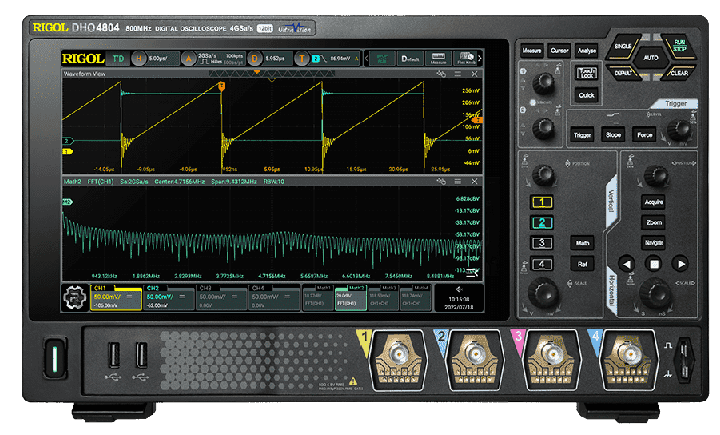

Main Image
Thumbnail 1

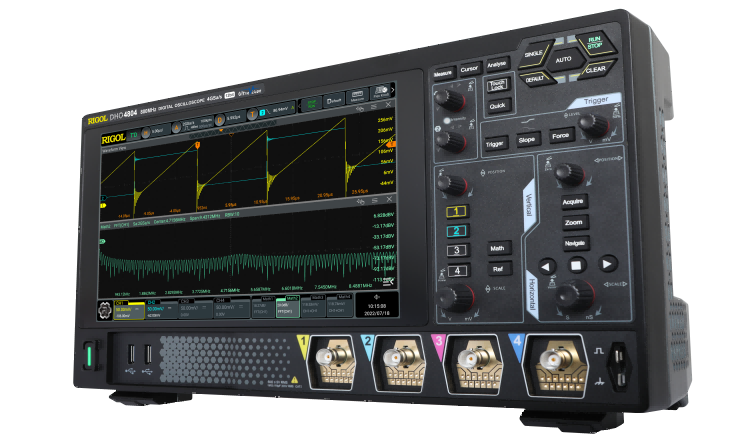

Thumbnail 2

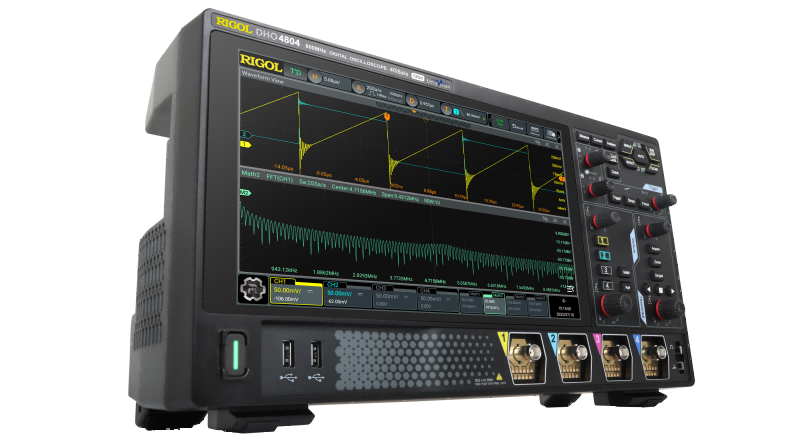

Thumbnail 3

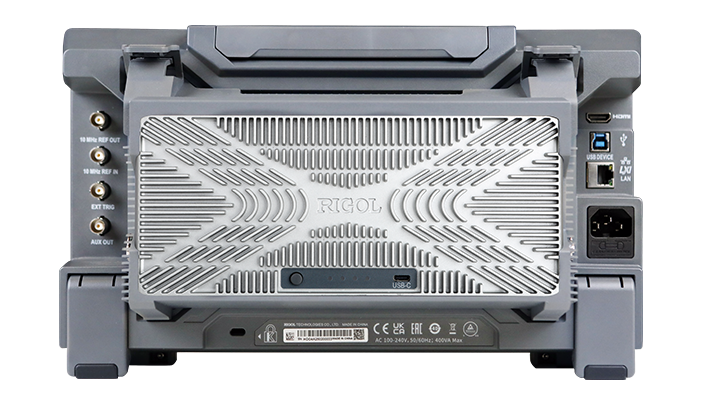

Thumbnail 4

Features

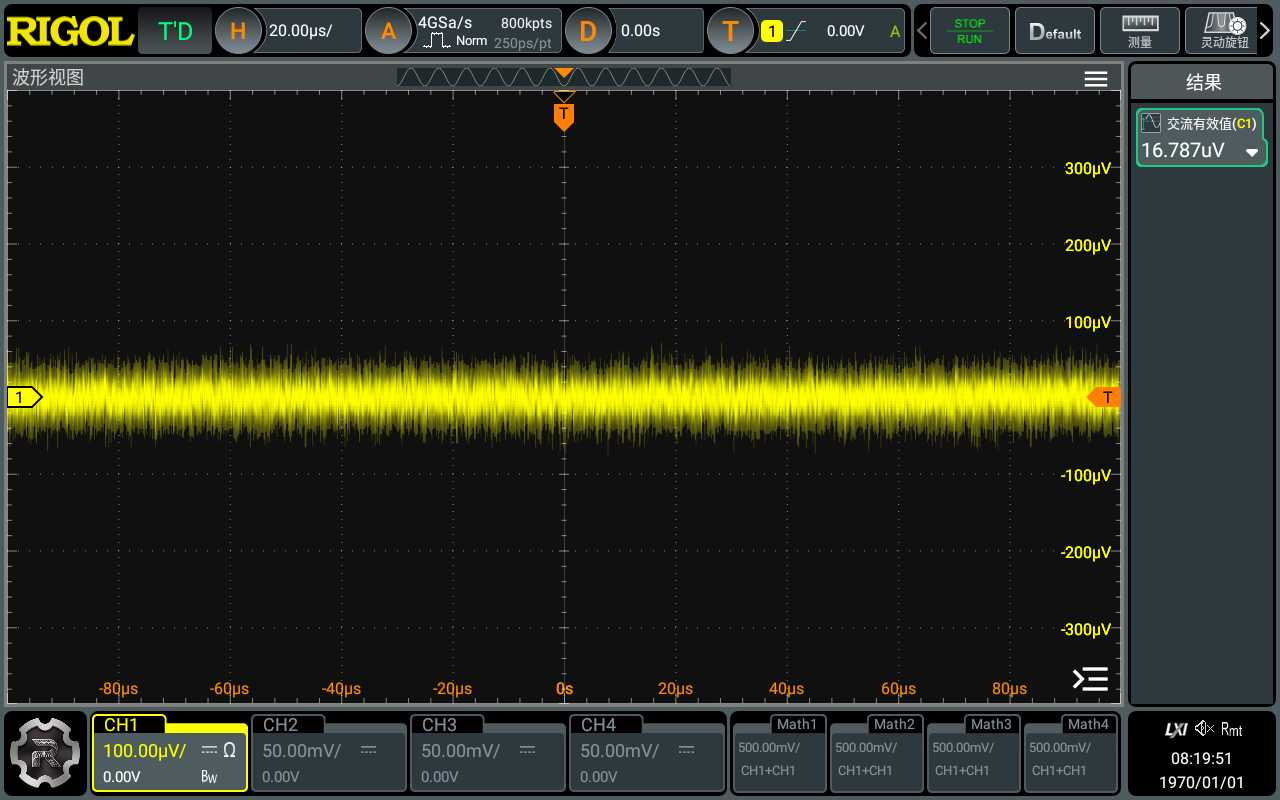

Industry-Leading, Low Noise Floor

18uVrms ultra-low noise floor (typical), cleaner signal.

Industry-Leading, Low Noise Floor

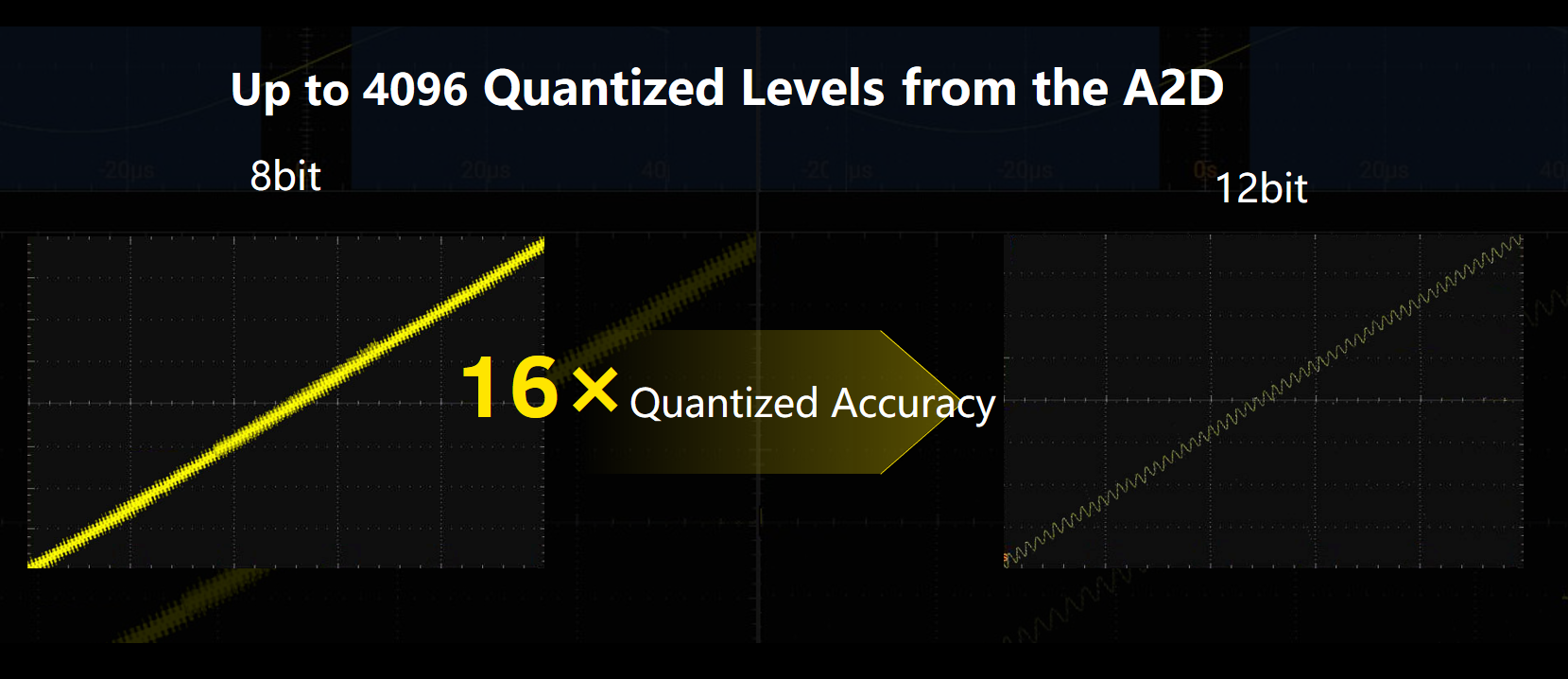

High-Resolution 12-Bit

All DHO4000 series oscilloscopes are equipped with Rigol's second generation "Centaurus" chipset, which provides 12-bit support.This allows the DHO4000 series oscilloscopes to capture waveforms 16 times more accurately and clearly than their predecessors' 8-bit counterparts.

High-Resolution 12-Bit

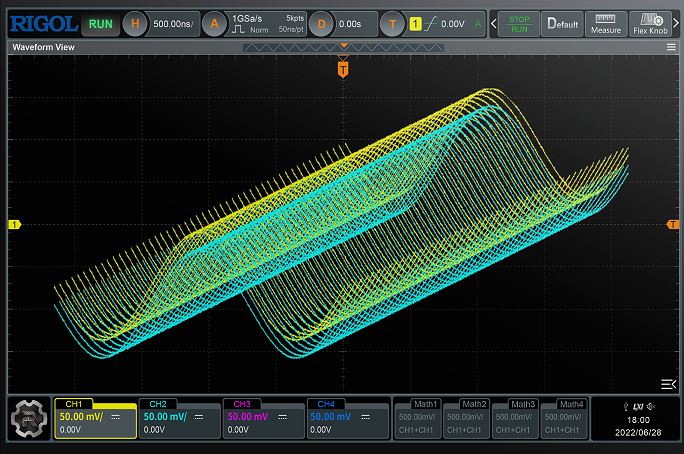

UltraAcquire Mode

Supports UltraAcquire mode as standard, up to 1,500,000 wfms/s waveform acquisition rate. Not a single abnormal signal is missed.

UltraAcquire Mode

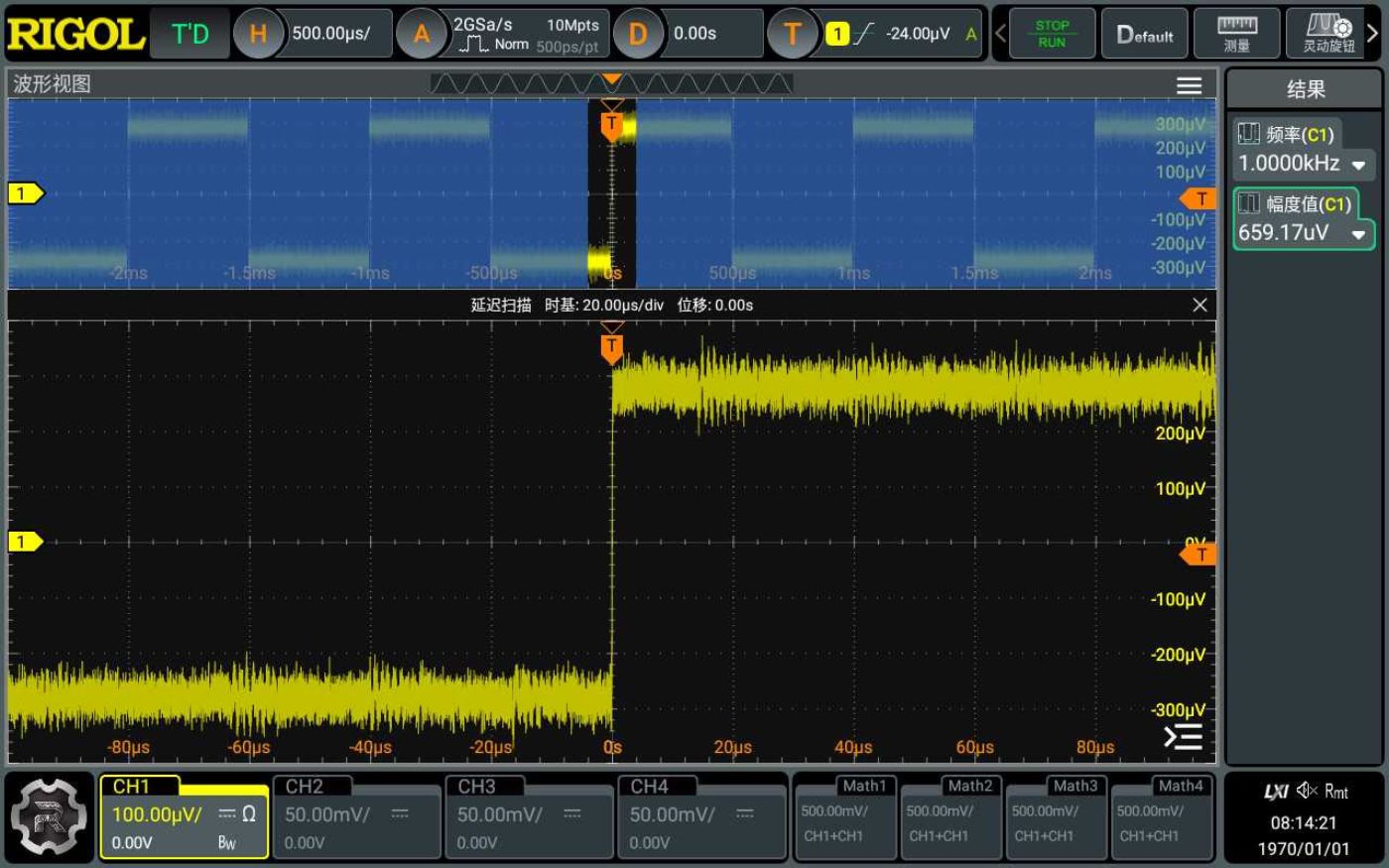

100μV ultra-low vertical sensitivity

The industry-leading vertical sensitivity range of 100μV/div enables accurate measurement of signals at the μV level.

100μV ultra-low vertical sensitivity

Flex Knob Button

The dual multi-function knob eliminates the complex switching steps of a single knob, resulting in more efficient interaction.

Flex Knob Button

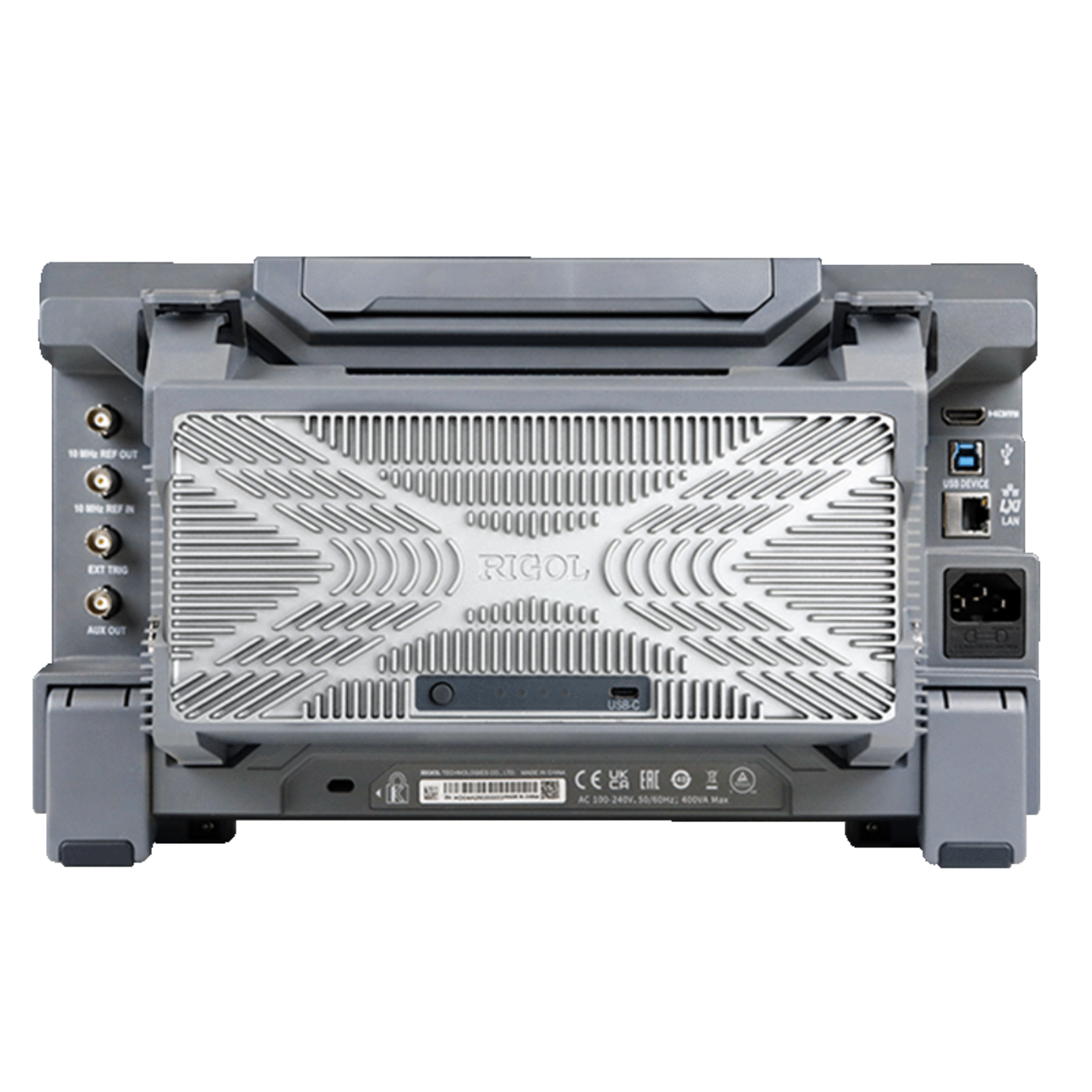

Supports battery power supply

Battery pack options are provided, allowing you to measure without limits anytime, anywhere!

Supports battery power supply

Model

Model Bandwidth Analog Channels Real-time Sample Rate Max. Memory Depth Waveform Capture Rate Price
DHO4804 800MHz 4 4GSa/s 500Mpts(opt.) 1,500,000wfrms/s Get a Quote
DHO4404 400MHz 4 4GSa/s 500Mpts(opt.) 1,500,000wfrms/s Get a Quote
DHO4204 200MHz 4 4GSa/s 500Mpts(opt.) 1,500,000wfrms/s Rp71.777.000
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Accessories

Model Description
DHO4000-BWU2T4 200M to 400M bandwidth upgrade option
DHO4000-BWU2T8 200M to 800M bandwidth upgrade option
DHO4000-BWU4T8 400M to 800M bandwidth upgrade option
DHO4000-RLU-05 500Mpts storage depth upgrade option
DHO4000-AUTOA CAN-FD/LIN bus triggering and analysis options
DHO4000-AEROA MIL-STD1553 bus triggering and analysis options
DHO4000-FLEXA FlexRay Serial Bus Triggering and Analysis Options
DHO4000-AUDIOA I2S bus trigger and analysis options
DHO4000-PWRA Power Analysis Options
DHO4000-BND DHO4000 Bundle Option
BatHolder350 Battery compartment

User Manual

Name Version Release Date Download
DHO4000 User Manual V1.0 2023-01-10 Download

Datasheet

Name Version Release Date Download
DHO4000 Datasheets V1.0 2023-01-10 Download

Programming Manual

Name Version Release Date Download
DHO4000 Programming Manual V1.0 2023-01-10 Download

Quick Guide

Name Version Release Date Download
DHO4000 Quick Guide V1.0 2023-01-10 Download
