DG1000 Series

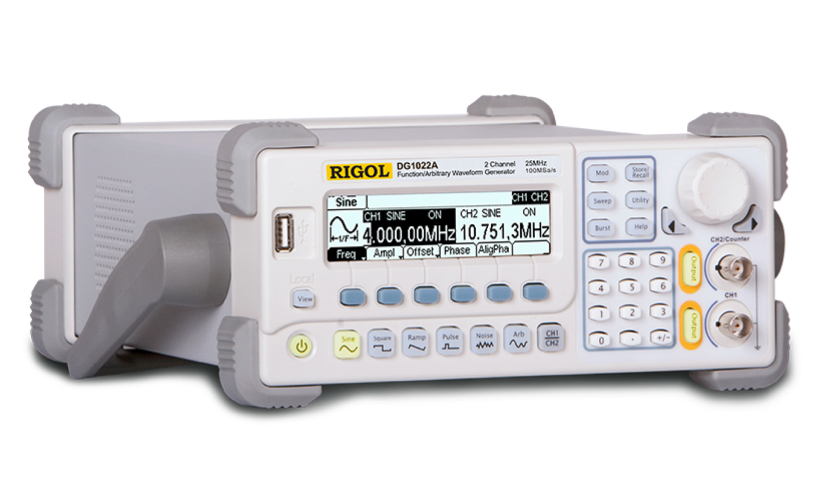

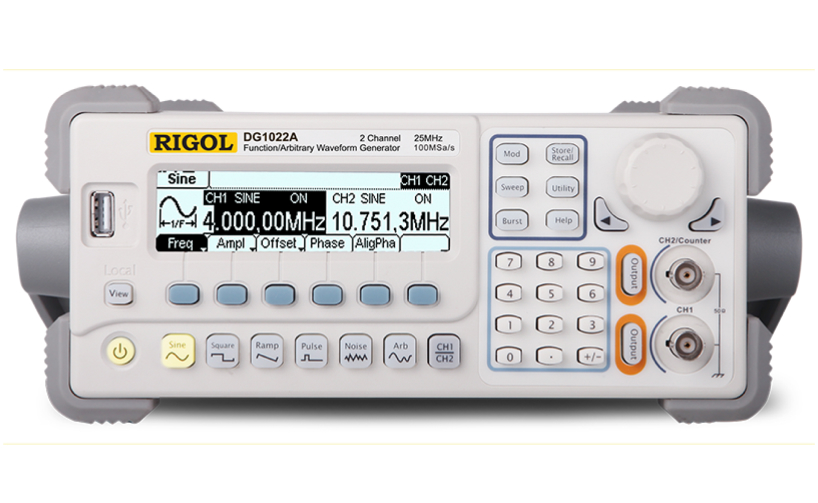

The DG1000 series function/arbitrary waveform generators are designed using Direct Digital Frequency Synthesis (DDS) technology, capable of generating accurate, stable, and low-distortion output signals. Instruments in this series feature dual-channel output, can output 5 standard waveforms, and have 48 built-in arbitrary waveforms, meeting the requirements of most application scenarios in basic testing.

Bandwidth : 25MHz
Sample Rate : 100MSa/s
Vertical Resolution : 14bits
Channels : 2CH
Arbitary Wave Length : 4kpts
Datasheet
Main Image
Thumbnail 1
Thumbnail 2
Thumbnail 3

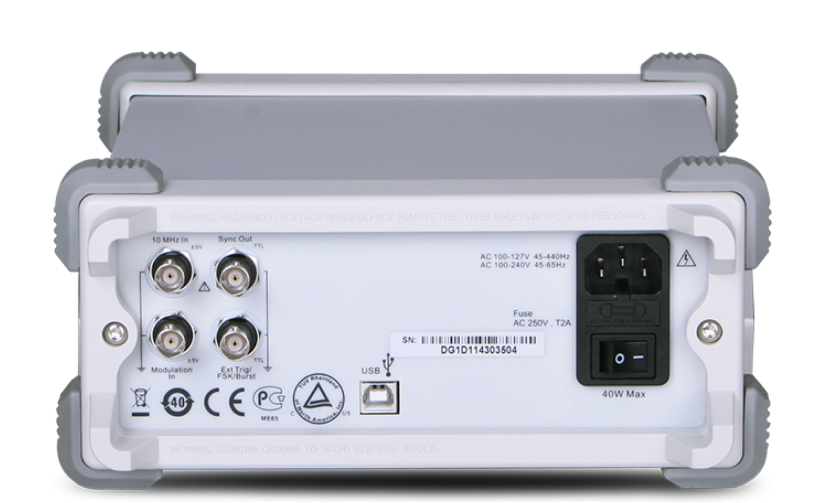

Thumbnail 4

Features

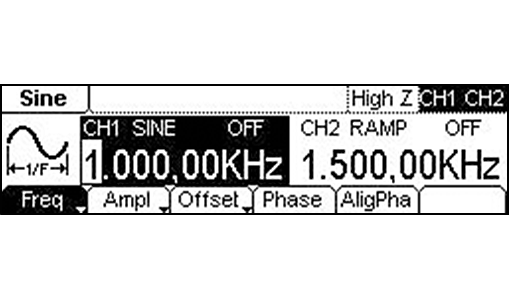

Dual Channel Synchronous Output

Both channels can output standard waveforms and arbitrary waveforms, and the parameters and output status of the two channels can be displayed on the screen simultaneously.

Dual Channel Synchronous Output

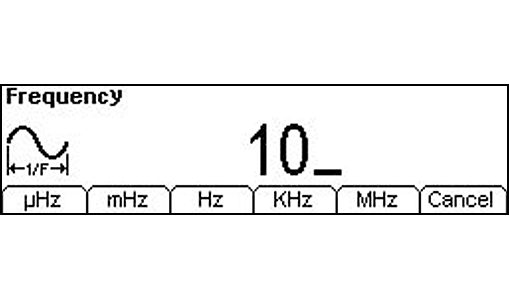

1uhz Frequency Resolution

The minimum frequency resolution reaches 1uHz. The frequency accuracy is ±100ppm within 1 year.

1uhz Frequency Resolution

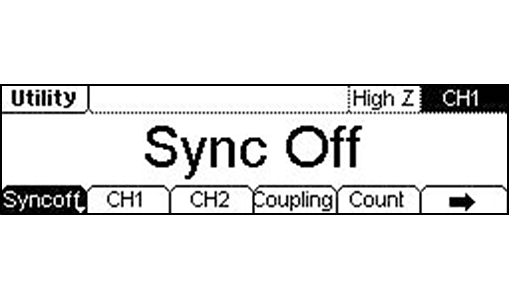

Channel Coupling / Replication

The two channels can carry out frequency or phase coupling and output signals with certain frequency or phase difference. Channel copying can copy the waveform parameters of one channel to another channel

Channel Coupling / Replication

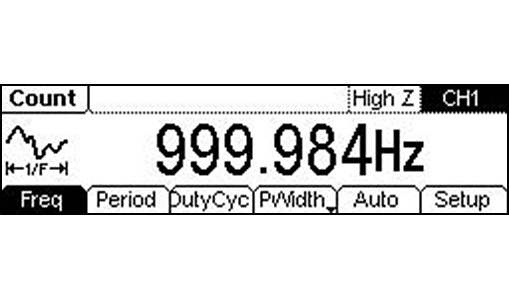

200 Mhz Hardware Counter

The frequency resolution reaches 6 digits/second. It can measure signals with a frequency range of 100mHz to 200MHz and provide the measured values of the signal's frequency, period, duty cycle, and pulse width.

200 Mhz Hardware Counter

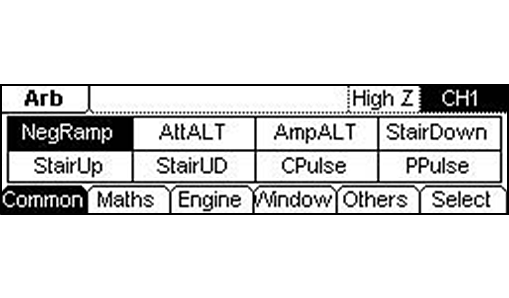

Built in 48 Arbitrary Waveforms

It has built - in various common waveforms used in teaching and circuit debugging, and classifies them into several major categories such as common, mathematical, engineering, window functions, and others. There are a total of 48 selectable waveforms.

Built in 48 Arbitrary Waveforms

Model

Model Max. Output Frequency Sample Rate Vertical Resolution Channels Arbitary Wave Length
DG1022 25MHz 100MSa/s 14bits 2 4kpts
This product has been discontinued. Recommended replacement: DG1000Z Series

Accessories

Model Description
RM-DG Rack mount kit
PA1011 10WPower amplifier module
USB-GPIB USB-GPIB adapter
CB-BNC-AC-100-L BNC to Alligator clip Adapter
CB-BNC-BNC-MM-100 BNC Coaxial line，100cm
RA5040K 40dBAttenuator(50ohm，1W)
RA5040K 40dBAttenuator(50ohm，1W)

Software

Model Description
Ultra Station-adv Full advanced version of UltraStation wave generation software for DG4000 and DG5000 Series generators. This is a software upgrade license

User Manual

Name Version Release Date Download
DG1000 User Manual UGB06140-1210 2019-08-29 Download

Datasheet

Name Version Release Date Download
DG1000 Datasheet V1.0 2019-08-29 Download

Programming Manual

Name Version Release Date Download
DG1000 Programming Manual PGB06109-1110 2019-08-29 Download

Quick Guide

Name Version Release Date Download
DG1000 Quick Guide QGB06106-1110 2021-11-18 Download
