DS70000 Series

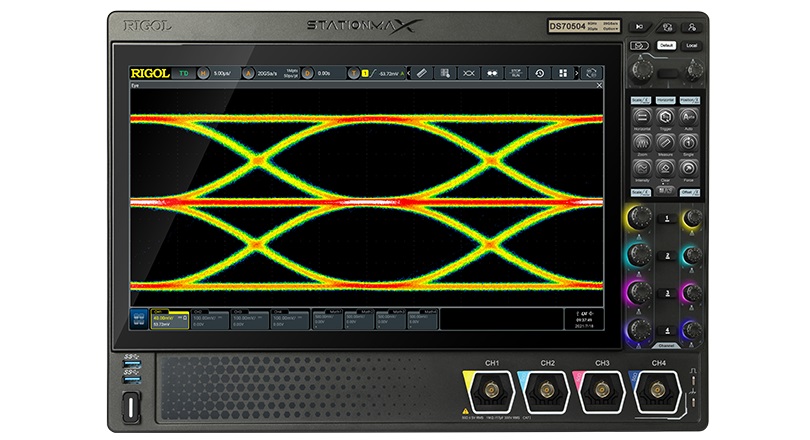

DS70000 The new DS70000 Series is available in either 3 or 5 GHz bandwidths and combines the new UltraVision III oscilloscope technology and UltraReal spectrum analysis technology into RIGOL’s most powerful test and measurement instrument ever.

Bandwidth : 5 GHz
Channels : 4
Real-time Sample Rate : 20 GSa/s
Max. Memory Depth : 2 Gpts
Waveform Capture Rate : 1,000,000 wfms/s
Datasheet
Main Image
Thumbnail 1

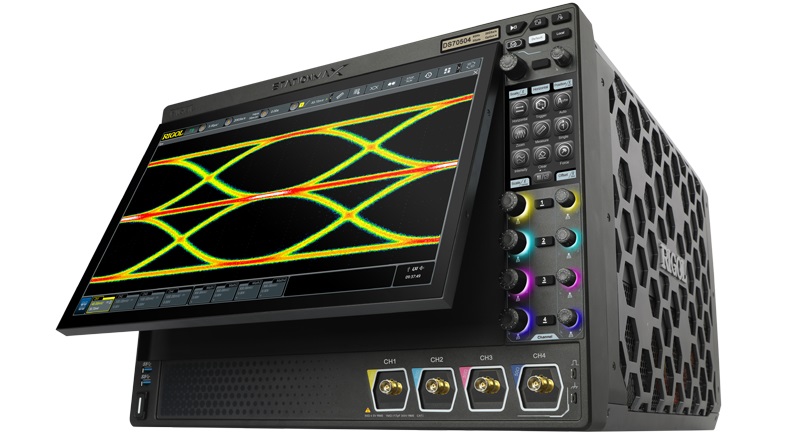

Thumbnail 2

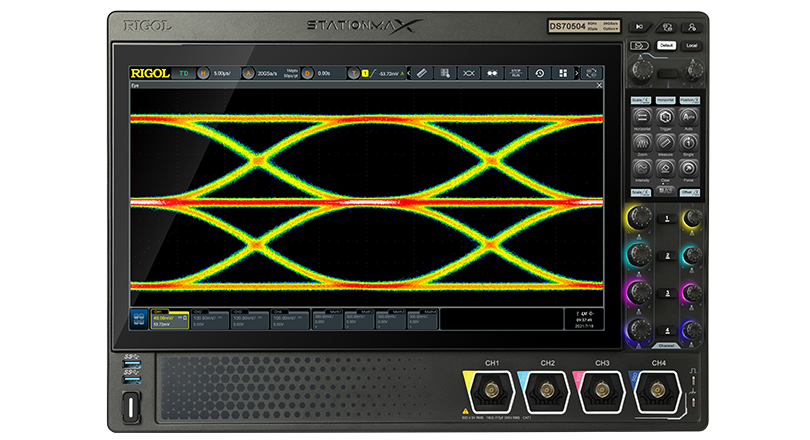

Thumbnail 3

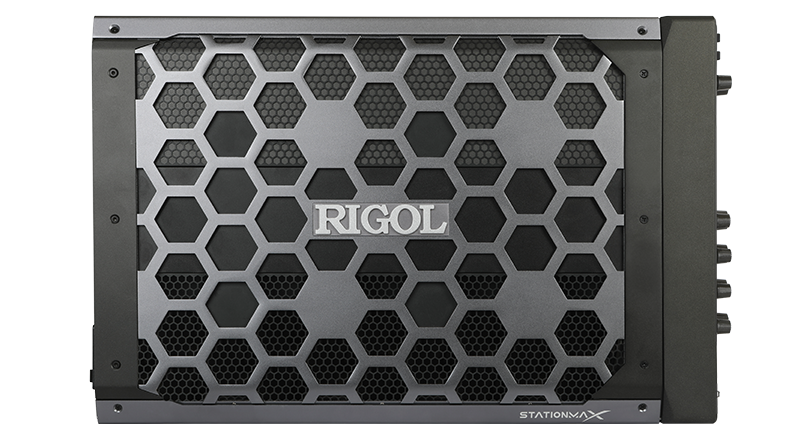

Thumbnail 4

Features

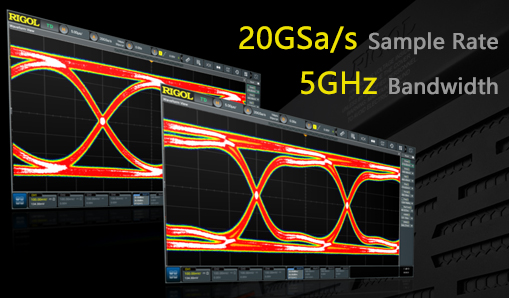

Digital Oscilloscope with Real­-Time Spectrum Analysis to 5 GHz

Up to 5 GHz Bandwidth and 20 GSa/sec Sample Rate.

Digital Oscilloscope with Real­-Time Spectrum Analysis to 5 GHz

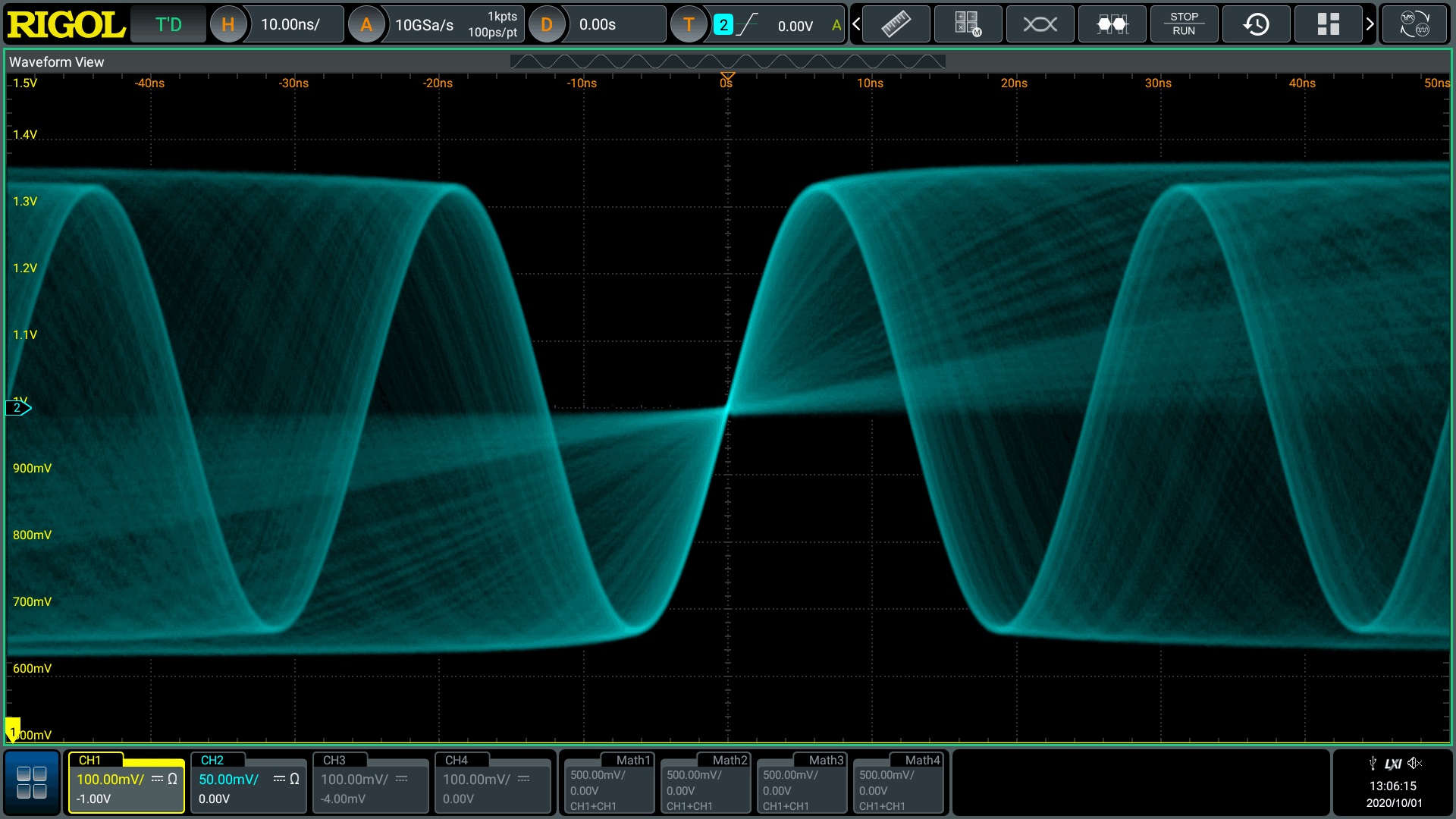

Waveform Capture Rate

View infrequent anomalies and small signal details quickly and precisely with up to 1 Million waveforms visualized on the screen every second.

Waveform Capture Rate

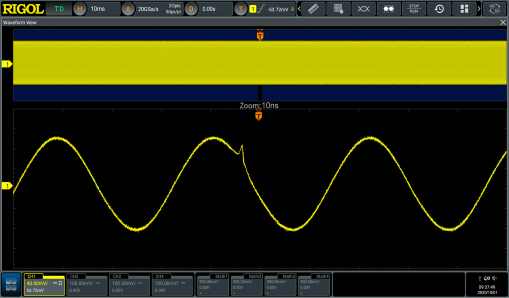

2 Billion Points of Memory

500 Mpts memory depth is standard and can be upgraded to 2 Gpts memory depth (Half-channel 1 Gpts) Full 100 millisecond capture at max sampling rate of 20 GSamples per second Capture half a Billion periods of a 5 GHz signal in one continuous data stream Memory can also be segmented to record up to 2 Million frames in record mode

2 Billion Points of Memory

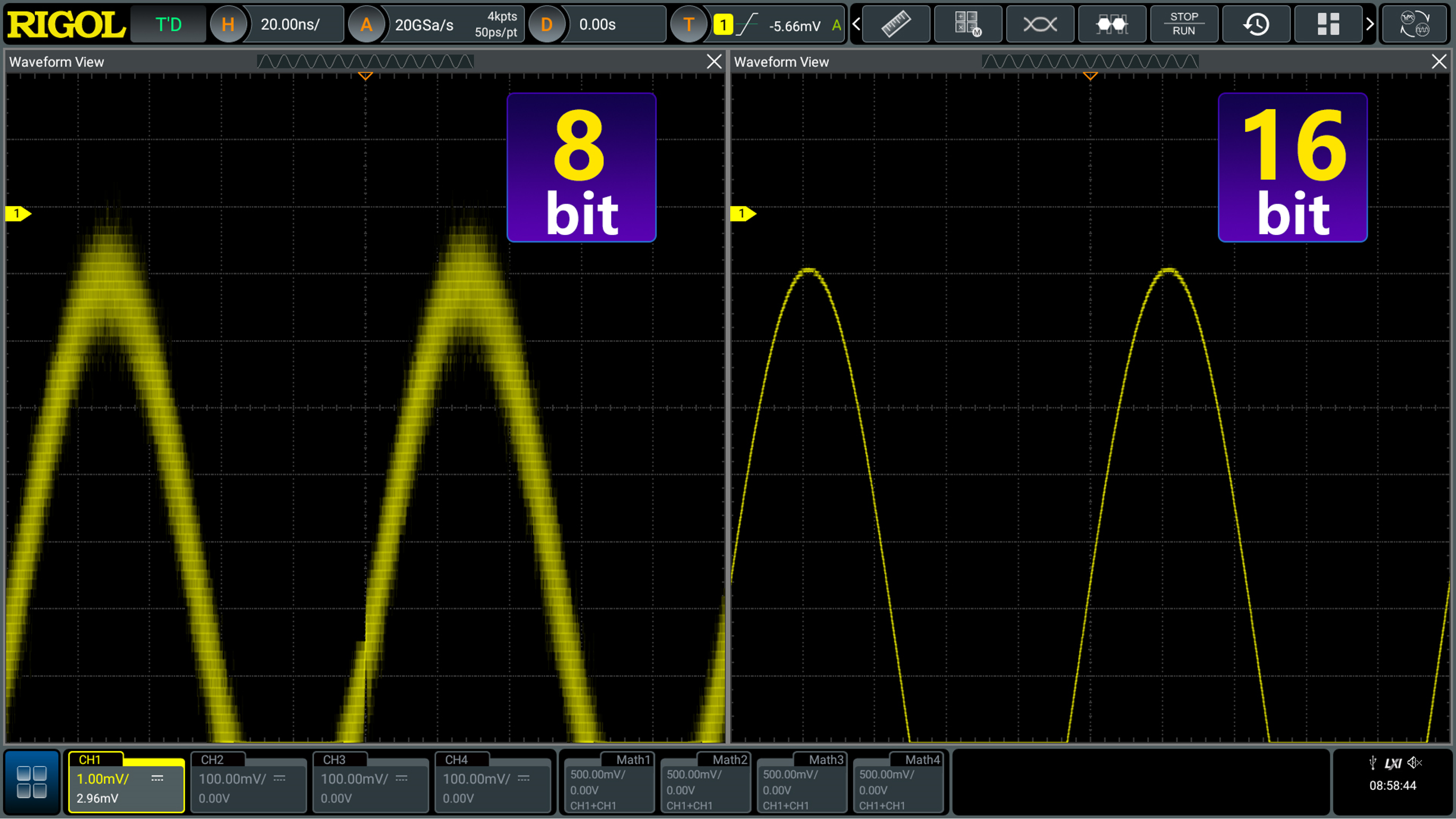

16 bits Vertical Resolution

Up to 16 bit resolution High resolution mode: 9-16 bits Directly select the number of bits

16 bits Vertical Resolution

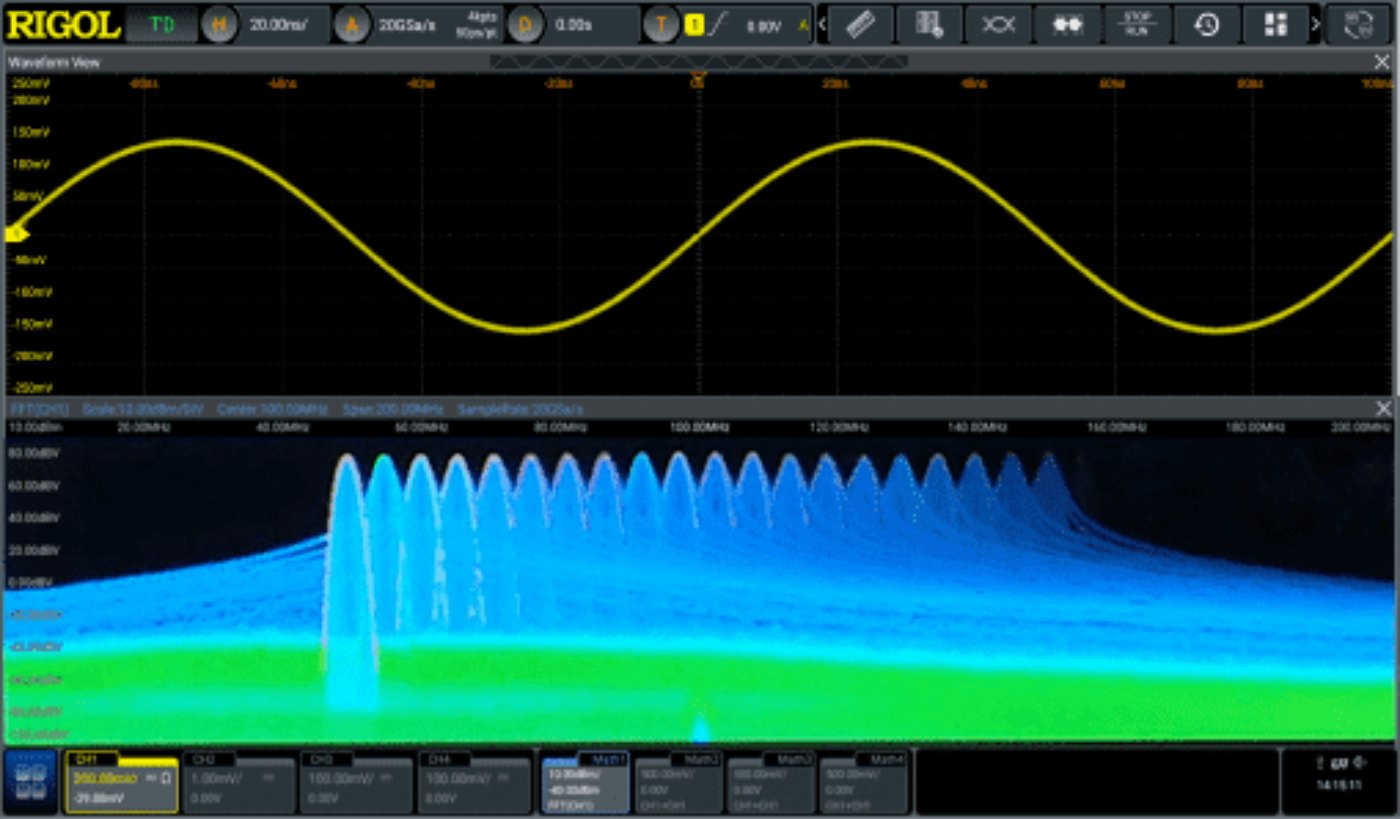

10,000 FFTs per second

Based on RIGOL's new-generation UltraVision III platform and leveraging hardware acceleration, it achieves 10,000 FFTs per second, providing a user experience similar to that of real-time spectrum.

10,000 FFTs per second

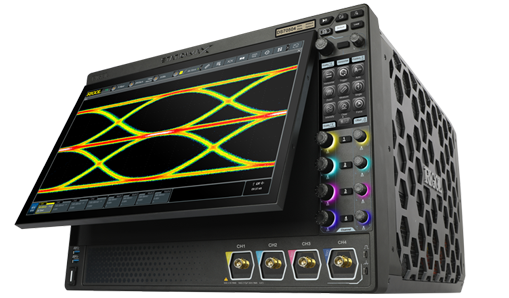

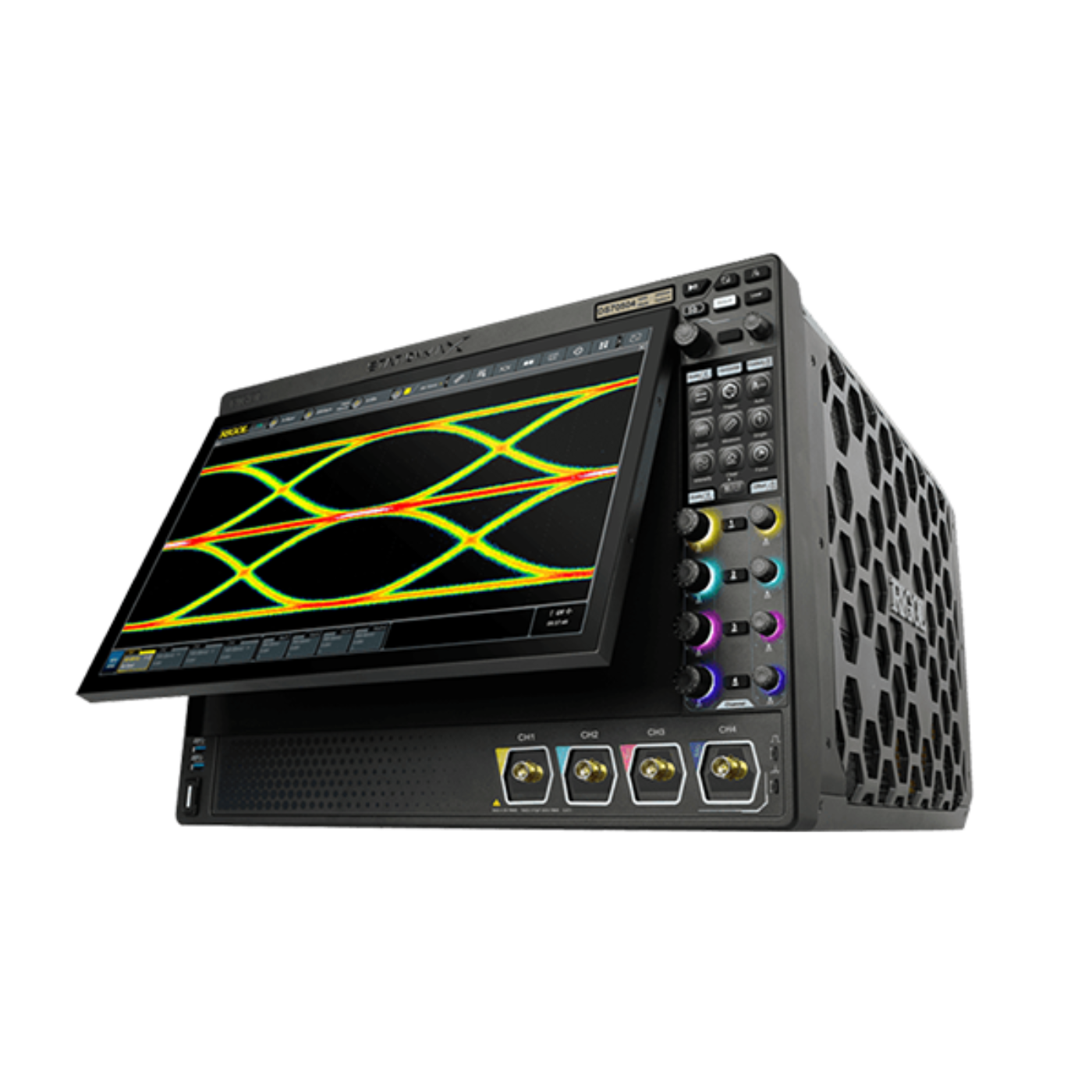

Multiple Touchscreens for efficient visualization

15.6” auto-tilt primary touchscreen display Secondary touchscreen reserves main screen for analysis

Multiple Touchscreens for efficient visualization

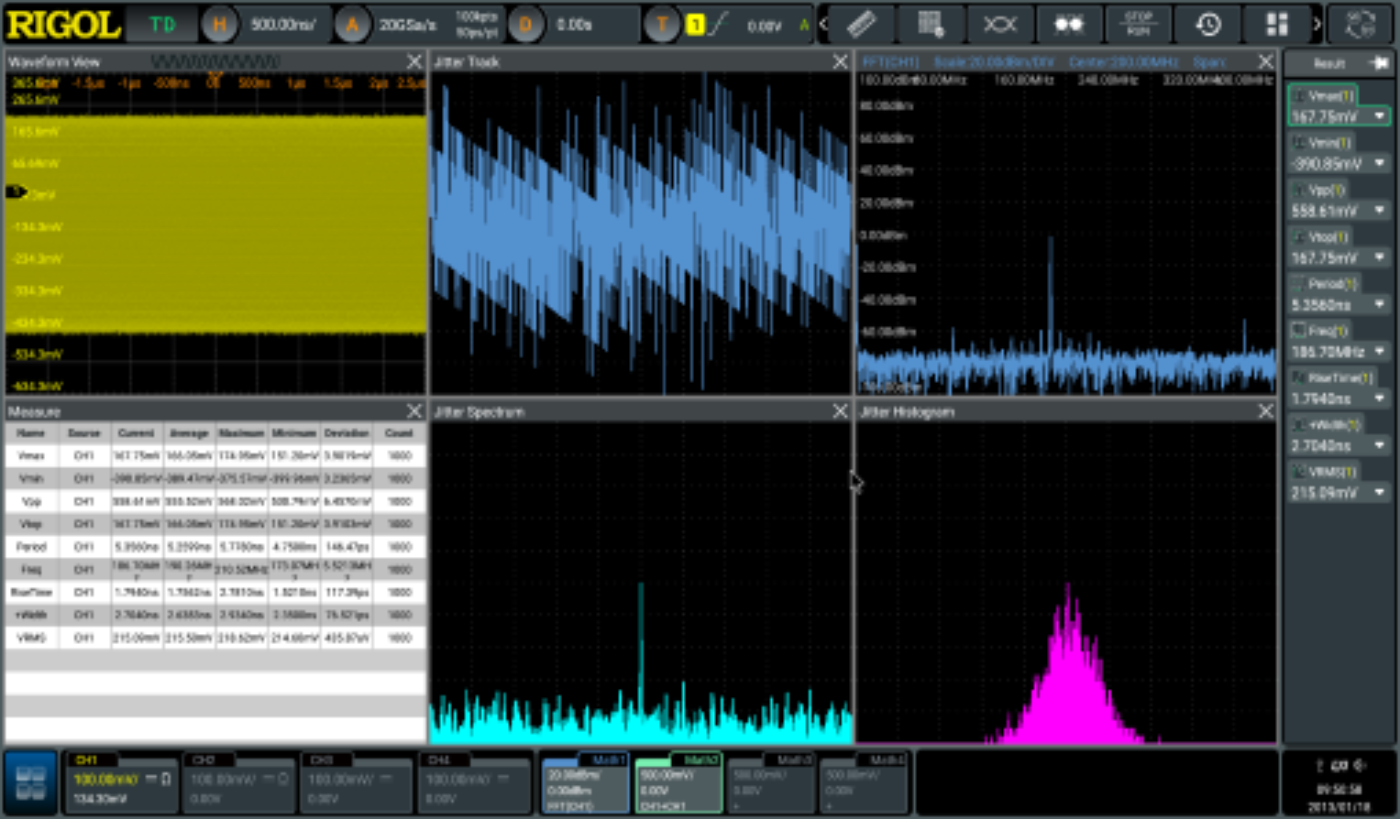

Multi Window User Interface

Analysis tools and functions open in separate windows that optimize scale and axis settings Measurements open in separate sidebar

Multi Window User Interface

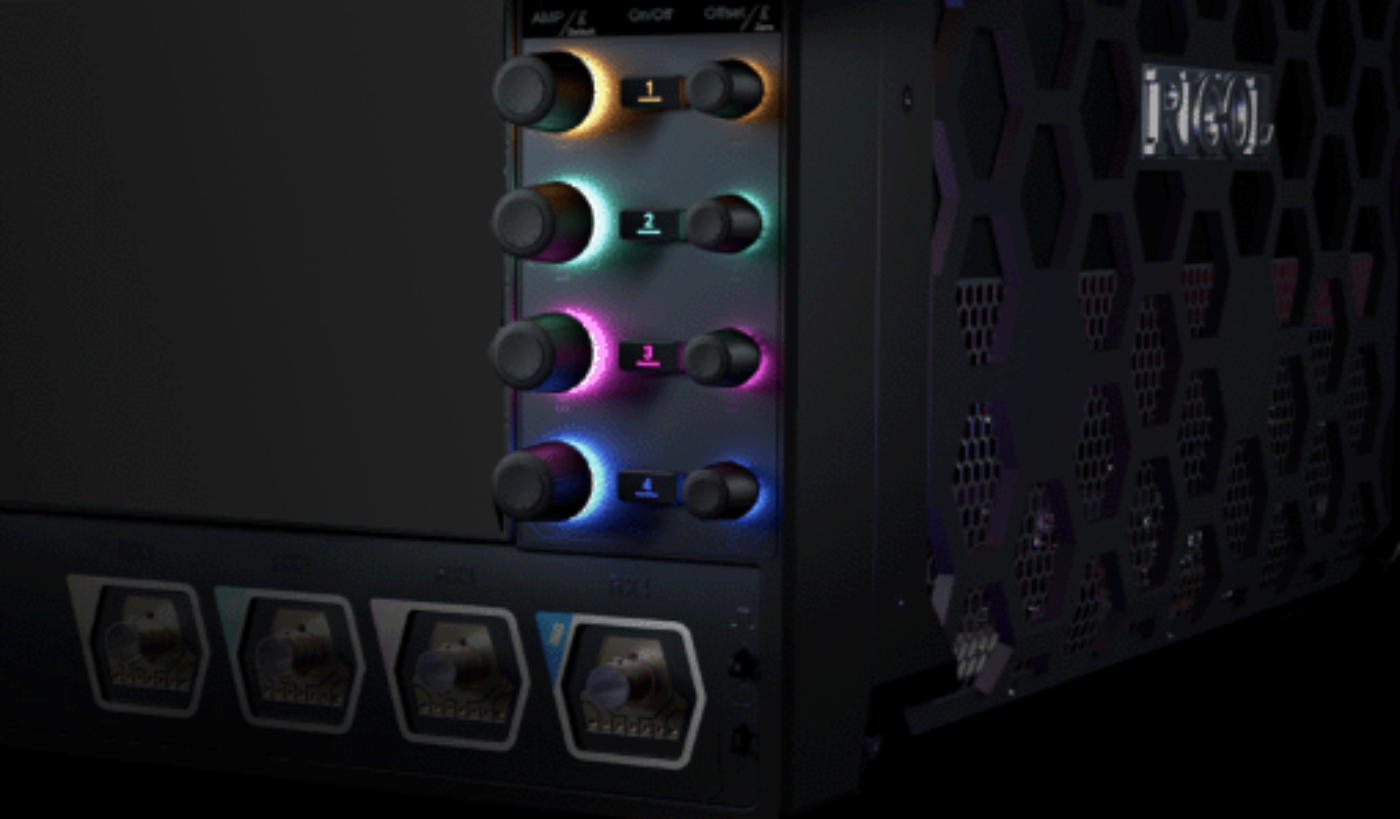

Photoelectric encoder with a longer service life

The knobs of the DS70000 series oscilloscopes use photoelectric encoders, which can ensure a service life of more than 100,000 presses and 1 million rotations of operation. As a frequently used adjustment method, the knobs based on photoelectric encoders no longer have the worry of wear and provide reliable operation for a longer time.

Photoelectric encoder with a longer service life

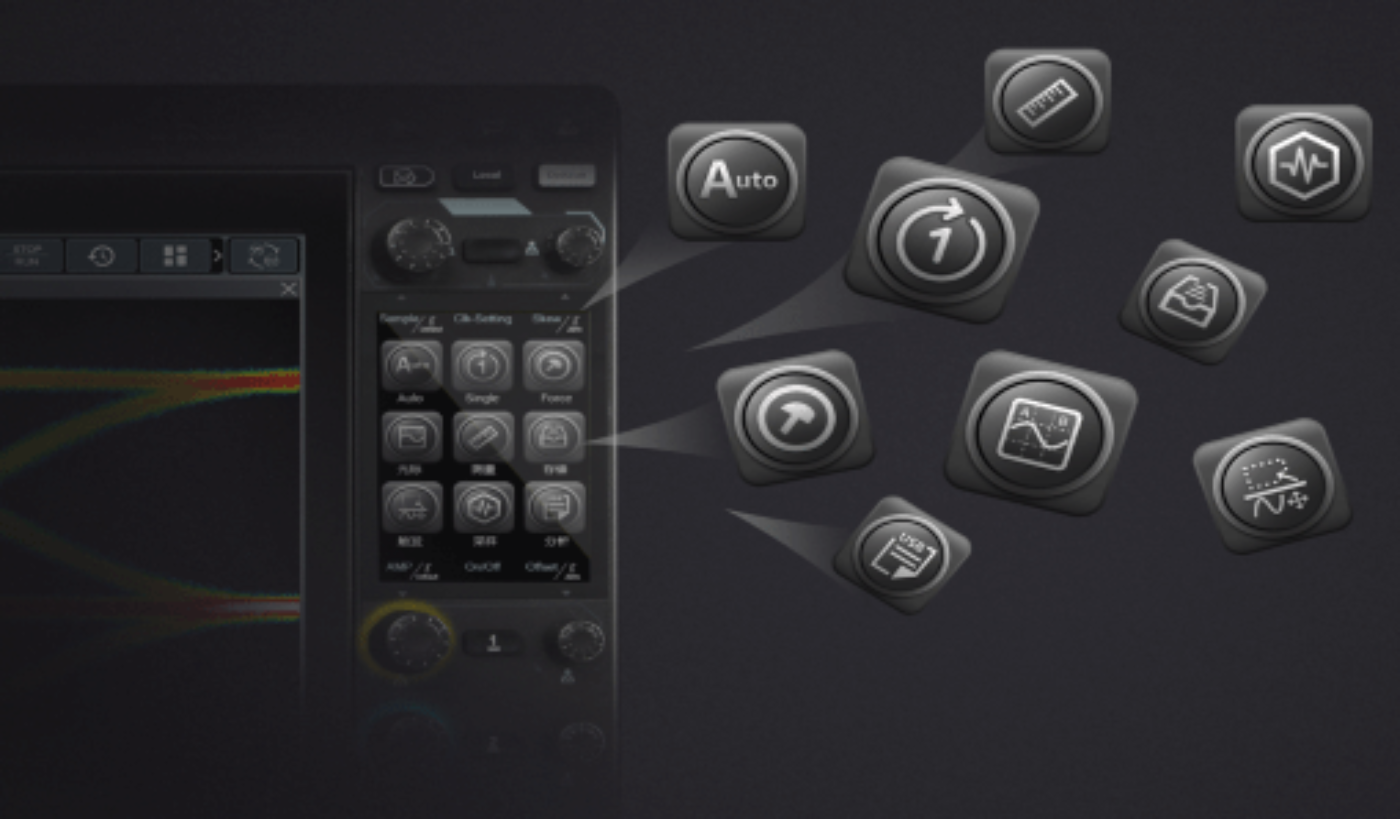

High-definition intelligent control feedback keyboard

In addition to the main screen, the DS70000 is equipped with an additional screen that serves as a customizable high - definition intelligent control feedback keyboard. Customers can customize the shortcut menu according to their own usage habits, and there is feedback when touching. When observing multiple windows, this screen can be used as an extended screen to increase the number of observation items.

High-definition intelligent control feedback keyboard

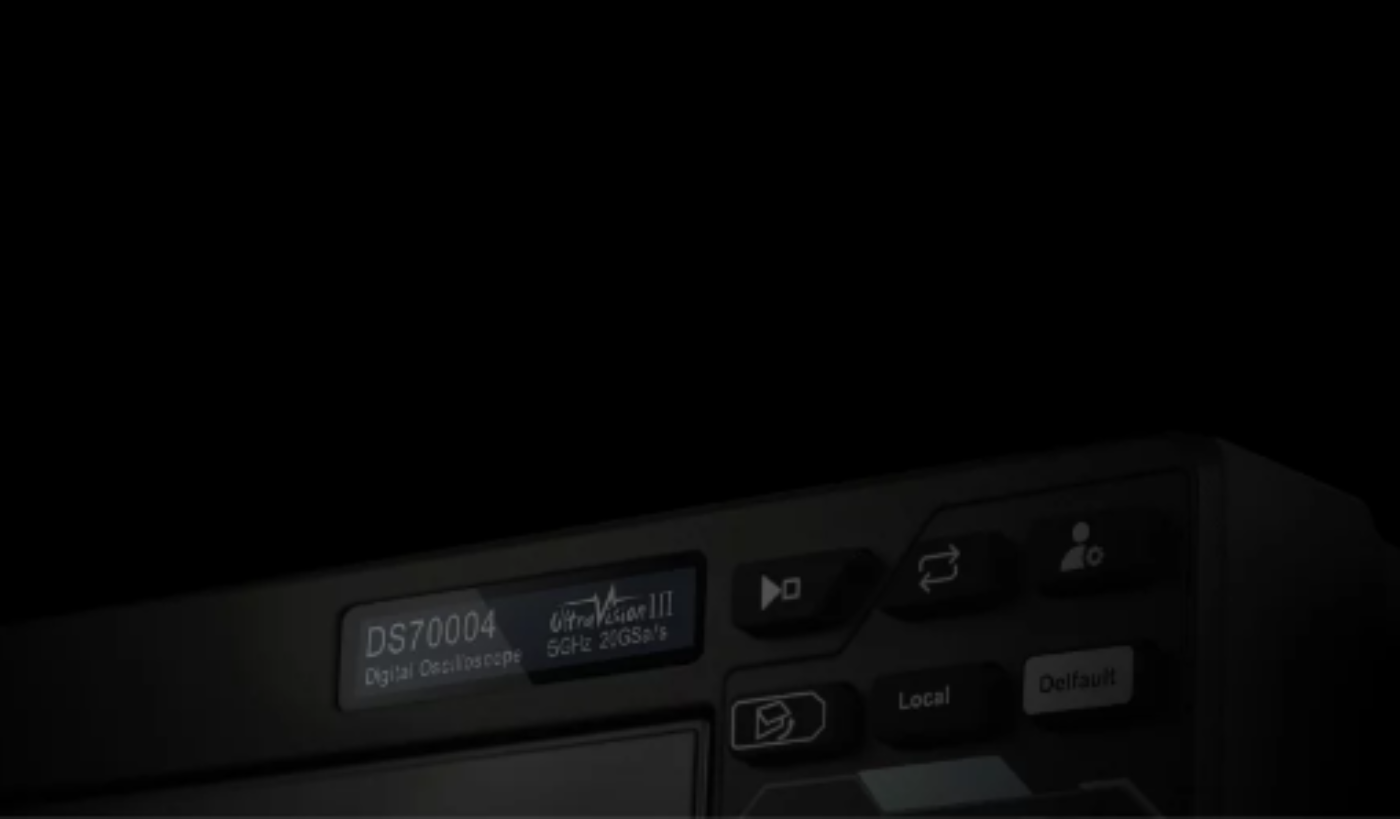

Electronic signage

The model and main parameters of the product are displayed on the electronic sign. The content can be retained for 20 years even when the device is turned off. After the instrument is upgraded, the performance parameters can be automatically refreshed to ensure the matching of the instrument asset information.

Electronic signage

Model

Model Bandwidth Analog Channels Real-Time Sample Rate Max. Memory Depth Waveform Capture Rate Digital Channels Built-In Source Product
DS70304 3 GHz 4 20 GSa/s 2 Gpts 1,000,000 wfms/s - - Discontinue
DS70504 5 GHz 4 20 GSa/s 2 Gpts 1,000,000 wfms/s - - Discontinue
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Accessories

Model Description
TF-USBH-STP USB2.0 Host Compliance Test Fixture
TF-USBD-STP USB2.0 Device Compliance Test Fixture
TF-ENET-STP 10/100/1000M Ethernet Compliance Test Fixture

Software

Model Description
UPA-DS Power Analysis Software for MSO/DS2000, MSO/DS4000, DS7000, MSO/DS7000, MSO5000 series oscilloscopes

User Manual

Name Version Release Date Download
DS70000 User Manual V2.0 2024-11-26 Download

Datasheet

Name Version Release Date Download
DS70000 Datasheets V3.0 2025-05-20 Download

Programming Manual

Name Version Release Date Download
DS70000 Programming Manual V2.0 2024-11-26 Download

Open Source

Name Version Release Date Download
DS70000 Open Source Statement V1.0 2024-01-25 Download

Quick Guide

Name Version Release Date Download
DS70000 QuickGuide V2.0 2024-11-26 Download
