DG800 Pro Series

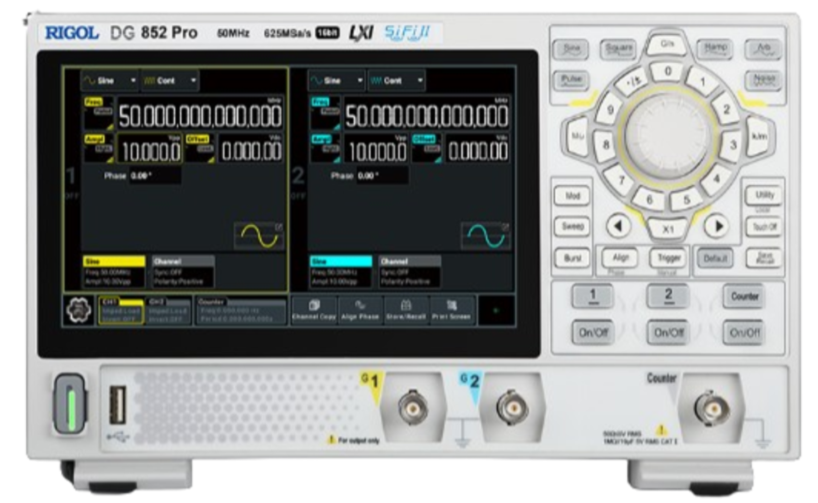

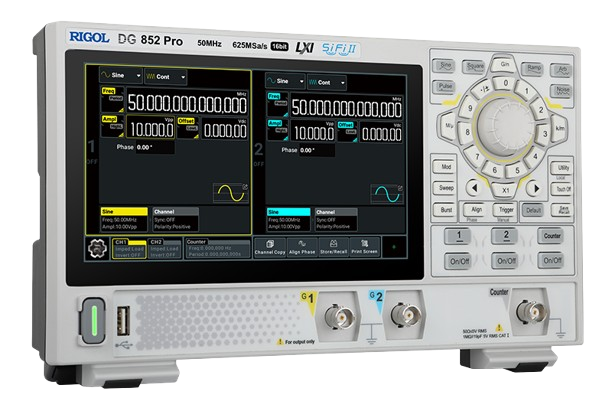

DG800 Pro Series is a multifunctional signal generator that integrates functions such as function generator, arbitrary waveform generator, noise generator, pulse generator, harmonic generator, analog/digital modulator, frequency meter, etc. The brand new appearance and user-friendly interface design bring a friendly user experience.

Maximum Output Frequency : 50MHz
Sample Rate : 625MSa/s
Vertical Resolution : 16bits
Number of Channels : 2CH
Arbitrary Waveform Length : 2M(8M opt.)
Datasheet
Main Image
Thumbnail 1

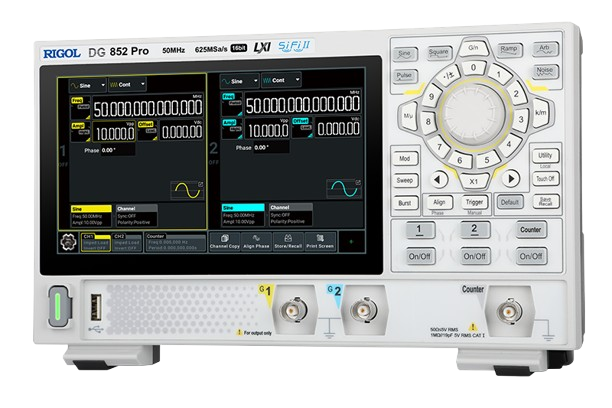

Thumbnail 2
Thumbnail 3
Thumbnail 4

Features

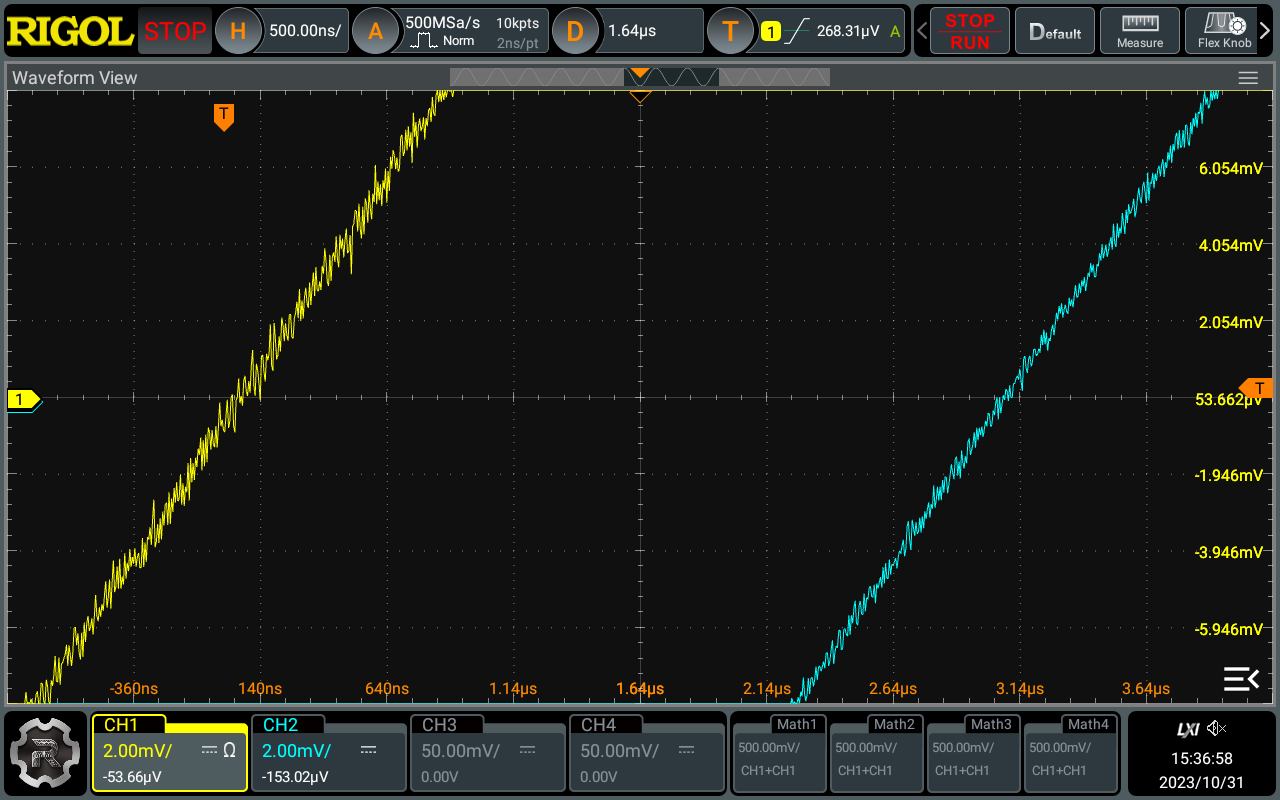

Outstanding Accuracy

625MSa/s maximum sampling rate, 16bit vertical resolution, more accurate waveform output, and cost-effective choice for entry-level signal sources.

Outstanding Accuracy

7-inch Color Touch Screen Display

7-inch color touch screen display, convenient for you to set parameters, view and edit signals for dual channel waveforms simultaneously.

7-inch Color Touch Screen Display

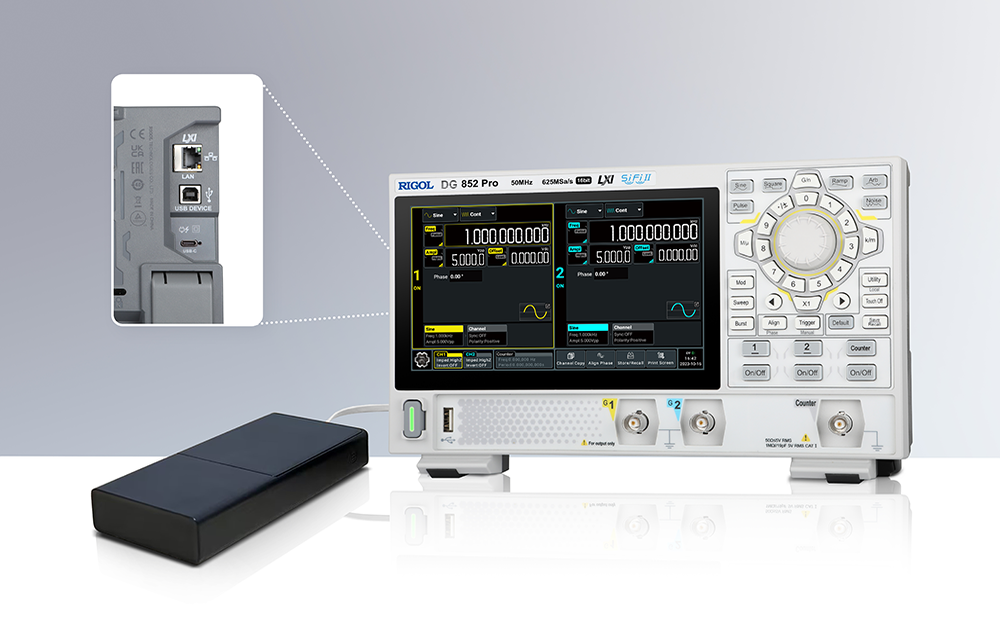

Equipped with Type-C Connector

Type-C connector enable DG800 Pro to be powered up by mobile power supply, make on-site testing more convenient.

Equipped with Type-C Connector

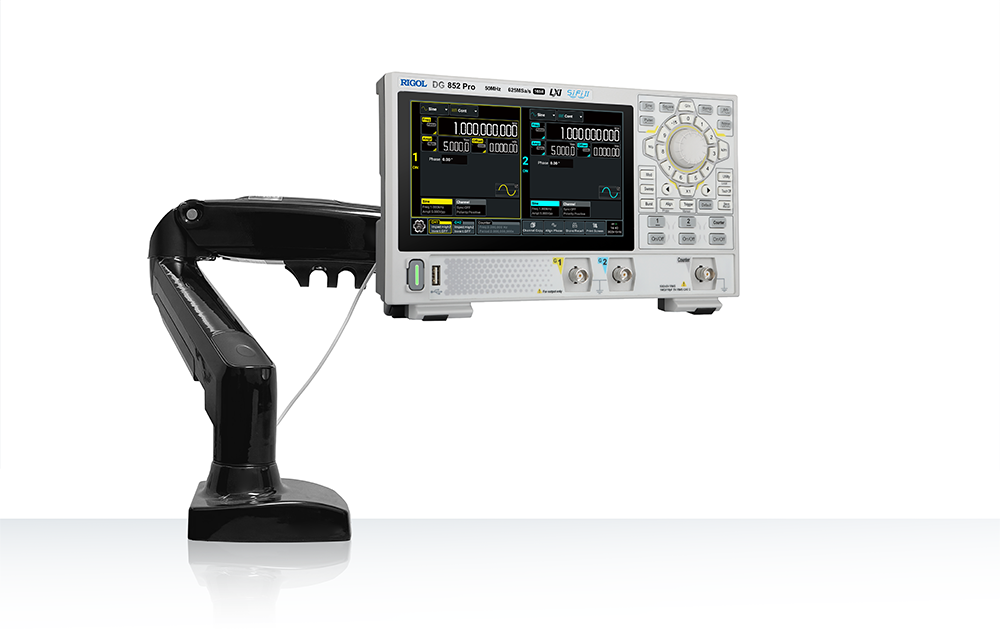

Dexterous appearance

Ultra-portable design, compact size. It also supports the use of a standard monitor stand, saving your workbench space. Dimensions: 266mm (width) x 165mm (height) x 63mm (depth), and it weighs only 1.78kg.

Dexterous appearance

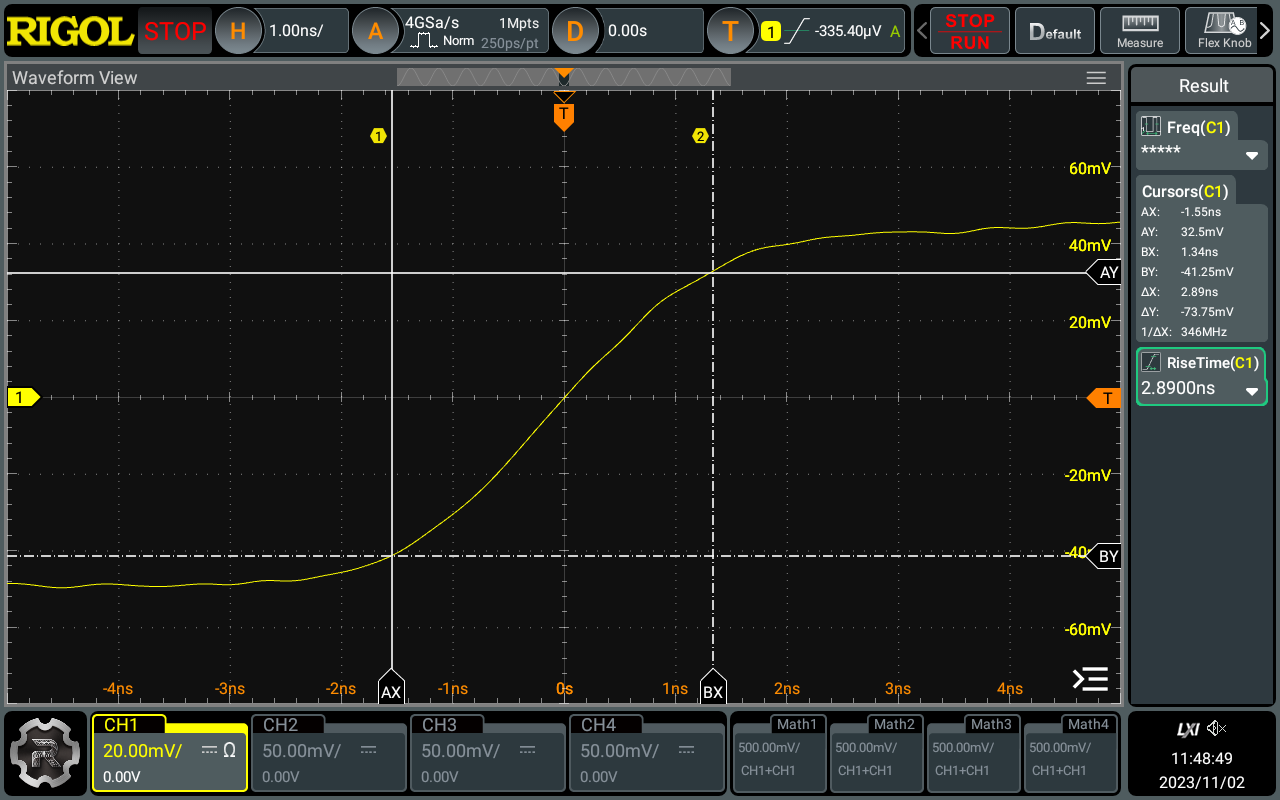

Fast Rising Edge

40MHz square wave and 25MHz adjustable edge pulse wave output, with waveform rise time as low as 3ns, meeting the waveform requirements of different applications.

Fast Rising Edge

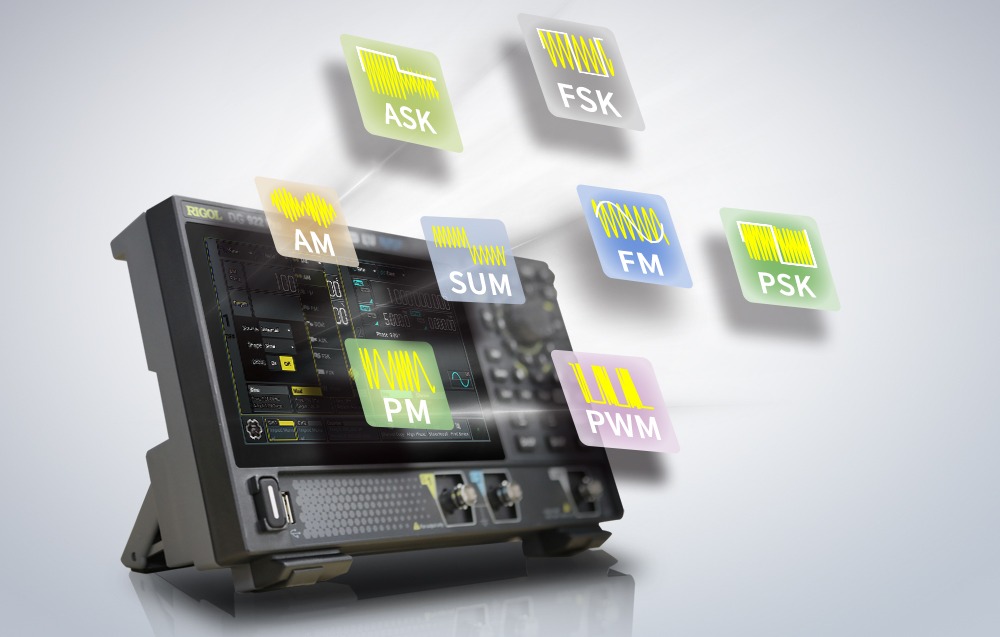

Rich Modulation Functions

Support rich modulation functions (AM, FM, PM, ASK, FSK, PSK, PWM, SUM modulation functions, etc.) to meet the requirements of communication principles, motor control, switching power supply and other application scenarios.

Rich Modulation Functions

Sequence function

NSupport up to 64 waveform events, 256 repetitions, and able to load multiple test cases in a sequence that require sequential execution at once. Thus, greatly improving testing efficiency through achieving seamless switching of test cases.

Sequence function

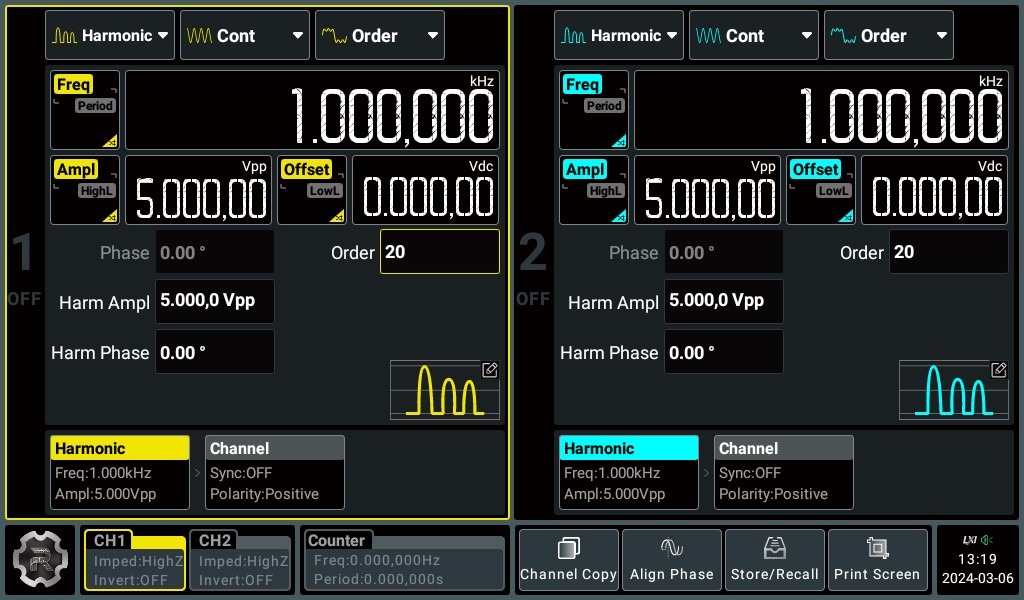

Maximum 20th Harmonic Generation Function

Up to 20 built-in waveform stacking functions provide a more accurate measurement method for performance testing of high-order filters, amplifiers, and other devices

Maximum 20th Harmonic Generation Function

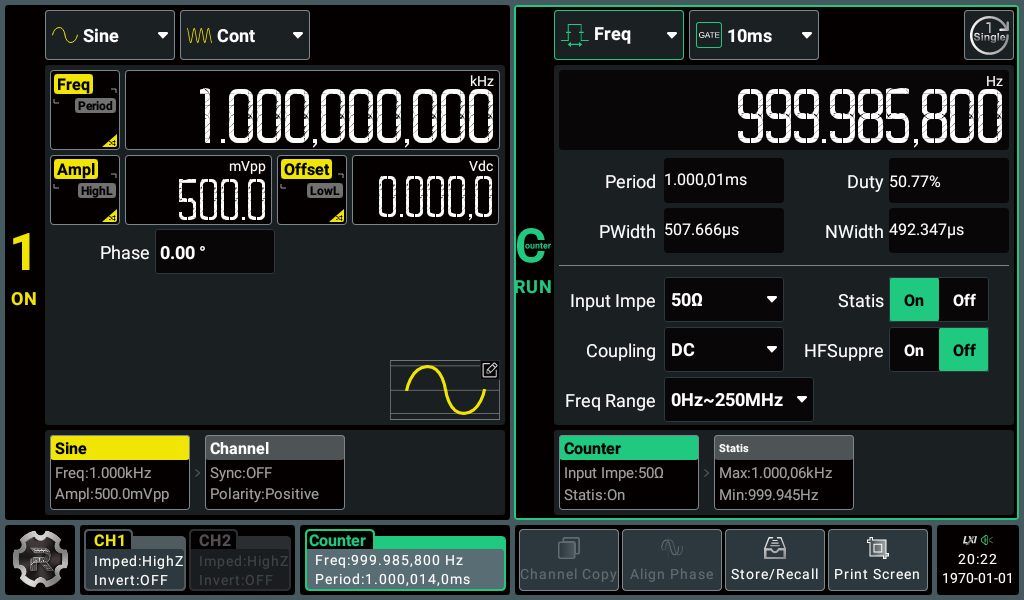

High Resolution Frequency Meter

A 7-bit 500MHz frequency meter that can measure parameters such as frequency, period, duty cycle, positive and negative pulse width from external input signals, and supports statistical analysis of measurement results

High Resolution Frequency Meter

Ultra-low jitter

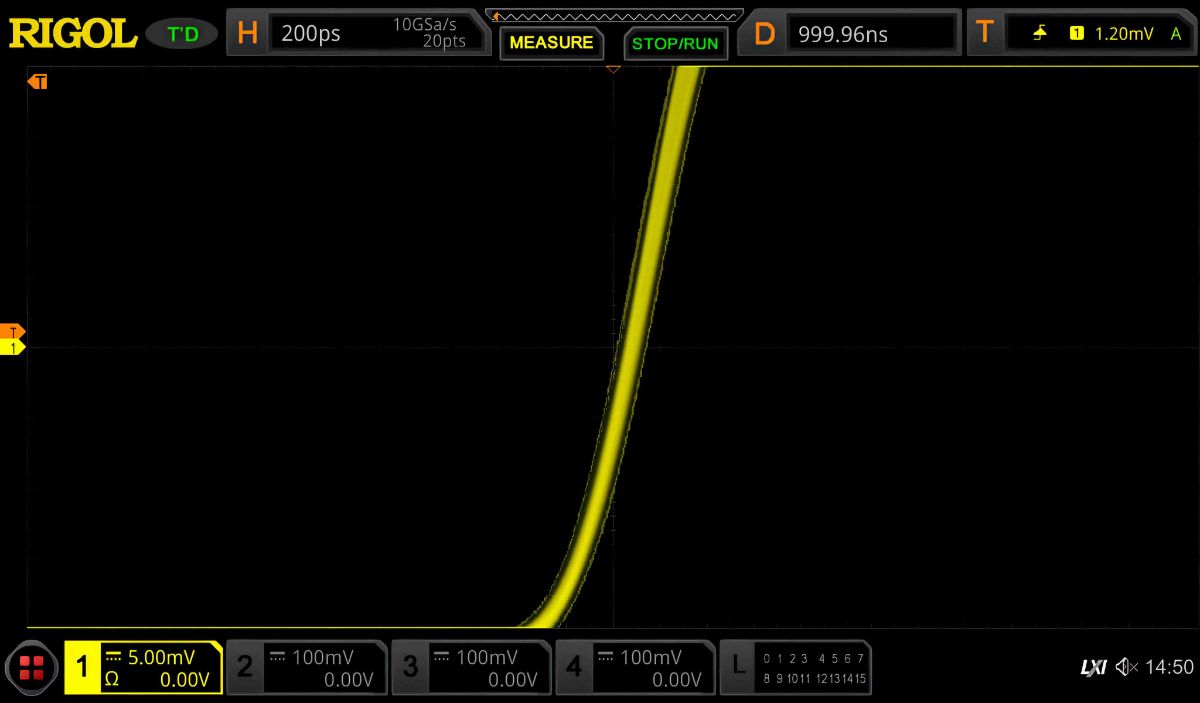

Based on RIGOl's original SIFI II technology, the DG900 Pro/800 Pro series can generate arbitrary waves point by point and restore signals without distortion. The sampling rate is precisely adjustable. Compared with traditional DDS signal sources, the generated signals have lower jitter, and the jitter of all output signals is as low as 200ps (rms).

Ultra-low jitter

Model

Model Max. Output Frequency Sample Rate Vertical Resolution Channels Arbitrary Wave Length Price
DG821 Pro 25 MHz 625 MSa/s 16 bits 1 CH 2M(8M opt.) Rp.8.910.000
DG822 Pro 25 MHz 625 MSa/s 16 bits 2 CH 2M(8M opt.) Rp.11.083.000
DG852 Pro 50 MHz 125 Msa/s 16 bits 2 CH 2 M(8M opt.) Rp.11.385.000
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Accessories

Model Description
DG800 Pro-DCH 2 channel upgrade option
DG800 Pro-3RL8M 8M upgrade option
RM5041 Ultra-Portable Platform Rack Mount Kit

User Manual

Name Version Release Date Download
DG800 Pro User Manual V3.0 2025-04-22 Download

Datasheet

Name Version Release Date Download
DG800 Pro Datasheet V4.0 2025-06-13 Download

Programming Manual

Name Version Release Date Download
DG800 Pro Programming Manual V3.0 2025-04-30 Download

Open Source

Name Version Release Date Download
DG800 Pro Open Source Acknowledgment V1.0 2024-01-12 Download

Quick Guide

Name Version Release Date Download
DG800 Pro QuickGuide V1.0 2024-02-18 Download
