M300 Series

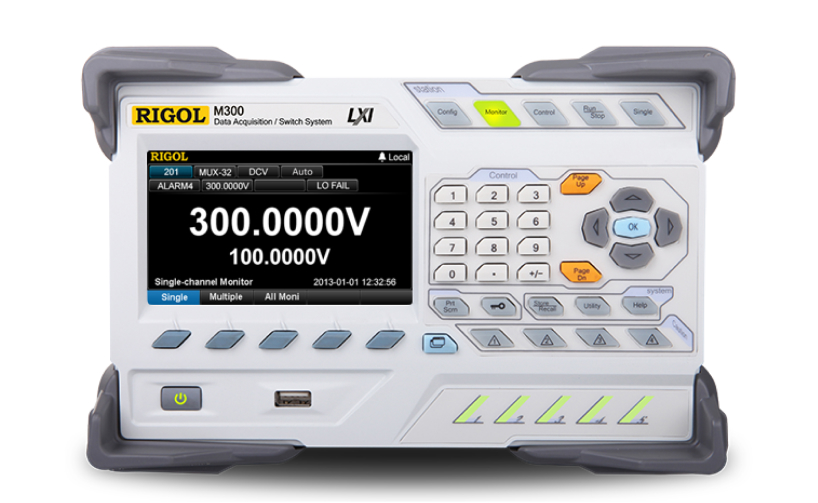

No matter the product performance test in the R & D stage or the automatic test in the production process, for the application of multiple test points and multiple signal measurement, the M300 series data acquisition / switch system with modular structure combines the precise measurement function with the flexible signal connection function, and can provide a wealth of test measurement solutions.

Number of Slots : 5
Type : 8
Built-in Multimeter Accuracy : 6½ Readings resolution
Max. Scanning Speed : 60 Channels/second
Max. Number of Channels Per Unit : 320
Datasheet
Main Image
Thumbnail 1

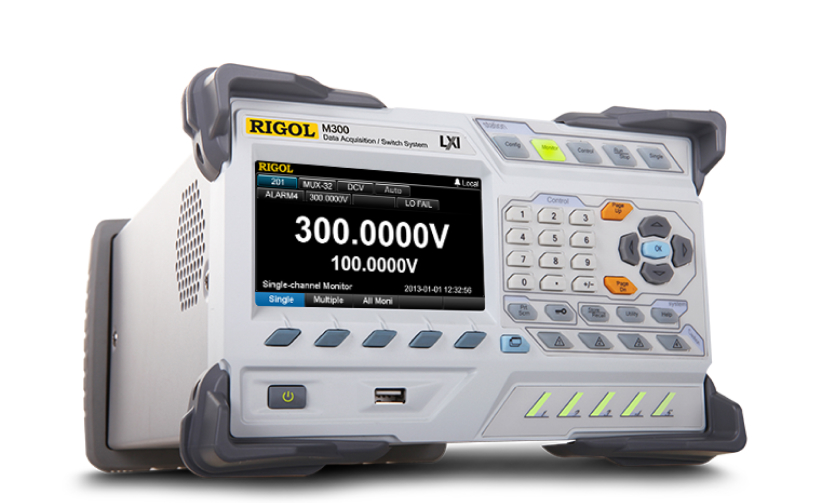

Thumbnail 2
Thumbnail 3

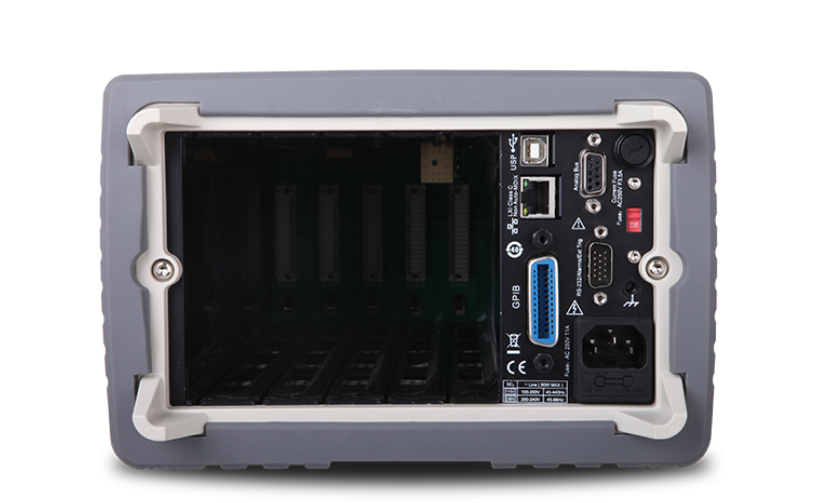

Thumbnail 4

Features

Large Screen Display & Easy to Operate

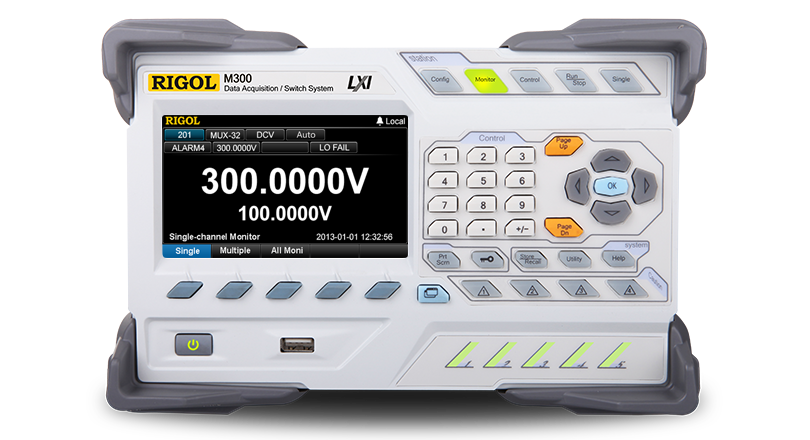

4.3-inch color LCD screen, simple and convenient function setting, no PC required, the host can independently perform the acquisition function.

Large Screen Display & Easy to Operate

6.5-bit Reading resolution

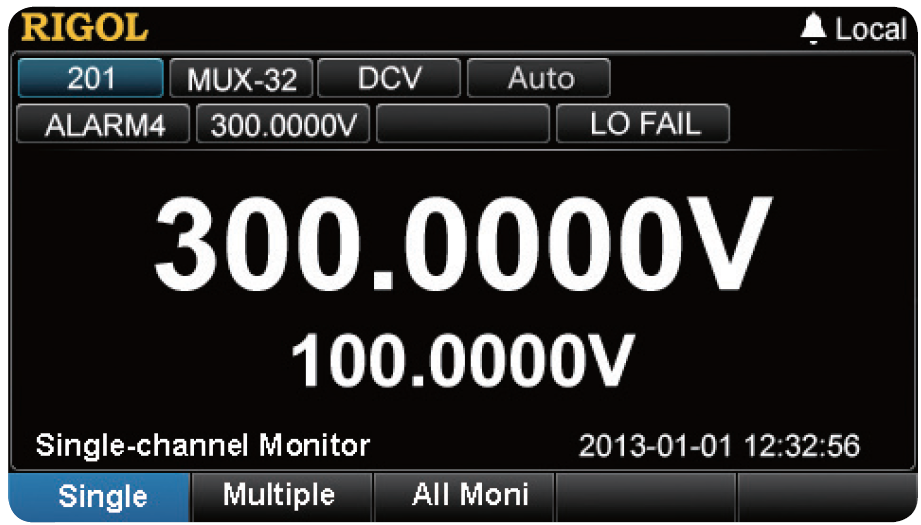

The measurement function of the data acquisition system is completed by the 6.5-bit multimeter module, which supports the measurement functions of DCV, DCI, ACV, ACI, 2wr, 4wr, cycle, frequency, temperature (thermocouple, thermistor and RTD) and any sensor.

6.5-bit Reading resolution

Up to 256 Test Channels

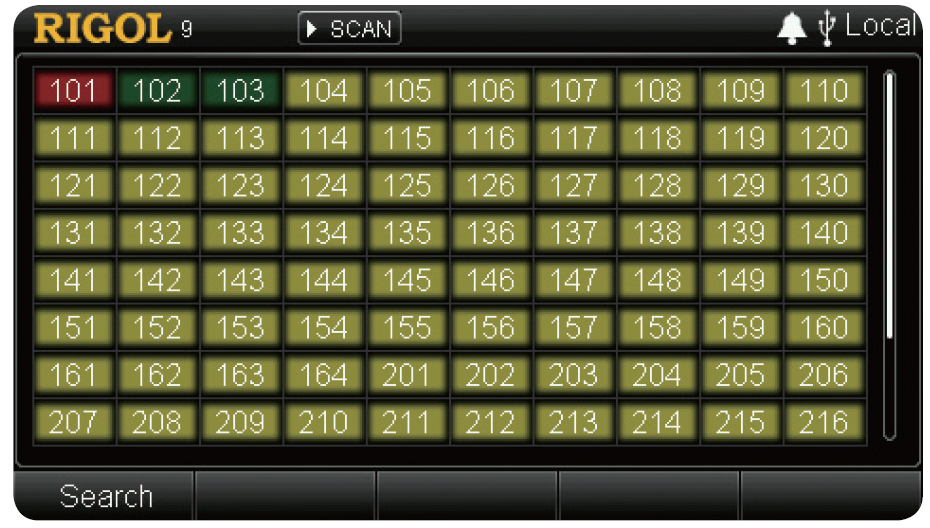

The M300 host has five module slots One slot is generally used for DMM measurement card, and the other four are used for measurement channel According to the selected module, the slot can have up to 64 measurement channels, and each host can have 256 measurement channels.

Up to 256 Test Channels

Optional 8 Module Cards

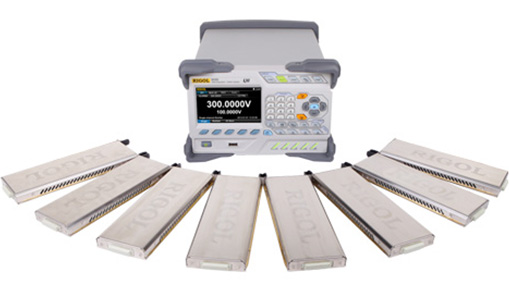

Support up to 8 kinds of module cards, including various multiplexers, actuators, switch matrix and hybrid test modules.

Optional 8 Module Cards

Provide Multiple

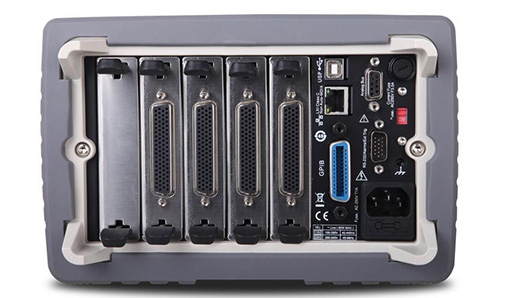

Communication Interfaces USB host / device, GPIB, LAN (lxi-c) and RS232 communication interfaces are provided as standard.

Provide Multiple

Supporting Control Analysis Software

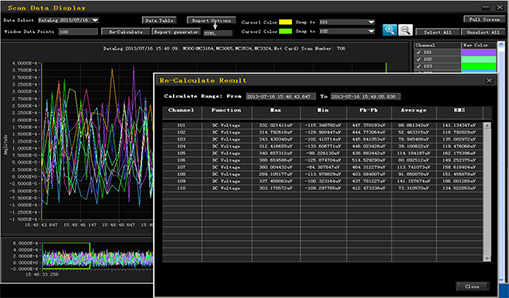

Ultraacquire can control up to five hosts to complete the configuration of complex systems Record and draw data after scanning Ethernet or USB PC every time Users can also set limits, alerts, and triggers for advanced system monitoring. The software provides rich data display mode, one click report generation function and data export function.

Supporting Control Analysis Software

Model

Model Number of Slots Type Built-in Multimeter Accuracy Max. Scanning Speed Max. Number of Channels Per Unit
M300 5 8 - 60 Ch/s 320
M301 5 8 6½ digits 60 Ch/s 320
M302 5 8 6½ digits 60 Ch/s 320
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Accessories

Model Description
M3A2B 32CHMultiplexer Junction Box，Thermocouple temperature measurement dedicated
DEMOKIT-M300 M300 Demo board
RM-2-M300 2-machine rack kit
RM-1-M300 Stand-alone rack kit
M3TB20 20CHMultiplexer Junction Box
MC3120 20CHMultiplexer（2/4wire）
MC3065 6.5 digit multimeter
MC3132 32CH Multiplexer（2/4wire）
MC3164 64CH Single-ended multiplexer
MC3324 24CHMultiplexer（2/4wire），With 4 current channels
MC3648 4x82 line matrix module
MC3416 16CH Actuator
MC3534 Multi-function module：4CH COUNTER,4CH 16bit DAC,4 8bit DIO
M3TB34 Multifunction Junction Box
M3TB32 32CH Multiplexer Junction Box
M3TB64 64CH Multiplexer Junction Box
M3TB24 24CH Multiplexer Junction Box
M3TB16 16CH Actuator Junction Box
M3TB48 4x82 line matrix module Junction Box
M3A2B Analog bus flip connector
M3GPIB GPIB flip connector
MC3065 6.5 digit multimeter
Ultra Acquire Pro PC full-function software

User Manual

Name Version Release Date Download
M300 User Manual V2.0 2025-07-09 Download
M300 SelectionGuide V1.0 2019-08-29 Download

Datasheet

Name Version Release Date Download
M300 Datasheet DSC07105-5110 2026-04-14 Download

Programming Manual

Name Version Release Date Download
M300 Programming Guide V2.0 2025-07-09 Download

Quick Guide

Name Version Release Date Download
M300 Quick Guide v2.0 2025-07-09 Download
