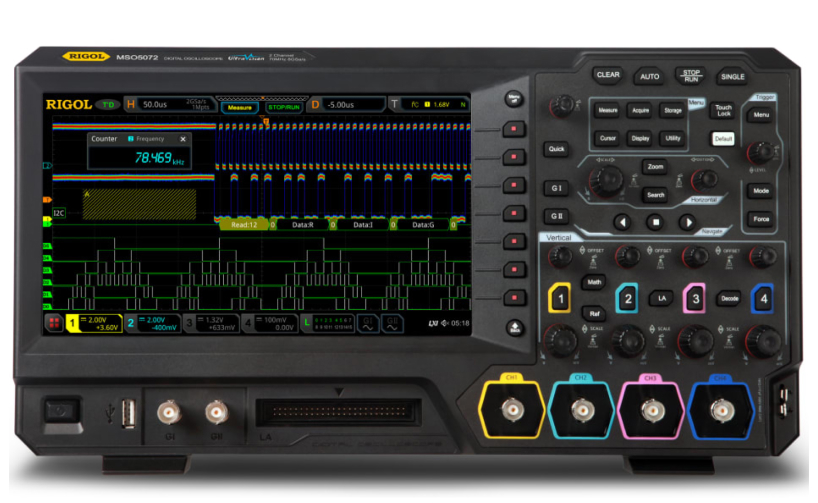

MSO5000 Series

MSO5000 series digital oscilloscope is a high performance and economical digital oscilloscope based on the technology of RIGOL ultravision II generation.

Bandwidth : 70 MHz ~ 350 MHz
Analog Channels : 4
Real-time Sample Rate : 8 GSa/s
Max. Memory Depth : 200 Mpts
Digital Channels : 16
Waveform Capture Rate : 500,000 kwfms/s

Start From Rp19.147.500

Datasheet
Main Image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4

Features

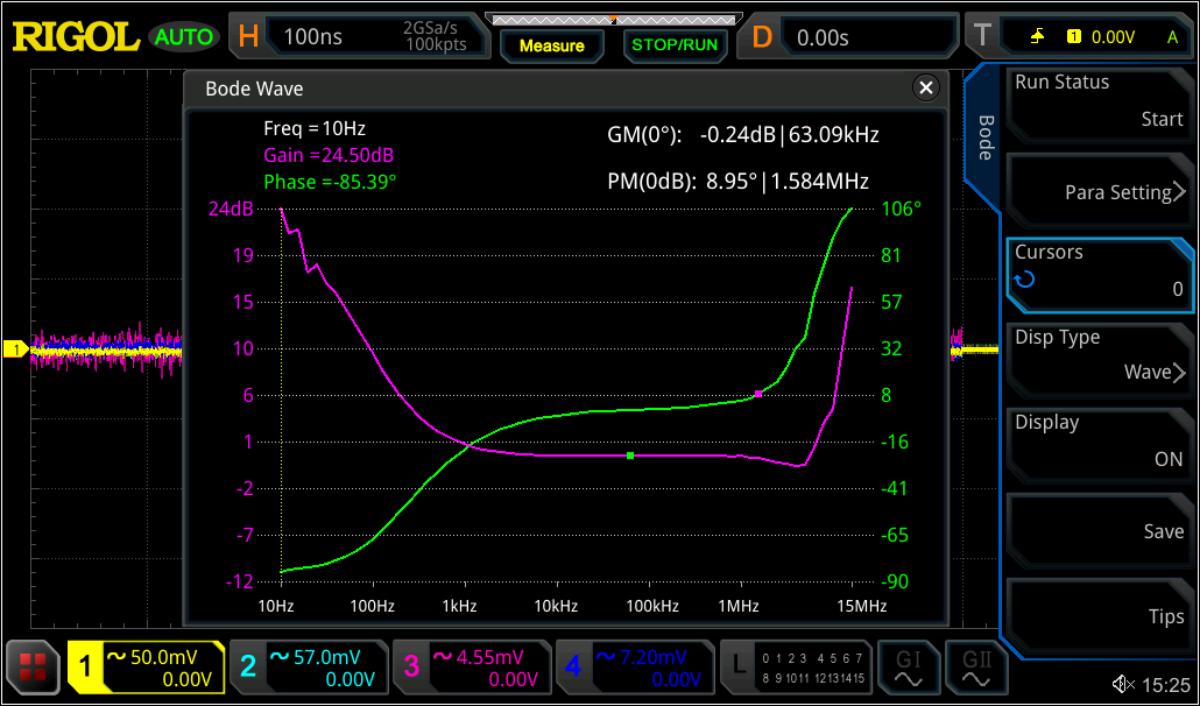

Bode Plot: Switching Power Supply Loop Analysis

The RIGOL MSO5000 Series Oscilloscope comes with a Bode plot function, which intuitively shows test curve and data. This can help engineers quickly determine system stability by analyzing parameters such as phase margin and gain margin.

Bode Plot: Switching Power Supply Loop Analysis

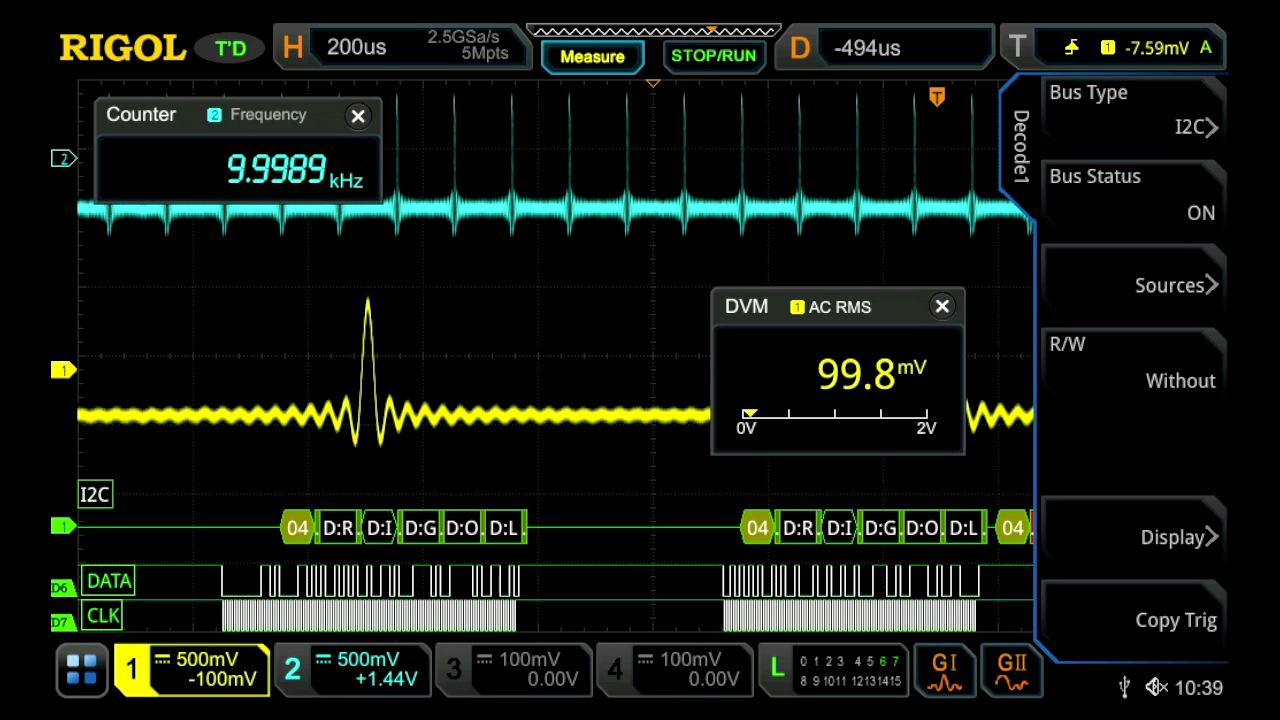

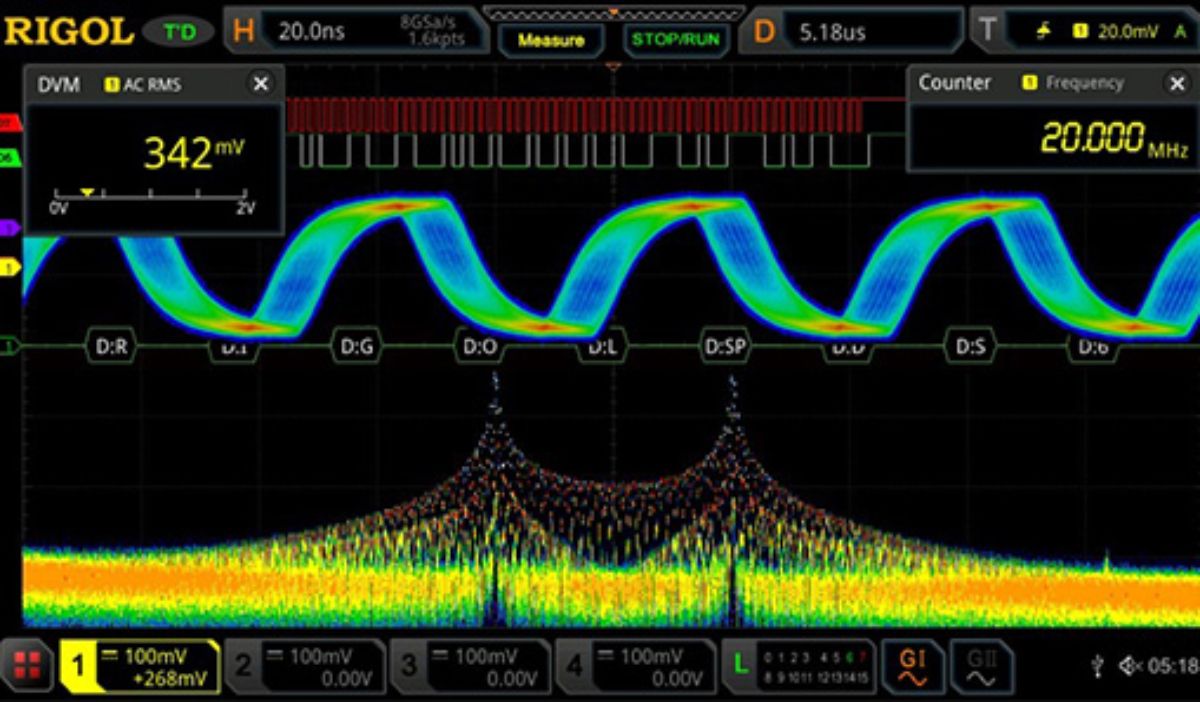

7 in 1 Product Design

It integrates 7 independent instruments, including an oscilloscope, a 16 channel logic analyzer, a spectrum analyzer, an arbitrary wave generator, a digital voltmeter, a high-precision frequency meter and accumulator, and a protocol analyzer.

7 in 1 Product Design

9 "multi Touch Capacitive Screen

9-inch multi touch capacitive screen, supporting a variety of gesture operations, providing users with the most optimized interaction experience.

9 "multi Touch Capacitive Screen

Convenient Web Control Remote Control

The user only needs to input the IP address of the oscilloscope in the address bar of the web browser, then he can open the web control control software and easily handle the remote control.

Convenient Web Control Remote Control

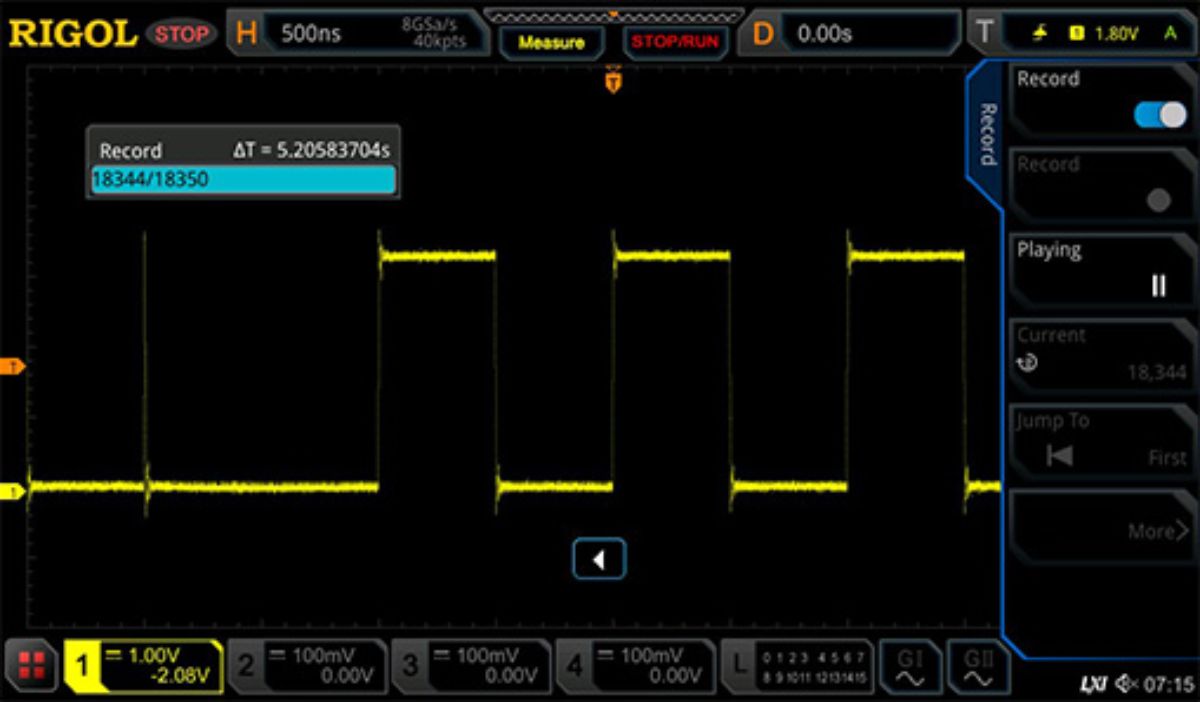

Support Up to 450000 Frames of Hardware Waveform Recording Analysis

The hardware waveform recording function adopts the segmented storage technology, which can selectively capture and store the user's concerned signal by setting the trigger conditions, and mark the time on the signal, which not only ensures the efficiency of acquisition, but also further expands the total time of waveform observation.

Support Up to 450000 Frames of Hardware Waveform Recording Analysis

Waveform Capture Rate Up to 500000 Times Per Second

With a waveform capture rate of up to 500000 WFMS / s, the burr and other accidental events in the signal can be found quickly, which greatly improves the debugging efficiency of engineers

Waveform Capture Rate Up to 500000 Times Per Second

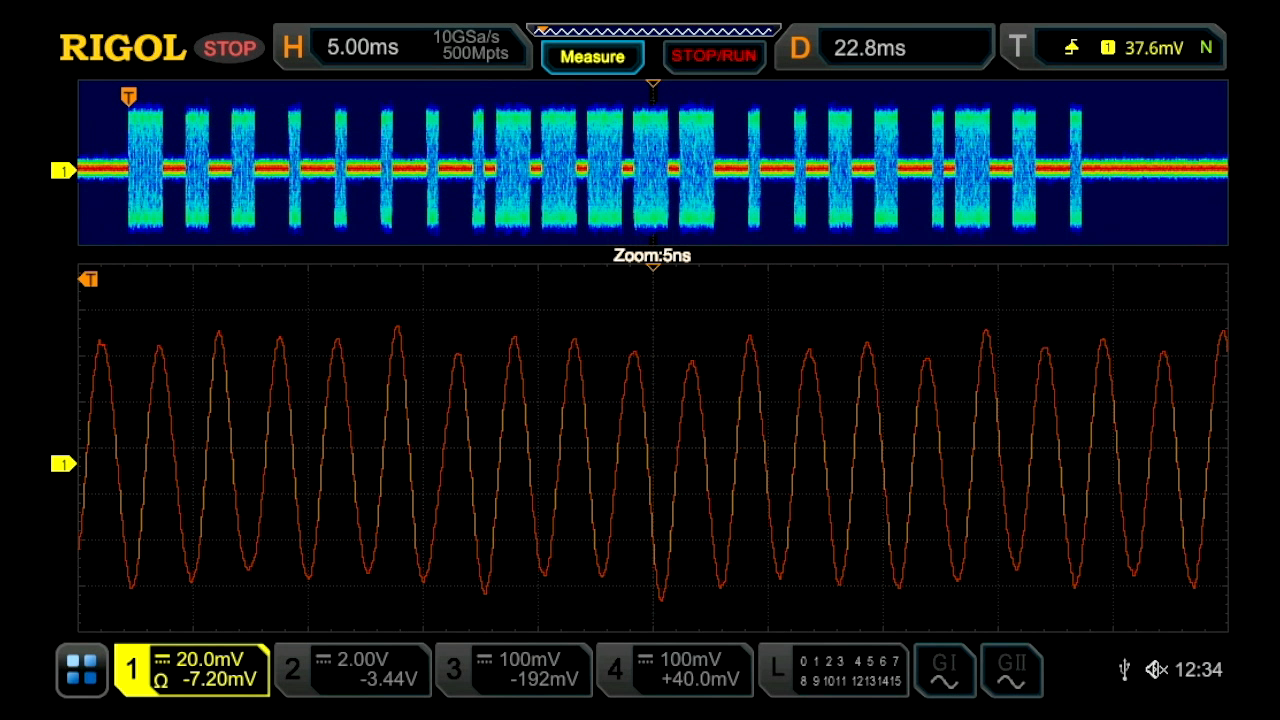

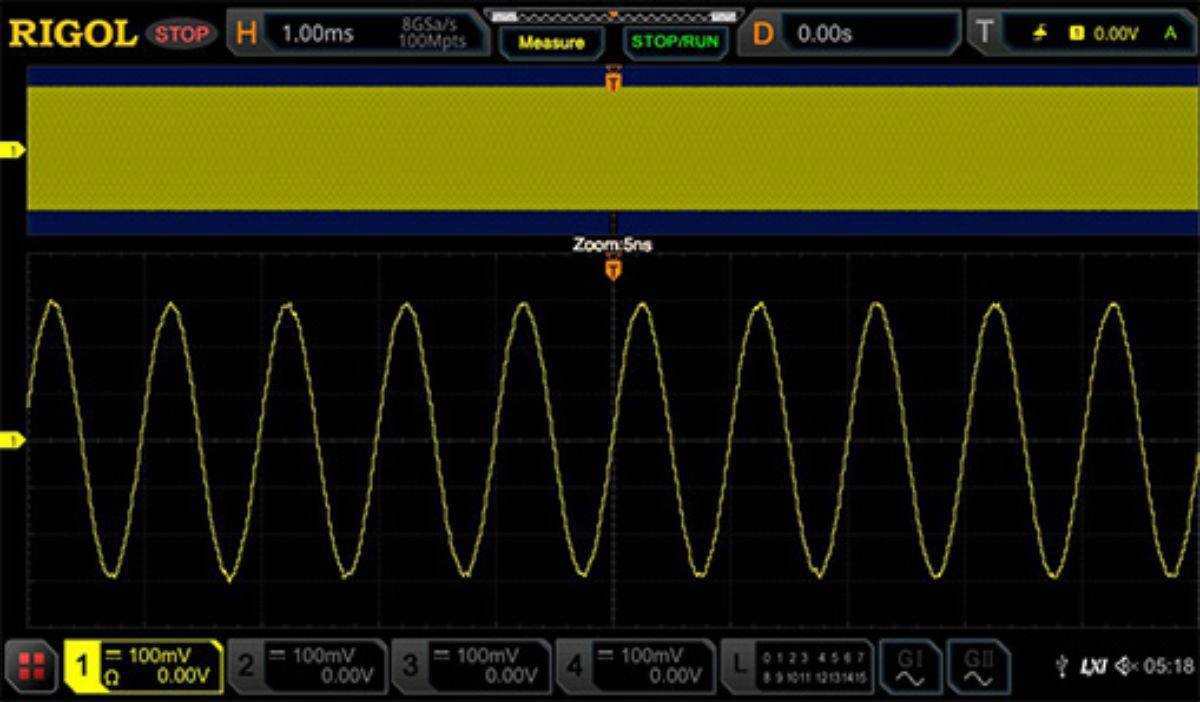

Super High Sampling Bandwidth Ratio

The mso5000 series provides a real-time sampling rate of up to 8 GSa / s at 350 MHz bandwidth, with a sampling bandwidth ratio of about 23 times, which makes it a leader in the oscilloscope products of the same level, and has an ultra long waveform storage depth of 200 mpts.

Super High Sampling Bandwidth Ratio

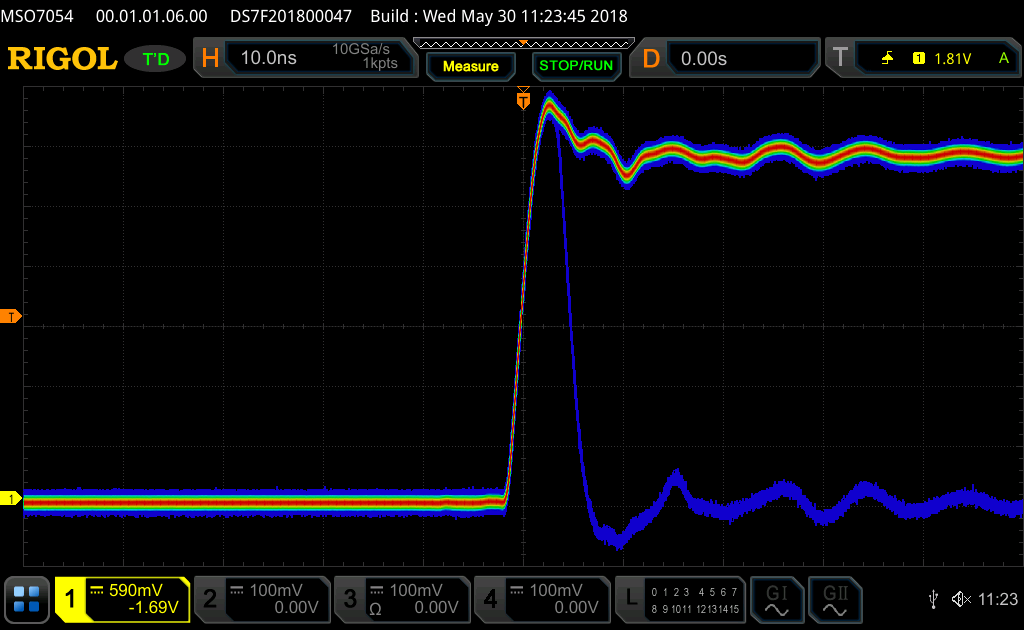

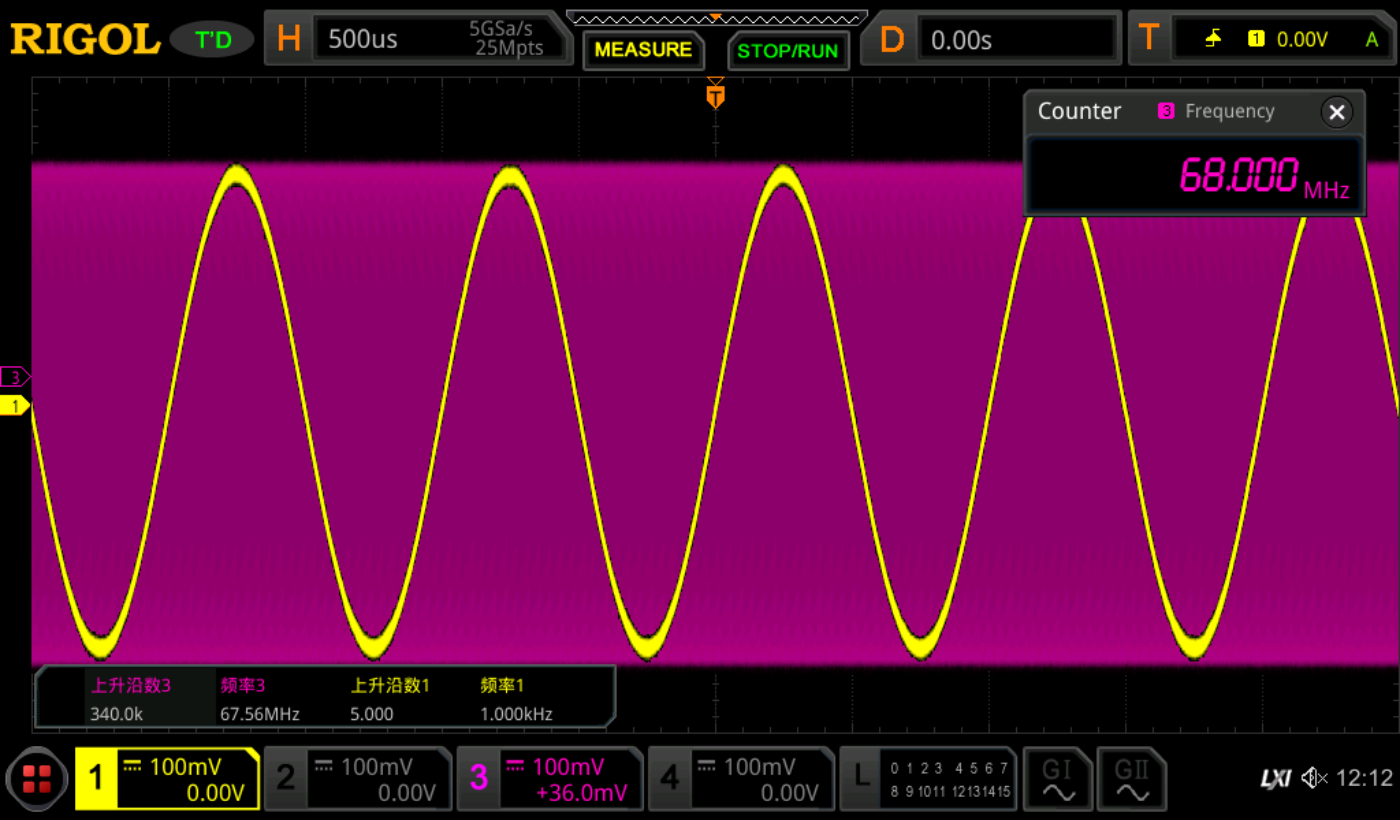

Full Memory Hardware Measurement

At the same time, observe and accurately measure the signals with large frequency difference between the two channels. The full memory hardware measurement can measure the accurate frequency value in the waveform with 340k rising edges

Full Memory Hardware Measurement

Model

Model Bandwidth Analog Channels Real-Time Sample Rate Max. Memory Depth Waveform Capture Rate Digital Channels Built-in Source Price
MSO5354 350 MHz 4 8 GSa/s 200 Mpts (option) 500,000 wfrms/s 16 25MHz, 2CH（opt.） Rp.63.936.000
MSO5204 200 MHz 4 8 GSa/s 200 Mpts (option) 500,000 wfrms/s 16 25MHz, 2CH（opt.） Rp.52.740.500
MSO5104 100 MHz 4 8 GSa/s 200 Mpts (option) 500,000 wfrms/s 16 25MHz, 2CH（opt.） Rp31.350.000
MSO5102 100 MHz 2 8 GSa/s 200 Mpts (option) 500,000 wfrms/s 16 25MHz, 2CH（opt.） Rp29.415.000
MSO5074 70 MHz 4 8 GSa/s 200 Mpts (option) 500,000 wfrms/s 16 25MHz, 2CH（opt.） Rp,22.366.500
MSO5072 70 MHz 2 8 GSa/s 200 Mpts (option) 500,000 wfrms/s 16 25MHz, 2CH（opt.） Rp.19.147.500
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan
