DP700 Series

DP711 is a single-channel programmable linear DC power supply. It is a basic power supply product designed for users requiring high-reliability power supplies with lower cost and smaller size, featuring low ripple and noise, fast transient response, excellent line and load regulation, as well as powerful timed output function and comprehensive protection functions.

Channels : 1CH
Total power : 150W
Output Per Channel : 50V/3A
Programming Accuracy : 10mV/10mA
Readback Accuracy : 10mV/10mA
Display Resolution : 10mV/10mA

Start From Rp6.660.000

Datasheet

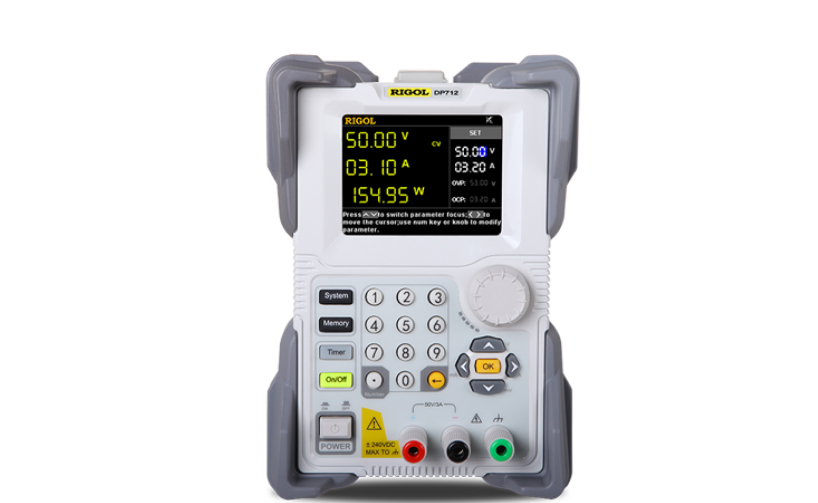

Main Image
Thumbnail 1

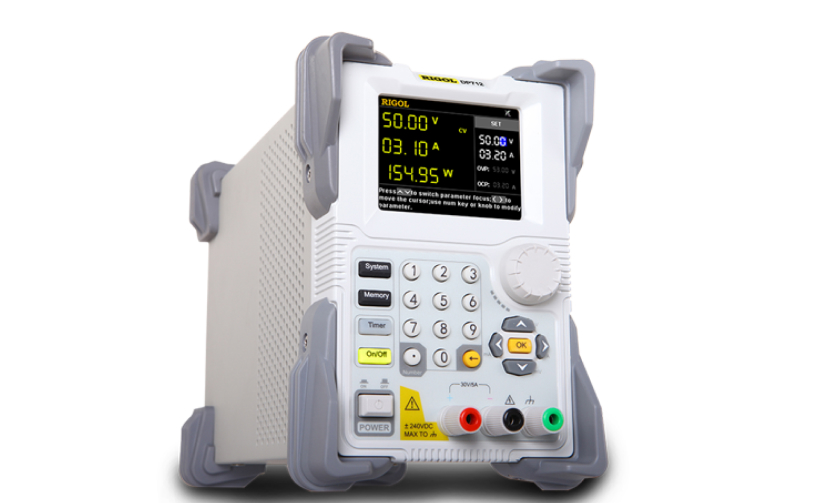

Thumbnail 2

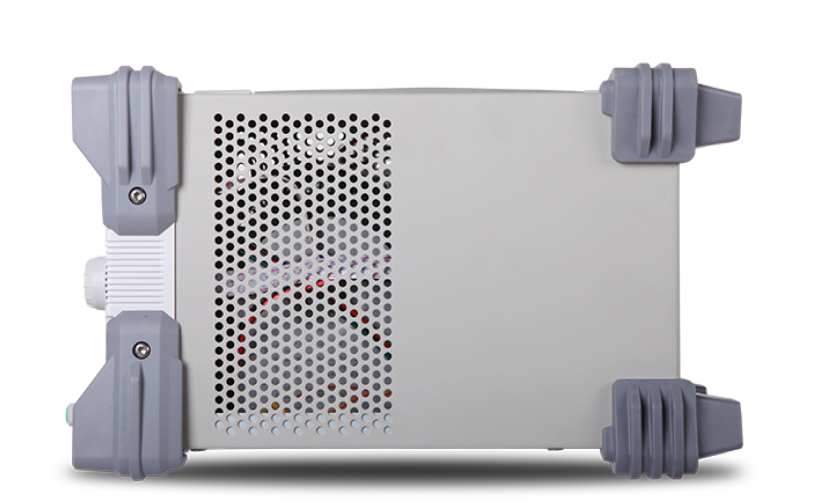

Thumbnail 3

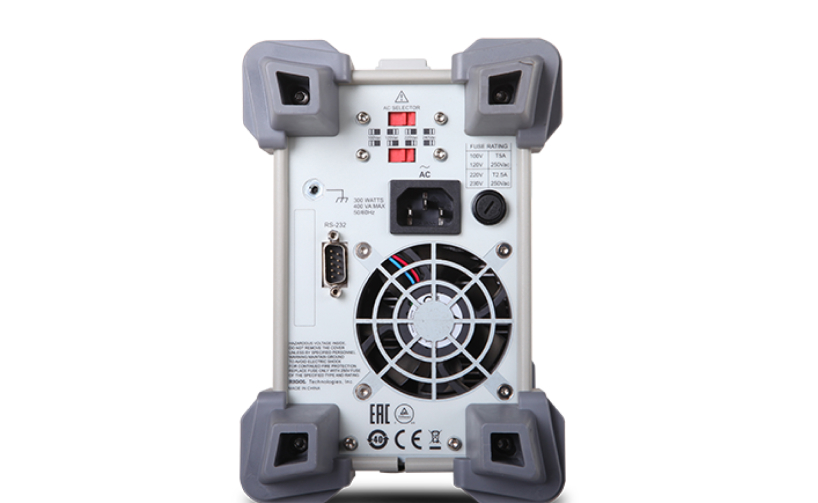

Thumbnail 4

Features

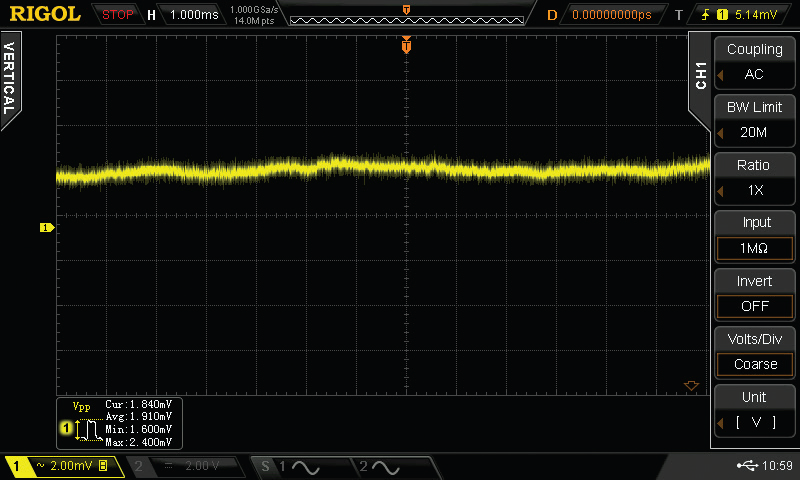

Low Ripple Noise

Ultra low noise design (< 500uvrms / 3mvpp), to meet the user's demand for high purity power supply.

Low Ripple Noise

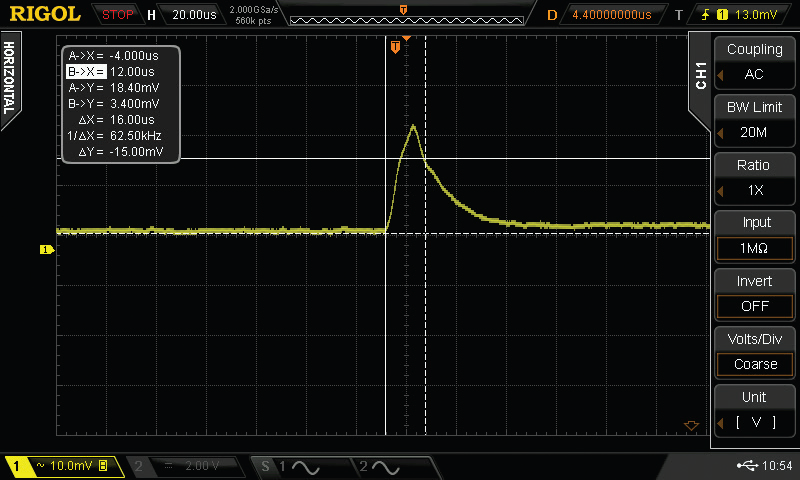

Fast Transient Response

With a transient response time of less than 50 μs, when the load current undergoes a transient change, the output voltage can quickly return to the set value, ensuring the output quality.

Fast Transient Response

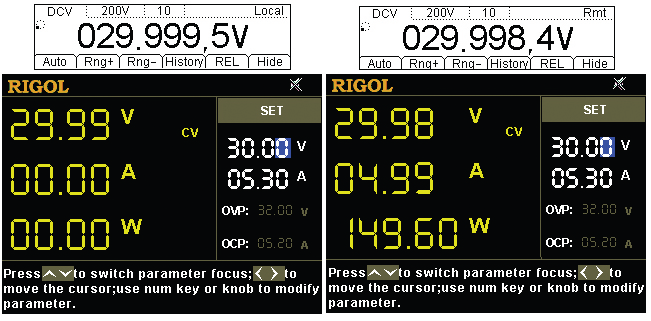

Excellen Power Supply & Load Regulation Rate

A power supply regulation rate and load regulation rate of 0.01% ensure stable and safe output.

Excellen Power Supply & Load Regulation Rate

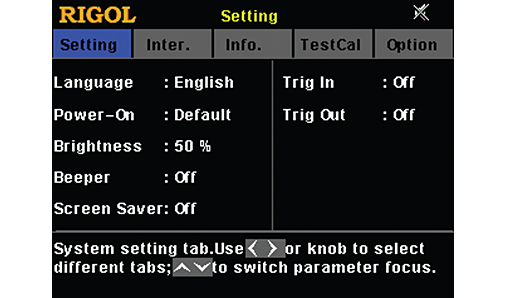

Convenient Trigger Function

When multiple power supplies are connected in series or parallel, using the external trigger function can make multiple power supplies output synchronously.

Convenient Trigger Function

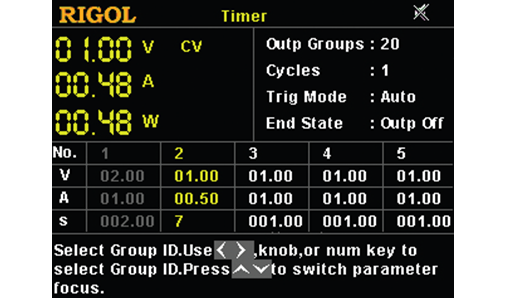

Timing Output Function

When the timed output is turned on, the voltage and current values for different time periods can be configured according to the pre-set timer parameters to provide variable voltage and current outputs for the load.

Timing Output Function

OVP & OCP

Perfect overvoltage/overcurrent protection (OVP/OCP). Users can set the limits for overvoltage and overcurrent protection. When overvoltage or overcurrent occurs, the power supply will automatically turn off the output and give a prompt message.

OVP & OCP

Model

Model Channels Total Power Output Per Channel Programming Resolution Display Resolution Readback Resolution Price
DP711 1CH 150W 30V/5A 10mV/10mA 10mV/10mA 10mV/10mA Rp7.056.000
DP712 1CH 150W 50V/3A 10mV/10mA 10mV/10mA 10mV/10mA Rp6.660.000
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Accessories

Model Description
HIRES-DP700 Provides high resolution options of 1mV and 1mA
TRIGGER-DP700 Provide external trigger input and internal trigger output
TIMER-DP700 Provide timing output function
CB-DB9-DB9-F-F-150 RS232 Data line，2 Female，150cm
RM-1-DP700 Rack mount kit-1 machine
RM-2-DP700 Rack mount kit-2 machines
RM-3-DP700 Rack mount kit-1 machines

User Manual

Name Version Release Date Download
DP700 User Manual V2.0 2024-06-21 Download

Datasheet

Name Version Release Date Download
DP700 Datasheet V1.0 2019-08-29 Download

Programming Manual

Name Version Release Date Download
DP700 Programming Manual V1.0 2019-08-29 Download

Quick Guide

Name Version Release Date Download
DP700 QuickGuide v1.0 2021-11-25 Download
