DHO900 Series

The DHO900 series digital oscilloscope is a highly portable and high-resolution digital oscilloscope based on RIGOL's "Centaurus" technology platform.

Bandwidth : 250MHz
Sample Rate : 1.25GSa/sec
Vertical Resolution : 1,000,000 wfms/s
Channels : 4 Channels
Arbitary Wave Length : 50 Mpts
Digital Channels : 16(Probe opt.)
Datasheet

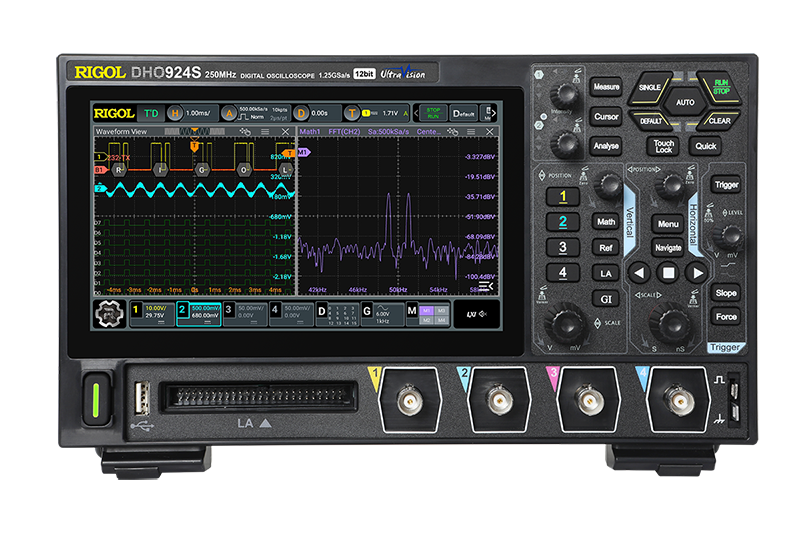

Main Image
Thumbnail 1

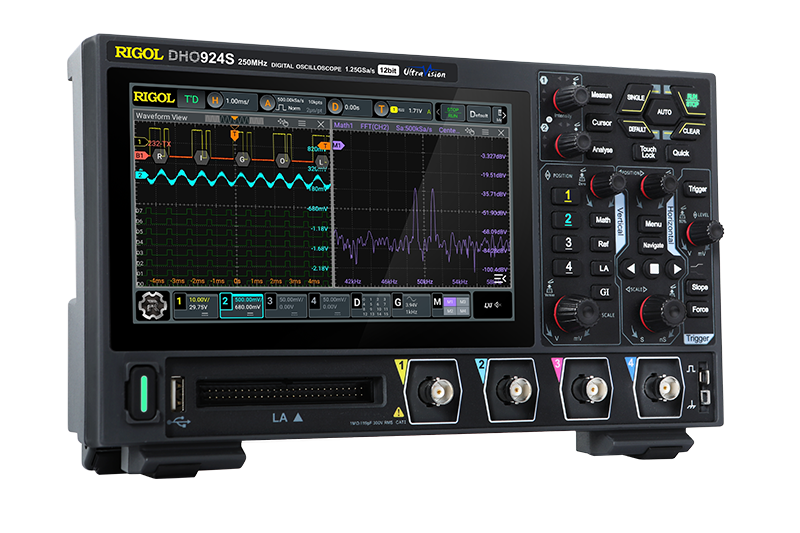

Thumbnail 2

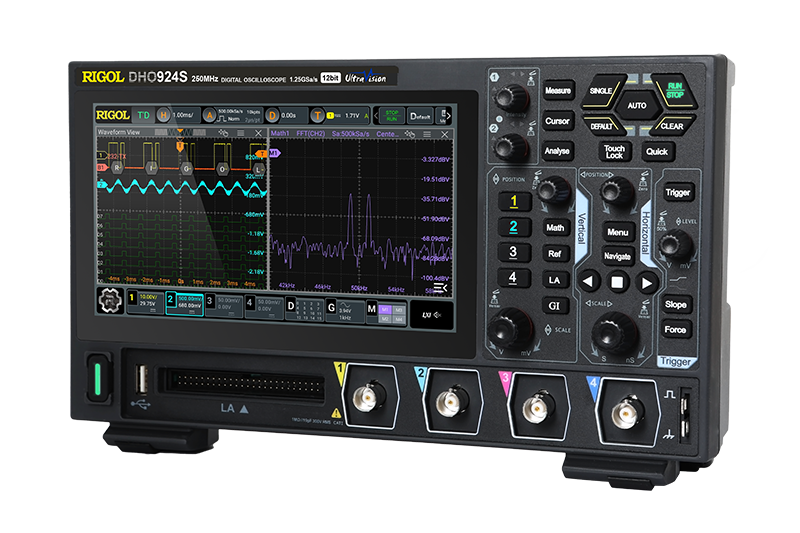

Thumbnail 3

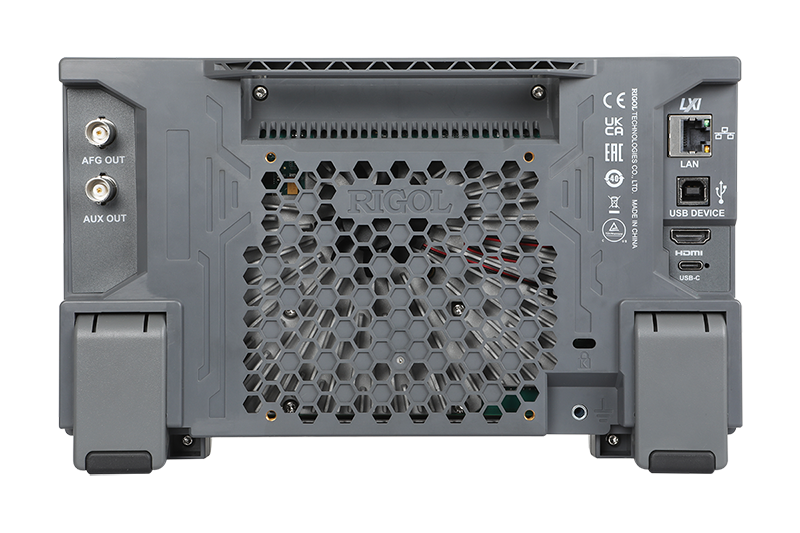

Thumbnail 4

Features

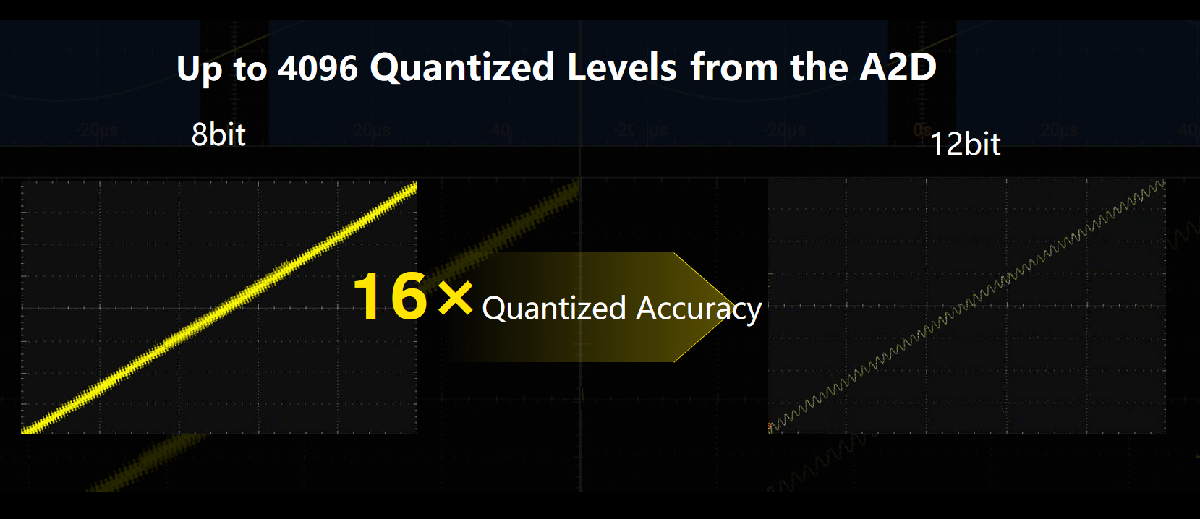

High-resolution 12-bit

The DHO900 series offers a 12-bit vertical resolution with 4096 levels of quantization, 16 times more precise than 8-bit resolution. This upgrade significantly enhances waveform measurement accuracy, particularly in critical applications like power ripple testing and medical equipment detection.

High-resolution 12-bit

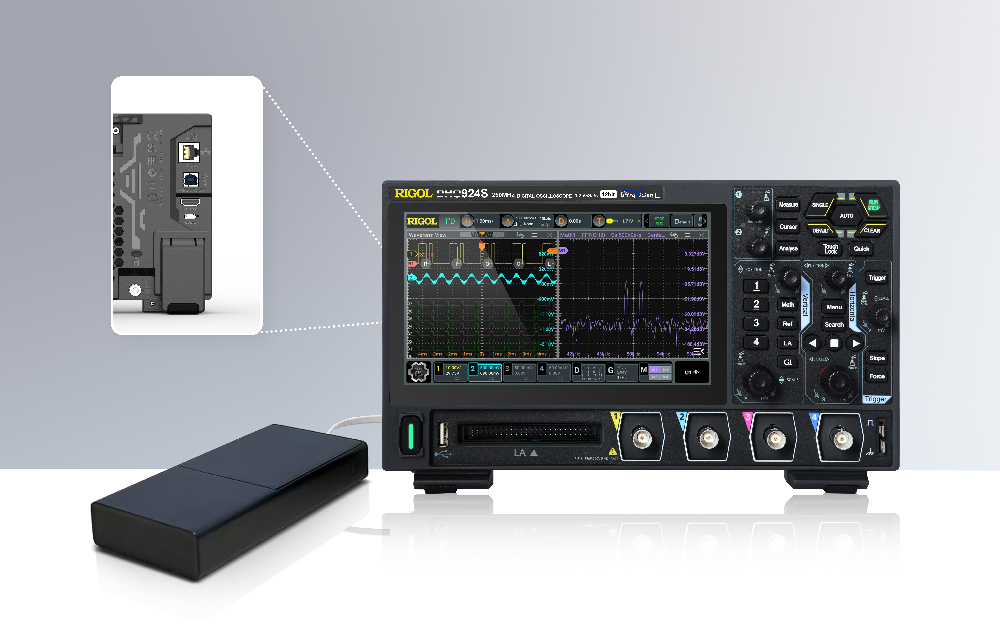

Support Type-C Power

The Type-C power supply interface design of the DHO900 series allows the device to be powered by a single portable power bank, meeting the requirements of on-site chip testing and circuit maintenance, among other applications.

Support Type-C Power

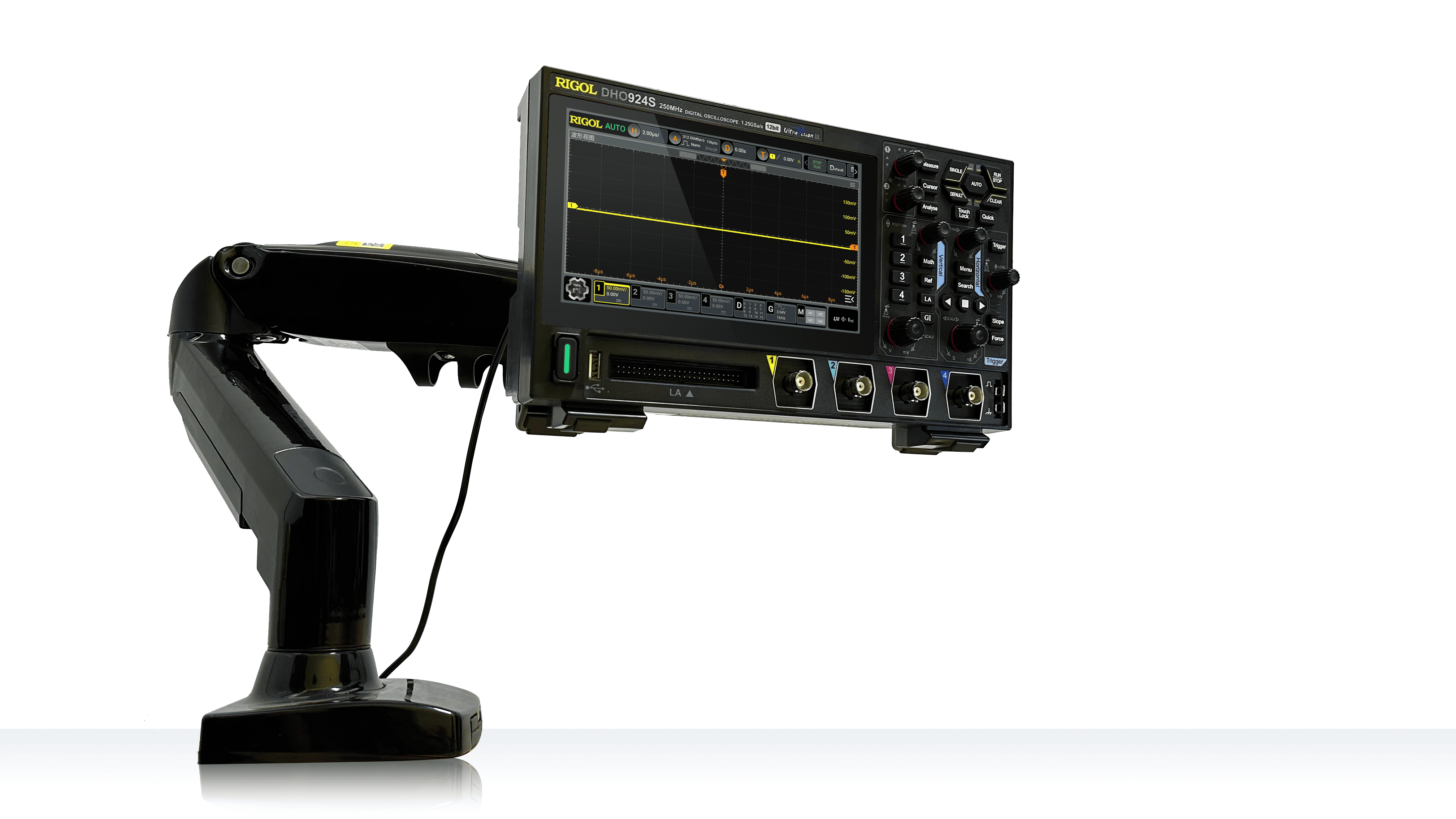

Sleek Design

The DHO900 series is compact and portable, effectively reducing the burden of carrying equipment for on-site operations. Additionally, it supports VESA standard monitor mounts, making your desktop more organized and saving workspace.

Sleek Design

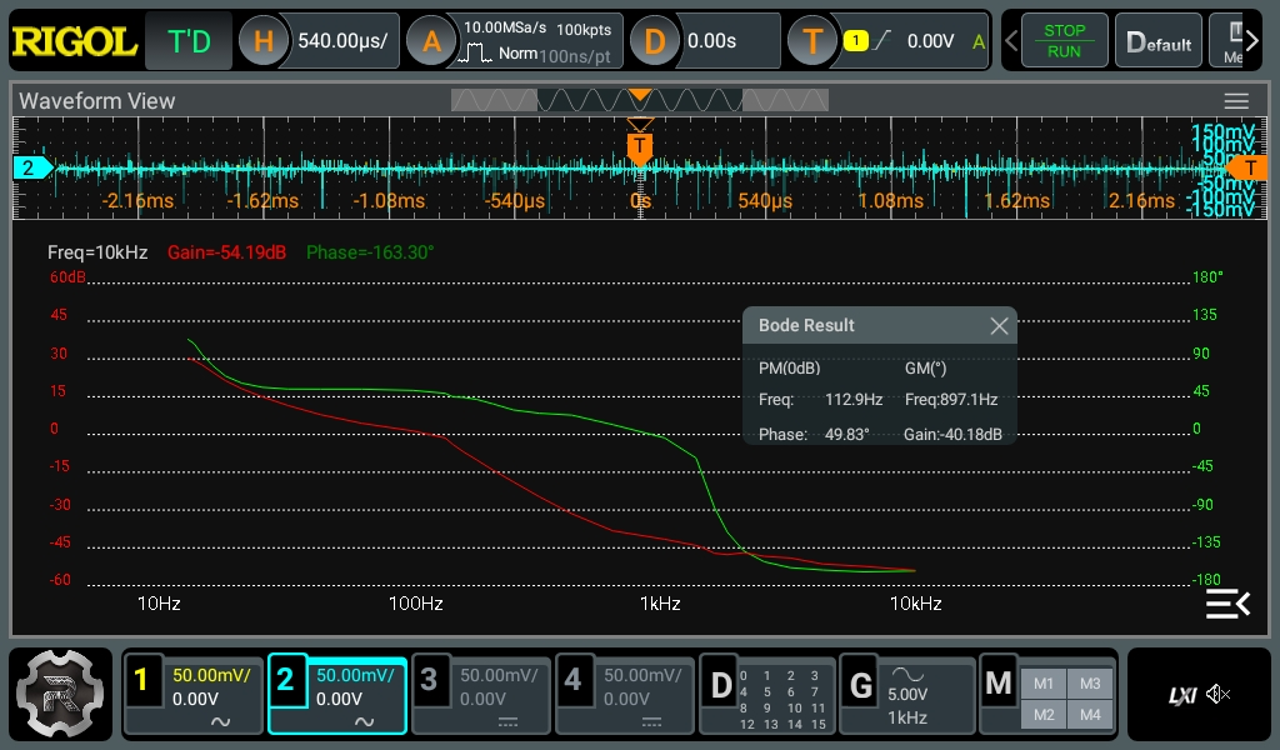

Supports Bode Plot Analysis

The DHO900S is equipped with the Bode diagram loop analysis function, facilitating switch-mode power supply loop analysis and amplitude-frequency response testing of components. This advanced feature enhances the device's capabilities, allowing for comprehensive analysis and optimization of power supply systems and component performance.

Supports Bode Plot Analysis

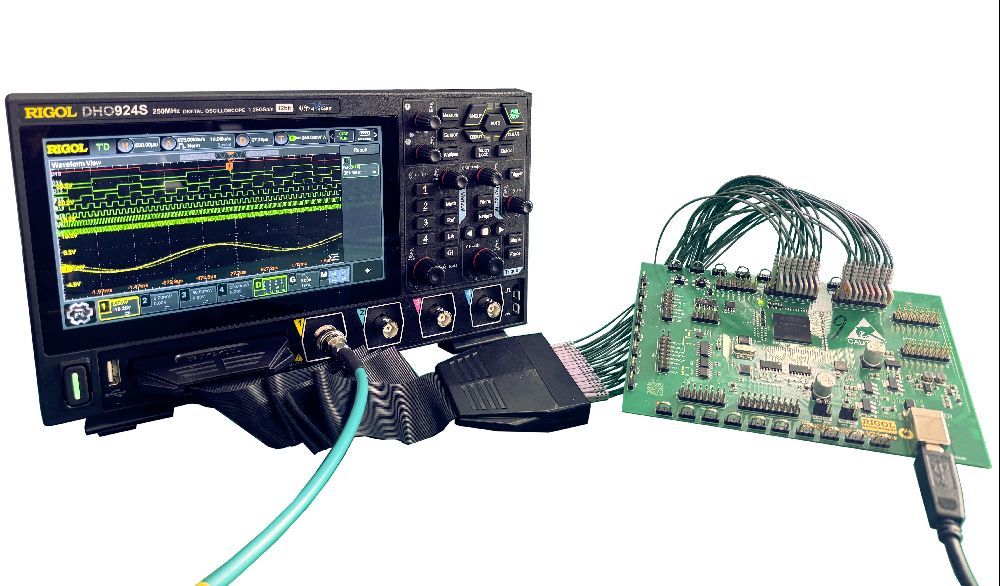

Standard Digital Channels

The entire DHO900 series comes standard with digital channels, which, when paired with the PLA2216 logic analysis probe, enables digital signal analysis. This solves the problem of simultaneous analog and digital signal debugging needs in electronic design.

Standard Digital Channels

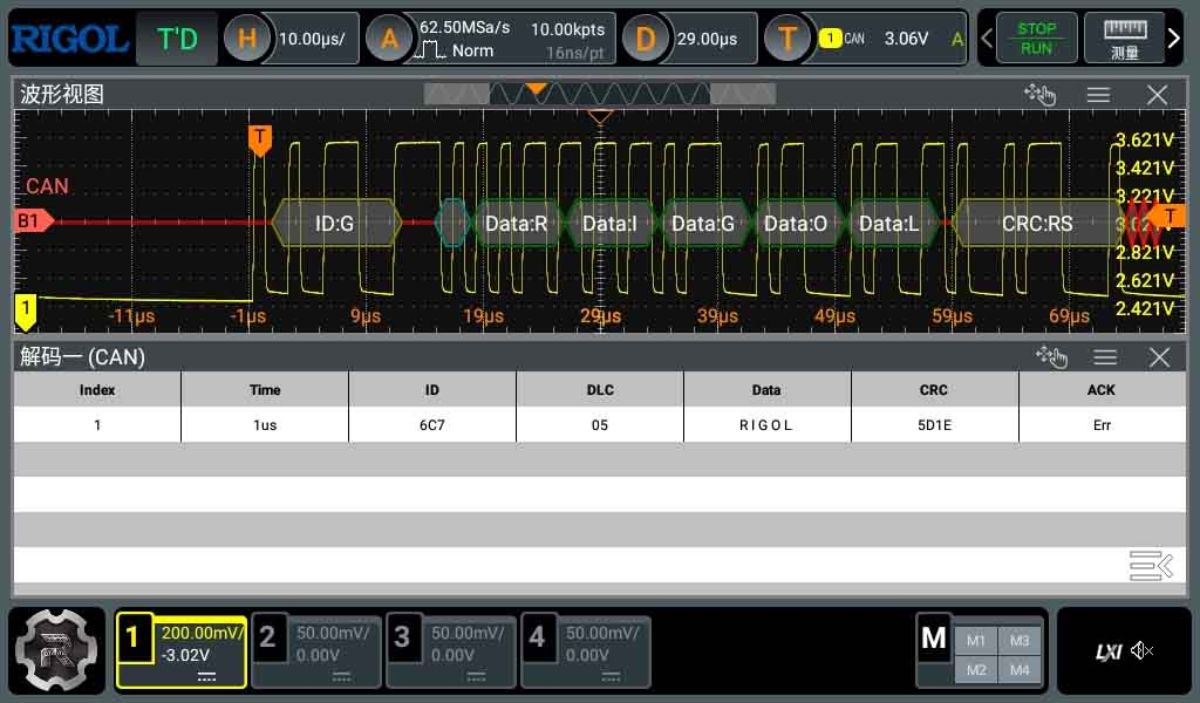

Rich triggering and decoding functions

The DHO900 has a rich set of triggering functions, including commonly used edge, slope, pulse width, etc., as well as some serial protocol triggering, such as the triggering and decoding of the I2C, SPI, RS232 protocols commonly used in embedded debugging and the CAN, LIN protocols commonly used in the automotive industry. The bus triggering and decoding functions of the DHO900 can accurately capture and parse protocol information, directly display the decoded content on the waveform or present it in the form of an event table, making your debugging more convenient and intuitive.

Rich triggering and decoding functions

Model

Model Max. Output Frequency Sample Rate Vertical Resolution Channels Arbitrary Wave Length Digital Channels Built-in Signal Source Price
DHO924S 250MHz 1.25GSa/s 1,000,000 wfrms/s 4 50 Mpts 16(Probe opt.) 1CH Rp.19.203.000
DHO914S 125MHz 1.25GSa/s 1,000,000 wfrms/s 4 50 Mpts 16(Probe opt.) 1CH Rp.16.701.000
DHO924 250MHz 1.25GSa/s 1,000,000 wfrms/s 4 50 Mpts 16(Probe opt.) - Rp.17.760.000
DHO914 125MHz 1.25GSa/s 1,000,000 wfrms/s 4 50 Mpts 16(Probe opt.) - Rp.15.096.000
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Accessories

Model Description
RM5041 Ultra-Portable Platform Rack Mount Kit

User Manual

Name Version Release Date Download
DHO900 User Manual V3.0 2025-02-13 Download

Datasheet

Name Version Release Date Download
DHO900 Datasheet V3.0 2024-10-01 Download

Programming Manual

Name Version Release Date Download
DHO900Programming Manual V6.0 2025-05-09 Download

Quick Guide

Name Version Release Date Download
DHO900 Quick Guide V5.0 2025-06-13 Download
