RSA5000 Series

The RSA5065 real-time spectrum analyzer with real-time analysis and sweep analysis, optional vector signal analysis application software (VSA) and EMI measurement application software (EMI), with excellent performance and specifications.

Frequency Range : 9kHz~6.5GHz
RBW : 1Hz~10MHz
Phase Noise : -108dBc/Hz@10kHz
DANL : -165dBm/Hz
Tracking Source : Yes
Analysis Function : RTSA/EMI/VNA/VSA
Datasheet
Main Image
Thumbnail 1
Thumbnail 2

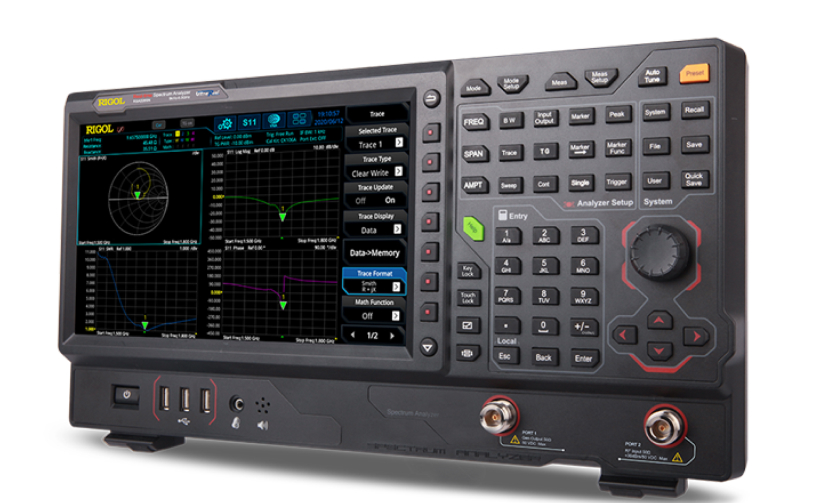

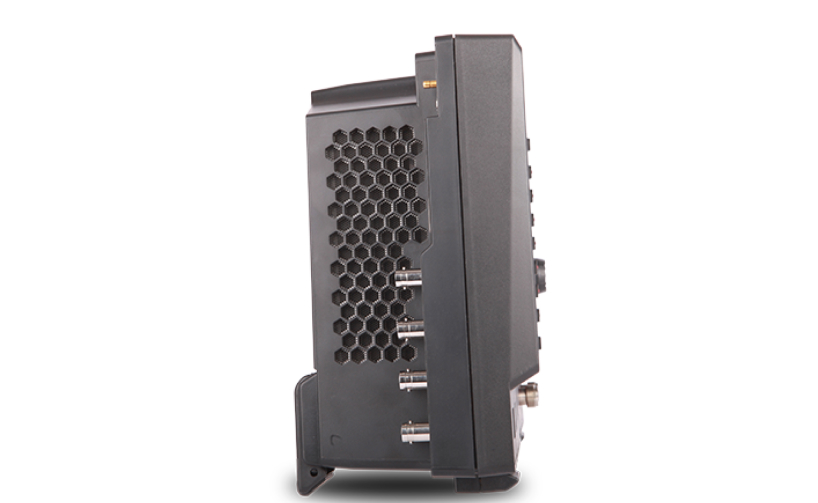

Thumbnail 3

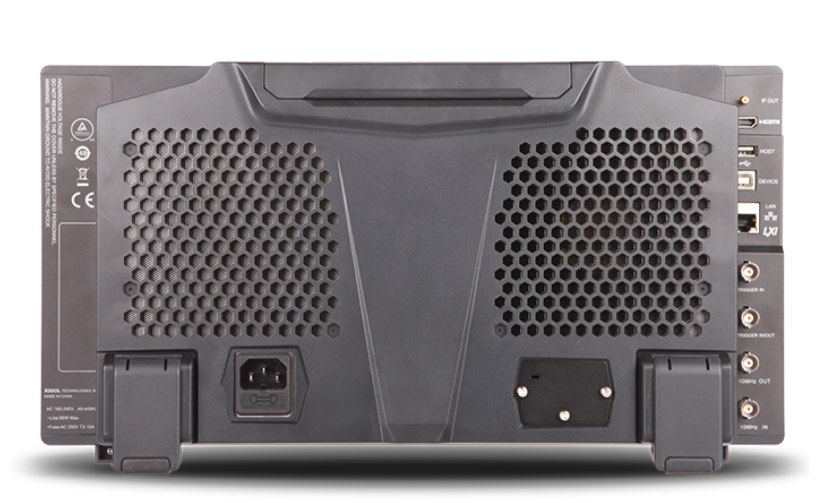

Thumbnail 4

Features

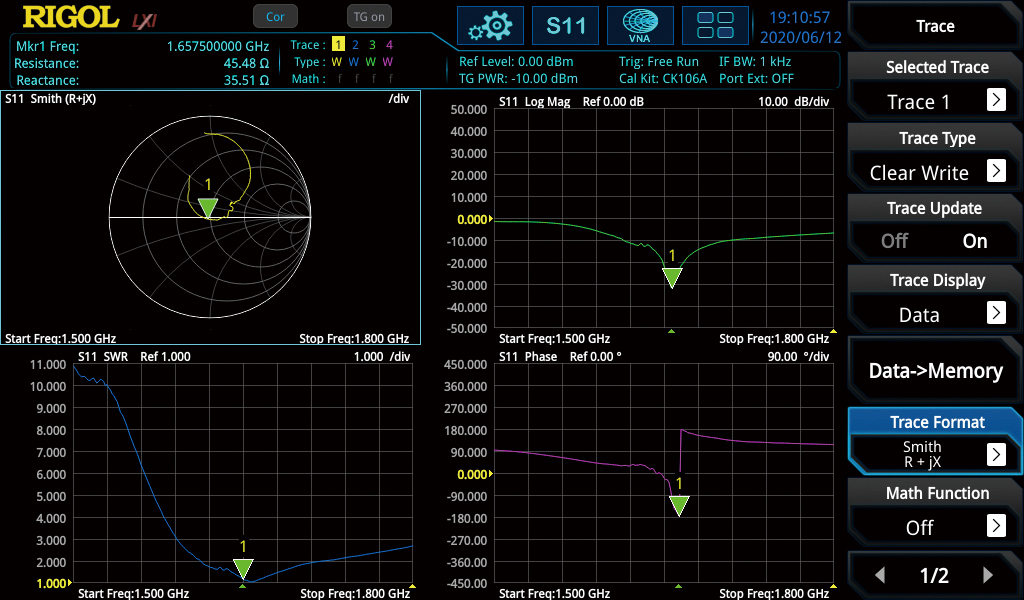

Built-in Vector Network Analysis mode

The VNA mode can measure the S11, S21 of components and circuit networks and locate fault points. It can more accurately characterize the network characteristics of the device under test through various displays such as Smith charts and polar coordinates.

Built-in Vector Network Analysis mode

Detect transient abnormal signals through UltraReal technology

The RSA5000 uses UltraReal technology to provide a real-time bandwidth of up to 40 MHz. Within the real-time bandwidth range, it can ensure that transient signals with a duration of more than 7.45 μs can be captured 100% and accurately measured

Detect transient abnormal signals through UltraReal technology

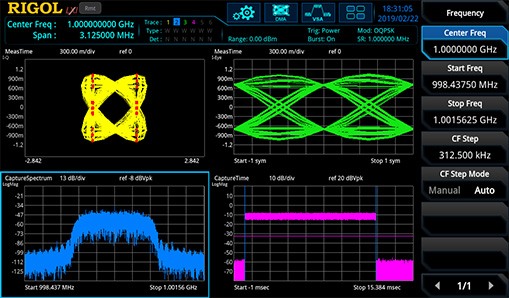

Find problems in the design through the vector analysis function

The vector signal analysis function VSA supports a variety of digital modulation formats, such as QAM, PSK, MSK, ASK, FSK, etc. Through this function, rapid demodulation is carried out to display multi - dimensional data such as constellation diagrams, eye diagrams (baseband signals), spectrograms, and demodulated data, so as to discover problems in the design.

Find problems in the design through the vector analysis function

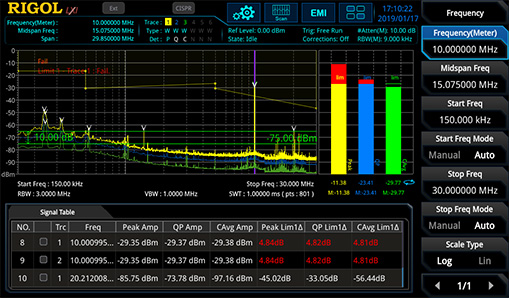

Complete the pre-test of conduction/radiation through the built-in EMI test software.

The RSA5000 is built-in with EMI pre-test application software. Combined with the filter that complies with the CISPR standard, it conducts pre-tests on the product for conduction and radiation, thereby identifying the sources of conduction/radiation interference and making improvements to accelerate the product's market entry.

Complete the pre-test of conduction/radiation through the built-in EMI test software.

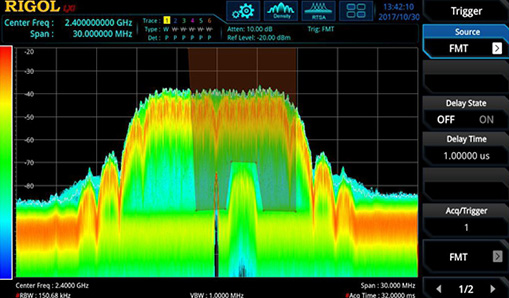

Trigger and monitor signals through the FMT template

FMT frequency template triggering is a triggering mode unique to real-time spectrum analyzers. You can quickly build a template and accurately locate and trigger signals that meet the template rules, thereby discovering occasional abnormal signals within the monitoring range.

Trigger and monitor signals through the FMT template

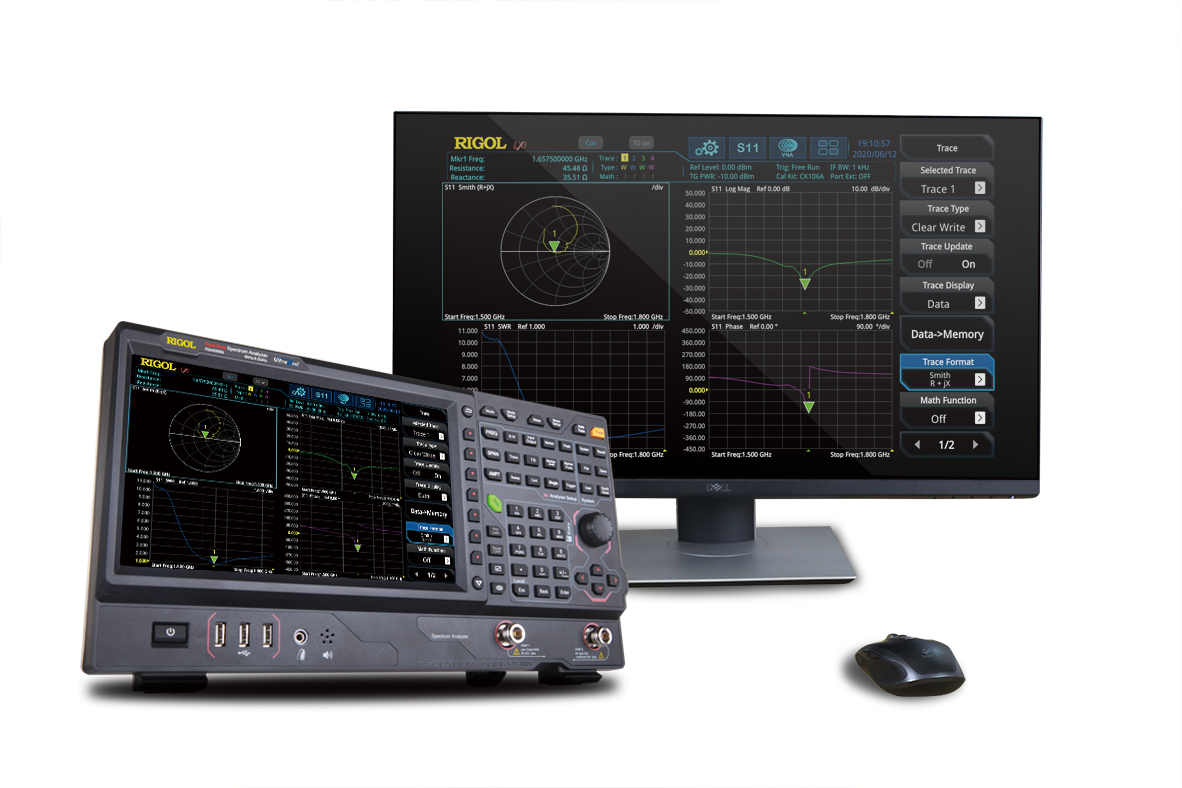

Provide multiple interfaces to enhance the connectivity of instruments and equipment.

It supports casting the display content of the device to a larger monitor through the HDMI interface. It provides the Web Control function, allowing users to directly control the device by accessing the device's IP address, thus enhancing the experience of remote control.

Provide multiple interfaces to enhance the connectivity of instruments and equipment.

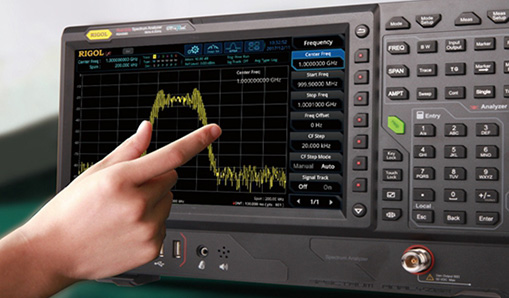

Use the multi-touch screen to complete operations quickly.

You can use the 10.1-inch multi-touch capacitive screen provided by RSA5000 for quick settings. It supports various gesture operations such as dragging, expanding, and zooming on the waveform, providing a user-friendly interactive experience.

Use the multi-touch screen to complete operations quickly.

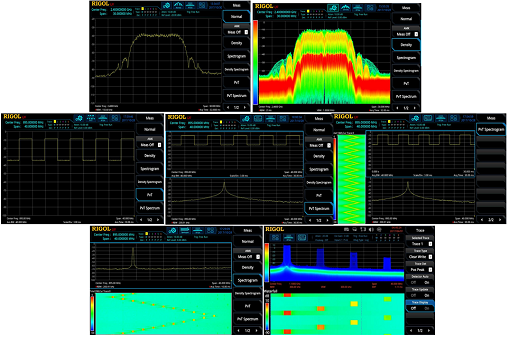

7 Real-time Display Modes

The RSA5000's seven real-time signal display modes make it easier to capture, isolate and analyze RF signals and systems. The power vs. time and spectrograms show how the signal varies with the acquisition time or continuous acquisition time. Combining these presentations with markers and triggers in different modes makes the RSA5000 a flexible tool for real-time RF analysis and debugging.

7 Real-time Display Modes

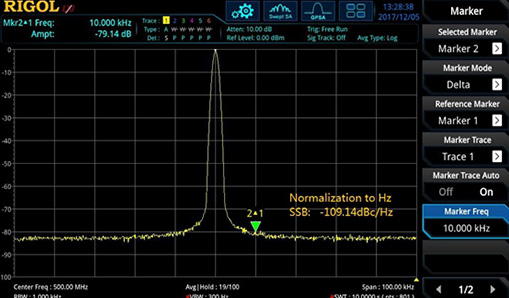

Excellent Phase Noise Metric

Excellent sweep performance, phase noise as low as -108dBc/Hz.

Excellent Phase Noise Metric

Model

Model Frequency Range Resolution Bandwidth (RBW) Phase Noise (Typ.) Displayed Average Noise Level (DANL) Tracking Generator Analysis Function
RSA5065 69kHz~.5GHz 1Hz~10MHz -108dBc/Hz@10kHz -165dBm - RTSA/EMI/VSA
RSA5065-TG 9kHz~6.5GHz 1Hz~10MHz -108dBc/Hz@10kHz -165dBm Yes RTSA/EMI/VSA
RSA5032 9kHz~3.2GHz 1Hz~10MHz -108dBc/Hz@10kHz -165dBm - RTSA/EMI/VSA
RSA5032-TG 9kHz~3.2GHz 1Hz~10MHz -108dBc/Hz@10kHz -165dBm Yes RTSA/EMI/VSA
RSA5032N 9kHz~3.2GHz 1Hz~10MHz -108dBc/Hz@10kHz -165dBm Yes RTSA/EMI/VNA/VSA
RSA5065N 9kHz~6.5GHz 1Hz~10MHz -108dBc/Hz@10kHz -165dBm Yes RTSA/EMI/VNA/VSA
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Accessories

Model Description
CB-NM-NM-75-L-12G N(M)-N(M) RF Cable
RM6041 Rack mount kit
NFP-3 Near field probe，Frequency range: 30 MHz to 3 GHz
DSA Utility Kit Include：N-SMA Cable，BNC-BNC Cable，N-BNC adapter，N-SMA adapter，75Ω-50Ωadapter，900 MHz/1.8 GHz antenna（2pcs），2.4GHz antenna(2pcs）
TX1000 RF demonstration kit (transmitter)
OCXO-C08 High stability clock reference
RSA5000-VSA Vector signal analysis software
RSA5000-EMI EMI measurement application software
RSA5000-AMK Advanced Measurement kit
RSA5000-PA PA
RSA5000-B40 40MHz Real-time Analysis Bandwidth
S1210 EMI pre-test software
Ultra Spectrum DSAPC software
CK106A VNA Calibration kit, DC to 6.5GHz
CK106E VNA Calibration kit, DC to 1.5GHz
VB1032 VSWR bridge with VSWR-DSA800, 1 MHz to 3.2 GHz, typical directivity ≥ 30 dB
VB1080 VSWR bridge with VSWR-DSA800，2 Ghz to 8 GHz
USB-GPIB USB-GPIB adapter
ATT03301H 30dB High Power Attenuator，Maximum power is 100W
RF CATV Kit Include：50Ω to 75Ωadapter（2pcs）
RF Attenuator Kit Include：6dBAttenuator（1pcs），10dBAttenuator（2pcs）
RF Adaptor Kit Include: N (F)-N (F) adapter (1pc)，N (M) - N (M) adapter (1pc)，N (M) - SMA (F) adapter (2pcs)，N (M) - BNC (F) adapter (2pcs)，SMA (F) - SMA (F) adapter (1pc)，SMA (M) - SMA (M) adapter (1pc)，BNC T-type adapter (1pc)，50Ω SMA load (1pc)，50Ω BNC iadapter (1pc)
CB-NM-SMAM-75-L-12G N(M)-SMA(M) RF Cable
RM6041 Rack mount kit
NFP-3 Near field probe，Frequency range: 30 MHz to 3 GHz
DSA Utility Kit Include：N-SMA Cable，BNC-BNC Cable，N-BNC adapter，N-SMA adapter，75Ω-50Ωadapter，900 MHz/1.8 GHz antenna（2pcs），2.4GHz antenna（2pcs）
TX1000 RF demonstration kit (transmitter)
OCXO-C08 High stability clock reference

User Manual

Name Version Release Date Download
RSA5000 UserGuide UGD20103-1110 2025-12-04 Download
EMI User Manual UGD23101-1110 2021-10-22 Download
VSA User Manual UGD22101-1110 2021-10-22 Download
RSA5000 RackmountKit V1.0 2021-10-22 Download
NPF-3 V1.0 2021-10-22 Download
OCXO UserGuide V1.0 2019-08-29 Download

Datasheet

Name Version Release Date Download
RSA5000 Datasheets V3.0 2025-02-07 Download

Programming Manual

Name Version Release Date Download
VNA Programming Manual PGD24100-1110 2021-10-22 Download
VSA Programming Manual PGD22101-1110 2021-10-22 Download
EMI Programming Manual PGD23100-1110 2021-10-22 Download
RSA5000 Programming Manual PGD20102-1110 2021-10-22 Download

Open Source

Name Version Release Date Download
RSA30003000E5000 OpenSourceAcknowledgment 202512 2025-12-12 Download

Quick Guide

Name Version Release Date Download
RSA5000 QuickGuide QGD20108-1110 2025-12-04 Download

Software

Name Version Release Date Download
RSA5000_PerformanceVerificationGuide_EN PVD20104-1110 2025-12-04 Download
