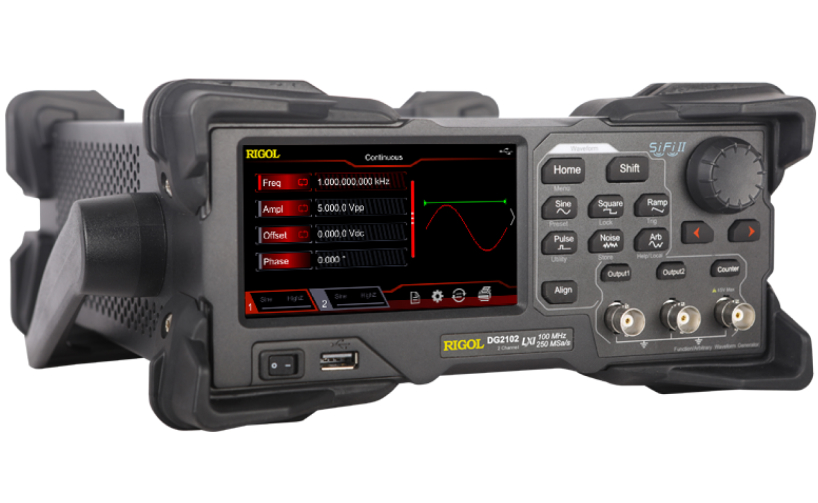

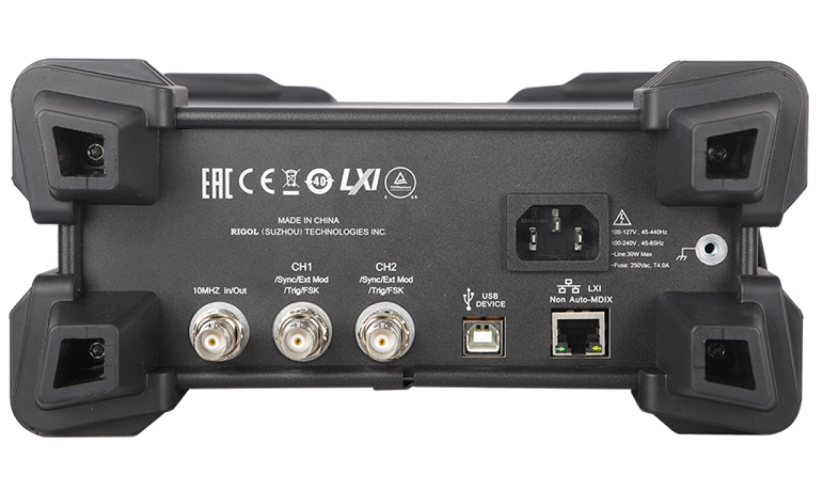

DG2000 Series

With frequencies up to 100 MHz, 16Bit Resolution, and arbitrary waveforms of up to 16 Mpts the DG2000 reproduces any waveform with high signal fidelity. SiFi II adds additional filtering capabilities making this one of the most flexible generators on the market.

Bandwidth : 100MHz
Sample Rate : 250MSa/s
Vertical Resolution : 16bits
Channels : 2CH
Arbitary Wave Length : 16Mpts
Datasheet

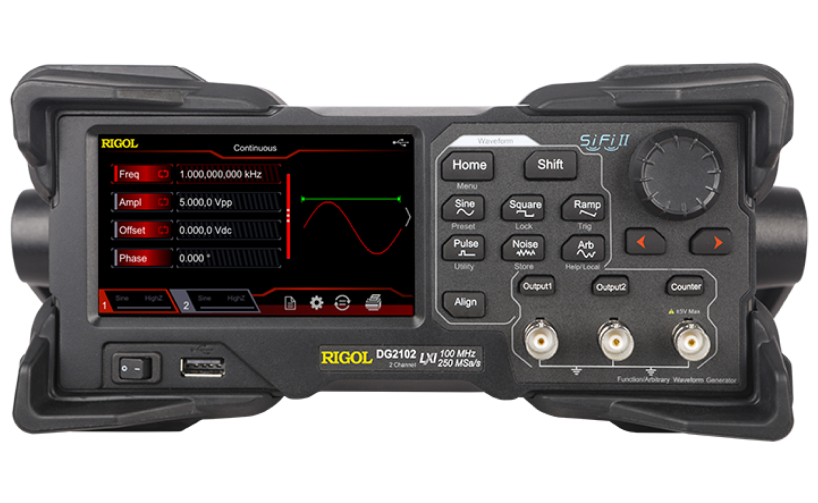

Main Image
Thumbnail 1
Thumbnail 2

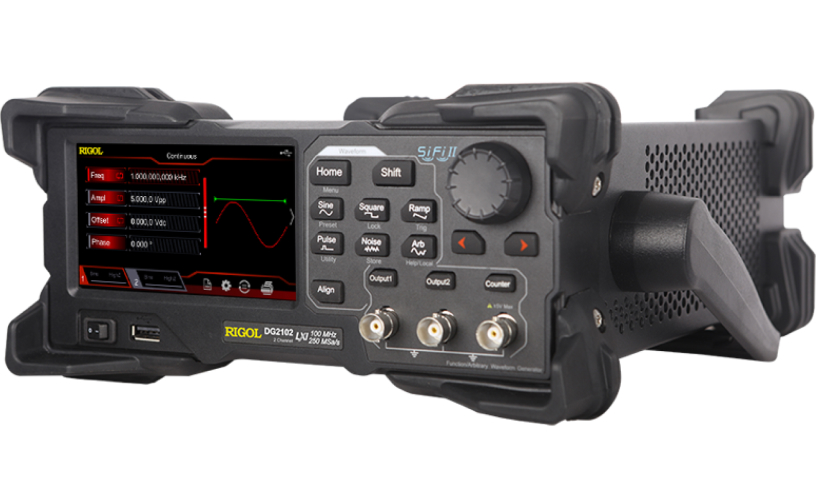

Thumbnail 3
Thumbnail 4

Features

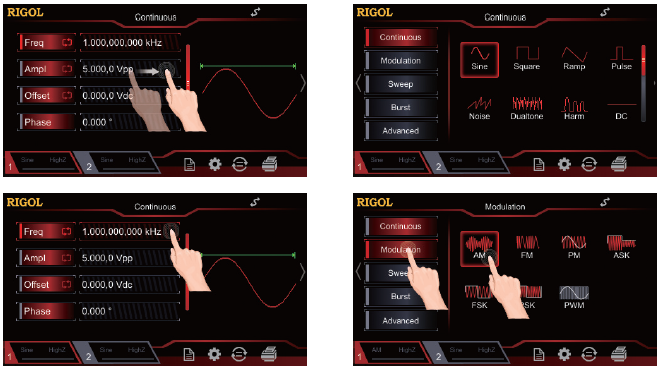

4.3 Inch Touch Screen

The combination of touch screen control with click and slide and multi-function knob makes it easy to find and update waveform settings; switch between channels, configure each channel, and easily load standard functions or arbitrary waves.

4.3 Inch Touch Screen

16bit Vertical Resolution

DG2000 series generators extend output at 16 bit resolution The resolution of the output voltage is 4 times that of the traditional 14 bit generator. DG2000 can reproduce any waveform more reliably and improve the fidelity and performance of the signal.

16bit Vertical Resolution

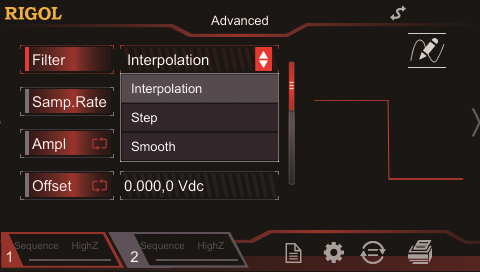

SiFi II Technology

Sifi II technology allows you to output signals flexibly through filtering options such as stepping, smoothing and interpolation These options in the powerful signal sorting function can provide precise roll down control for the signal you select. Combine these flexible playback options or use edge time in interpolation mode to define the range of broadband components in the signal.

SiFi II Technology

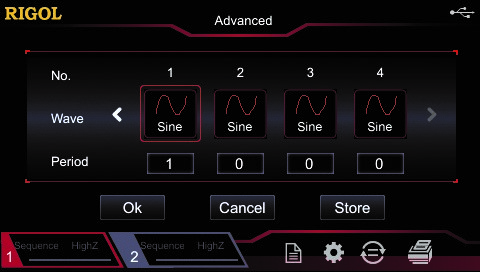

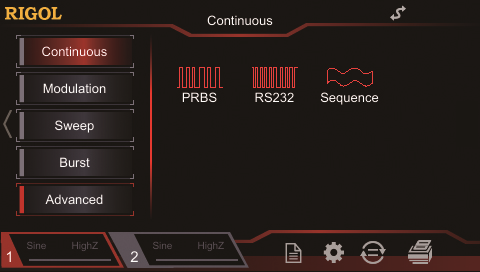

Support Multiple Signal Outputs

Create and combine complex signal sequences, simulate or analyze faults through finger touch. A wide range of test signals are simulated by combining different waveform types, including dual tone, arbitrary wave and noise DG2000 also has the function of generating RS232 sequence and PRBS, which can be used in test sequence of advanced application.

Support Multiple Signal Outputs

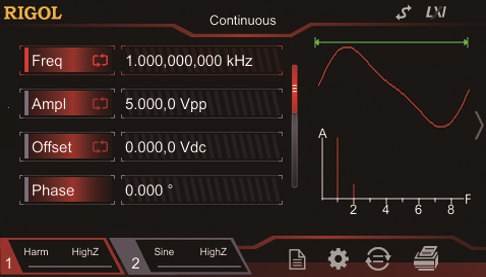

Harmonic Generator

DG2000 has built-in 8-th harmonic generator function and outputs harmonics with specified times, amplitude and phase. It is usually used in the test of harmonic detection equipment or harmonic filter equipment.

Harmonic Generator

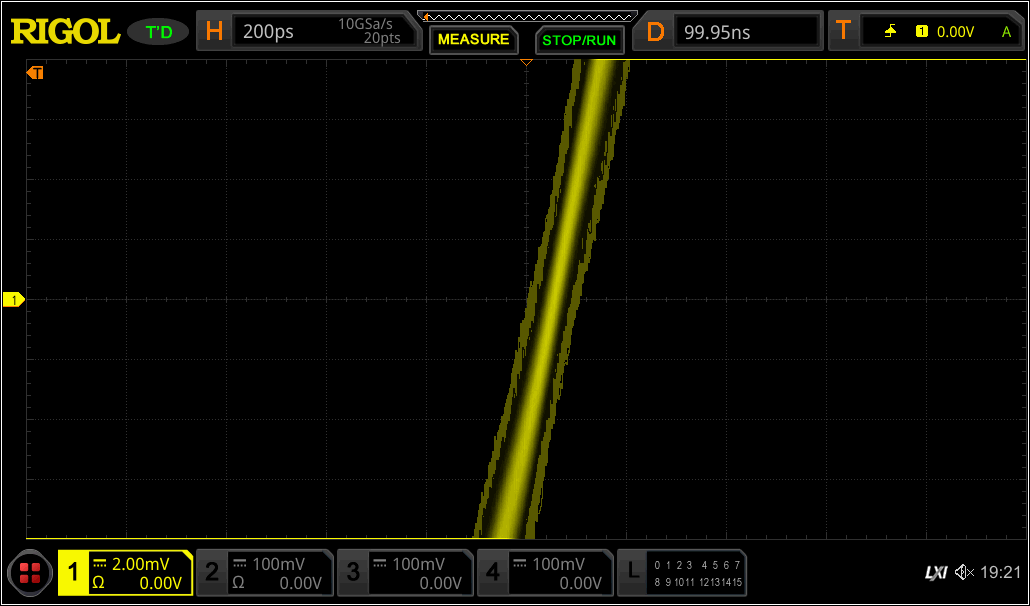

Signal Jitter As Low As 200ps

DG2000 series function / arbitrary waveform generator is based on SIFI II technology created by RIGOL. It can generate arbitrary wave point by point and restore signal without distortion. The sampling rate can be adjusted precisely, compared with the traditional DDS signal source, the signal jitter is lower, and the jitter of all output signals is as low as 200ps.

Signal Jitter As Low As 200ps

Fanless silent design

It adopts a fanless design structure and operates without noise interference.

Fanless silent design

Model

Model Max. Output Frequency Sample Rate Vertical Resolution Channels Arbitary Wave Length Price
DG2052 50MHz 250Msa/s 16bits 2CH 16Mpts Rp13.320.000
DG2072 70MHz 250Msa/s 16bits 2CH 16Mpts Get a Quote
DG2102 100MHz 250Msa/s 16bits 2CH 16Mpts Rp22.644.000
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Accessories

Model Description
RM-2-DG1000Z 2-machine rack kit
RM-1-DG1000Z Stand-alone rack kit
USB-GPIB USB-GPIB adapter
CB-BNC-AC-100-L BNC to Alligator clip Adapter
CB-BNC-BNC-MM-100 BNC Coaxial line，100cm
RA5040K 40dBAttenuator(50ohm，1W)

Software

Model Description
Ultra Station-adv Full advanced version of UltraStation wave generation software for DG4000 and DG5000 Series generators. This is a software upgrade license

User Manual

Name Version Release Date Download
DG2000 User Manual UGB12101-1110 2021-10-26 Download

Datasheet

Name Version Release Date Download
DG2000 Datasheets V1.0 2021-10-26 Download

Programming Manual

Name Version Release Date Download
DG2000 Programming Manual V1.0 2021-10-26 Download

Open Source

Name Version Release Date Download
DG2000OpenSourceAcknowledgment 202512 2025-12-23 Download
