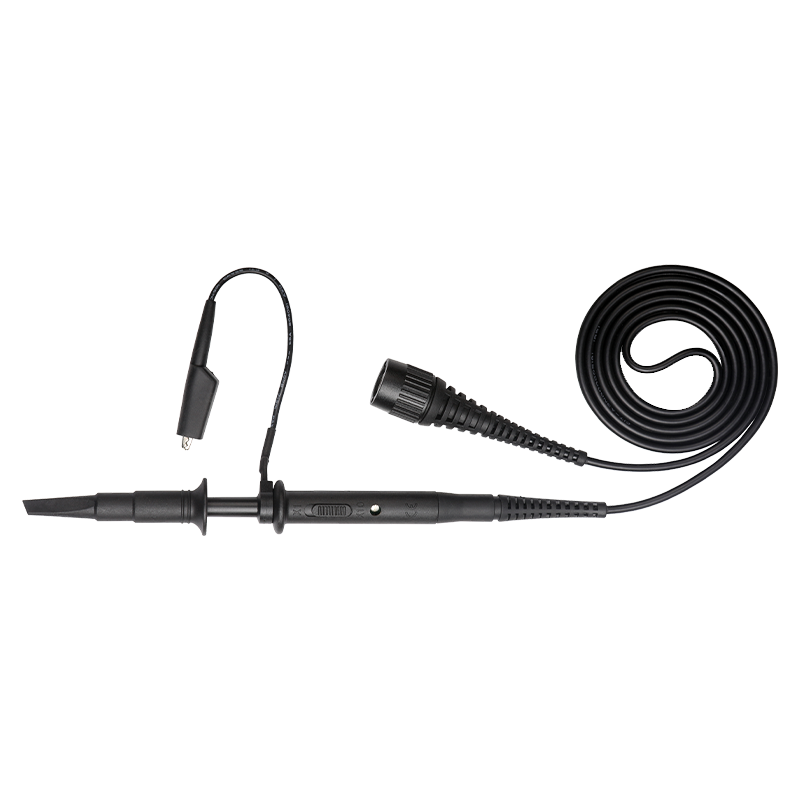

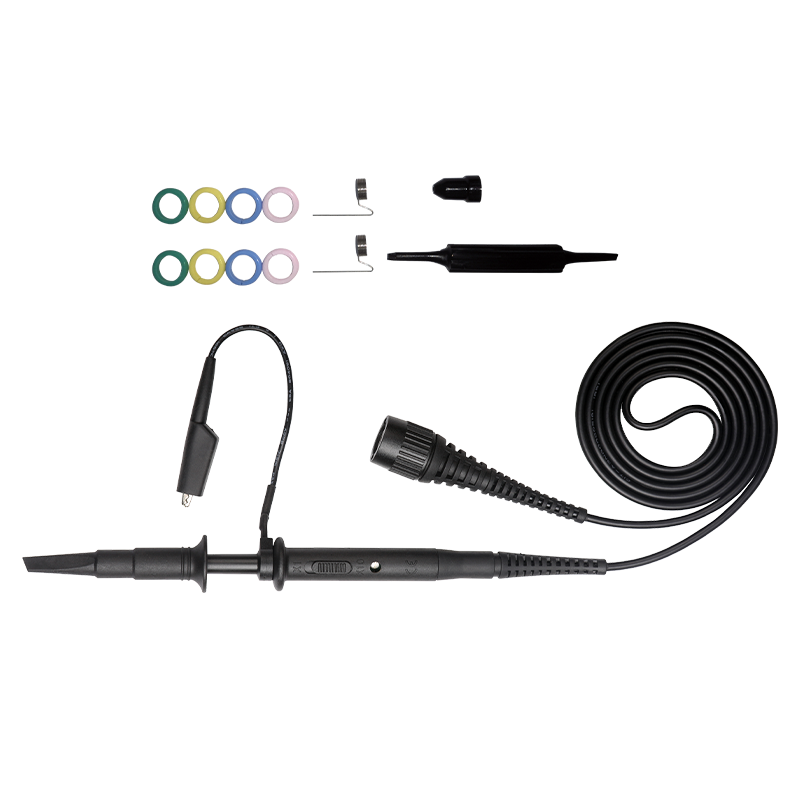

Passive Probe

No external power supply is required, simple and cost-effective, suitable for a wide range of daily measurement needs. The PVP series and RP series measure signals from DC to 1.5GHz. RIGOL Passive probes are ideal for various application scenarios from beginners to experts.

Bandwidth : 150 MHz

Attenuation : 1:1 / 10:1

Input Resistance : 1 MΩ (1x), 10 MΩ (10x)

Input Capacitance : 50 pF (1x), 10 pF (10x)

Max Input Voltage : 150 VRMS (1x), 300 VRMS (10x)

Compensation Range : 10–25 pF

Start From Rp680.682

Model	Description
PVP2150	150 MHz, 10:1/1:1, Passive High-Impedance Probe (single)
PVP2350	350 MHz, 10:1/1:1, Passive High-Impedance Probe (single)
PVP3150	150 MHz, 10:1/1:1, Passive High-Impedance Probe (single)
RP3500A	500 MHz Passive High-impedance Probe
RP6150A	1.5 GHz Passive Low-Impedance Probe (500 Ω)
RP1010H	10 kV 50 MHz High-Voltage Probe
RP1018H	18 kV 100 MHz High-voltage Probe
RP1300H	300 MHz High-Voltage Probe (2 kV)

Model

Description

PVP2150

150 MHz, 10:1/1:1, Passive High-Impedance Probe (single)

PVP2350

350 MHz, 10:1/1:1, Passive High-Impedance Probe (single)

PVP3150

150 MHz, 10:1/1:1, Passive High-Impedance Probe (single)

RP3500A

500 MHz Passive High-impedance Probe

RP6150A

1.5 GHz Passive Low-Impedance Probe (500 Ω)

RP1010H

10 kV 50 MHz High-Voltage Probe

RP1018H

18 kV 100 MHz High-voltage Probe

RP1300H

300 MHz High-Voltage Probe (2 kV)
