DSG800 Series

The DSG800A delivers outstanding performance in the same class of economical RF signal sources with full frequency and power scanning capabilities, as well as AM/FM/ØM analog modulation, powerful pulse modulation and newly added IQ modulation. Compared to similar products, the DSG800A has the smallest footprint, light weight and superior portability, making it an excellent choice for educational laboratories, industrial production lines, development and research applications.

Frequency Range : 9kHz~3.6GHz
Amplitude Specification Range : -110dBm~+13dBm
Modulation Type : AM/FM/ØM/Pulse/IQ

Start From Rp47.841.000

Datasheet

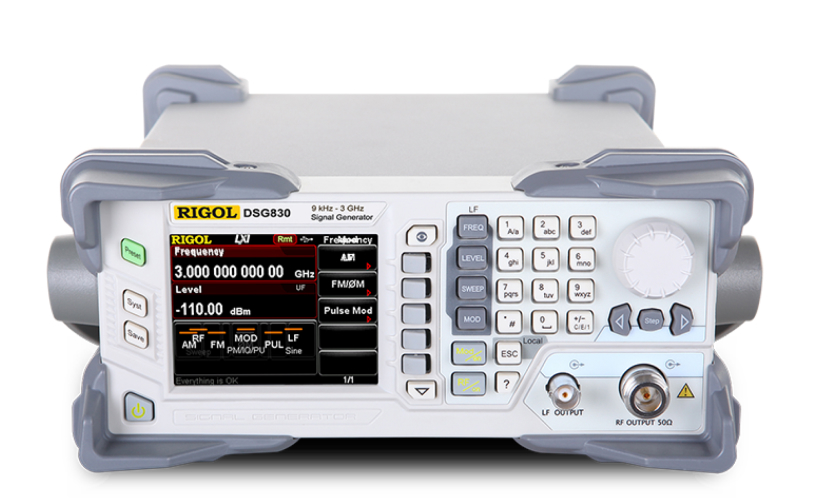

Main Image
Thumbnail 1

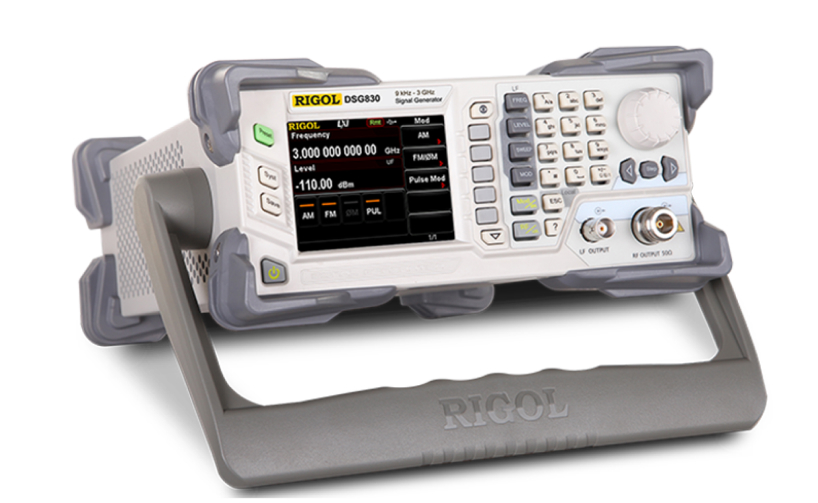

Thumbnail 2

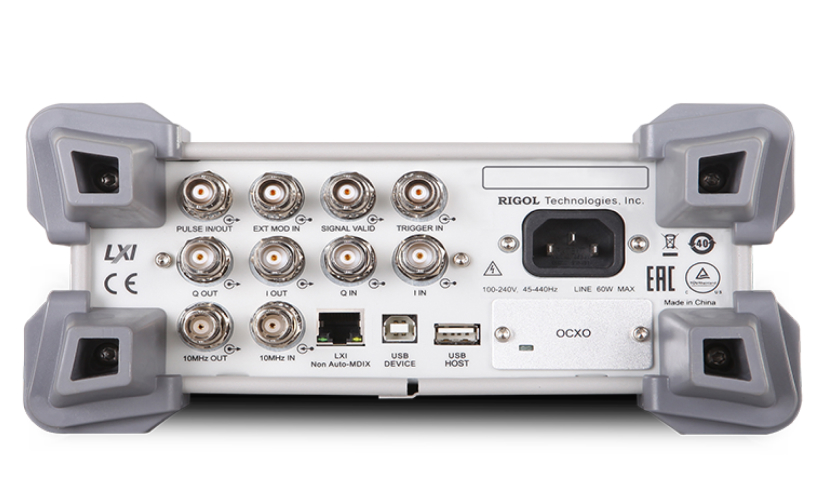

Thumbnail 3

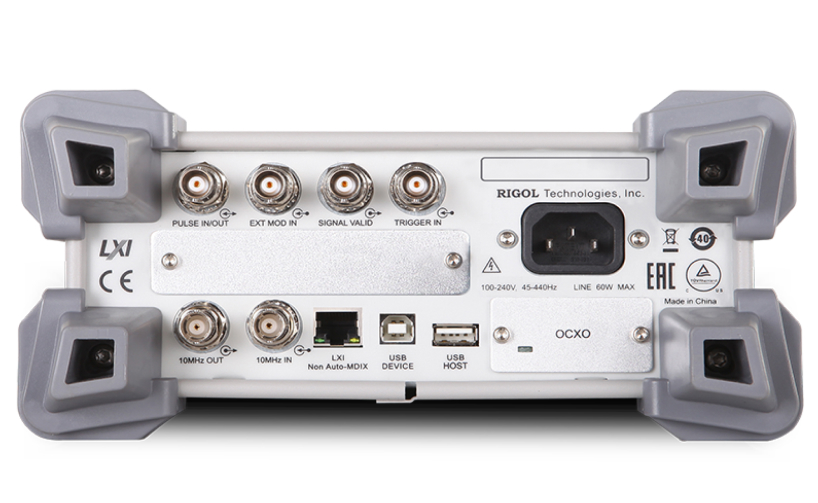

Thumbnail 4

Features

Complete AM/FM/ØM Analog Modulation

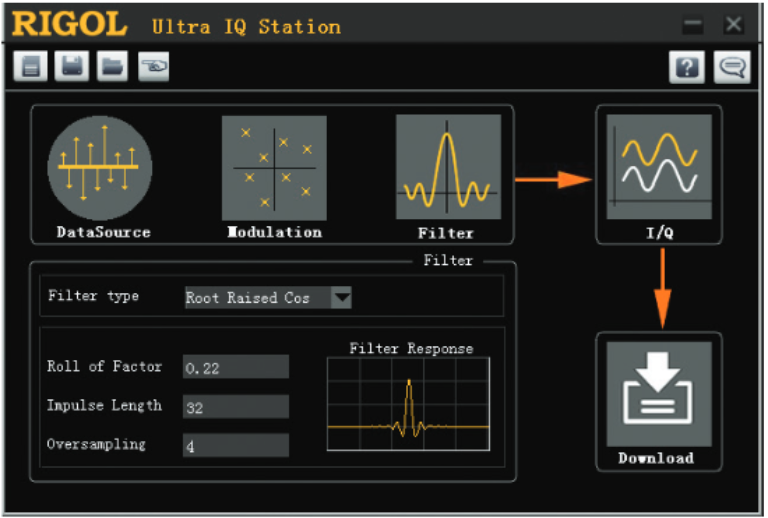

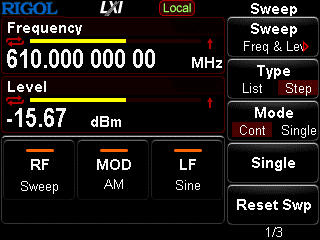

DSG800 provides a variety of analog modulation functions such as AM/FM/ØM, which is suitable for signal simulation requirements in various applications such as FM radio and wireless microphone.

Complete AM/FM/ØM Analog Modulation

Pulse Modulation

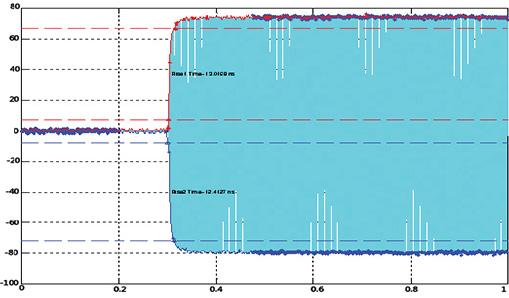

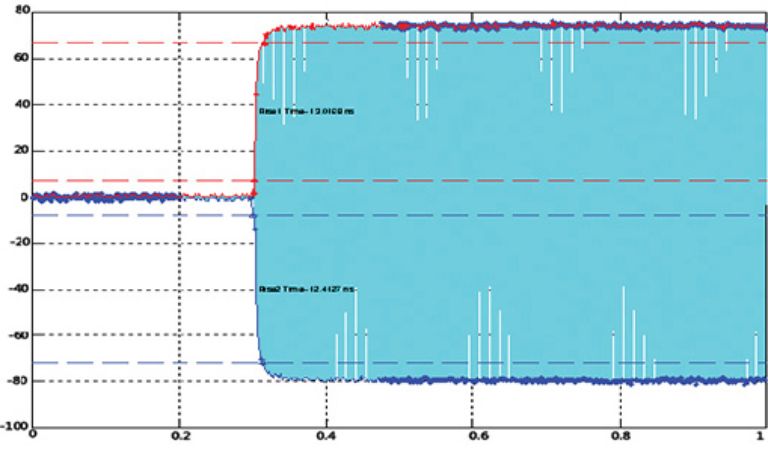

It produces high quality pulse modulated signals with rise/fall times typically less than 10 ns and on/off ratios greater than 70 dB. Support for internal and external modulation. Built-in pulse generator can generate pulse sequence and output to the outside as a separate pulse generator

Pulse Modulation

Low Phase Noise

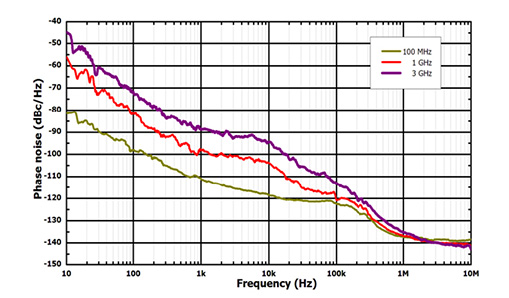

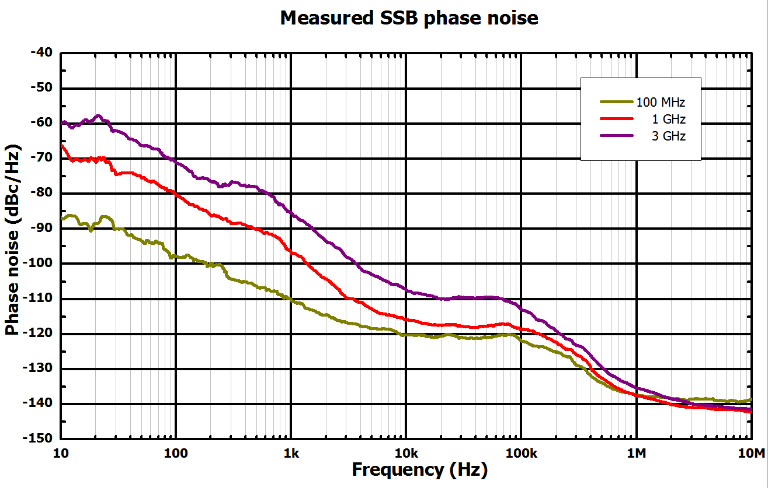

High signal purity, phase noise typical value <-112dBc/Hz@20kHz; better high-stability clock reference with better near-phase noise capability.

Low Phase Noise

High Amplitude Accuracy

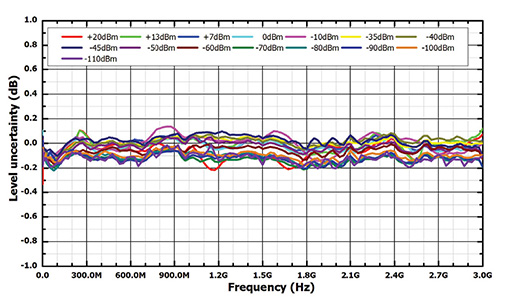

The output amplitude accuracy is typically 0.5 dB, providing users with accurate excitation signals

High Amplitude Accuracy

Wide Range of High Power Output

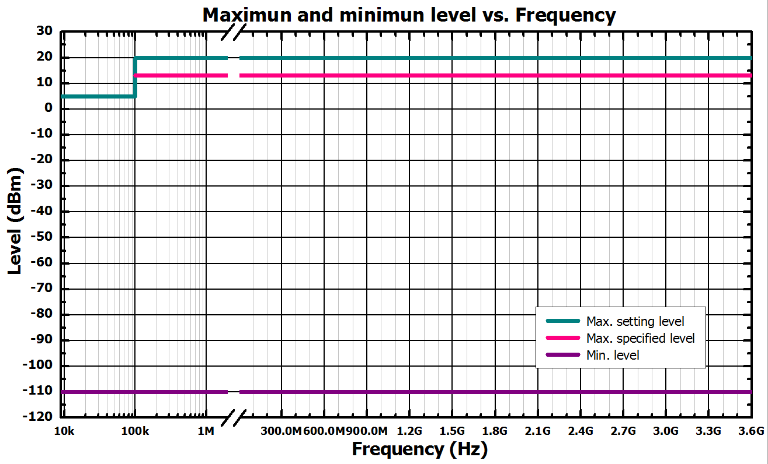

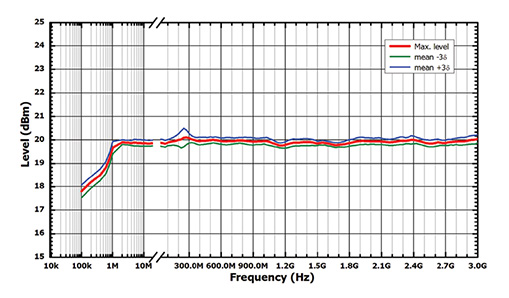

The maximum output amplitude is +13dBm (nominal value), and can be set to +20dBm to meet the nonlinearity test of the amplifier.

Wide Range of High Power Output

Amplitude Stability

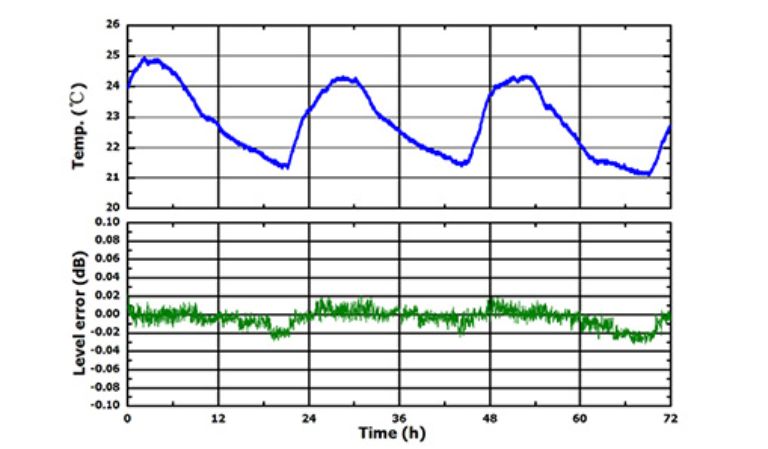

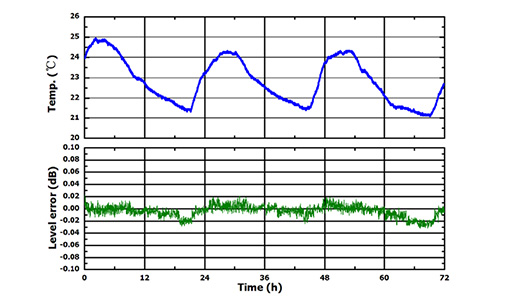

Reliable repeatability provides engineers with sufficient test confidence that the 72-hour output amplitude variation is less than 0.02dB.

Amplitude Stability

Amplitude Stability

Reliable repeatability provides engineers with sufficient test confidence that the 72-hour output amplitude variation is less than 0.02dB

Amplitude Stability

Model

Model Frequency Range Amplitude Specification Range SSB Phase Noise (Typ.) Modulation Type Price
DSG815 9kHz - 1.5GHz -110dBm~+13dBm <-112dBc/Hz@1GHz,20kHz offset AM/FM/∅°M/Pulse Rp.47.841.000
DSG830 9kHz-3GHz -110dBm~+13dBm <-112dBc/Hz@1GHz,20kHz offset AM/FM/∅°M/Pulse Rp78.810.000
DSG836 9kHz~3.6GHz -110dBm~+13dBm <-112dBc/Hz@1GHz,20kHz offset AM/FM/∅°M/Pulse Rp.85.192.500
DSG821 9kHz~2.1GHz -110dBm~+13dBm <-112dBc/Hz@1GHz,20kHz offset AM/FM/ØM/Pulse Rp.49.173.000
DSG821A 9kHz~2.1GHz -110dBm~+13dBm <-112dBc/Hz@1GHz,20kHz offset AM/FM/ØM/Pulse/IQ Rp85.692.000
DSG836A 9kHz~3.6GHz -110dBm~+13dBm <-112dBc/Hz@1GHz,20kHz offset AM/FM/ØM/Pulse/IQ Rp120.400.000
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Accessories

Model Description
DSG800-PUG Pulse Train Generator option for the DSG800 Series RF signal sources. Includes DSG800-PUM license automatically.
DSG800-PUM Pulse modulation option for the DSG800 Series RF signal sources

User Manual

Name Version Release Date Download
DSG800 User Guide V1.0 2019-09-30 Download

Datasheet

Name Version Release Date Download
DSG800A Datasheet V1.0 2019-09-30 Download

Programming Manual

Name Version Release Date Download
DSG800 Programming Guide V1.0 2019-09-30 Download

Quick Guide

Name Version Release Date Download
DSG800 Quick Guide V1.0 2021-12-04 Download
