DHO800 Series

The DHO800 series digital oscilloscope is a highly portable and high-resolution digital oscilloscope based on RIGOL's "Centaurus" technology platform.

Bandwidth : 100 MHz
Sample Rate : 1.25GSa/s
Vertical Resolution : 1,000,000 wfms/s
Channels : 4 Channels
Arbitary Wave Length : 25 Mpts

Start From Rp8.830.500

Datasheet

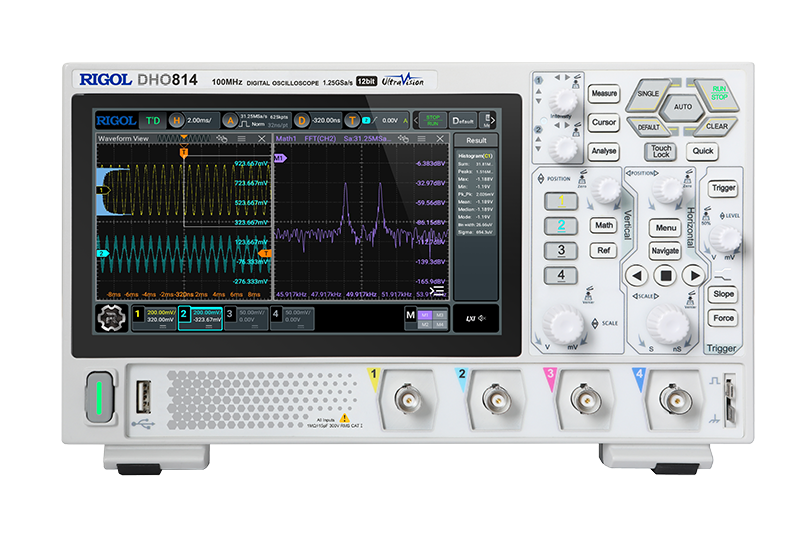

Main Image
Thumbnail 1

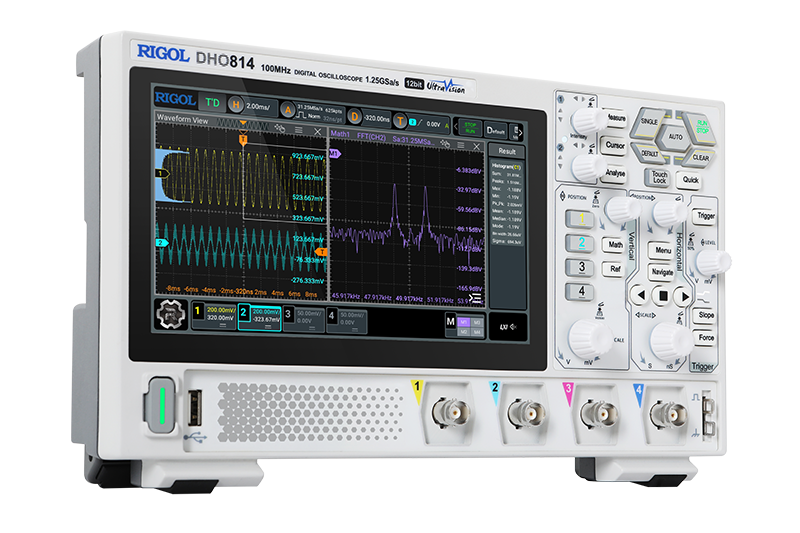

Thumbnail 2

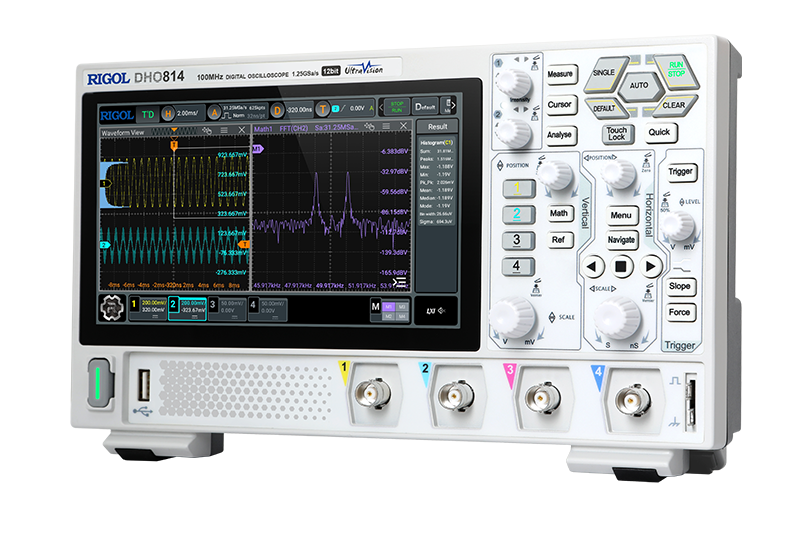

Thumbnail 3
Thumbnail 4

Features

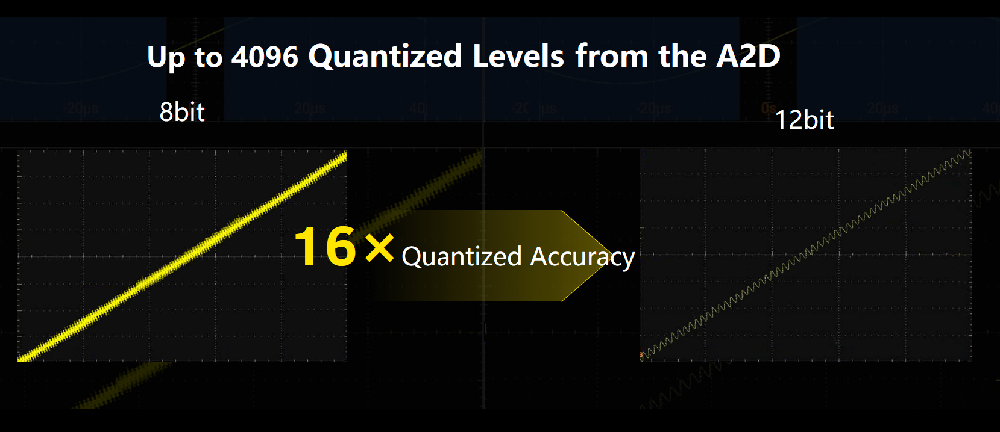

High-resolution 12-bit

12-bit vertical resolution with 4096 levels of quantization, 16 times the quantization levels of 8-bit, adept at handling small signal testing.

High-resolution 12-bit

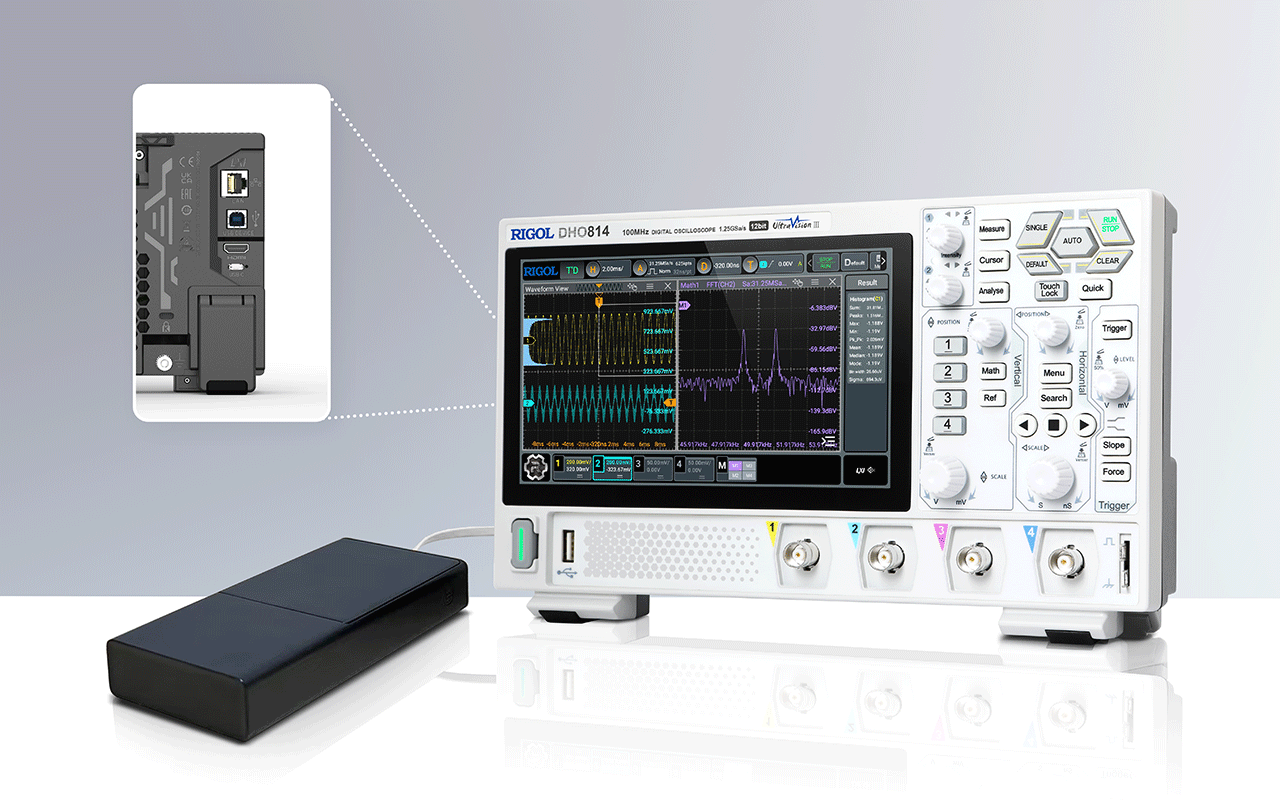

Support Type-C Power

Designed with a Type-C power interface, the DHO800 can be powered by just a portable power source, enabling on-site testing.

Support Type-C Power

Sleek Desain

The compact and portable design of the DHO800 series effectively reduces the burden of carrying equipment for on-site operations. Additionally, it supports VESA standard monitor mounts, making your desktop more organized and saving workspace.

Sleek Desain

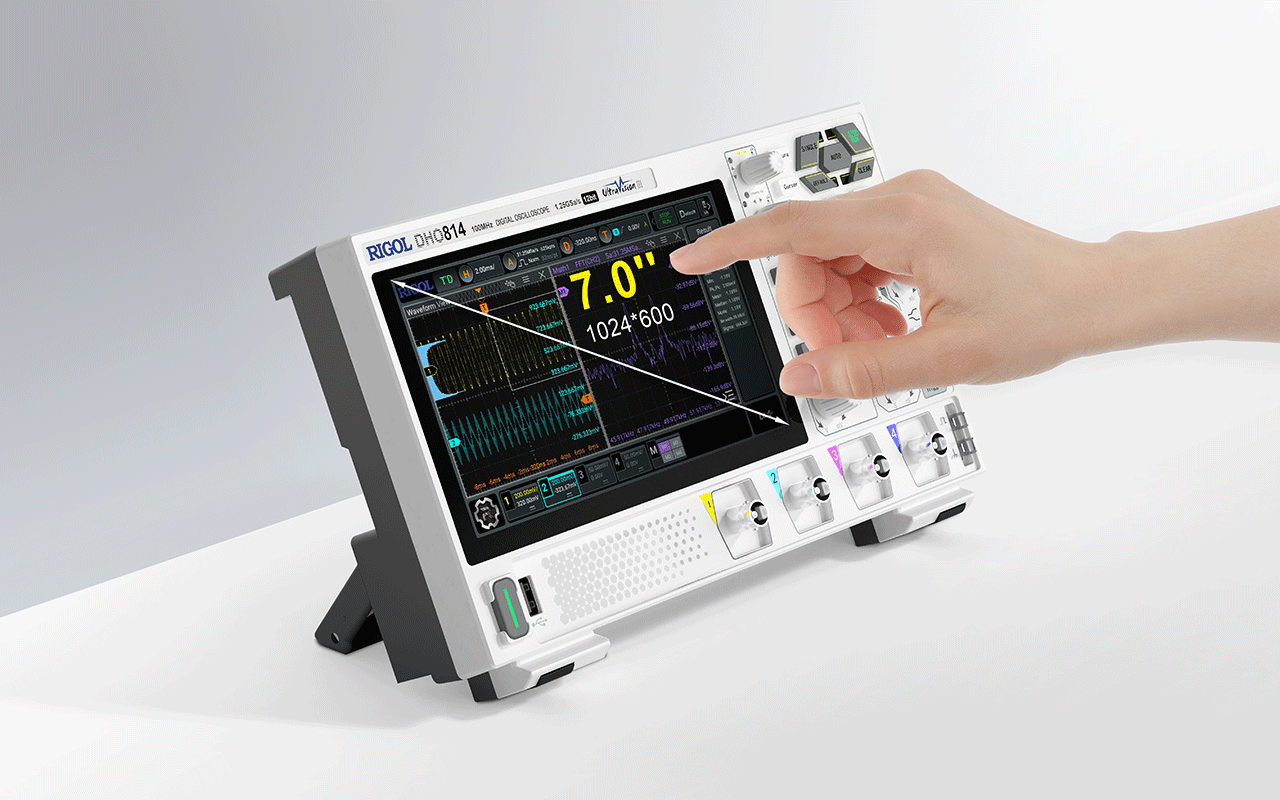

7-inch HD Touchscreen

The DHO800 boasts a 7-inch 1024x600 high-definition touchscreen, offering the perfect blend of compactness and functionality. Despite its small size, this device ensures convenient operation without compromising on screen size, providing ample space for all your tasks.

7-inch HD Touchscreen

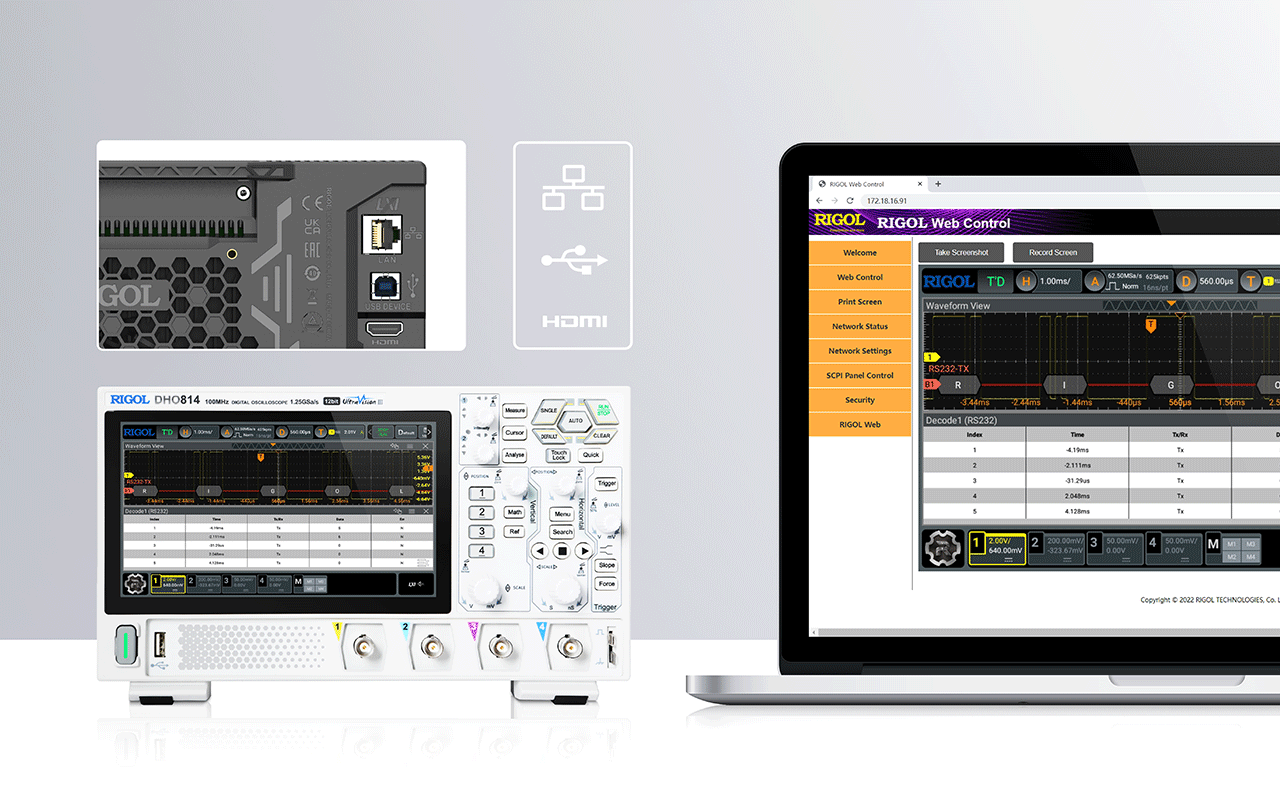

Versatile Interfaces

The DHO800 series comes standard with USB, LAN, and HDMI ports, meeting the needs of remote control, conference presentations, teaching, and other applications. This allows for greater display space during collaborative work or teaching, enhancing collaborative efficiency.

Versatile Interfaces

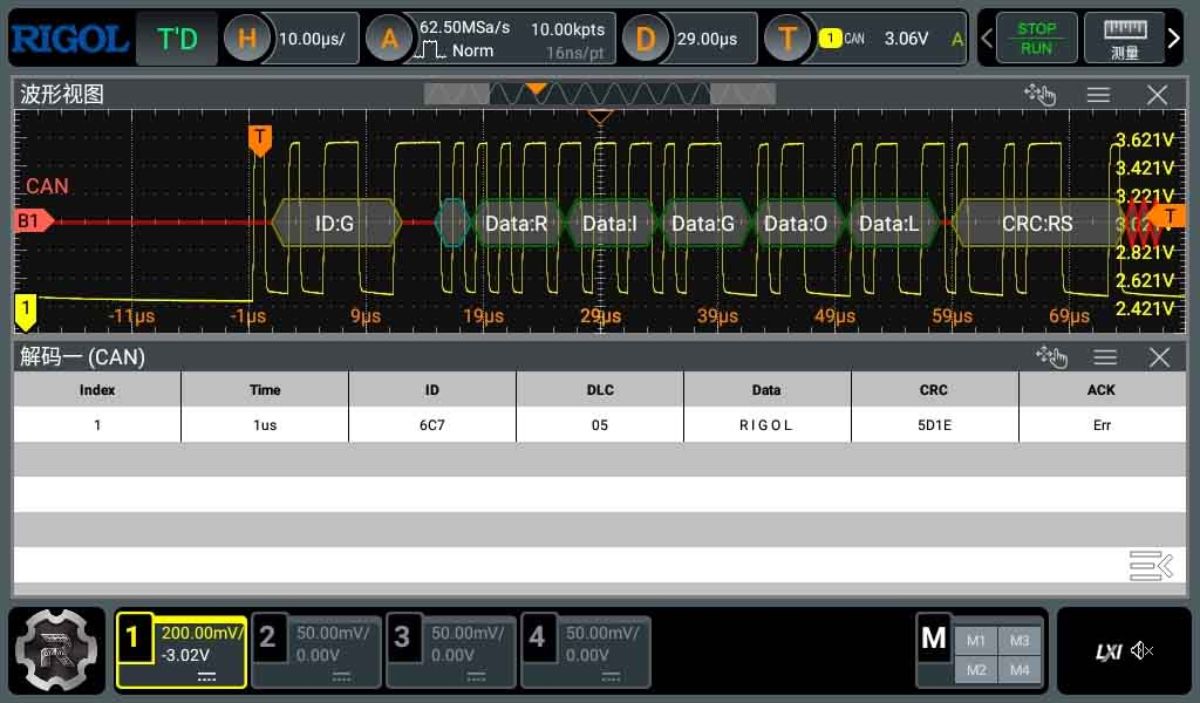

Rich triggering and decoding functions

The DHO800 has a rich set of triggering functions, including commonly used edge, slope, pulse width, etc., as well as some serial protocol triggering, such as the triggering and decoding of the I2C, SPI, RS232 protocols commonly used in embedded debugging and the CAN protocol commonly used in the automotive industry. The bus triggering and decoding functions of the DHO800 can accurately capture and parse protocol information, directly display the decoded content on the waveform or present it in the form of an event table, making your debugging more convenient and intuitive.

Rich triggering and decoding functions

Model

Model Max. Output Frequency Sample Rate Vertical Resolution Channels Arbitrary Wave Length Price
DHO814 100MHz 1.25GSa/s 1,000,000 wfrms/s 4 25Mpts Rp.12.836.000
DHO812 100MHz 1.25GSa/s 1,000,000 wfrms/s 2 128Mpts Rp.10.410.000
DHO804 70MHz 1.25GSa/s 1,000,000 wfrms/s 4 25Mpts Rp.9.712.500
DHO802 70MHz 1.25GSa/s 1,000,000 wfrms/s 2 25Mpts Rp.8.380.500
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Accessories

Model Description
RM5041 Ultra-Portable Platform Rack Mount Kit

User Manual

Name Version Release Date Download
DHO800 UserGuide UGA36105-1110 2025-02-13 Download

Datasheet

Name Version Release Date Download
DHO800 DataSheet QGA36105-1110 2024-10-01 Download

Programming Manual

Name Version Release Date Download
DHO800900 ProgrammingGuide PGA39106-1110 2025-05-09 Download

Quick Guide

Name Version Release Date Download
DHO800 QuickGuide QGA36105-1110 2025-02-13 Download
