RSA3000E Series

The RSA3000E is a 5-in-1 spectrum analyzer with sweep spectrum, real-time spectrum, scalar network analyzer (-TG model), EMI receiver and digital demodulation. Its frequency range is 9kHz to 1.5/3GHz, and it is available with the tracking source "-TG" model, which can be widely used in enterprise R&D, factory production, education and teaching.

Frequency Range : 9kHz~3GHz
RBW : 1Hz~3MHz
Phase Noise : -102dBc/Hz@10kHz
DANL : -161dBm/Hz
Tracking Source : Yes
Datasheet

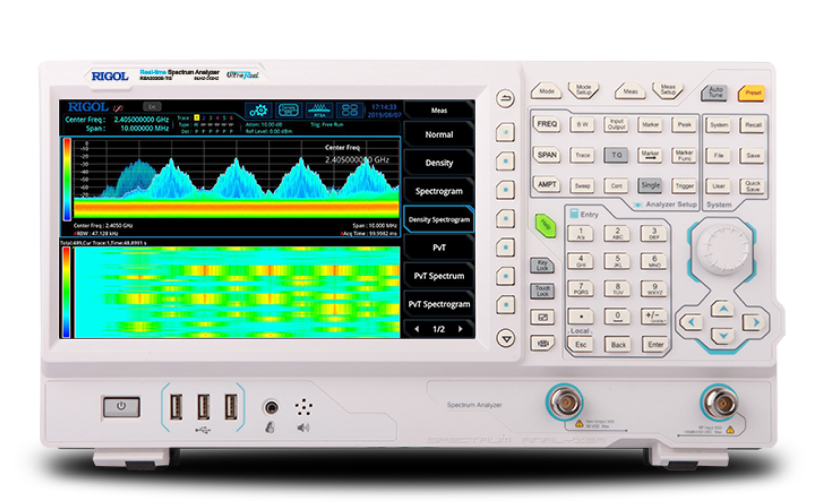

Main Image
Thumbnail 1

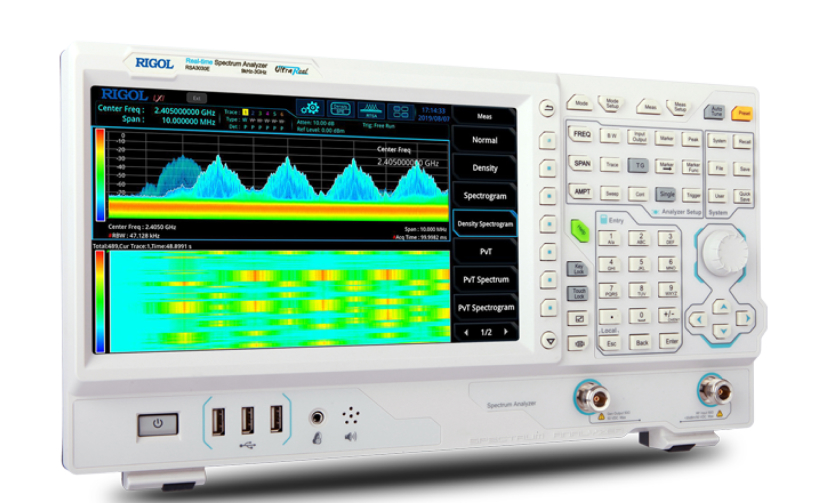

Thumbnail 2

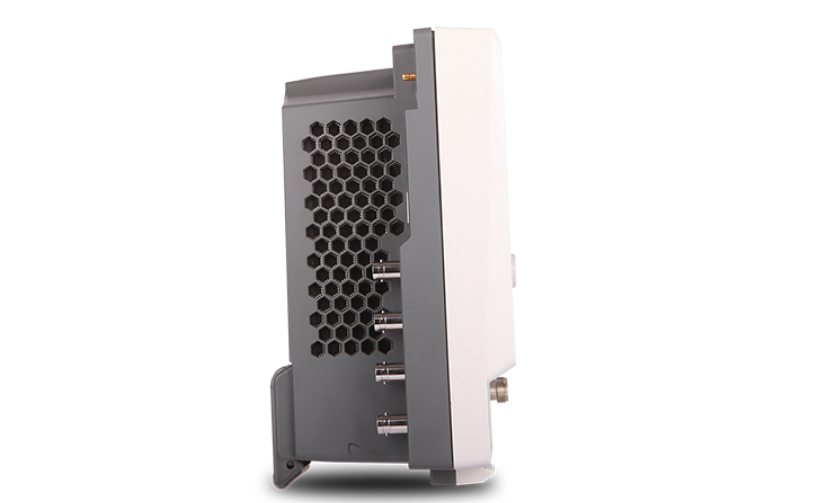

Thumbnail 3

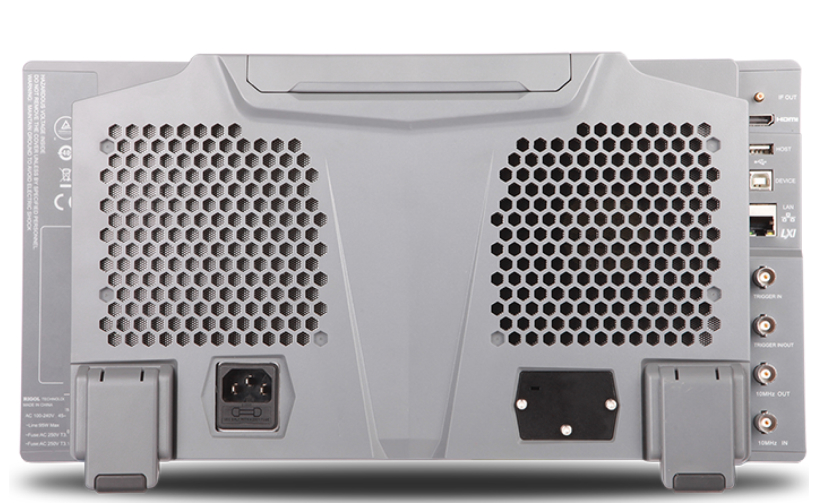

Thumbnail 4

Features

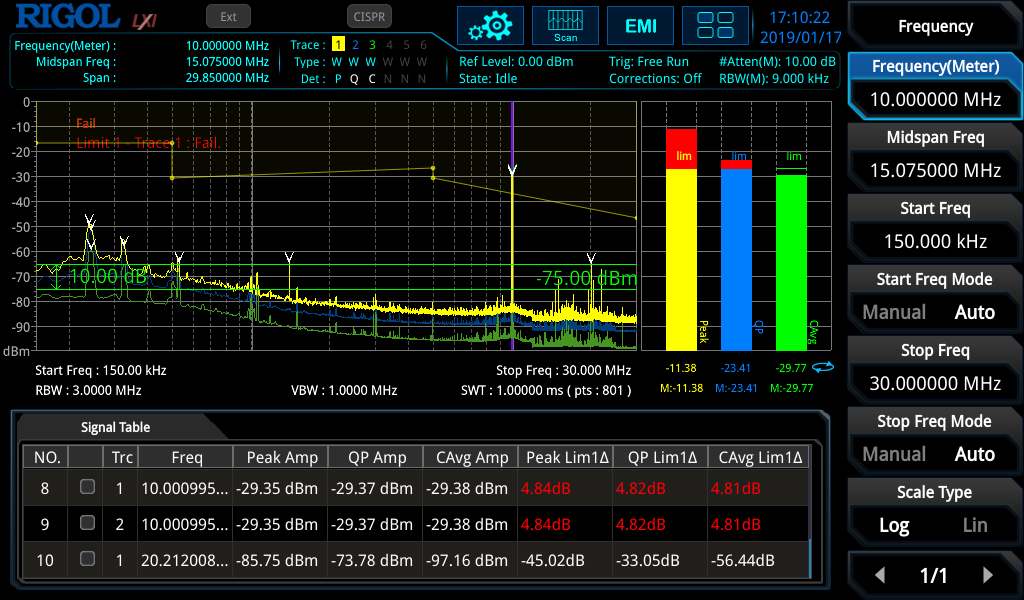

Conduction/Radiation Pre-compliance with Built-in Emi Test Software

The RSA3000E's built-in EMI pre-compliance application software, combined with CISPR-compliant filters, pre-tests the product for conduction and radiation to identify and improve its conduction/radiation disturbance source and accelerate time-to-market.

Conduction/Radiation Pre-compliance with Built-in Emi Test Software

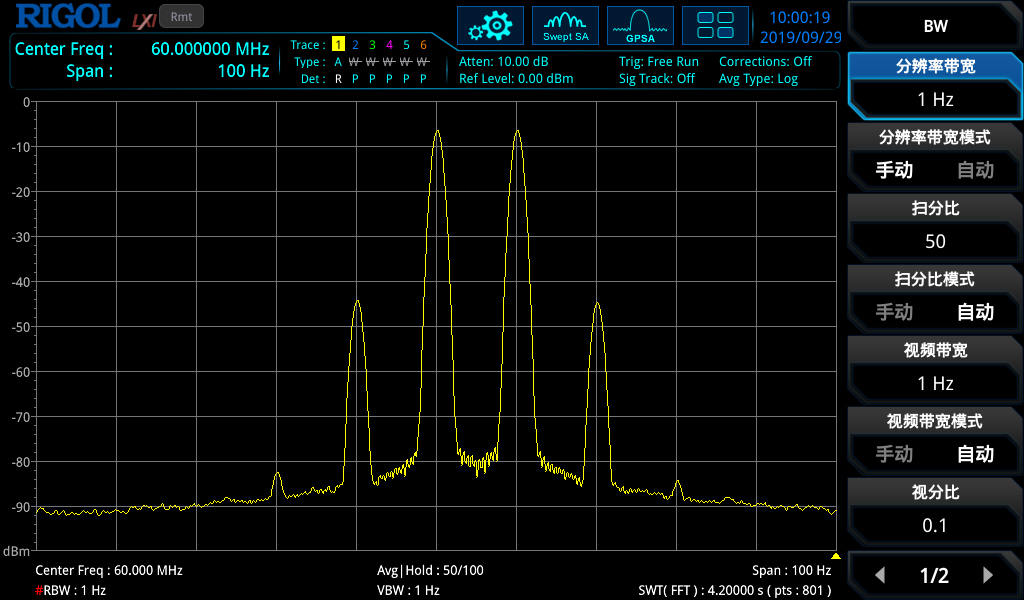

Resolution Bandwidth As Low As 1 Hz

Resolving signals with similar frequencies is critical to verifying many RF devices and systems. With the RSA3000E, the RBW resolution bandwidth with a scan bandwidth of only 1 Hz allows you to view more details of adjacent signals.

Resolution Bandwidth As Low As 1 Hz

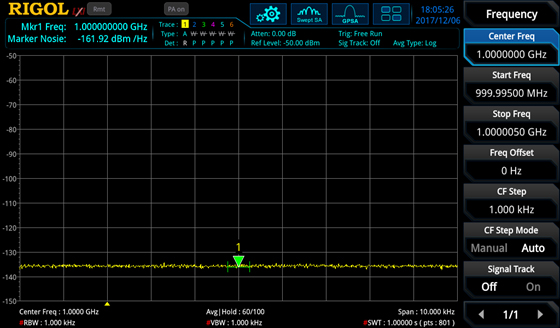

DANL As Low As -161 Dbm with Optional Preamp

View lower powered signals (harmonics, interference sources) and ease trouble-shooting in swept and real-time mode.

DANL As Low As -161 Dbm with Optional Preamp

ASK/FSK Demodulation Analysis

ASK/FSK demodulation analysis software can help engineers demodulate and analyze signals such as TPMS, PKE/RKE, and obtain parameters of signal modulation quality to help products get listed quickly.

ASK/FSK Demodulation Analysis

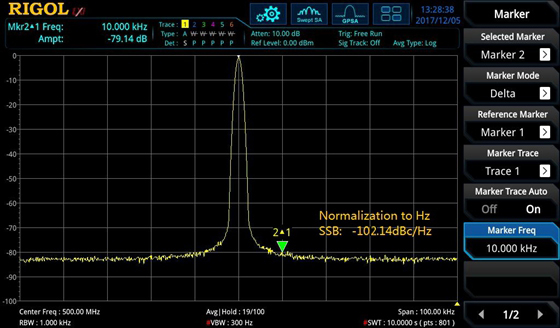

Excellent Phase Noise Metric

Excellent sweep performance, phase noise as low as -102dBc/Hz.

Excellent Phase Noise Metric

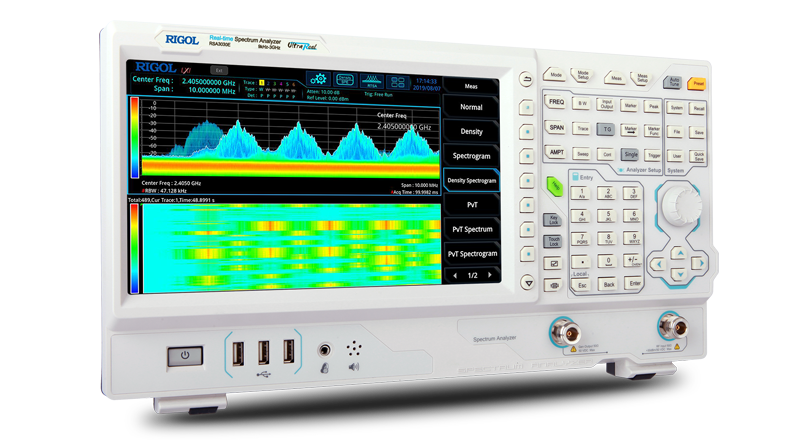

Complete Operations with a Multi-touch Screen

RSA3000E with a 10.1-inch multi-touch capacitive screen with quick setup, and support a variety of gestures such as dragging, expanding, and zooming waveforms to provide a personalized interactive experience that maximizes your time.

Complete Operations with a Multi-touch Screen

Model

Model Frequency Range Description Phase Noise DANL Tracking Source
RSA3030E 9kHz-3GHz 1Hz-3MHz -102dBc/Hz@10kHz -161dBm -
RSA3015E-TG 9kHz~3GHz 1Hz~3MHz -102dBc/Hz@10kHz -161dBm Yes
RSA3015E 9kHz~1.5GHz 1Hz~3MHz -102dBc/Hz@10kHz -161dBm -
RSA3030E-TG 9kHz~3GHz 1Hz~3MHz -102dBc/Hz@10kHz -161dBm Yes
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Accessories

Model Description Price
VB1032 VSWR Bridge with VSWR-DSA800, 1 MHz – 3.2 GHz, Typical Directivity ≥ 30 dB
USB-GPIB USB-GPIB Adapter
ATT03301H 30dB High Power Attenuator, Maximum Power 100W
RF CATV Kit Includes: 50Ω to 75Ω Adapter (2 pcs)
RF Attenuator Kit Includes: 6 dB Attenuator (1 pc), 10 dB Attenuator (2 pcs) Rp8.384.000
NFP-3 NFP-3 Rp8.384.000
DSA Utility Kit Includes: N-SMA Cable, BNC-BNC Cable, N-BNC Adapter, N-SMA Adapter, 75Ω-50Ω Adapter, 900 MHz/1.8 GHz Antenna (2 pcs), 2.4 GHz Antenna (2 pcs) Rp12.656.000
VB1080 VSWR Bridge with VSWR-DSA800, 2 GHz – 8 GHz Rp11.744.000
OCXO-C08 High Stability Clock Reference Rp12.784.000
Ultra Spectrum DSAPC software
RSA3000E-EMC EMC filter and quasi-peak detector kit (for RSA3000E)
RSA3000E-ASK/FSK ASK/FSK Demodulation option(for RSA3000E)
RSA3000E-AMK Advanced Measurement kit(for RSA3000E)
RSA3000E-EMI EMI pre-compatibility test mode(for RSA3000E)
RSA3000E-PA RSA3000EPA

User Manual

Name Version Release Date Download
RSA3000E User ManualRSA3000E User Manual UGD24100-1110 2021-10-06 Download
RSA3000 RackmountKit Manual V1.0 2021-10-26 Download
EMI User Manual V1.0 2021-10-26 Download
NTP-3 V1.0 2021-10-26 Download

Datasheet

Name Version Release Date Download
RSA3000E Datasheets V2.0 2025-02-07 Download

Programming Manual

Name Version Release Date Download
RSA3000E Programming Manual V2.0 2024-12-03 Download
EMI Programming Manual UGD23101-1110 2021-10-26 Download

Open Source

Name Version Release Date Download
RSA30003000E5000 OpenSourceAcknowledgment 202512 2025-12-12 2025-12-12 Download

Quick Guide

Name Version Release Date Download
RSA3000E QuickGuide QGD24100-1110 2024-01-31 Download
