DS80000 Series

The DS80000 series digital oscilloscope is the eighth generation digital oscilloscope independently developed by RIGOL. Based on the StationMAX II platform, it achieves a maximum real-time sampling rate of 40GSa/s and an analog bandwidth of 13GHz.

Bandwidth : 13GHz
Channels : 4
Real-time Sample Rate : 40GSa/s
Max. Memory Depth : 4Gpts(opt.)
Waveform Capture Rate : 250,000wfms/s
Datasheet

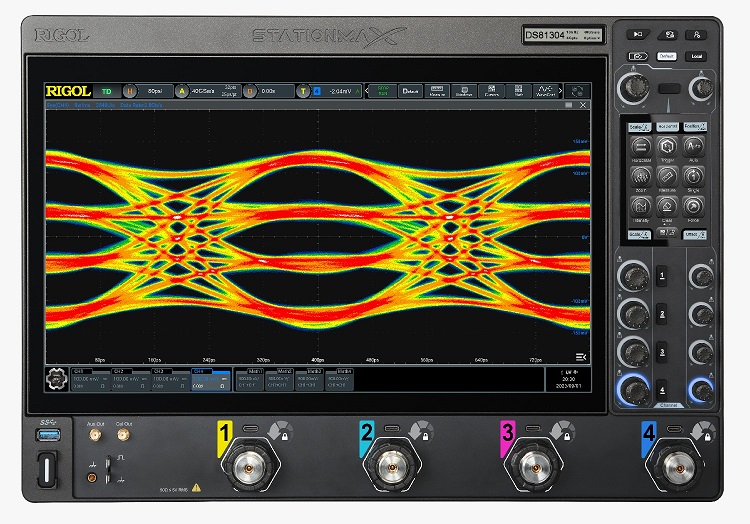

Main Image
Thumbnail 1
Thumbnail 2

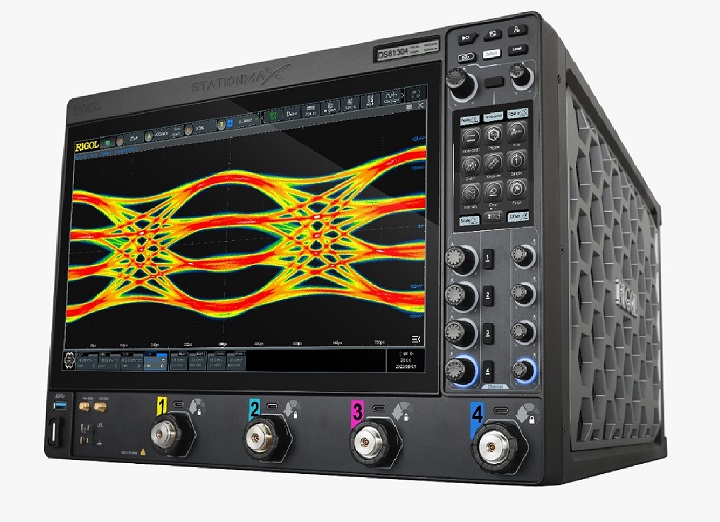

Thumbnail 3

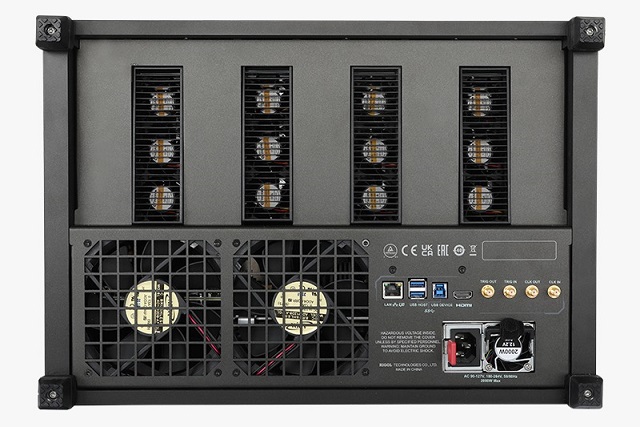

Thumbnail 4

Features

Higher Bandwidth, Higher Sampling

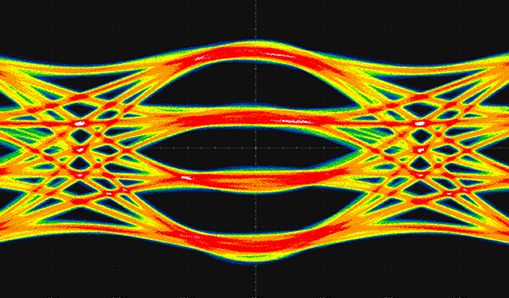

Based on the StationMAX II hardware technology platform, it achieves a maximum real-time sampling rate of 40GSa/s and an analog bandwidth of 13GHz, which can more realistically restore signals and cover more applications.

Higher Bandwidth, Higher Sampling

Deep Storage High Fidelity

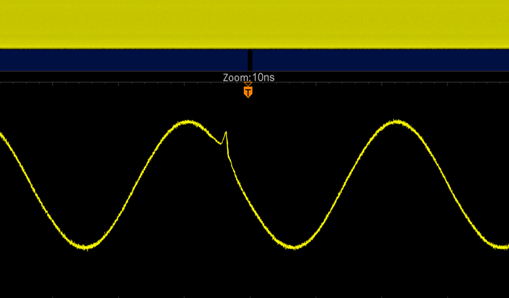

Based on the RIGOL new generation UltraVision III platform, it achieves a maximum storage depth of 4Gpts, allowing DS80000 to have high-fidelity signal acquisition capability and capture waveforms for longer periods of time at high sampling rates.

Deep Storage High Fidelity

New Interface Design

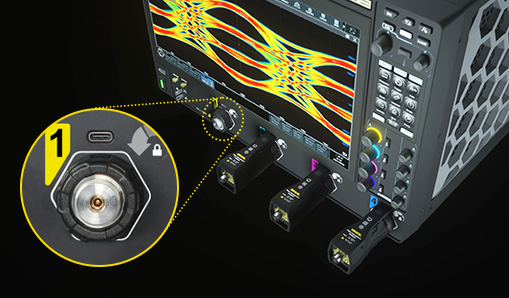

The DS80000 series adopts the RIGOL SmartProbe 2.0 interface, supports direct signal connection with 3.5mm connectors, and is equipped with RIGOL's self-developed probe adapter. It can also be backward compatible with the previous generation of RIGOL original probes, providing convenience for your use.

New Interface Design

Meet More High-Speed

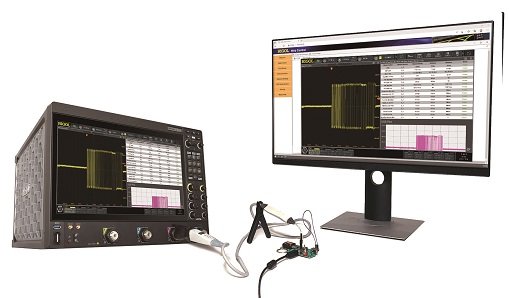

Application Scenarios DS80000 has a maximum analog bandwidth of 13GHz and a maximum real-time sampling rate of 40GSa/s, which can meet the performance verification of high-speed devices and systems, high-speed bus compliance analysis, DDR debugging and other application scenarios, helping engineers solve more testing challenges.

Meet More High-Speed

Model

Model Bandwidth Analog Channels Real-Time Sample Rate Max. Memory Depth Waveform Capture Rate
DS81304 13 GHz 4 40 GSa/s 4 Gpts (opt.) 250,000 wfms/s
DS81004 10 GHz 4 40 GSa/s 4 Gpts (opt.) 250,000 wfms/s
DS80804 8 GHz 4 40 GSa/s 4 Gpts (opt.) 250,000 wfms/s
DS80604 6 GHz 4 40 GSa/s 4 Gpts (opt.) 250,000 wfms/s
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Accessories

Model Description
TF-USBH-STP USB2.0 Host Compliance Test Fixture
TF-USBD-STP USB2.0 Device Compliance Test Fixture
TF-ENET-STP 10/100/1000M Ethernet Compliance Test Fixture
DS80000-RLU-40 4G Record length Option
DS80000-JITTA Jitter and Eye Diagram
DS80000-AUTOENTC Automotive Enet Test
DS80000-USBC USB 2.0 Compliance Test
DS80000-USB3C USB 3.0 Compliance Test
DS80000-ENETC 100/1000M Ethernet Compliance Test
DS80000-AUTOA Automotive Bus Decode
DS80000-EMBDA Embedded Trigger&Decode
DS80000-AUDIOA I2S Trigger and Decode

User Manual

Name Version Release Date Download
DS80000 UserGuide UGA38100-1110 2025-05-08 Download

Datasheet

Name Version Release Date Download
DS80000 DataSheet DSA38100-1110 2025-05-08 Download

Programming Manual

Name Version Release Date Download
DS80000 ProgrammingGuide PGA38100-1110 2025-05-08 Download

Quick Guide

Name Version Release Date Download
DS80000 QuickGuide QGA38101-1110 2025-05-16 Download
