MSO8000A Series

The MSO8000A series oscilloscope is categorized in between mid to high-end mixed-signal digital oscilloscope range. It was designed based on RIGOL's ASIC chip and UltraVision II technology platform.

Bandwidth : 1.5GHz
Analog Channels : 4
Real-time Sample Rate : 10GSa/s
Max. Memory Depth : 500 Mpts
Waveform Capture Rate : 600,000 kwfms/s
Digital Channel : 16(Probe opt.)
Datasheet

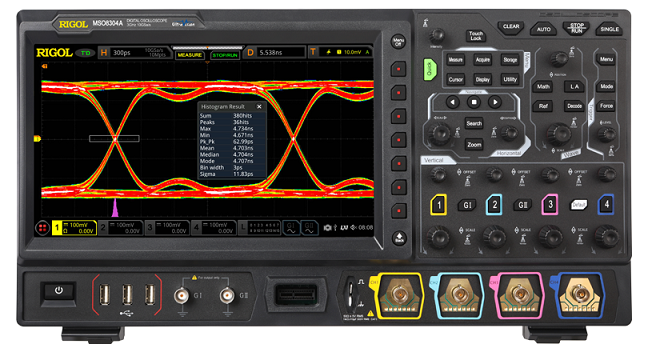

Main Image
Thumbnail 1

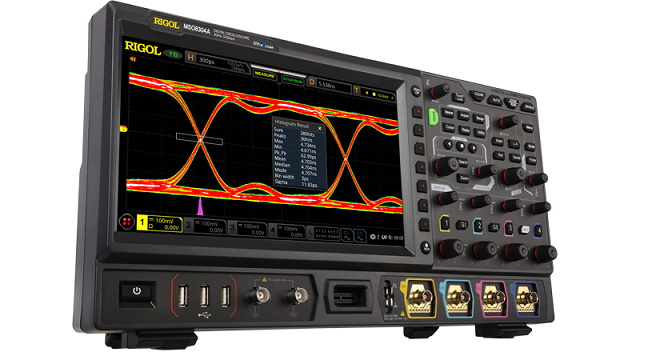

Thumbnail 2
Thumbnail 3

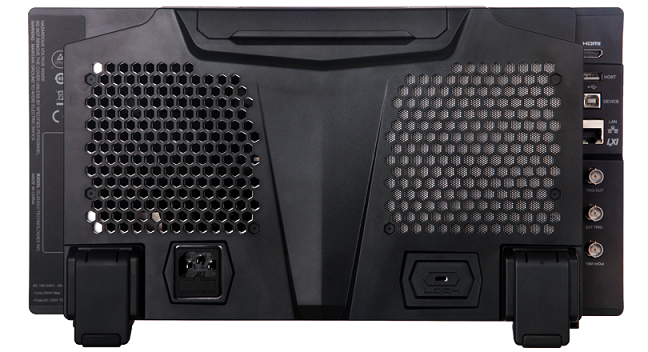

Thumbnail 4

Features

Excellent Bandwidth and Sampling Rate

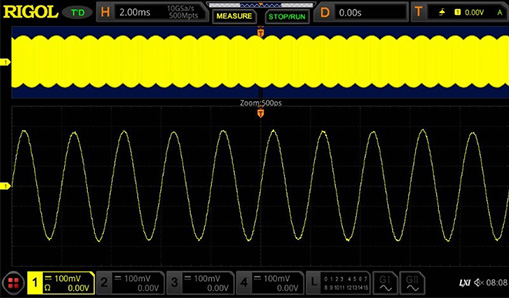

The MSO8000A series digital oscilloscope provides you with up to 3GHz analog bandwidth and 10GSa/s sampling rate. The low-bandwidth model can be upgraded to 3GHz (single-channel mode) at any time through software, ensuring higher signal fidelity and resolution down to 100ps (up to 2ps at the minimum time base), allowing you to view subtle waveform details.

Excellent Bandwidth and Sampling Rate

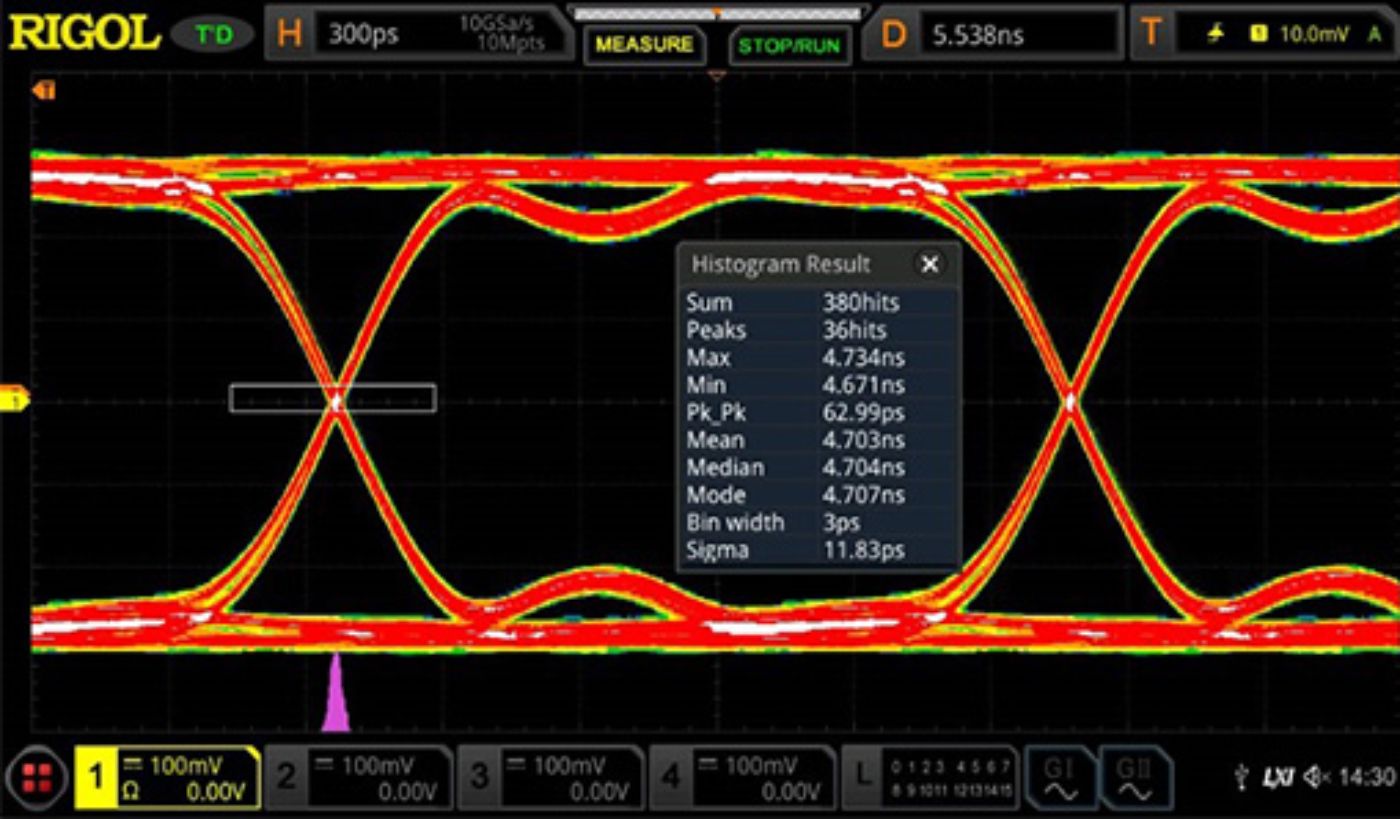

12-bit vertical resolution

12-bit resolution (212=4096) to see the most signal detail

12-bit vertical resolution

Jitter analysis supporting diversified display

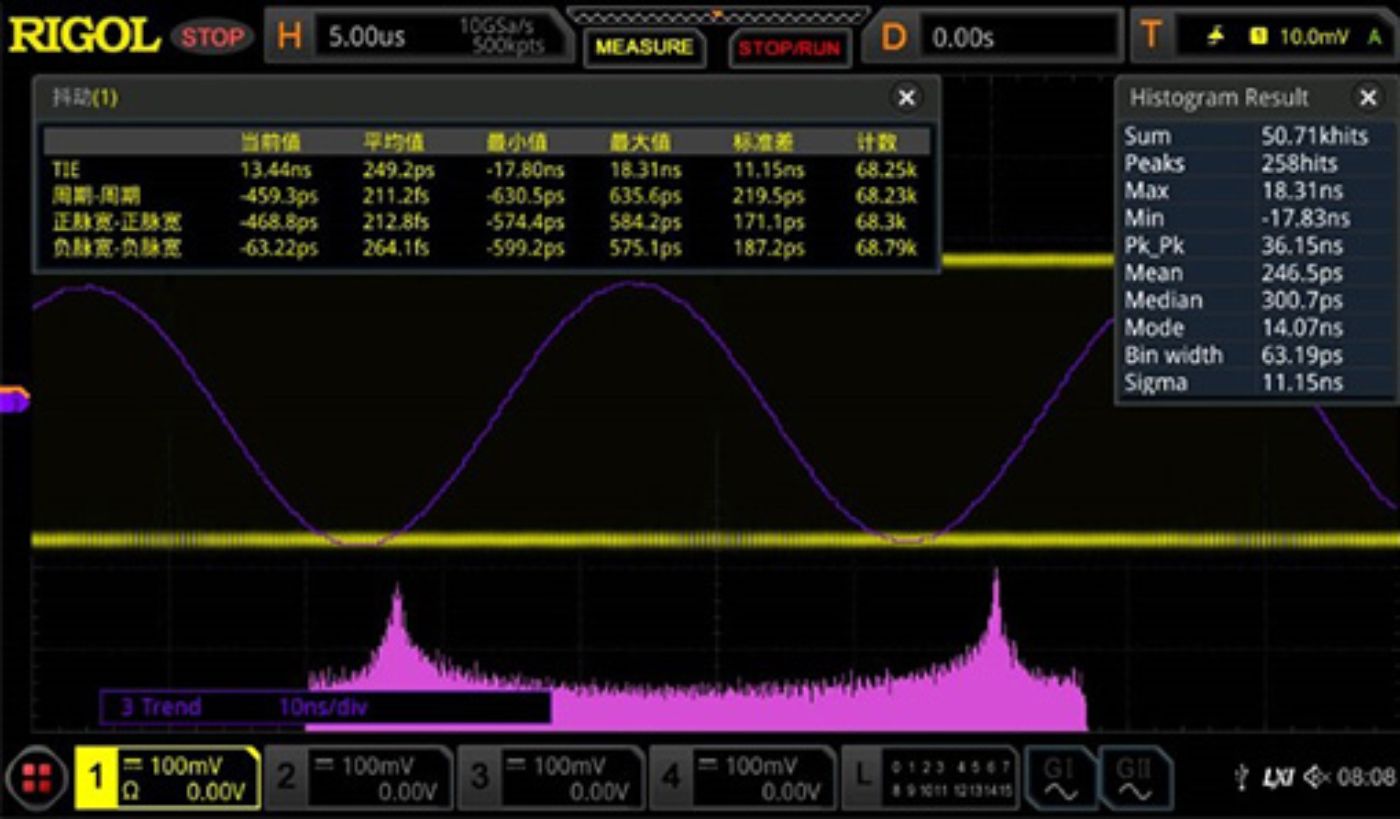

Through the jitter analysis function of the oscilloscope, multiple consecutive bits can be measured and statistically analyzed at once, efficiently completing the jitter analysis of large amounts of data.

Jitter analysis supporting diversified display

The capture rate is as high as 600 kwfms/s

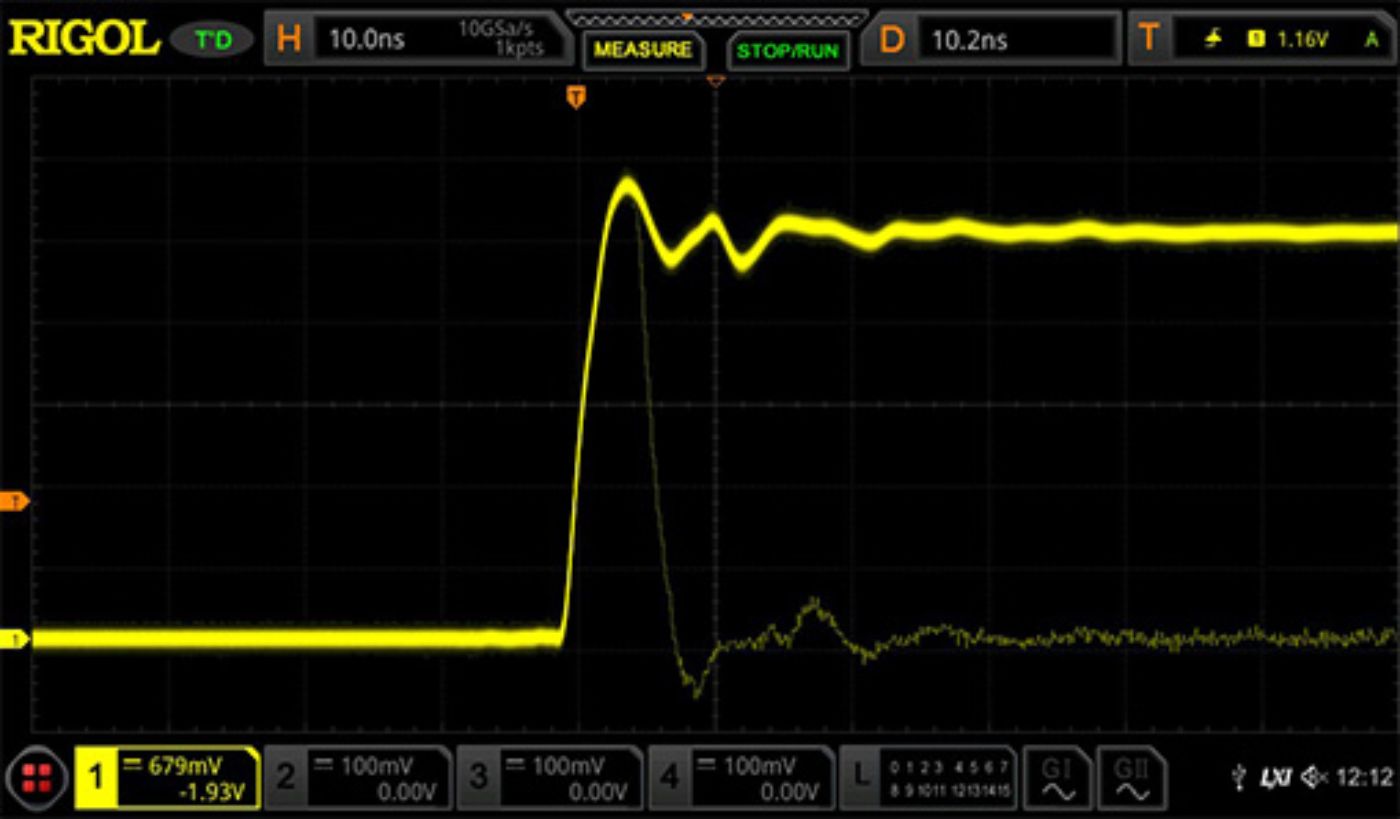

With a waveform capture rate of up to 600,000 wfms/s, the dead time can be reduced, making it easier to detect glitches and other sporadic events in the signal, thus greatly improving the debugging efficiency of engineers.

The capture rate is as high as 600 kwfms/s

Full-Memory Hardware Measurement

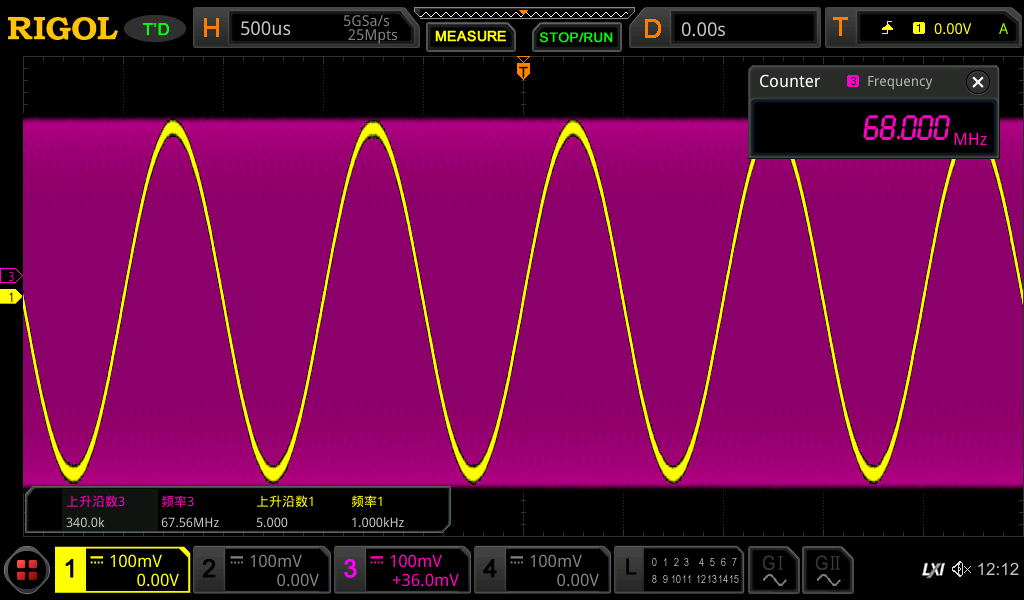

Waveform is fully captured into the memory and display on the screen. The MSO8000A series oscilloscope can accurately capture and display results of high-frequency signal testing with multiple cycles.

Full-Memory Hardware Measurement

500Mpts deep storage, up to 450,000 frames of hardware waveform recording

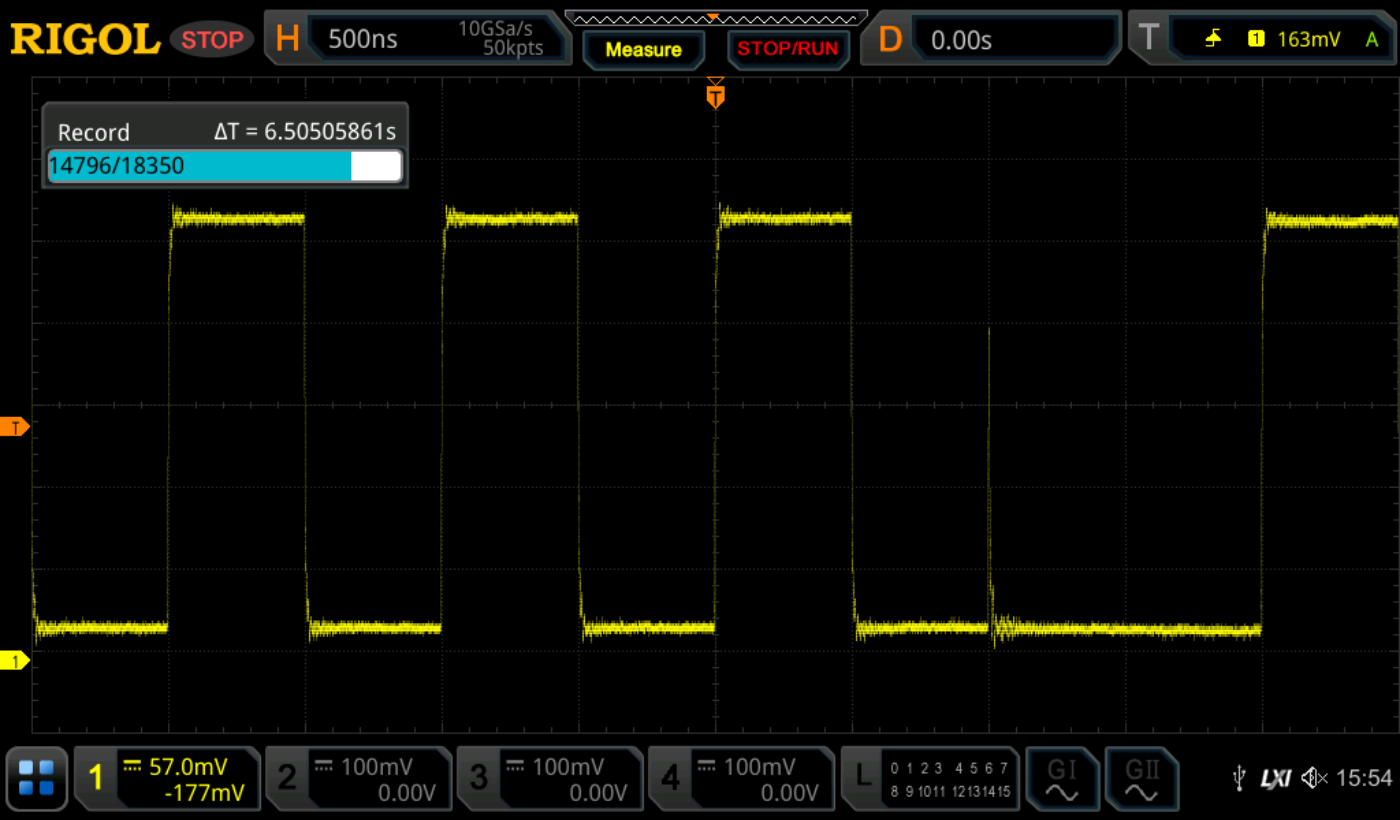

The MSO8000A series comes standard with a memory depth of 500 Mpts. The hardware waveform recording function uses segmented storage technology, which can selectively capture and store the signals that users are concerned about by setting trigger conditions and mark the time on the signals. This not only ensures the efficiency of capture but also further extends the total time for waveform observation.

500Mpts deep storage, up to 450,000 frames of hardware waveform recording

Model

Model Bandwidth Analog Channels Real-Time Sample Rate Max. Memory Depth Waveform Capture Rate Digital Channels
MSO8204A 2 GHz 4 10 GSa/s 500 Mpts 600,000 wfms/s 16 (Probe opt.)
MSO8154A 1.5 GHz 4 10 GSa/s 500 Mpts 600,000 wfms/s 16 (Probe opt.)
MSO8074A 750 MHz 4 10 GSa/s 500 Mpts 600,000 wfms/s 16 (Probe opt.)
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Accessories

Model Description
MSO8000A-BW7T15 MSO8000A 750MHz to 1.5GHz Bandwidth upgrade option
MSO8000A-BW7T30 MSO8000A 750MHz to 3GHz Bandwidth upgrade option
MSO8000A-BW15T30 MSO8000A 1.5GHz to 3GHz Bandwidth upgrade option

User Manual

Name Version Release Date Download
MSO8000A UserGuide UGA31100-1110 2024-02-29 Download

Datasheet

Name Version Release Date Download
MSO8000A DataSheet DSA31101-1110 2025-05-20 Download

Programming Manual

Name Version Release Date Download
MSO8000A ProgrammingGuide PGA31100-1110 2024-02-29 Download

Open Source

Name Version Release Date Download
MSO5000&MSO&DS7000&MSO8000(A)&DS8000-R Open Source Acknowledgment 202512 2025-12-24 Download
