DS4000E Series

The DS4000E series of digital oscilloscopes is a high-performance, economical general-purpose digital oscilloscope with a bandwidth of 100MHz to 200MHz, a sampling rate of up to 2GSa/s, and a 4-channel memory depth of up to 14Mpts.

Bandwidth : 100 MHz ~ 200 MHz
Analog Channels : 4
Real-time Sample Rate : 2 GSa/s
Max. Memory Depth : 14 Mpts
Waveform Capture Rate : 60,000 kwfms/s
Digital Channels : N/A
Datasheet

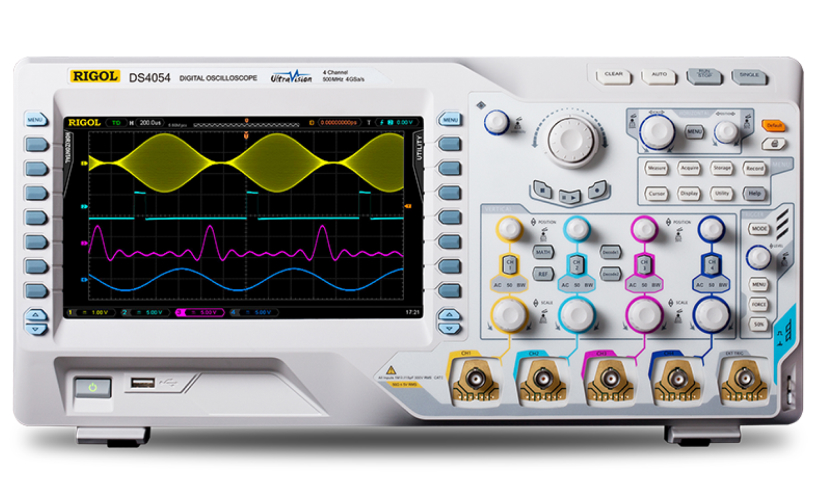

Main Image
Thumbnail 1
Thumbnail 2

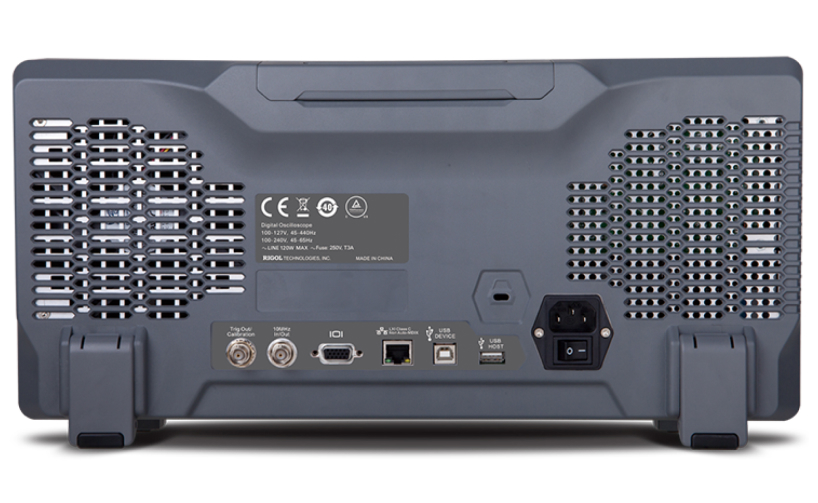

Thumbnail 3

Features

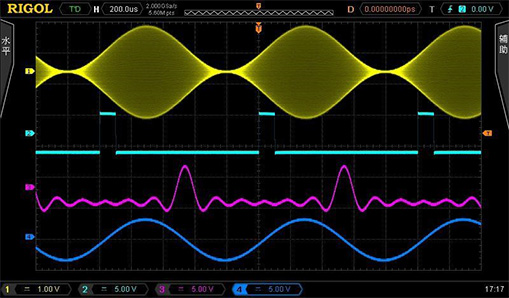

4 Analog Channels

With 4 analog channels, makes it possible to measure multiple signals simultaneously.

4 Analog Channels

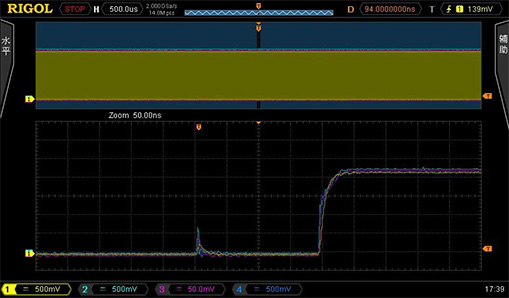

Up to 2GSa/s Max Sample Rate

Provides fine resolution and detail in high speed signals

Up to 2GSa/s Max Sample Rate

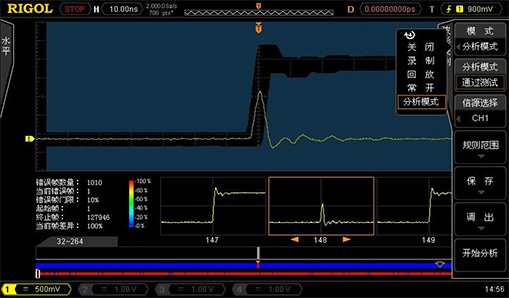

Waveform Record and Playback

Debug occasional and random glitches using our fast capture, playback, and onboard analysis capabilities.

Waveform Record and Playback

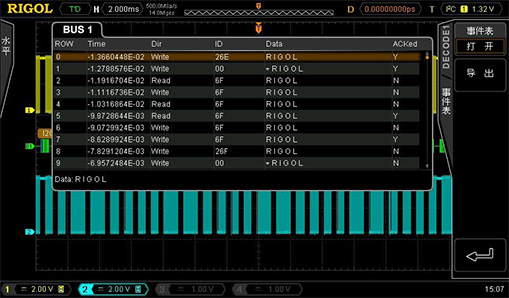

Serial bus triggering and decoding

Supports I2C, SPI, RS232/UART, CAN, LIN, FlexRay bus triggering and decoding as standard or optional offers.

Serial bus triggering and decoding

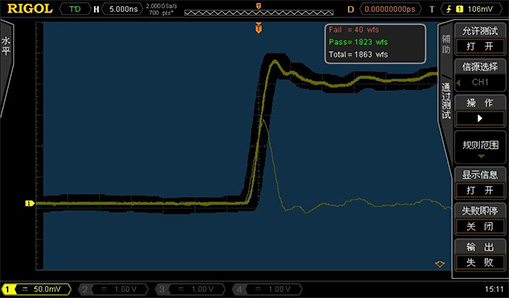

Standard waveform test template

The standard test template with Pass/Fail statistics, error stop and alarm functions, convenient for production line testing and long-term monitoring applications.

Standard waveform test template

Model

Model Bandwidth Analog Channels Real-Time Sample Rate Max. Memory Depth Waveform Capture Rate Price
DS4014E 100 MHz 4 2 GSa/s (Per Channel) 14 Mpts (Per Channel) 60,000 wfms/s Get a Quote
DS4024E 200 MHz 4 2 GSa/s (Per Channel) 14 Mpts (Per Channel) | 140 Mpts 60,000 wfms/s Get a Quote
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Accessories

Model Description
RM-DS4000 Rack mount kit
FPCS-DS4000 Front Panel Cover for MSO/DS4000
USB-GPIB USB-GPIB adapter
UPA-DS Power analysis software
SD-RS232-DS4000 RS232Decoding kit
SD-I2C/SPI-DS4000 I2CDecoding kit
SD-FlexRay-DS4000 FlexRayDecoding kit
SD-AUTO-DS4000 CANDecoding kit
BND-MSO/DS4000 MSO/DS4000 Option set

User Manual

Name Version Release Date Download
DS4000EUserGuideEN UGA21103-1110 2021-11-01 2021-11-01 Download

Datasheet

Name Version Release Date Download
DS4000E DataSheet V1.0 2021-11-01 Download

Programming Manual

Name Version Release Date Download
DS4000EProgrammingGuideEN PGA21101-1110 2021-11-01 Download

Quick Guide

Name Version Release Date Download
DS4000EQuickGuideCNEN QGA21103-1110 2021-11-23 Download
