DSG3000B Series

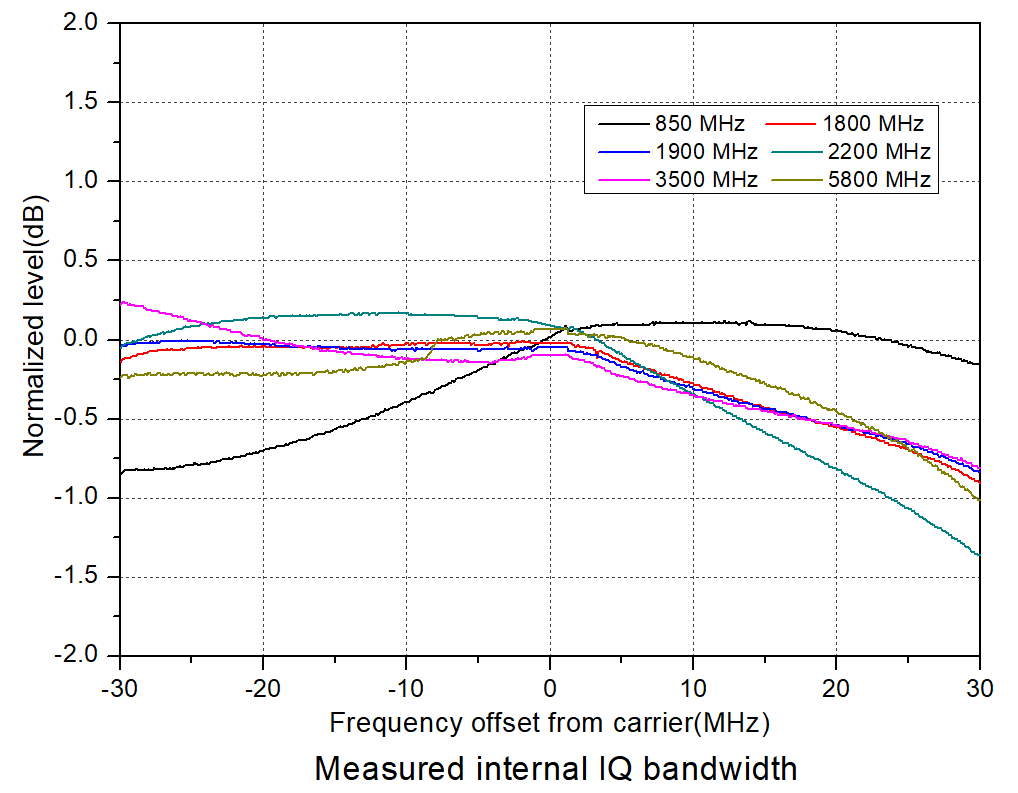

The DSG3000B Series offers continuous wave high power carriers up to 13.6 GHz, standard AM/FM/ØM analog modulation up to 3.6 GHz, and I/Q modulation and I/Q baseband output up to 6.5 GHz on the models ending in "IQ". It is an ideal tool in various fields such as communication, computers, instrumentation, R&D, education, production and maintenance.

Frequency Range : 9kHz~13.6GHz

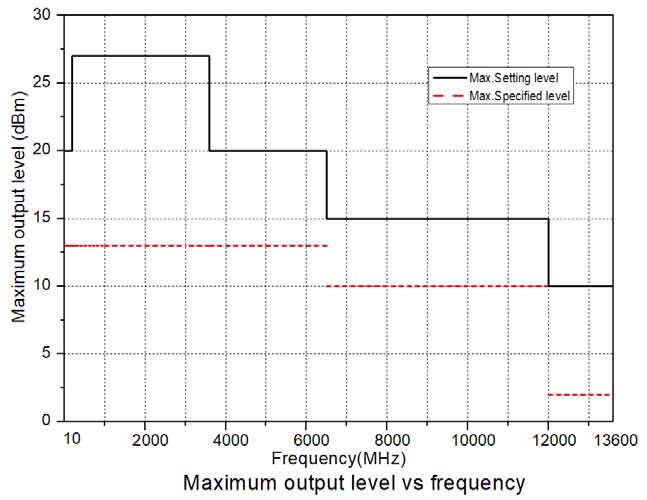

Amplitude Specification Range : -110dBm~+20dBm
SSB Phase Noise (Typ.) : <-116dBc/Hz@1GHz,20kHz offset

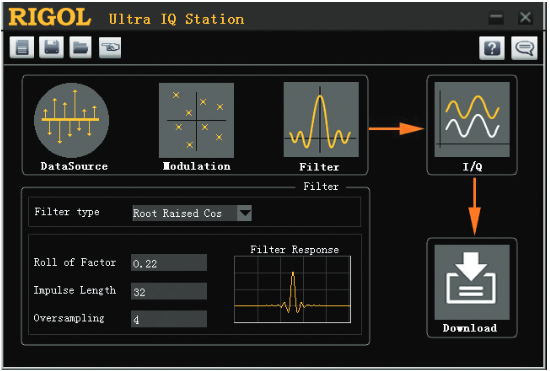

Modulation Type : AM/FM/ØM/Pulse
Datasheet

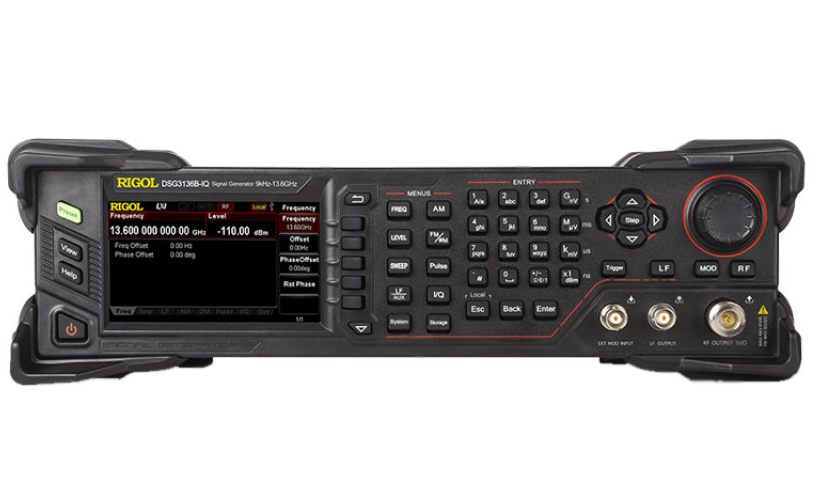

Main Image
Thumbnail 1

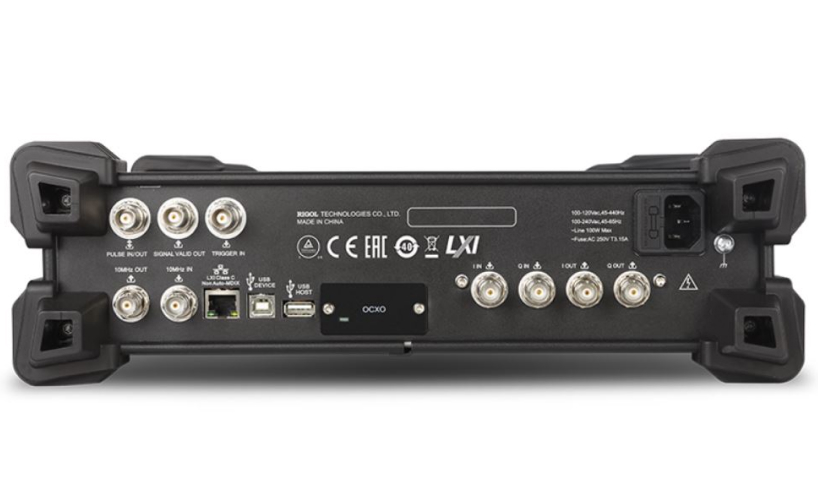

Thumbnail 2

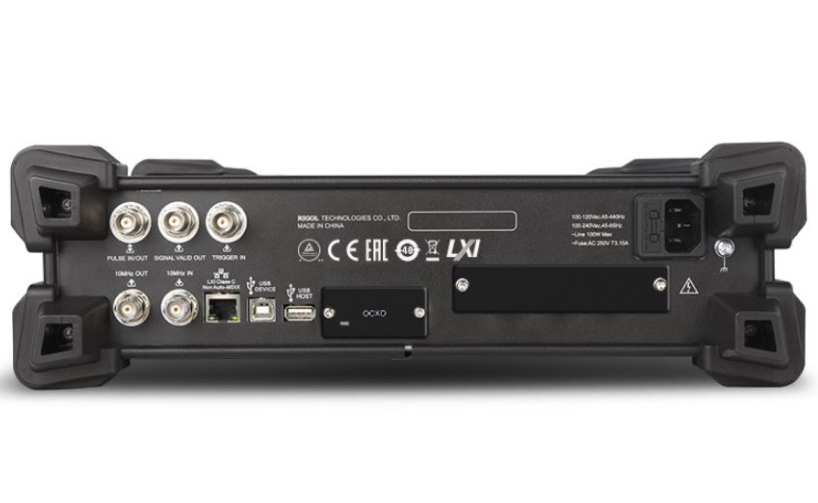

Thumbnail 3

Features

High Density, More Compact

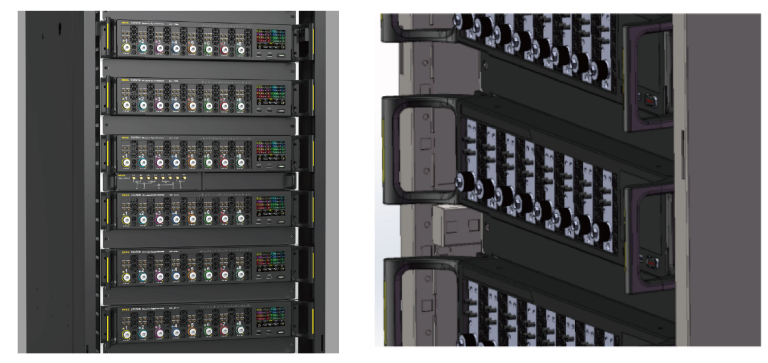

DSG5000 series microwave signal generator single instrument supports up to 8-channel output, and the channels are independently controllable, which improves the integration density and helps simplify the test system setup. Only one instrument can be used to achieve stable phase coherence and ultra-low phase Noise multi-channel signal application, greatly saving your test space and cost.

High Density, More Compact

High Performance, More Stable

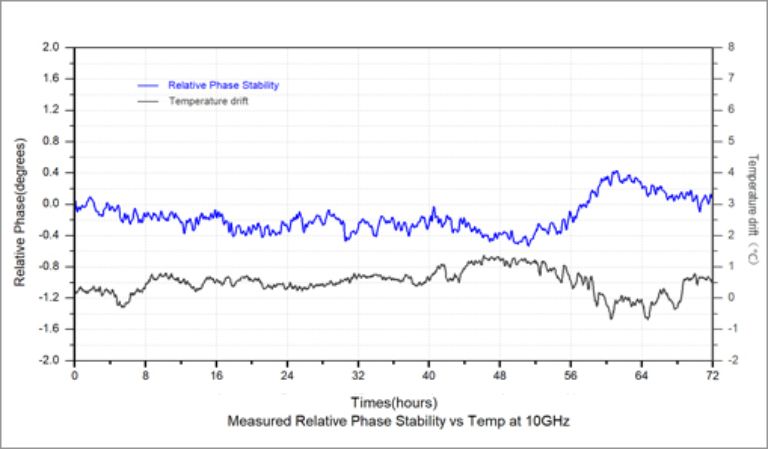

DSG5000 has excellent inter-channel phase stability, inter-channel phase stability <1°@10GHz, and phase adjustment resolution of 0.01°. The maximum output power is as high as 25dBm, which meets the test requirements of non-linear indicators such as amplifiers.

High Performance, More Stable

Low Noise, Purer

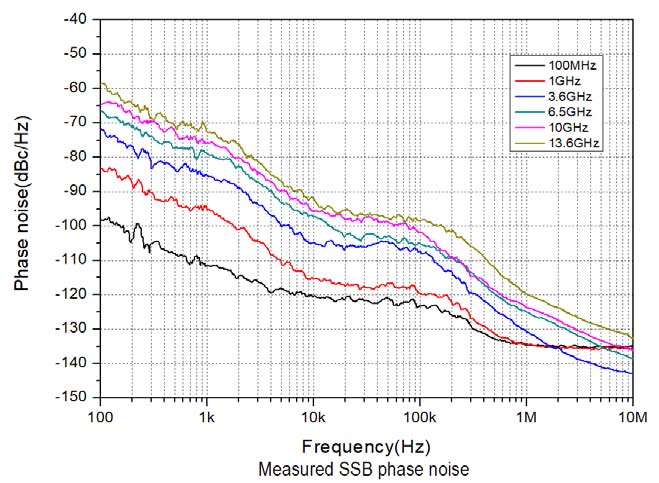

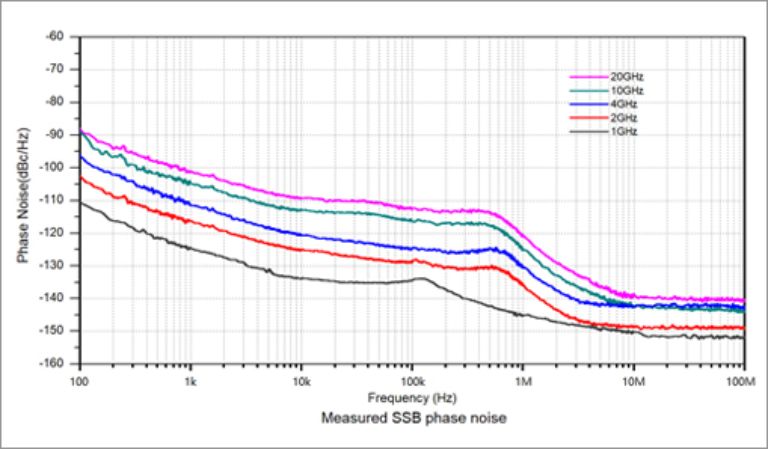

The typical value of phase noise is <-133dBc/Hz@1GHz, 10kHz, with high signal purity. After selecting a high-stable clock reference, you can get more outstanding nearby phase noise indicators.

Low Noise, Purer

High Scalability, Easier Control

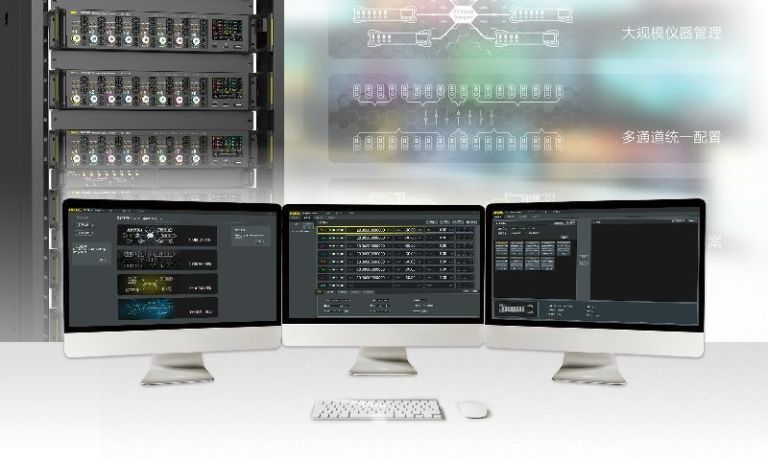

Adopt 2U full rack size standard chassis, with rack installation kit, easy to realize channel expansion, easy to integrate and apply, also has front and rear ventilation and heat dissipation design, when multiple units are integrated, the accuracy and stability will not be affected by heat.

High Scalability, Easier Control

High Usability

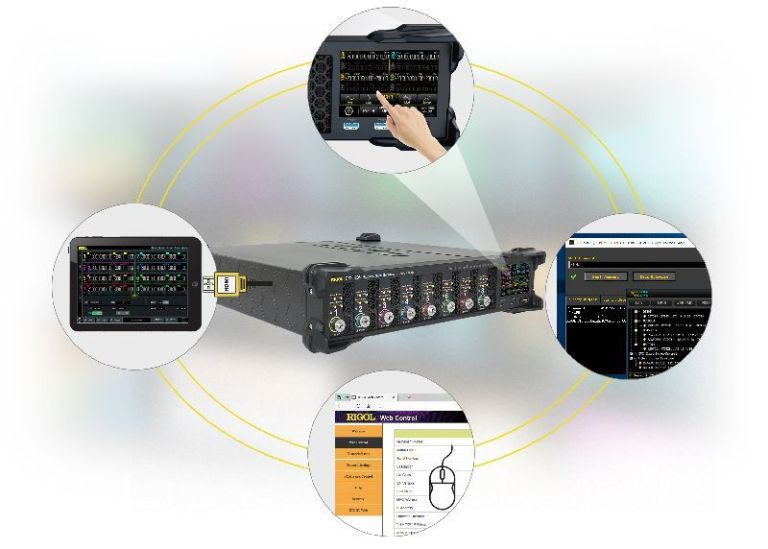

The DSG5000 series microwave signal generator comes with a touch screen and a standard USB/LAN interface, which can be automatically controlled by sending SCPI commands. Support external PAD, display, projector, etc. through the HDMI port on the rear panel, and realize single-unit remote control through Web Control.

High Usability

Model

Model Frequency Range Amplitude Indicators Range SSB Phase Noise Modulation Function Price
DSG3136B 9kHz-13.6GHz -110dBm~+20dBm <-116dBc/Hz@1GHz,20kHz offset AM/FM/∅°M/Pulse Rp.303.196.500
DSG3136B-IQ 9kHz-13.6GHz -110dBm~+20dBm <-116dBc/Hz@1GHz,20kHz offset AM/FM/∅°M/Pulse/IQ Get a Quote
DSG3065B-IQ 9kHz-6.5GHz -110dBm~+20dBm <-116dBc/Hz@1GHz,20kHz offset AM/FM/∅°M/Pulse/IQ Get a Quote
DSG3065B 9kHz-6.5GHz -110dBm~+20dBm <-116dBc/Hz@1GHz,20kHz offset AM/FM/∅°M/Pulse Rp.216.672.000
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Accessories

Model Description

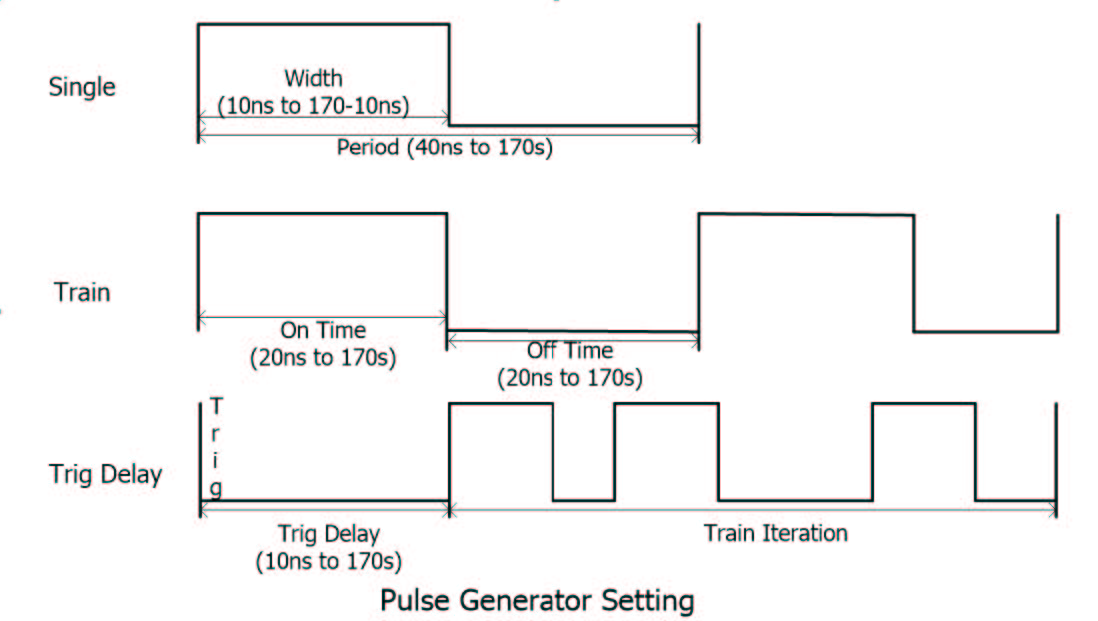

DSG3000B-PUG DSG3000B Pulse Train Generator
CB-USBA-USBB-FF-150 USB Data line，150cm
CB-BNC-BNC-MM-100 BNC Coaxial line，100cm
USB-GPIB USB-GPIB adapter
CB-NM-NM-75-L-12G N(M)-N(M) RF Cable
ATT03301H 30dB High Power Attenuator，Maximum power is 100W
RF Attenuator Kit Include：6dBAttenuator（1pcs），10dBAttenuator（2pcs）
CB-NM-SMAM-75-L-12G N(M)-SMA(M) RF Cable
RF Adaptor Kit Include: N (F)-N (F) adapter (1pc)，N (M) - N (M) adapter (1pc)，N (M) - SMA (F) adapter (2pcs)，N (M) - BNC (F) adapter (2pcs)，SMA (F) - SMA (F) adapter (1pc)，SMA (M) - SMA (M) adapter (1pc)，BNC T-type adapter (1pc)，50Ω SMA load (1pc)，50Ω BNC iadapter (1pc)

User Manual

Name Version Release Date Download
DSG3000B_UserGuide V1.0 2019-09-30 Download

Datasheet

Name Version Release Date Download
DSG3000B_DateSheet V1.0 2019-09-30 Download

Programming Manual

Name Version Release Date Download
DSG3000B_ProgrammingGuide V1.0 2019-09-30 Download

Quick Guide

Name Version Release Date Download
DSG3000B_QuickGuide V1.0 2021-10-27 Download
