DM3000E Series

The RIGOL DM3000E Series is a reliable and cost-effective bench digital multimeter designed for laboratory, education, and production testing applications. It provides high-accuracy measurements, multiple measurement functions, and convenient remote control capabilities for automated test systems.

Accuracy : 5.5 digits

DCV Yearly Accuracy : 0.015%

Fastest Measurement Speed : 123 rdgs/s

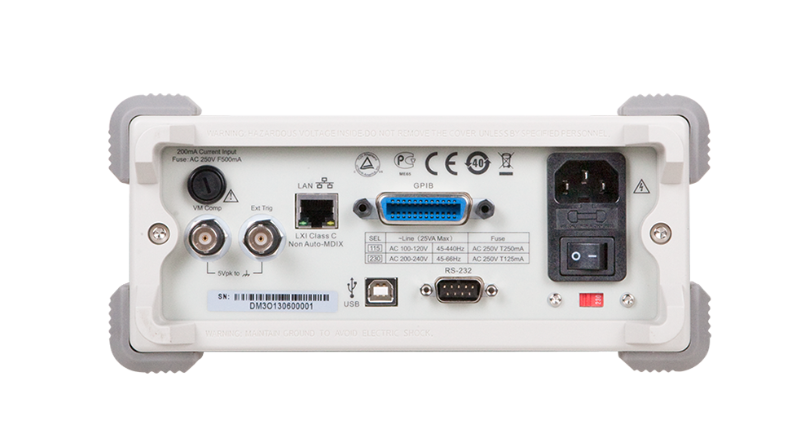

Connectivity : USB, GPIB（only DM3058, LAN(only DM3058), RS232

Datasheet

Features

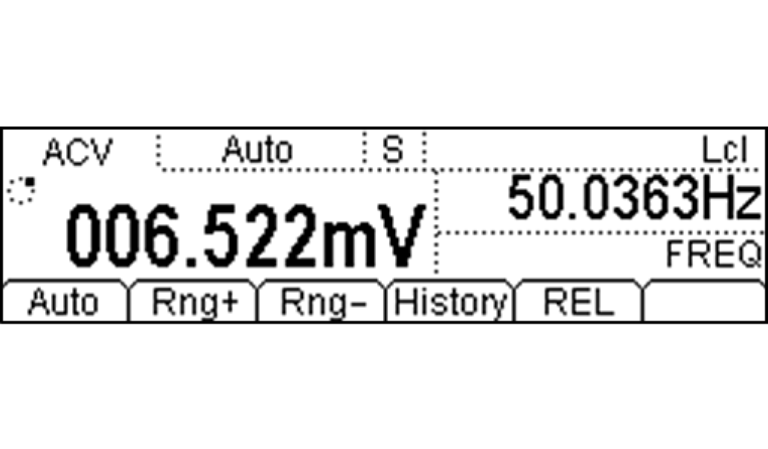

Double Screen Display

When measuring the voltage or current of the AC signal, the frequency can also be measured. At this time, the voltage or current is displayed on the main display screen and the frequency is displayed on the secondary display screen.

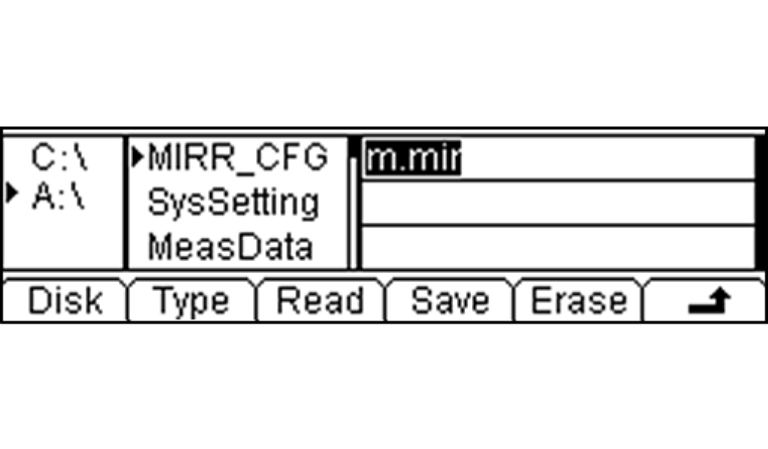

Mirror Image Configuration

All the configurations (system and sensor configuration) can be cloned into other DM3058/DM3058E on product line via USB storage device to improve work efficiency.

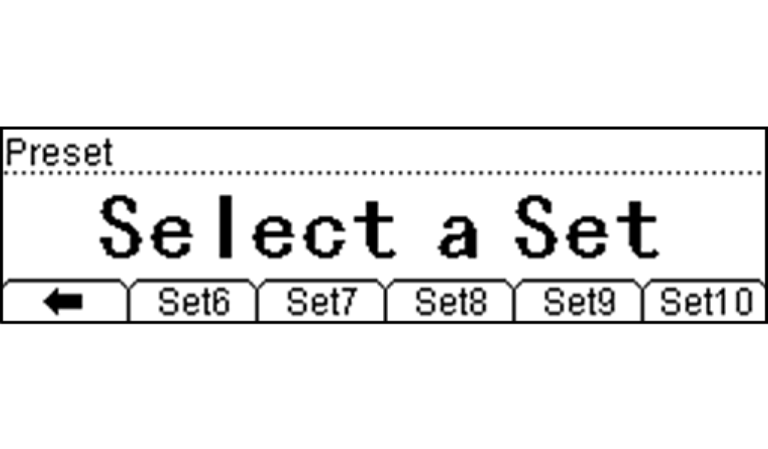

Preset Mode

Based on Preset Mode, the worker operation on product line could be greatly simplified. Besides, 10 groups of Preset Configuration are available to be stored and recalled.

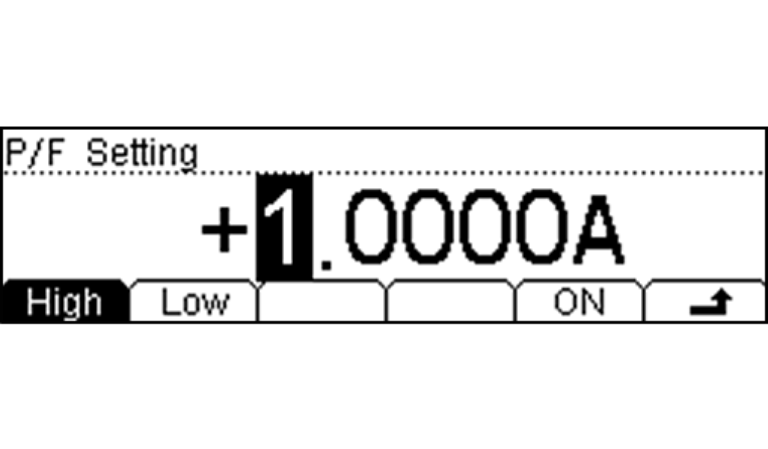

Pass/Fail

According to the set upper and lower limit parameters, the signal out of range is prompted, which is suitable for production line test.

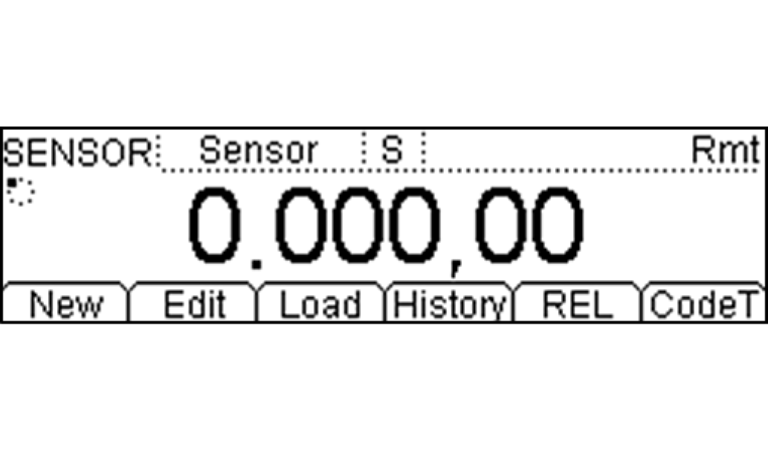

Any Sensor Measurement

It supports 6 sensor types, including DCV, DCI, freq, 2wr, 4wr and thermocouple TC, and also preset 10 groups of standard sensor types.

Model	Accuracy	DCV Yearly Accuracy	Fastest Measurement Speed	Connectivity	Price
DM3058-E	5.5 digits	0.015%	123 rdgs/s	USB, GPIB（only DM3058）, LAN(only DM3058), RS232	Rp.10.545.000

Model

Accuracy

DCV Yearly Accuracy

Fastest Measurement Speed

Connectivity

Price

DM3058-E

5.5 digits

0.015%

123 rdgs/s

USB, GPIB（only DM3058）, LAN(only DM3058), RS232

Rp.10.545.000

Name	Version	Release Date	Download
DM3058-E	V2.0	2024-06-18	Download
