MSO/DS9000

The MSO/DS9000 Series Digital Oscilloscopes are built for highspeed testing and complex signal analysis. With up to 6 GHz bandwidth, 20 GSa/s real-ttime sampling rate, 2 Gpts memory depth, and a waveform capture rate of up to1,000,000 wfms/s, the series enables engineers to capture high-speed signals faster, isolate intermittenIt anomalies, and perform deeper analysis with greater efficiency.

Analog Bandwidth : 6GHz
Analog Channels : 4CH
Real-time Sample Rate : 20GSa/s
Maximum memory depth : 2Gpts(opt.)
Digital Channel : 16(Probe opt.)
Datasheet

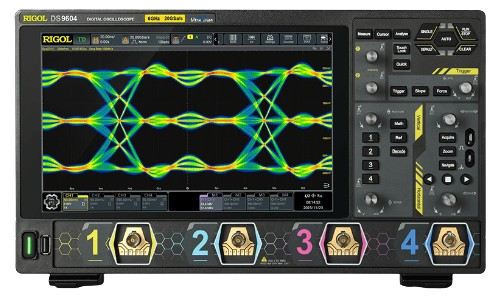

Main Image
Thumbnail 1

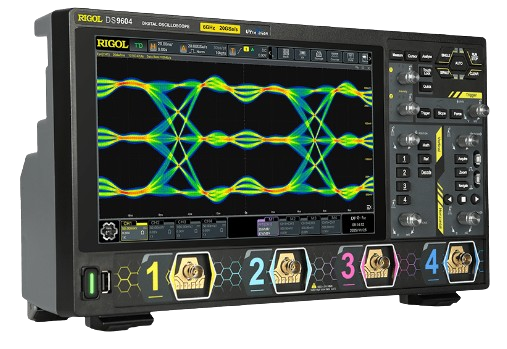

Thumbnail 2

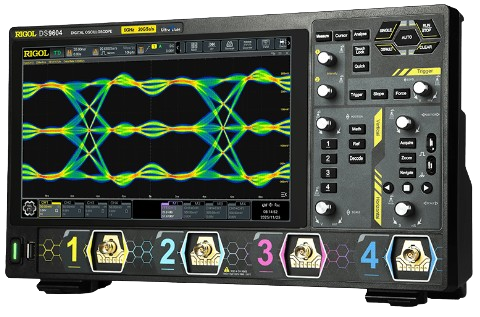

Thumbnail 3

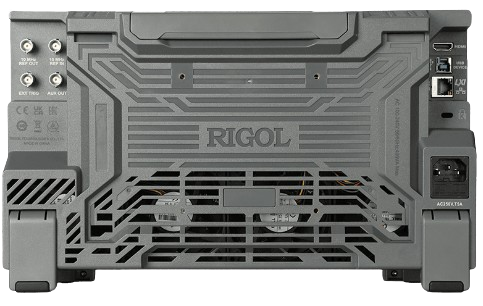

Thumbnail 4

Features

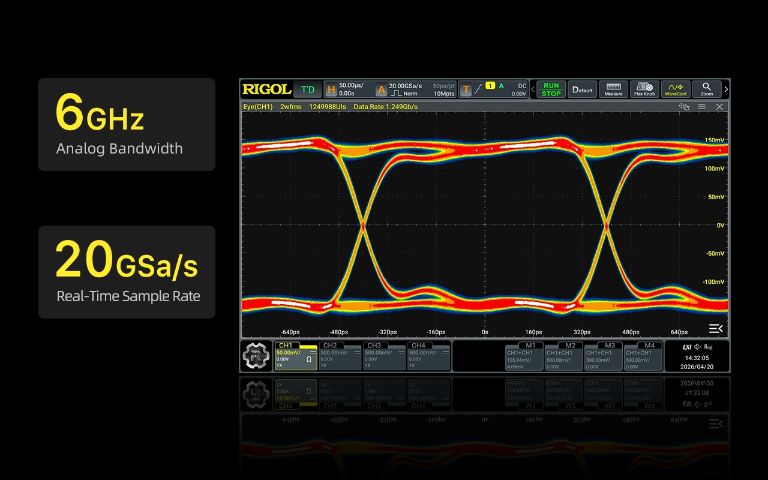

6GHz Pure & Lossless

With up to 6 GHz bandwidth and 20 GSa/s real-time sampling rate, the DS/MSO9000 Series is built for high-speed signal capture, edge analysis, and complex anomaly detection.

6GHz Pure & Lossless

Solid Electronic Attenuator, Built to Last

By replacing traditional mechanical attenuators with a Solid Electronic Attenuator, the DS/MSO9000 Series delivers improved lifetime and reliability in high-frequency, high-duty-cycle range switching applications.

Solid Electronic Attenuator, Built to Last

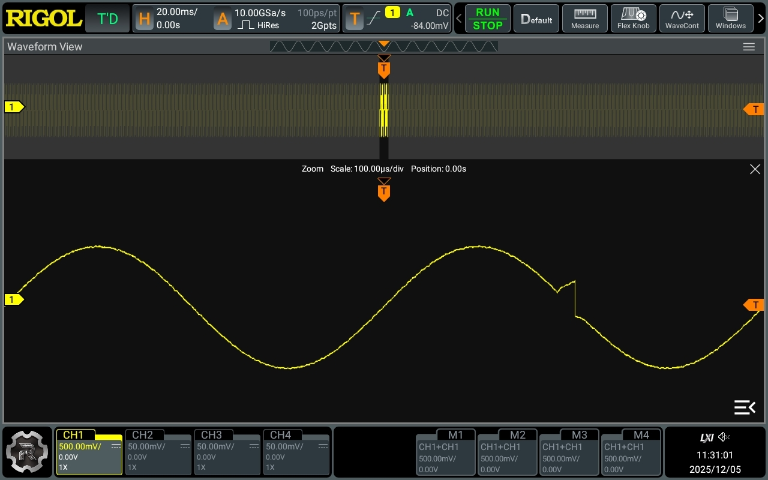

Deep Memory, Zero Misses

With up to 2 Gpts memory depth and a waveform capture rate of up to 1,000,000 wfms/s, the DS/MSO9000 Series helps engineers detect intermittent events faster and improve debugging efficiency.

Deep Memory, Zero Misses

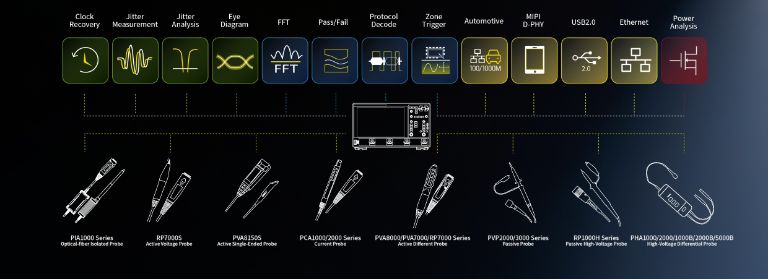

Advanced Analysis in One

Built-in tools such as eye diagram analysis, jitter decomposition, compliance testing, and power analysis enable users to move quickly from waveform observation to deeper insight.

Advanced Analysis in One

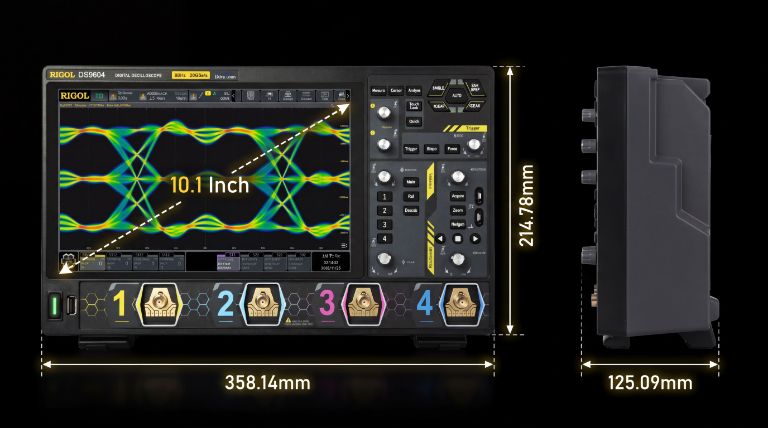

Compact & Portable

Highly integrated and weighing only 5kg+, the DS/MSO9000 Series is suitable for both efficient lab testing and portable field deployment.

Compact & Portable

Model

Model Analog Bandwidth Analog Channels Real-time Sample Rate Maximum memory depth Highest waveform capture rate Digital Channel
DS9604 6GHz 4 20GSa/s 2Gpts(opt.) 1,000,000 wfms/s -
DS9404 6GHz 4 20GSa/s 2Gpts(opt.) 1,000,000 wfms/s -
DS9204 2.5GHz 4 20GSa/s 2Gpts(opt.) 1,000,000 wfms/s -
DS9202 2GHz 2 10GSa/s 10Mpts 1,000,000 wfms/s -
MSO9402 4GHz 2 20GSa/s 2Gpts(opt.) 1,000,000 wfms/s 16(Probe opt.)
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Accessories

Model Description
DS9004-RLU-20 DS Series 4CH Model 2Gpts Memory Depth Upgrade Option
MSO9000-RLU-20 MSO series 2CH model 2Gpts storage deep upgrade option
MSO9000-AFG200 dual-channel 200MHz function generator option
DS9000-CAR Automotive Serial Bus CAN-FD, LIN Triggering and Decoding
DS9000-AUDIO Audio Bus I2S Protocol Triggering and Decoding
DS9000-AERO MIL-STD-1553 protocol triggering and decoding
DS9000-SENTA SENT Decoding
DS9000-FlexA Flexray Protocol Triggering and Decoding
DS9000-BND DS9000 Series Function Upgrade Total Package Bundle Option
MSO9000-BND MSO9000 Series Function Upgrade Total Package Bundle Option
DS9000-JITTA Eye Diagram and Jitter Analysis Option
DS9000-EYEA Eye Diagram Analysis Option
DS9000-PWRA Power Analysis Option
DS9000-USBSQA USB2.0 Protocol Signal Quality Test
DS9000-ENETC 100/1000M Ethernet Protocol Conformance Test
DS9000-AUTOC Automotive Ethernet Protocol Conformance Test
DS9000-DPHY12C MIPI D-PHY v1.2 Conformance Test

Datasheet

Name Version Release Date Download
MSO/DS9000 DSA40103-1110 2026-04-22 Download
