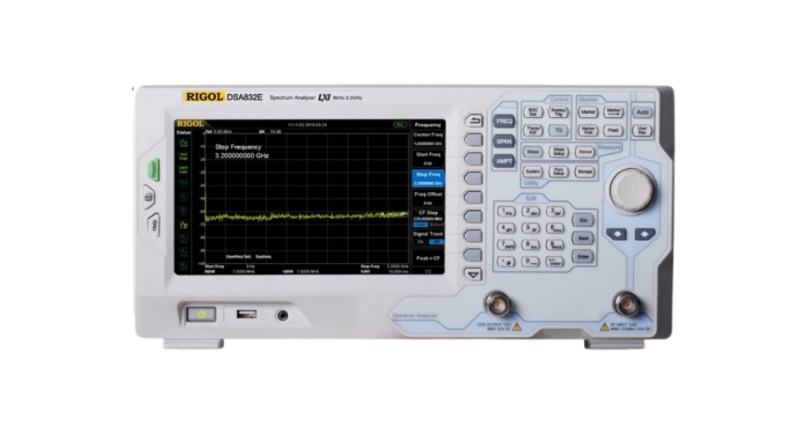

DSA800E-TG

The RIGOL DSA800E-TG Series is a cost-effective spectrum analyzer equipped with a built-in Tracking Generator (TG), enabling both spectrum analysis and frequency response measurements in a single instrument. Designed for RF development, wireless communications, filter testing, antenna measurements, and EMC pre-compliance applications, the DSA800E-TG combines excellent performance, ease of use, and affordability. The series offers frequency coverage up to 3.2 GHz, making it ideal for general-purpose RF testing and education laboratories.

Frequency Range : 9kHz~3.2GHz

Resolution Bandwidth (RBW) : 10Hz~1MHz

Phase Noise (Typ.) : -90dBc/Hz@10kHz

Tracking Generator : Yes

Datasheet

Features

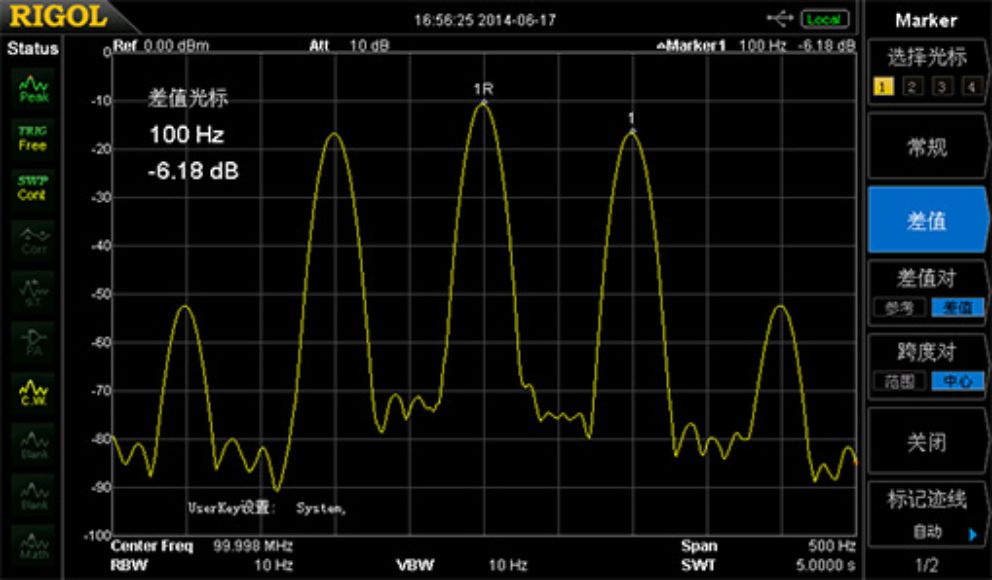

10Hz Resolution Bandwidth

The DSA800 withl RF technology to provide a resolution bandwidth as low as 10 Hz, which can effectively distinguish adjacent equal-amplitude signals and improve signal discrimination.

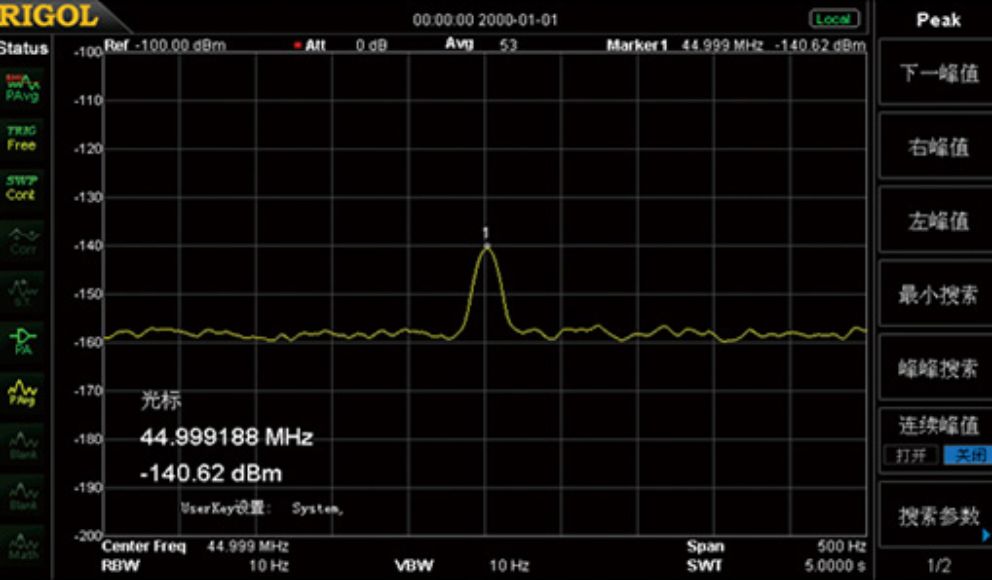

DANL: -161 Dbm with Optional Preamp

View lower powered signals (harmonics, interference sources) and ease trouble-shooting in swept and real-time mode.

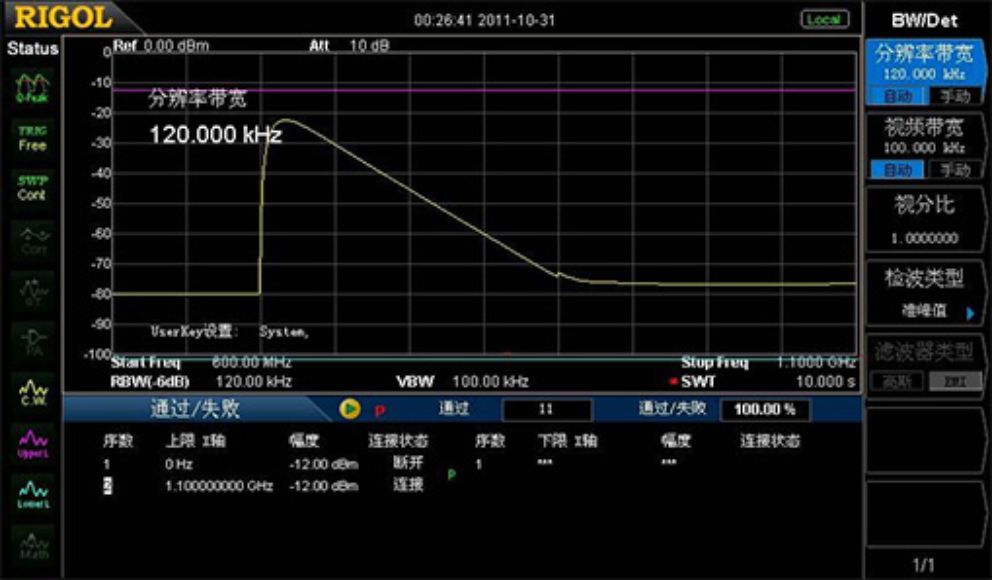

EMI Pre-compliance Measurement

EMI filter (6 dB) and quasi-peak detectors make EMI pre-test/diagnostics more accurate, complete with complete software and report generation.

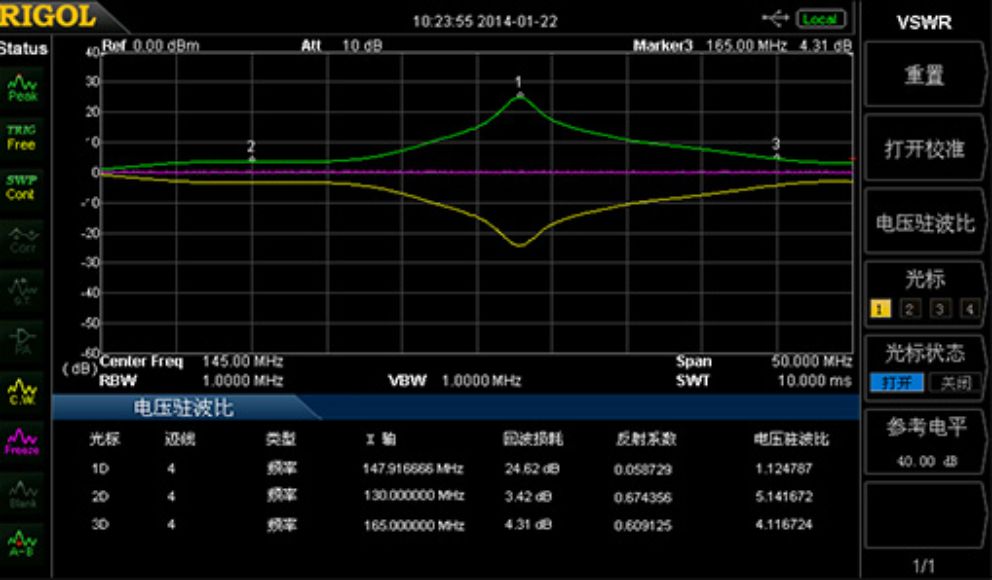

Tracking Source and VSWR Function

DSA800 series with VSWR measurement capability, with tracking source model (-TG), with VSWR bridge for voltage standing wave ratio test.

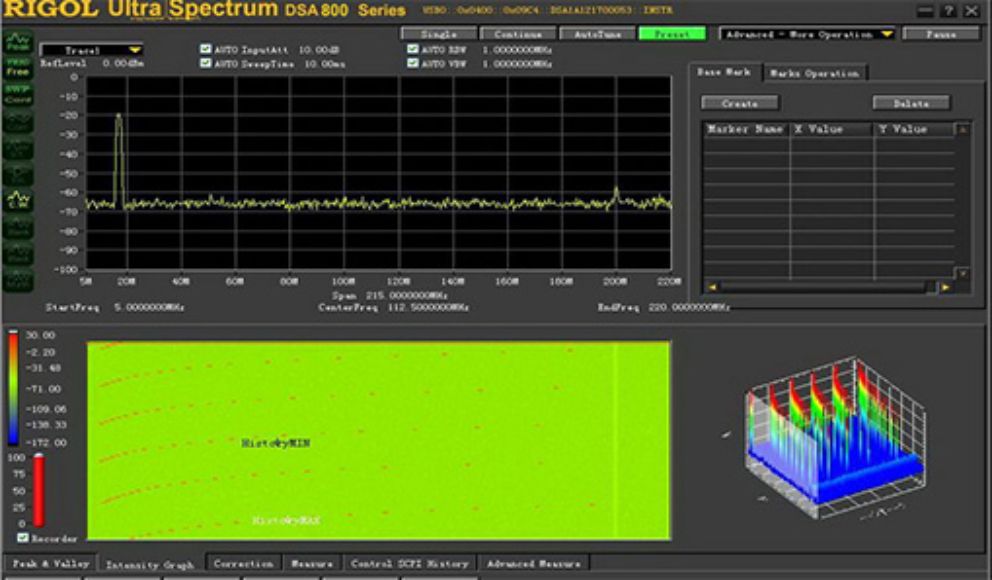

UnltraSpectrum Software

The optional UltraSpectrum software can not only complete the control of the spectrum analyzer, but also provide powerful display and analysis functions such as spectrum and waterfall.

Model	Frequency Range	Resolution Bandwidth (RBW)	Phase Noise (Typ.)	Tracking Generator
DSA832E-TG	9kHz~3.2GHz	10Hz~1MHz	-90dBc/Hz@10kHz	Yes

Model

Frequency Range

Resolution Bandwidth (RBW)

Phase Noise (Typ.)

Tracking Generator

DSA832E-TG

9kHz~3.2GHz

10Hz~1MHz

-90dBc/Hz@10kHz

Yes

Name	Version	Release Date	Download
DSA800E-TG Datasheet	DSD07106-1110	2026-03-31	Download

Name

Version

Release Date

Download

DSA800E-TG Datasheet

DSD07106-1110

2026-03-31
