DSG800A Series

The DSG800A delivers outstanding performance in the same class of economical RF signal sources with full frequency and power scanning capabilities, as well as AM/FM/ØM analog modulation, powerful pulse modulation and newly added IQ modulation.

Frequency Range : 9kHz ~ 2.1/3.6GHz
Amplitude Indicators Range : -110dBm ~ +13dBm
Aplitude Accuracy : < 0.5dB SSB
Phase Noise : <-112dBc/Hz
Modulation Function : AM/FM/Øm/Pulse/IQ
Modulation Type : Analog/Digital Modulation

Start From Rp47.730.000

Datasheet

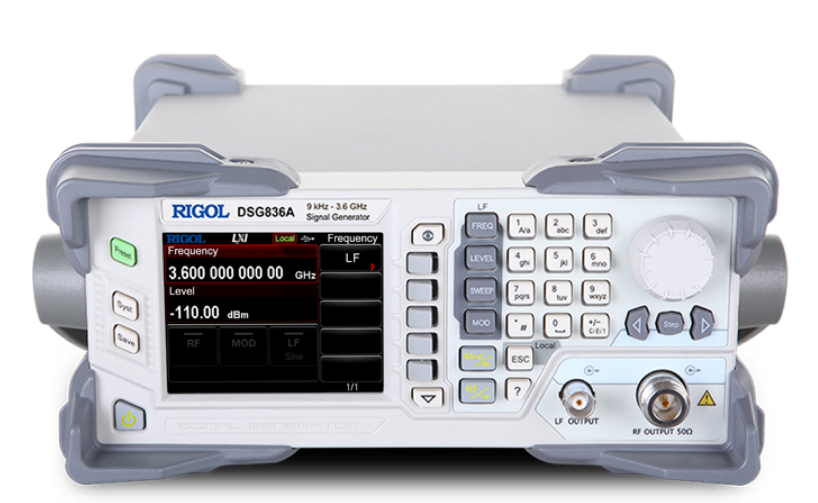

Main Image
Thumbnail 1
Thumbnail 2

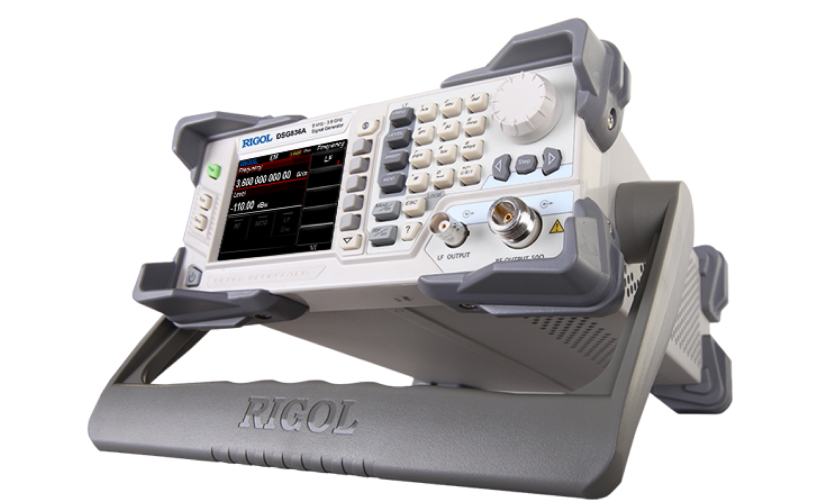

Thumbnail 3

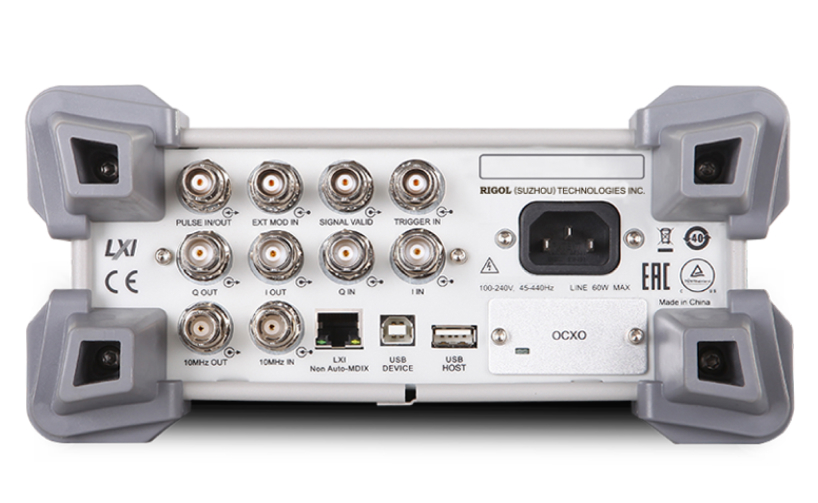

Thumbnail 4

Features

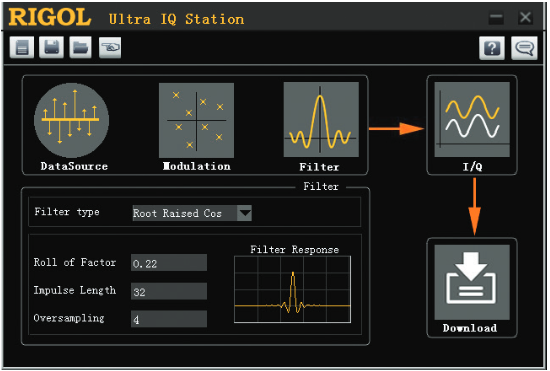

Support Multiple Modulation Methods

Standard amplitude modulation, frequency modulation, equal modulation analog modulation and pulse modulation and pulse generator, optional user-defined pulse sequence, and I / Q modulation and IQ baseband generator can generate QAM, ASK, PSK, FSK, Various commonly used modulation signals such as MSK; all modulations support internal and external modulation sources.

Support Multiple Modulation Methods

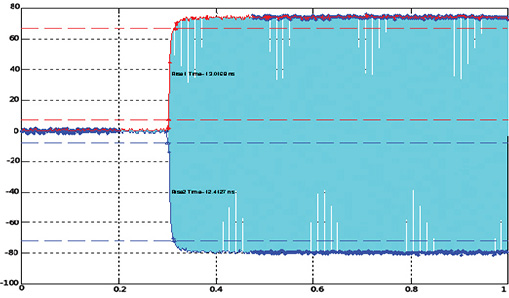

Powerful Pulse Modulation

It produces high quality pulse modulated signals with rise/fall times typically less than 10 ns and on/off ratios greater than 70 dB. Support for internal and external modulation. Built-in pulse generator can generate pulse sequence and output to the outside as a separate pulse generator.

Powerful Pulse Modulation

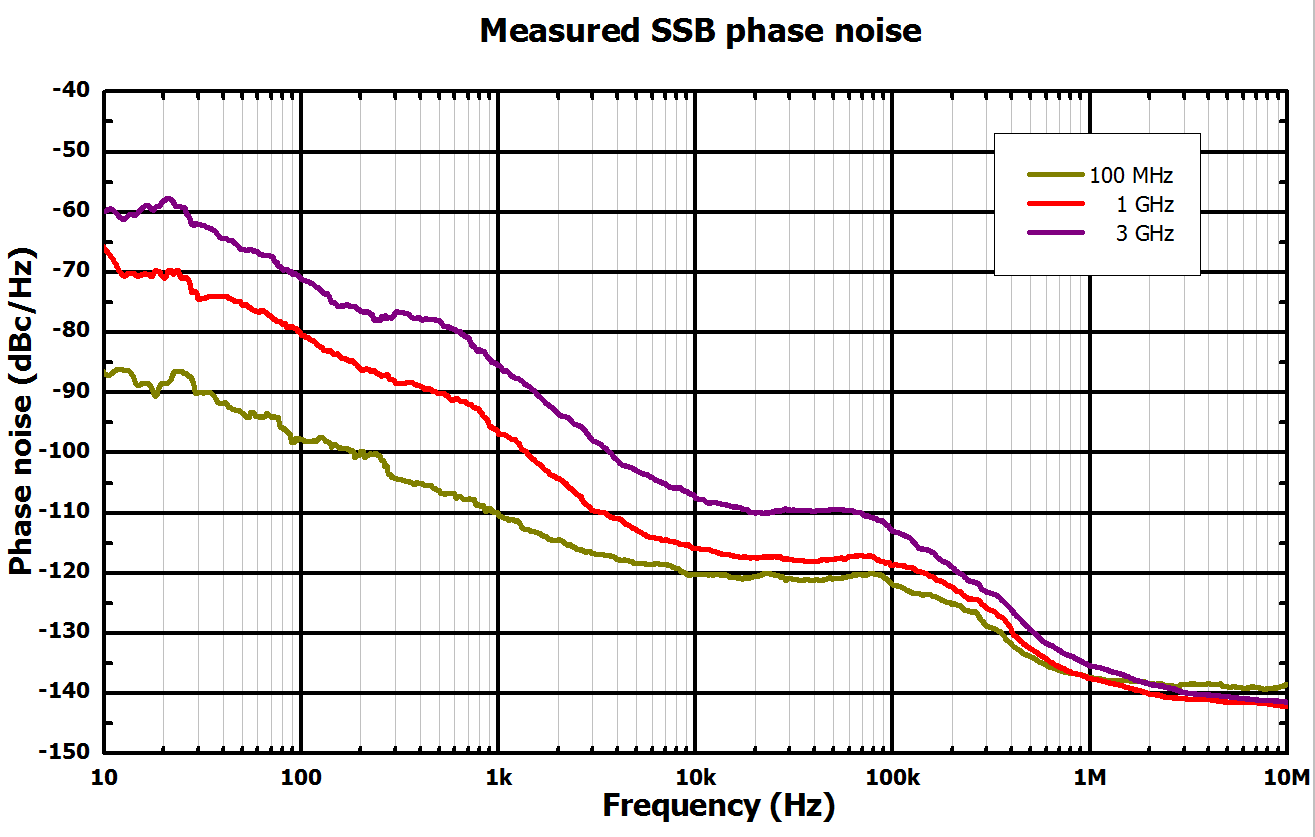

Excellent Phase Noise

High signal purity, phase noise typical value <-112dBc/Hz@20kHz, similar products in the United States; better high-stability clock reference can get better near-phase noise index.

Excellent Phase Noise

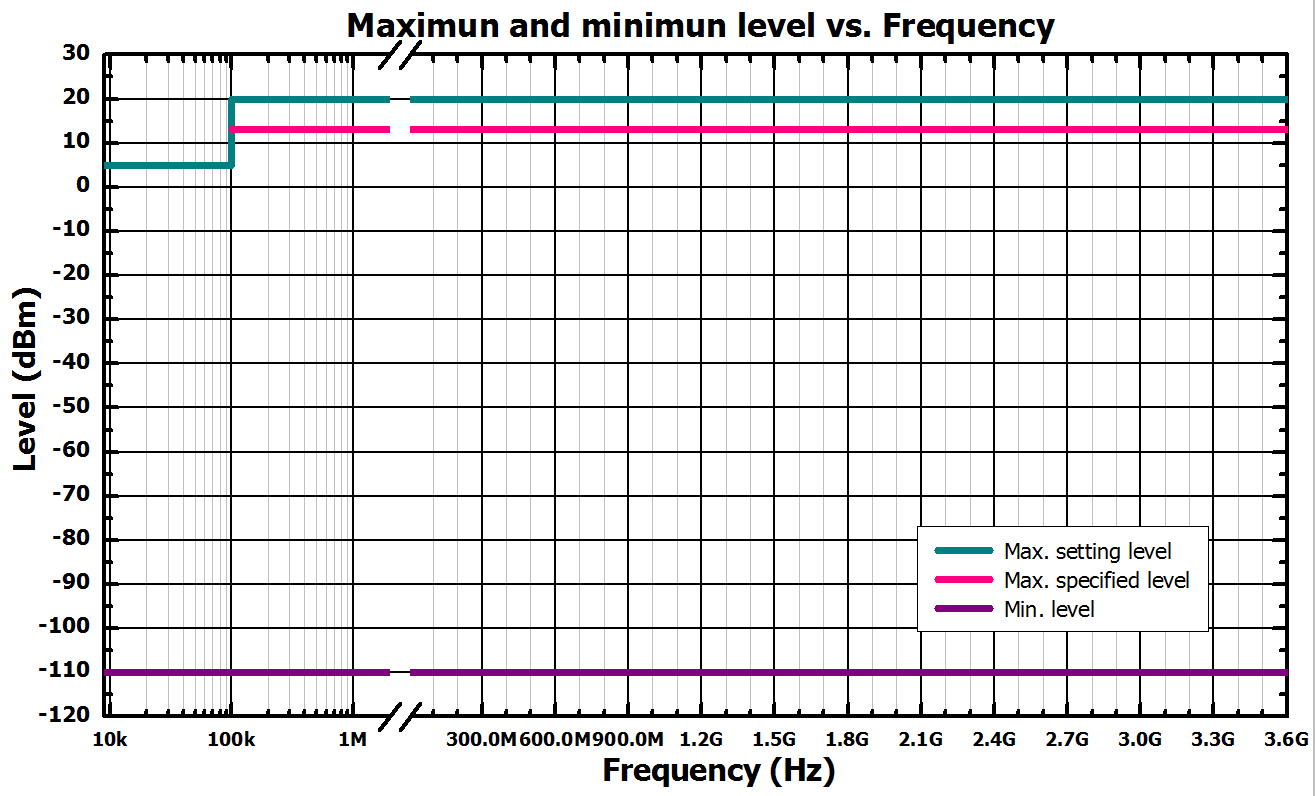

Wide Range of High Power Output

Maximum output amplitude is +13dBm (nominal value), and can be set to +20dBm to meet the nonlinearity test of the amplifier.

Wide Range of High Power Output

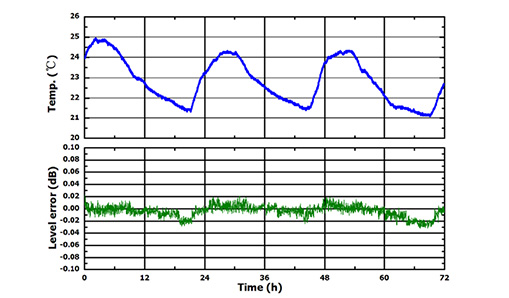

Amplitude Stability

0.02dBExcellent repeatability provides engineers with sufficient test confidence that the 72-hour output amplitude variation is less than 0.02dB.

Amplitude Stability

Model

Model Frequency Range Description Phase Noise DANL Tracking Source Price
DSG815A 9kHz - 1.5GHz -110dBm-+13dBm <0.5dB -105dBc/Hz@20kHz AM/FM/∅°M/Pulse Get a Quote
DSG830A 9kHz-3GHz null < 0.5dB <-105dBc/Hz@20kHz AM/FM/∅°M/Pulse Get a Quote
DSG836A 3.60 GHz null < 0.5dB <-112 dBc/Hz AM/FM/∅°M/Pulse Rp118.944.000
DSG821A 9kHz~2.1GHz -110dBm~+13dBm < 0.5dB <-112dBc/Hz@1GHz,20kHz offset AM/FM/ØM/Pulse/IQ Rp85.692.000
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Accessories

Model Description
RM-2-DG1000Z Rack Mounting Kit for two DG1000Z
RM-1-DG1000Z Rack Mounting Kit for one DG1000Z
OCXO-B08 High stability timebase option for the DSG800 Series RF signal sources
CB-USBA-USBB-FF-150 USB Cable
CB-BNC-BNC-MM-100 BNC Cable (length 1 meter)
USB-GPIB USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. (Note: does not connect to a PC directly)
ATT03301H30 30 dB High Power Attenuator, Max Power 100 W
RF Attenuator Kit Kit includes: 6 dB Attenuator (1 pc), 10 dB Attenuator (2 pcs)
RF Adaptor Kit Kit includes: N(F)-N(F) (1 pc), N(M)-N(M) (1 pc), N(M)-SMA(F) (2 pcs), N(M)-BNC(F) (2 pcs), SMA(F)-SMA(F) (1 pc), SMA(M)-SMA(M) (1 pc), BNC T (1 pc), 50 Ω SMA Load (1 pc), 50 Ω BNC Adapter (1 pc)
CB-NM-SMAM-75-L-12G N(M)-SMA(M) RF Cable
CB-NM-NM-75-L-12G N(M)-N(M) RF Cable

User Manual

Name Version Release Date Download
DSG800A User Manual V1.0 2019-09-30 Download
DSG800 Rackmount Kit Manual V1.0 2019-08-29 Download

Datasheet

Name Version Release Date Download
DSG800A Datasheets V1.0 2019-09-30 Download

Programming Manual

Name Version Release Date Download
DSG800A Programming Manual V1.0 2019-09-30 Download
