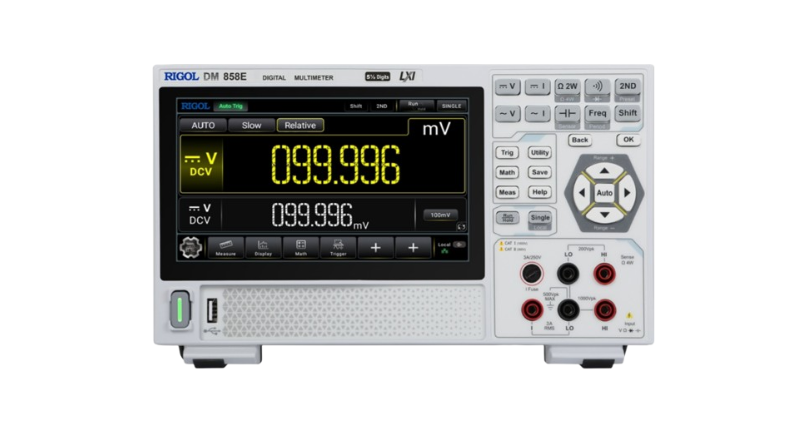

DM800E Series

The RIGOL DM800E Series is a compact and economical 5.5-digit bench digital multimeter designed for laboratory, education, maintenance, and automated testing applications. It features a 7-inch touchscreen display, multiple graphical analysis functions, and USB/LAN connectivity for remote control and automated measurements

Accuracy : 5.5 digits

DCV Yearly Accuracy : 0.03%

Fastest Measurement Speed : 125 rdgs/s

Connectivity : USB, LAN

Datasheet

Features

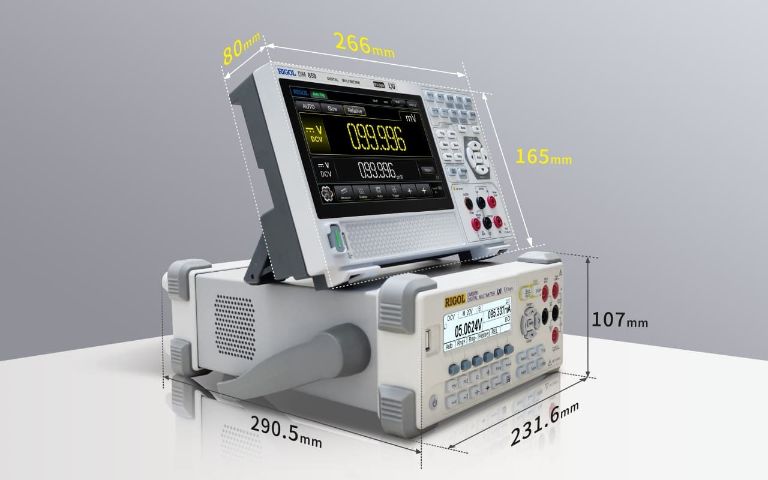

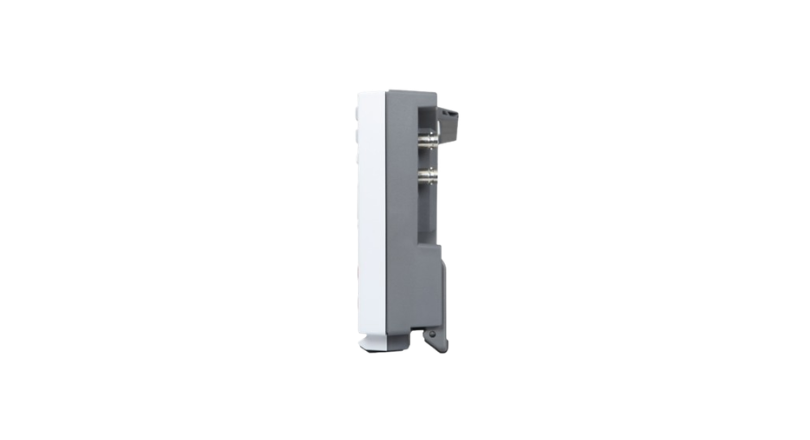

Lighter and thinner body

Compared to the previous generation product DM3058, DM858 has a lighter and thinner body but a wider field of view. The depth of the machine is only 80mm, making it a desktop digital multimeter that saves a lot of desktop space

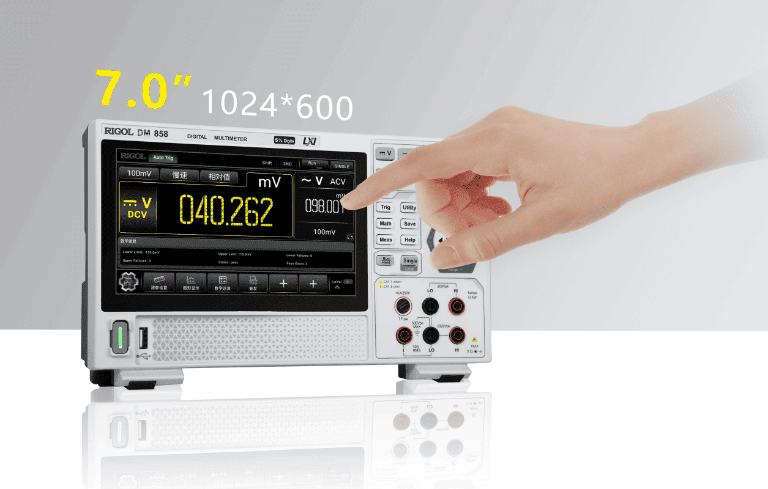

Wider screen, clearer view

The DM858 series is equipped with a 7-inch color touch screen display with a resolution of 1024 * 600, divided into main and auxiliary display areas, which can simultaneously view readings, instrument status, statistical information, and other content without the need to switch back and forth between interfaces. The spacious screen and touch screen design makes it easy to set measurement settings and view results.

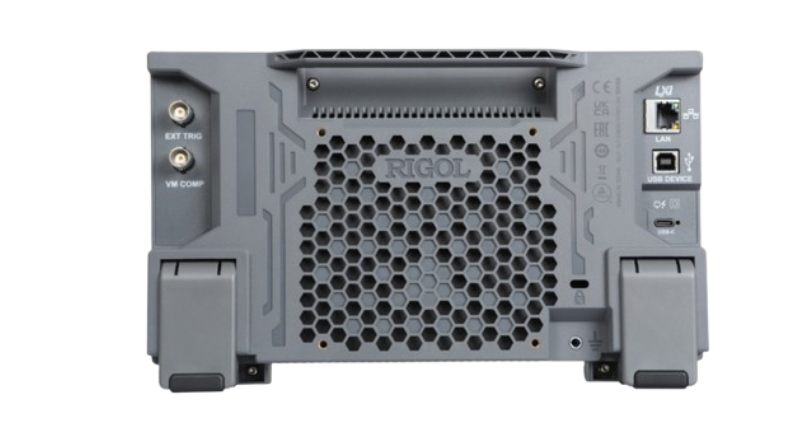

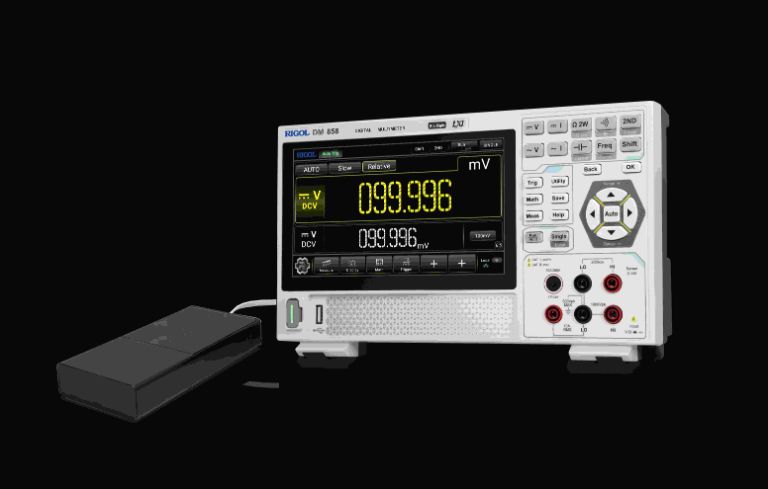

Equipped with Type-C connector

Type-C connector enable DM858 to be powered up by mobile power supply, make on-site testing more convenient. With a 65W, 74Wh mobile power supply, the DM858 can operate up to 8 hours

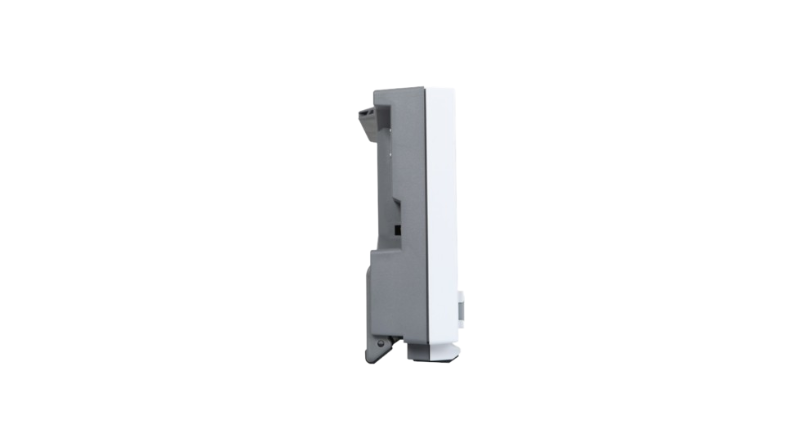

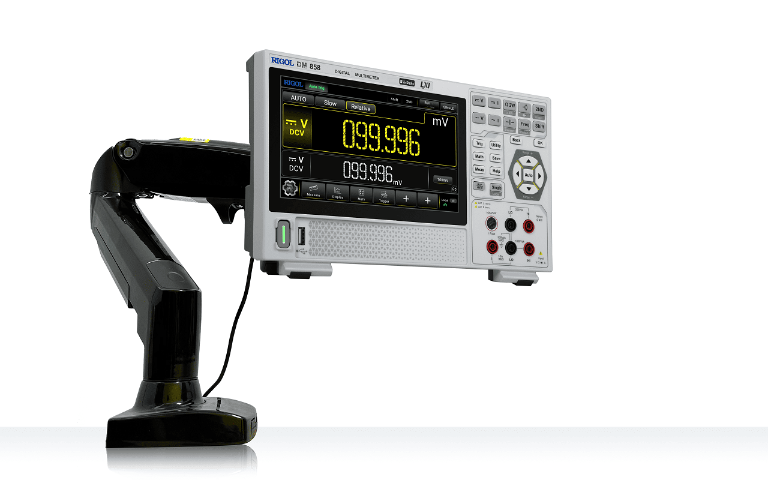

Compact size and convenient design

Compact and ultra-thin in size, the bare machine weighs only 1.25kg, with a wall mounted interface on the back panel that meets the VESA 100X100 standard. Pair the DM858 with a desktop stand to free up your workbench

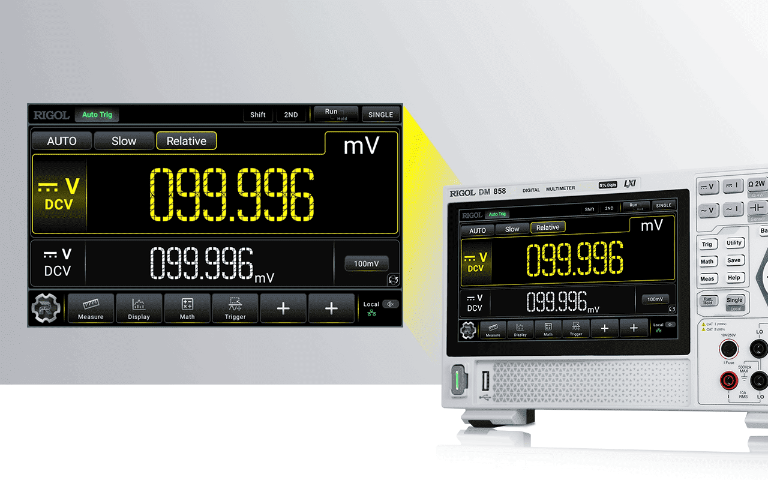

5.5 digit reading

Perform fast measurement suitable with a 5.5-bits resolution and a measurement rate of up to 125 readings per second. 500000 point recording memory allows recording and analyzing more test data

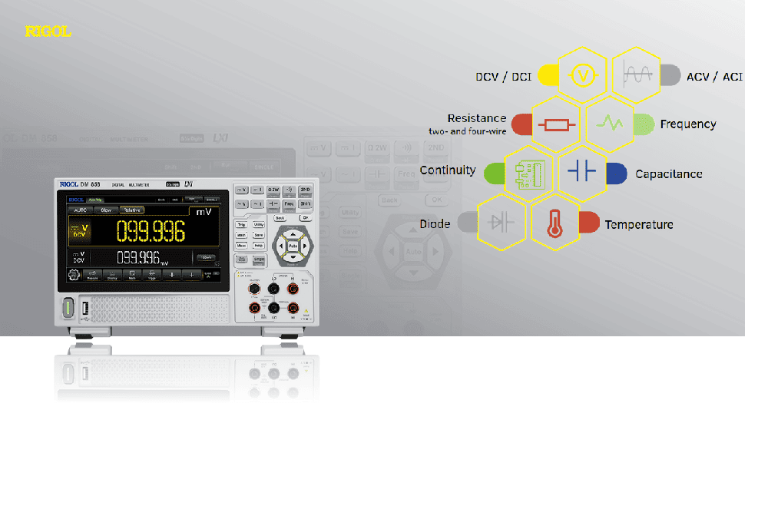

11 input signal measurements

Support measuring DCV, DCI, ACV, ACI, two- and four-wire resistance, frequency and cycle, connectivity, diode, temperature, capacitance output signals, providing more possibilities for testing.

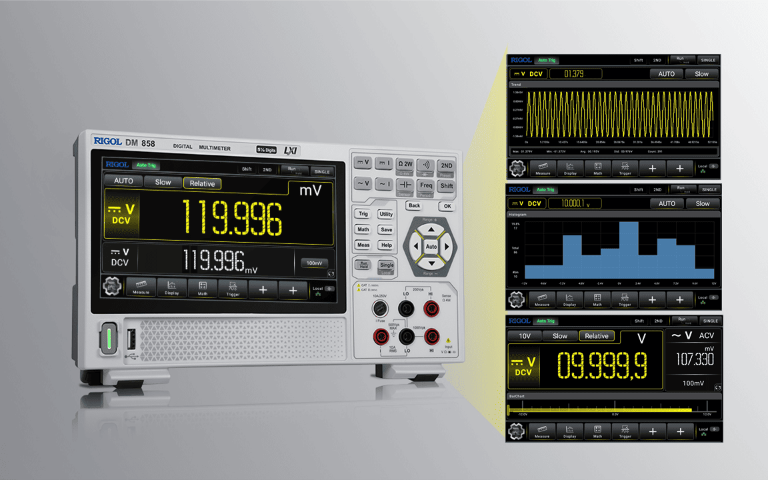

Graphical display and mathematical operation functions

Supports three graphical displays: trend charts, histograms, and bar charts. It also provides various mathematical functions such as statistical operations, limit operations, dB/dBm, and relative operations, allowing for a more intuitive observation and analysis of changes in test values.

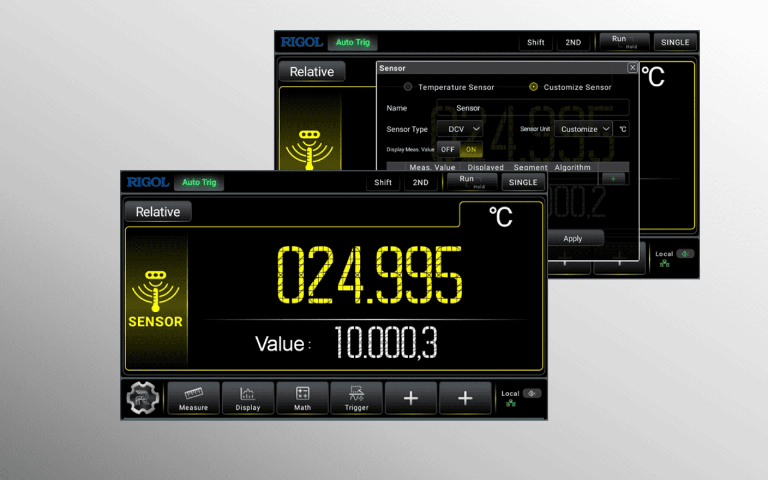

Support any sensor measurement

10 sets of standard sensor configurations are preset, with built-in thermocouple cold end compensation. Users can easily configure various types of sensors such as pressure, flow, temperature, etc

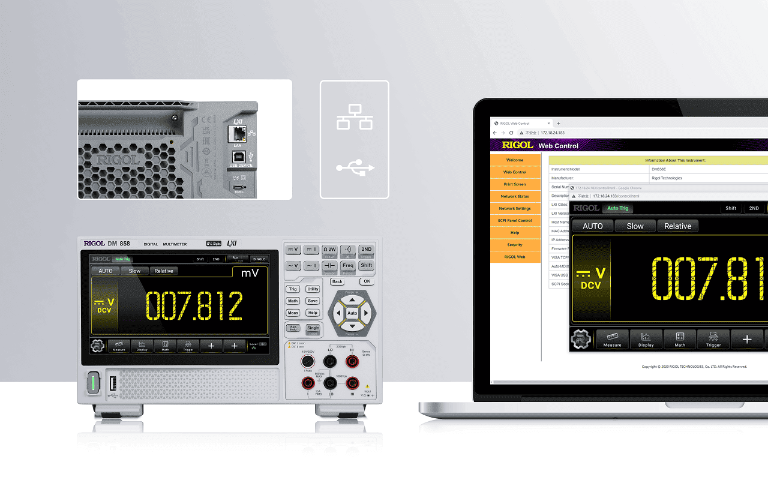

Flexible connection with PC to control instruments

Makes testing more convenient with the standard USB HOST, USB Device, LAN interface for Web remote control, and standard SCPI instructions for automated testing.

Model	Accuracy	DCV Yearly Accuracy	Fastest Measurement Speed	Connectivity	Price
DM858E	5.5 digits	0.06%	80 rdgs/s	USB, LAN	Rp.7.381.500

Model

Accuracy

DCV Yearly Accuracy

Fastest Measurement Speed

Connectivity

Price

DM858E

5.5 digits

0.06%

80 rdgs/s

USB, LAN

Rp.7.381.500

Name	Version	Release Date	Download
DM858E	DSC11104-1110	2025-12-16	Download
