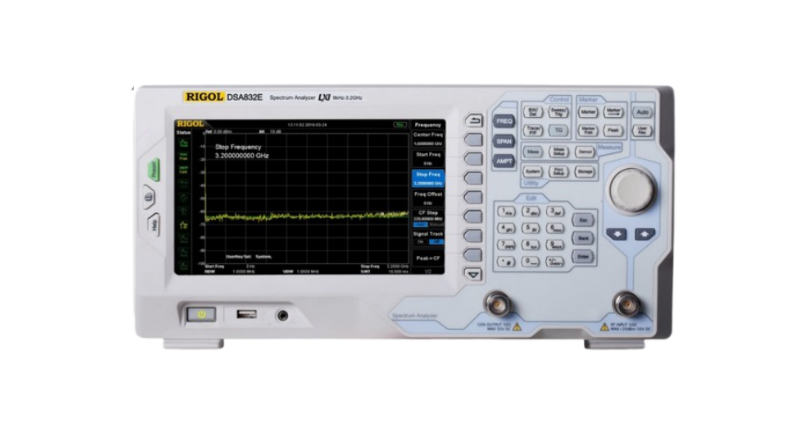

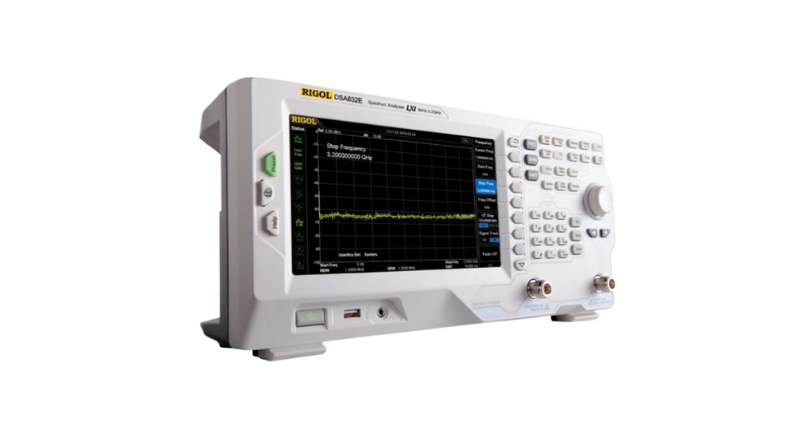

DSA800E

The RIGOL DSA800E Series is a cost-effective spectrum analyzer designed for RF signal analysis, wireless communication testing, educational laboratories, and production environments. Utilizing a digital IF architecture, the DSA800E delivers reliable performance, excellent sensitivity, and an intuitive user interface in a compact form factor. Unlike the DSA800-TG models, the DSA800E versions do not include a built-in Tracking Generator, making them ideal for general spectrum analysis applications.

Frequency Range : 9kHz~3.2GHz

Resolution Bandwidth (RBW) : 10Hz~1MHz

Phase Noise (Typ.) : -90dBc/Hz@10kHz

Datasheet

Features

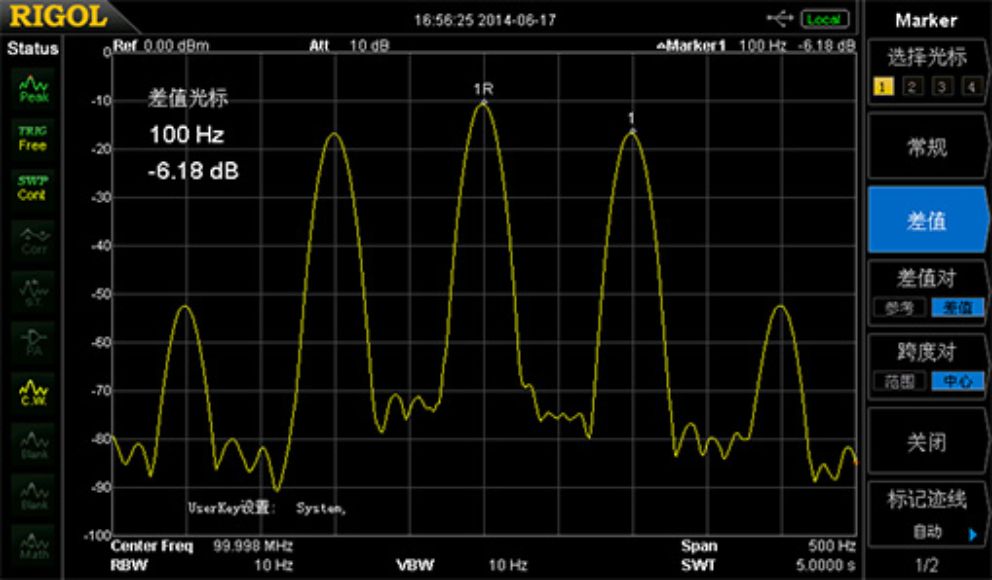

10Hz Resolution Bandwidth

The DSA800 withl RF technology to provide a resolution bandwidth as low as 10 Hz, which can effectively distinguish adjacent equal-amplitude signals and improve signal discrimination.

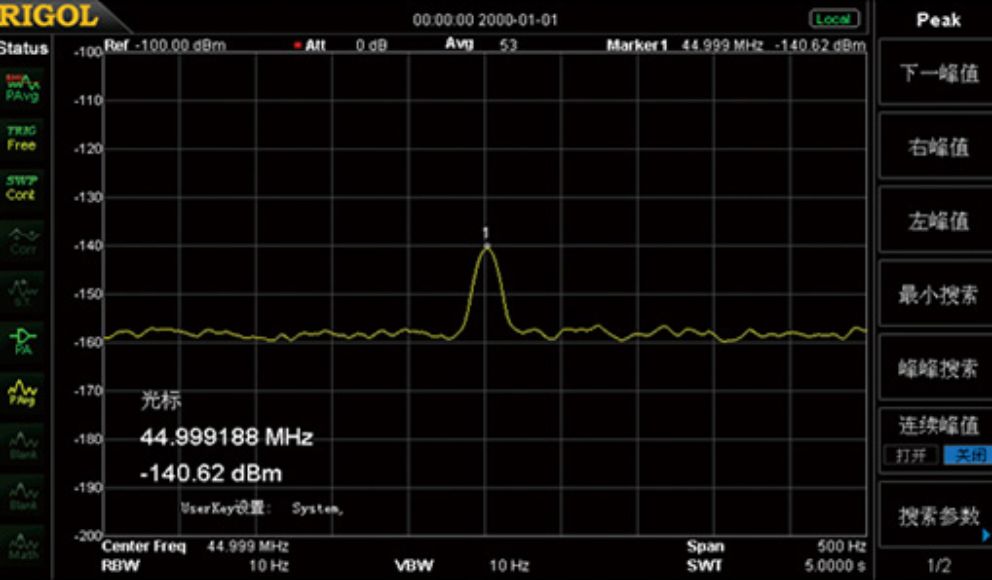

DANL: -161 Dbm with Optional Preamp

View lower powered signals (harmonics, interference sources) and ease trouble-shooting in swept and real-time mode.

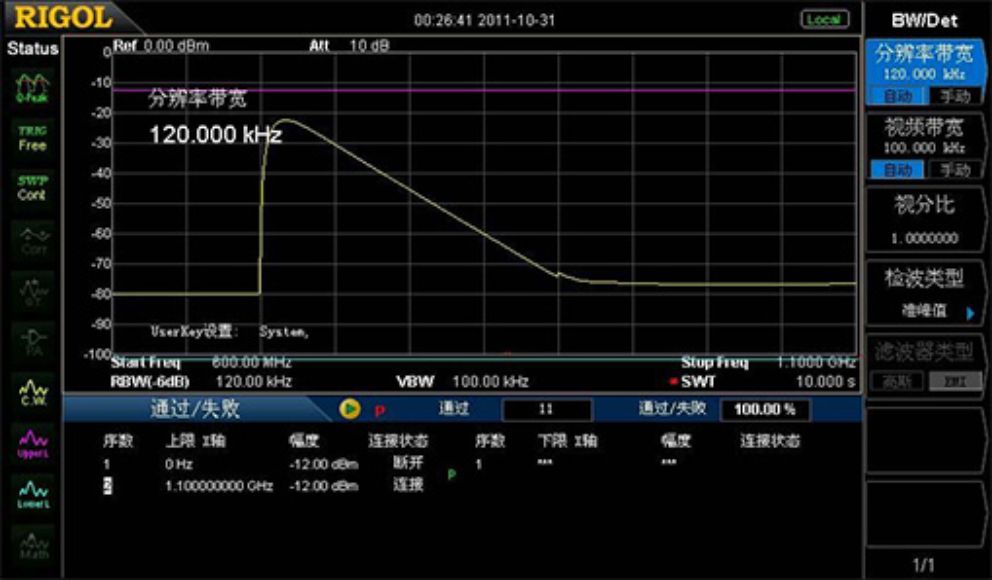

EMI Pre-compliance Measurement

EMI filter (6 dB) and quasi-peak detectors make EMI pre-test/diagnostics more accurate, complete with complete software and report generation.

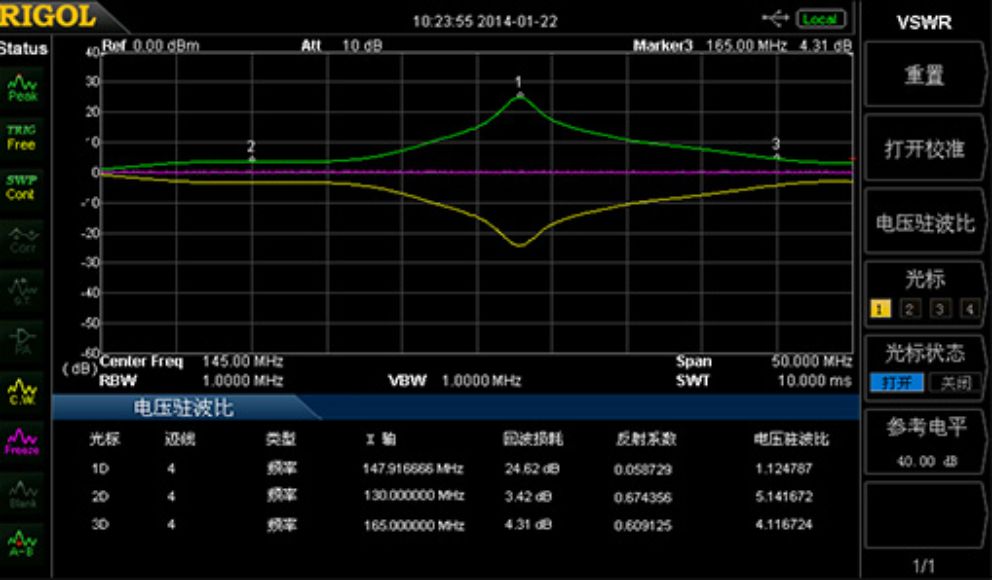

Tracking Source and VSWR Function

DSA800 series with VSWR measurement capability, with tracking source model (-TG), with VSWR bridge for voltage standing wave ratio test.

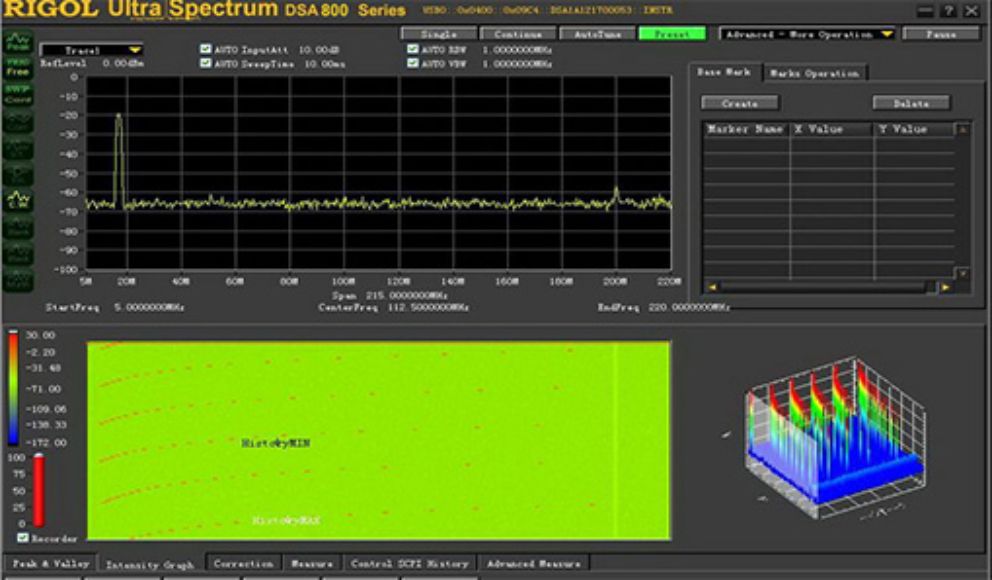

UnltraSpectrum Software

The optional UltraSpectrum software can not only complete the control of the spectrum analyzer, but also provide powerful display and analysis functions such as spectrum and waterfall.

Model	Frequency Range	Resolution Bandwidth (RBW)	Phase Noise (Typ.)
DSA832E	9kHz~3.2GHz	10Hz~1MHz	-90dBc/Hz@10kHz

Model

Frequency Range

Resolution Bandwidth (RBW)

Phase Noise (Typ.)

DSA832E

9kHz~3.2GHz

10Hz~1MHz

-90dBc/Hz@10kHz
