RSA3000-N

The RIGOL RSA3000-N Series is a high-performance real-time spectrum analyzer designed for advanced RF signal analysis, wireless communication testing, component characterization, and research applications. Equipped with a built-in Vector Network Analyzer (VNA), the RSA3000-N enables S11, S21, and Distance-to-Fault (DTF) measurements in a single instrument. With up to 40 MHz real-time bandwidth, excellent phase noise performance, a low displayed average noise level (DANL), and EMI pre-compliance testing capabilities, it provides a comprehensive and cost-effective solution for RF engineers and test laboratories.

Frequency Range : 9kHz~1.5GHz
Resolution Bandwidth (RBW) : 1Hz~3MHz(10MHz opt.)
Phase Noise (Typ.) : -102dBc/Hz@10kHz
Displayed Average Noise Level (DANL) : -161dBm
Tracking Generator : Yes
Analysis Function : RTSA/EMI/VNA
Datasheet

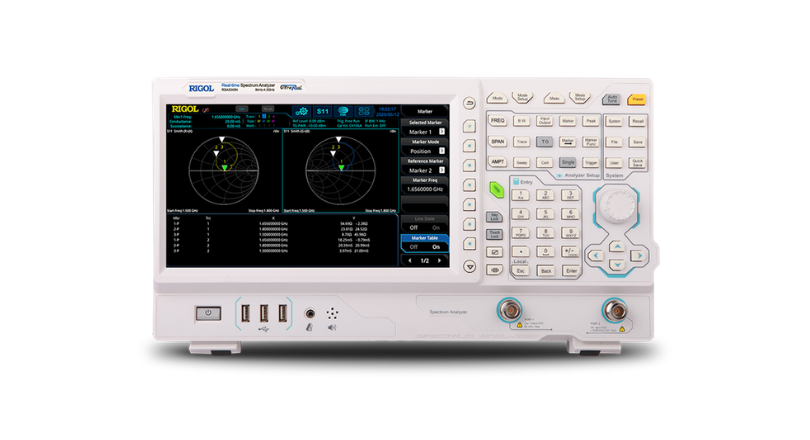

Main Image
Thumbnail 1

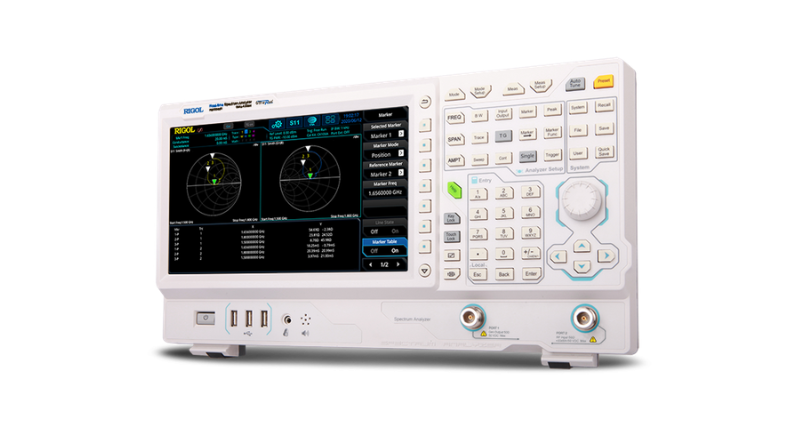

Thumbnail 2
Thumbnail 3

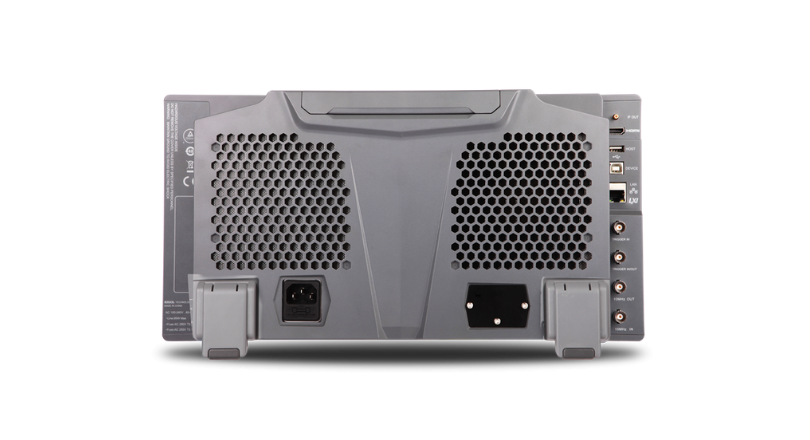

Thumbnail 4

Features

Built-in Vector Network Analysis mode

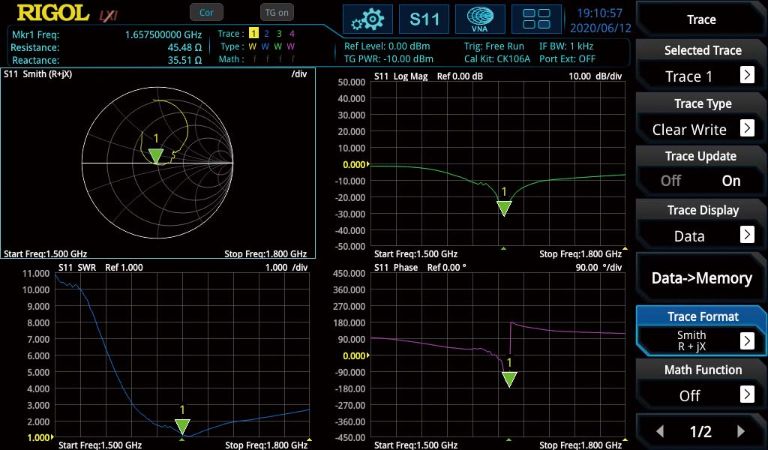

In VNA mode, you can make S11, S21, and DTF measurements for the components and circuit networks. The network characteristics of the components under test can be accurately demonstrated in Smith chart, Polar chart, and other formats.(*N-model ONLY)

Built-in Vector Network Analysis mode

Conduction/Radiation Pre-compliance with Built-in Emi Test Software

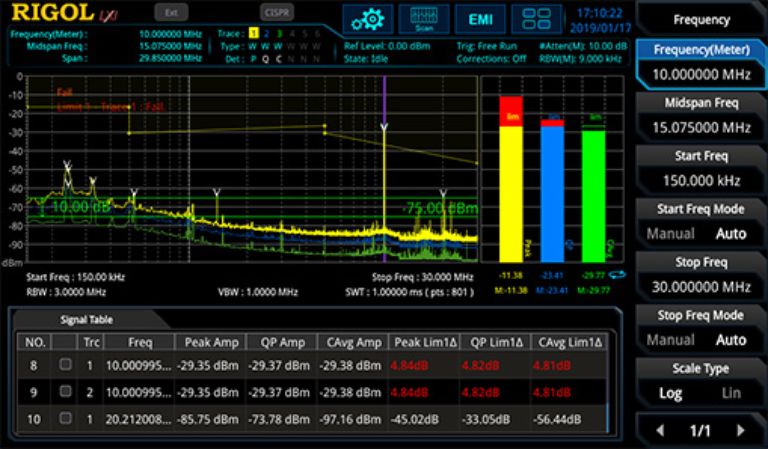

The RSA3000's built-in EMI pre-compliance application software, combined with CISPR-compliant filters, pre-tests the product for conduction and radiation to identify and improve its conduction/radiation disturbance source and accelerate time-to-market.

Conduction/Radiation Pre-compliance with Built-in Emi Test Software

Signal Triggering and Monitoring Via Fmt Mode

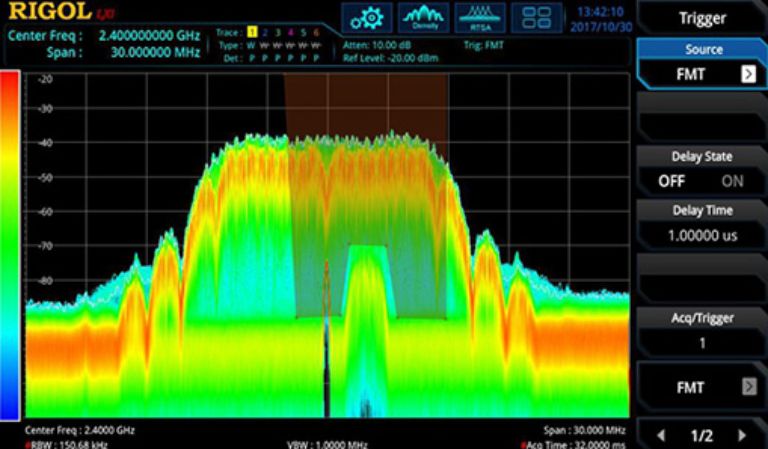

The FMT frequency mask trigger is a unique trigger mode for real-time spectrum analyzers. You can quickly build a template and accurately locate and trigger signals that match the template rules to detect sporadic anomalies within the monitored range.

Signal Triggering and Monitoring Via Fmt Mode

Resolution Bandwidth As Low As 1 Hz

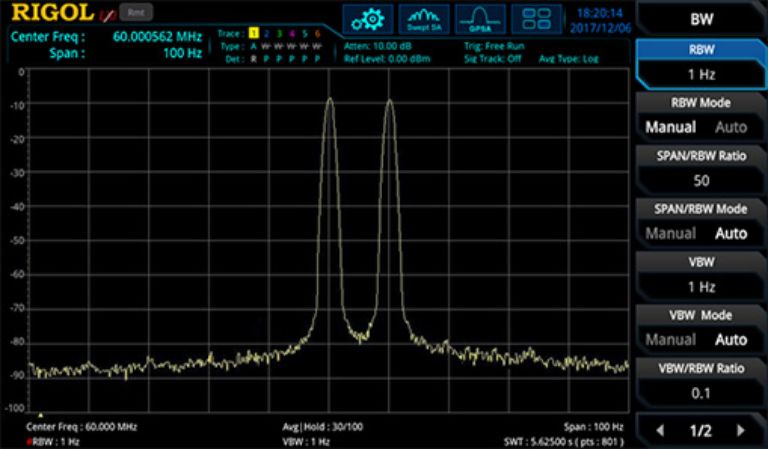

Resolving signals with similar frequencies is critical to verifying many RF devices and systems. With the RSA3000, the RBW resolution bandwidth with a scan bandwidth of only 1 Hz allows you to view more details of adjacent signals.

Resolution Bandwidth As Low As 1 Hz

Danl As Low As -161 Dbm with Optional Preamp

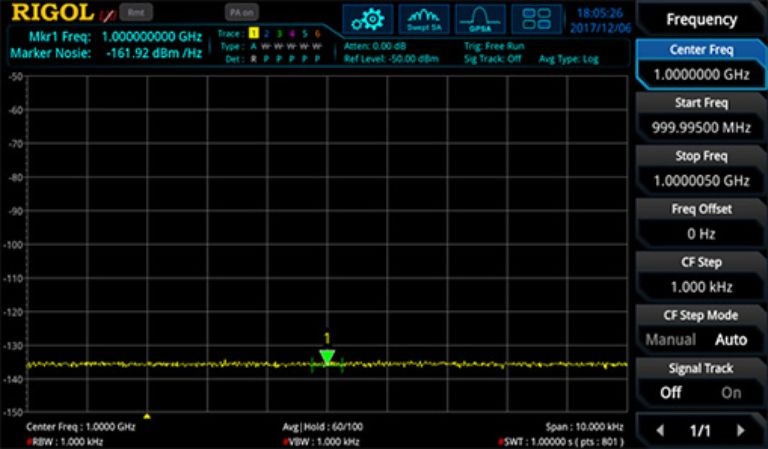

View lower powered signals (harmonics, interference sources) and ease trouble-shooting in swept and real-time mode.

Danl As Low As -161 Dbm with Optional Preamp

Multiple interfaces to improve the connectivity of the instruments

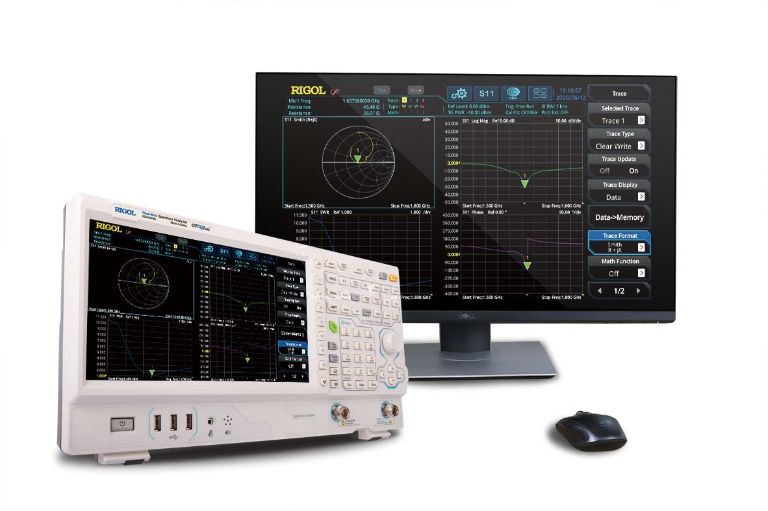

The instrument can be connected to a larger display/monitor via the HDMI interface for better display effects. The Web Control function allows you to directly control the device by accessing the device IP address, improving the experience of remote control.

Multiple interfaces to improve the connectivity of the instruments

Complete Operations with a Multi-touch Screen

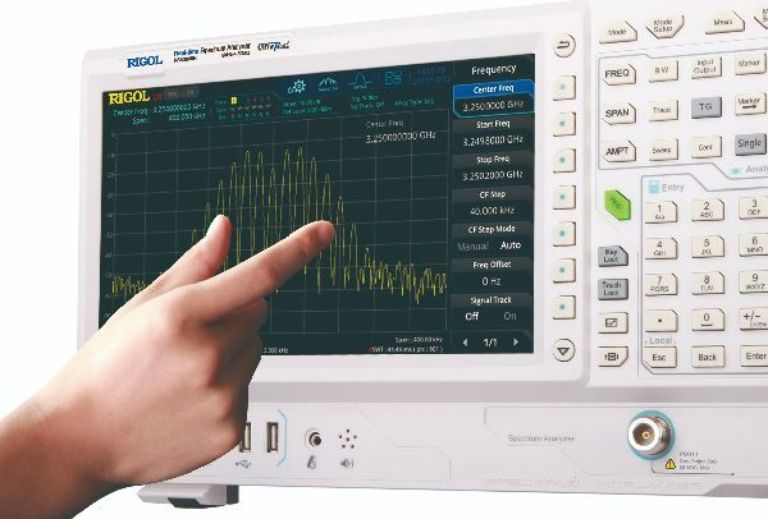

RSA3000 with a 10.1-inch multi-touch capacitive screen with quick setup, and support a variety of gestures such as dragging, expanding, and zooming waveforms to provide a personalized interactive experience that maximizes your time.

Complete Operations with a Multi-touch Screen

Excellent Phase Noise Metric

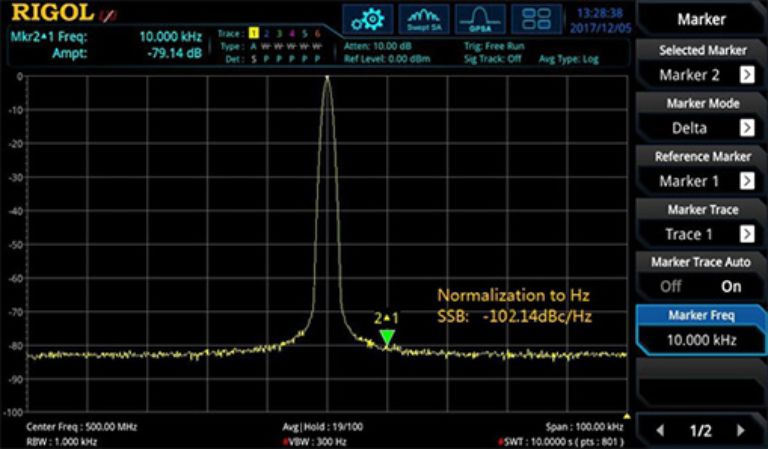

Excellent sweep performance, phase noise as low as -102dBc/Hz.

Excellent Phase Noise Metric

Model

Model Frequency Range Resolution Bandwidth (RBW) Phase Noise (Typ.) Displayed Average Noise Level (DANL) Tracking Generator Analysis Function
RSA3015N 9kHz~1.5GHz 1Hz~3MHz(10MHz opt.) -102dBc/Hz@10kHz -161dBm Yes RTSA/EMI/VNA
RSA3030N 9kHz~3GHz 1Hz~3MHz(10MHz opt.) -102dBc/Hz@10kHz -161dBm Yes RTSA/EMI/VNA
RSA3045N 9kHz～4.5GHz 1Hz~3MHz(10MHz opt.) -102dBc/Hz@10kHz -161dBm Yes RTSA/EMI/VNA
