DL3000A

The RIGOL DL3000A Series is a high-performance programmable DC electronic load designed for power supply, battery, charger, and electronic component testing. It features a user-friendly interface, high-speed dynamic testing capabilities, and multiple operating modes to meet demanding R&D, production, and quality assurance applications. The DL3000A series delivers up to 350 W power, 150 V voltage, 60 A current, and supports 30 kHz dynamic mode with current slew rates up to 5 A/µs for accurate transient testing.

Total Power : 350W
Voltage : 150V
Current : 60A
Maximum Frequency : 30kHz
Current Slew Rate : 1A/us
Current Readback Resolution : 0.1mA
Voltage Readback Resolution : 0.1mV
Datasheet

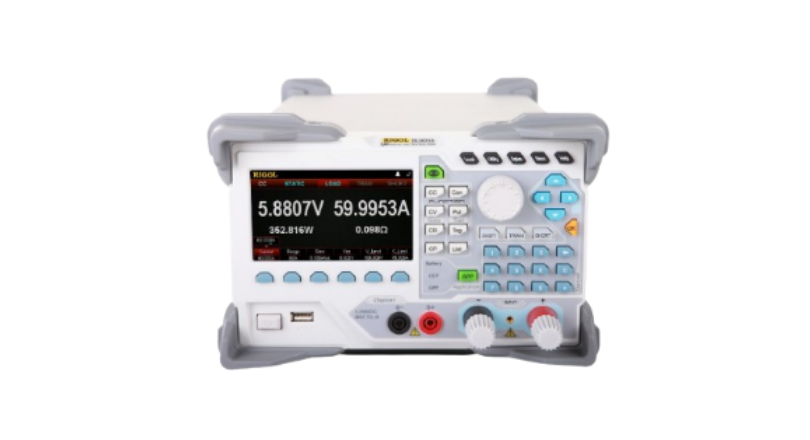

Main Image
Thumbnail 1

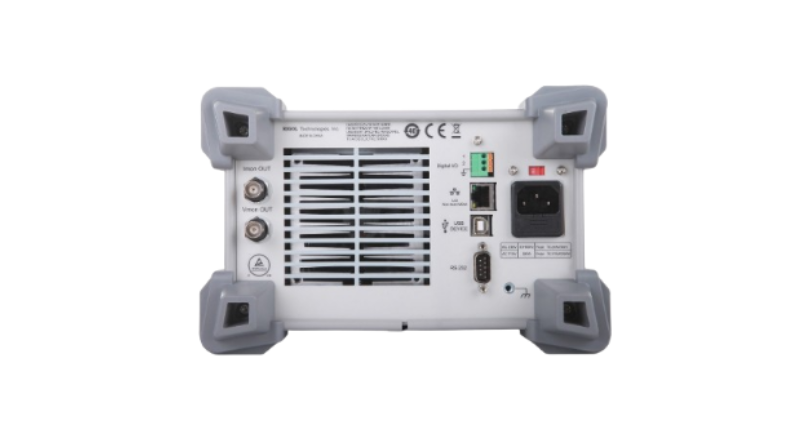

Thumbnail 2

Features

30kHz Dynamic Mode

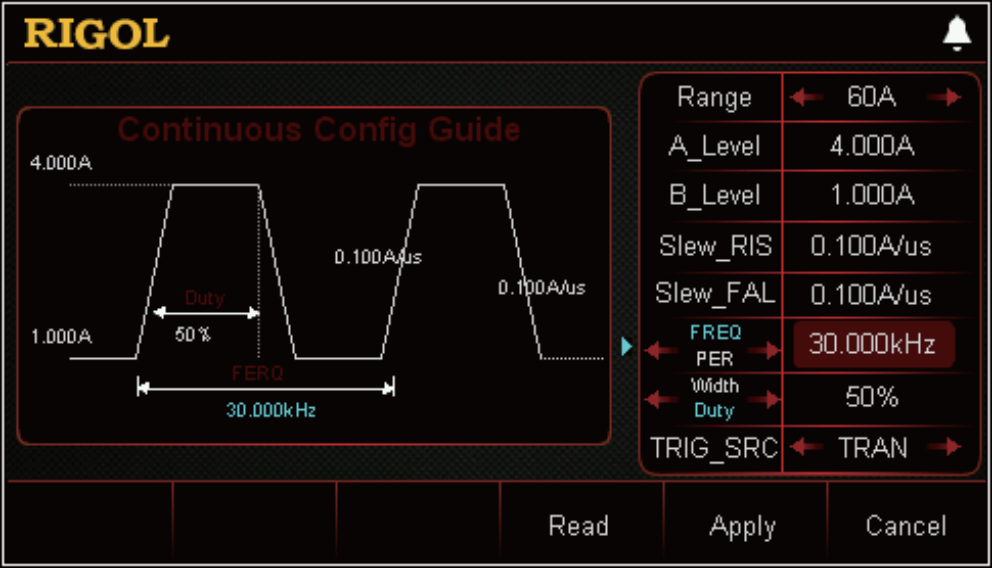

The dynamic test function enables the load to switch between two sets of preset parameters (Value A and Value B) according to the set rules. This function can be used to test the dynamic characteristics of the device under test, and the maximum frequency can be set to 30 kHz.

30kHz Dynamic Mode

Maximum current slope of 5A/us

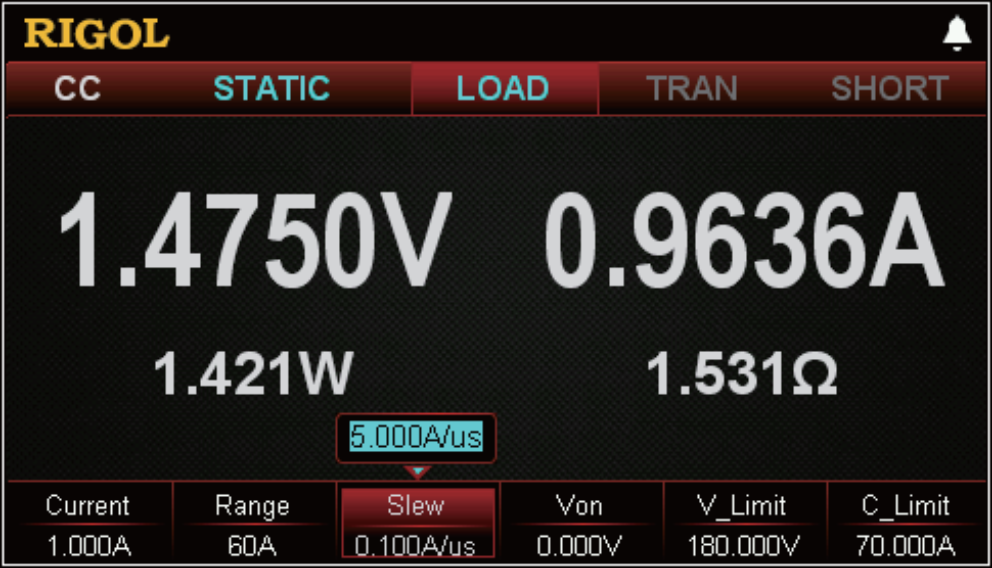

The DL3041 model offers up to 5A/us and a 30kHz frequency setting for transient mode testing. This flexibility allows for simulating more dynamic real-world power demands, bringing higher reliability to battery and power supply systems.

Maximum current slope of 5A/us

List function

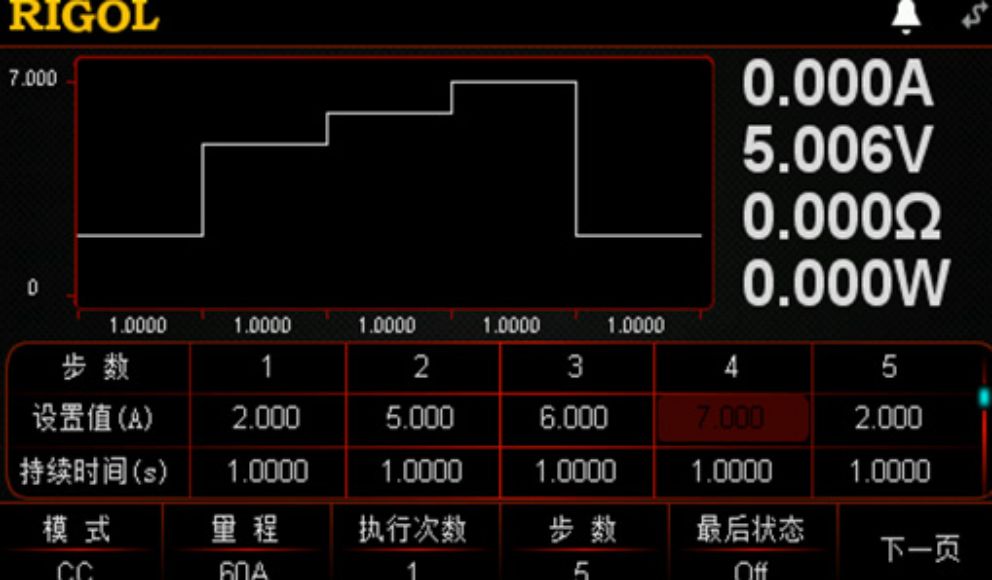

By editing the setting values, durations, and slopes (only in CC mode) of each step, the List function can generate various complex sequences to meet complex testing requirements.

List function

Waveform display function

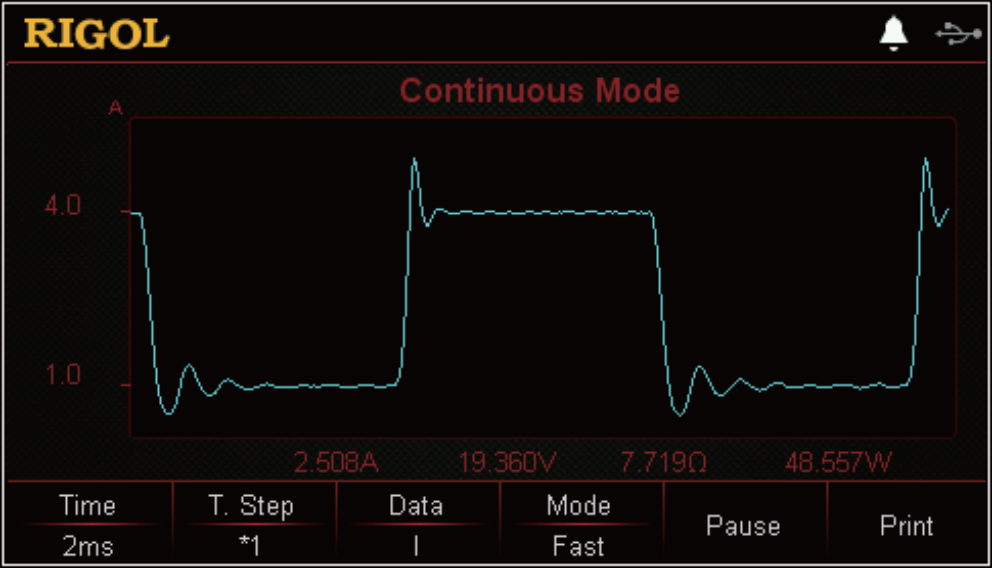

The load provides a waveform display function and supports operations such as pausing, zooming in, zooming out, and taking screenshots of the waveform, which is convenient for users to observe the changing trend of parameters through the dynamic waveform.

Waveform display function

Battery testing function

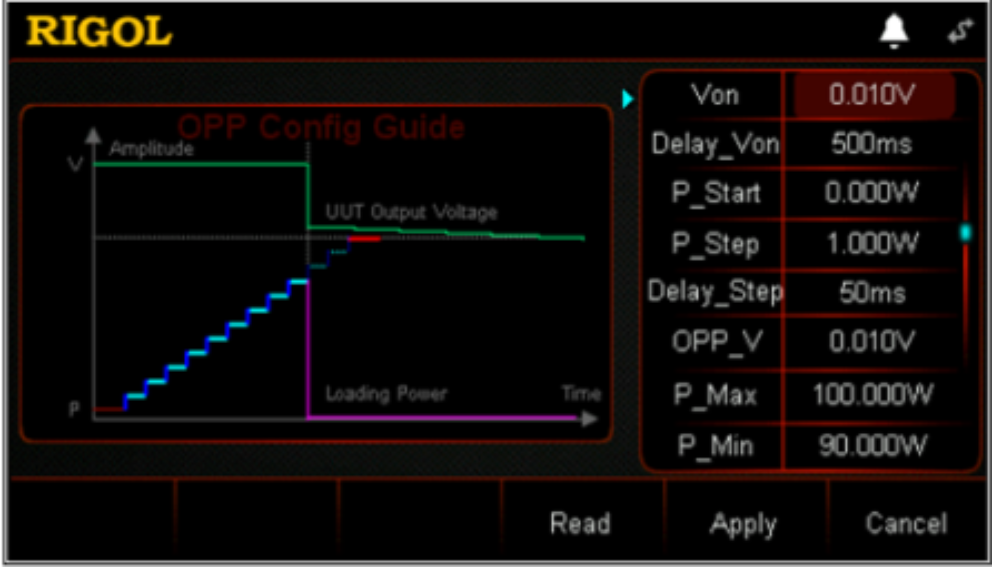

The key to making full use of the electronic load is the ability to easily configure the tests you need to run. Conduct battery capacity and discharge time tests through specialized settings to determine whether the battery can work effectively.

Battery testing function

Model

Model Total Power Voltage Current Maximum Frequency Current Slew Rate Current Readback Resolution Voltage Readback Resolution
DL3031A 350W 150V 60A 30kHz 1A/us 0.1mA 0.1mV
DL3021A 200W 150V 40A 30kHz 1A/us 0.1mA 0.1mV
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Datasheet

Name Version Release Date Download
DL3000A Datasheet DSJ01109-1110 2025-12-16 Download

Quick Guide

Name Version Release Date Download
DL3000A QuickGuide QGJ01001-1110 2025-10-28 Download
